Lexus ES300 (1992-2003) Engine Intake Manifold Gasket Set Guide
Address rough idling and leaks by choosing the right intake manifold gasket set for your ES300's V6 engine.
- A failing intake gasket causes vacuum leaks (rough idle, hissing) or coolant leaks (overheating).
- This is a labor-intensive job; it's smart to also replace spark plugs and the PCV valve at the same time.
- High-quality aftermarket brands like Beck Arnley and Victor Reinz are excellent alternatives to OEM parts for this repair.
- No recalls were issued for this part; failure is due to normal aging of the gasket materials.
Is Your ES300 Showing Signs of a Bad Intake Gasket?
A failing intake manifold gasket on the 1992-2003 Lexus ES300 can cause a range of engine problems. Because the V6 engine's intake manifold is complex, a leak can introduce unmetered air, or worse, allow coolant to mix with engine oil. Early symptoms are often subtle, but they become more serious over time. Ignoring them can lead to poor performance, reduced fuel economy, and potential engine damage.
Common Failure Symptoms

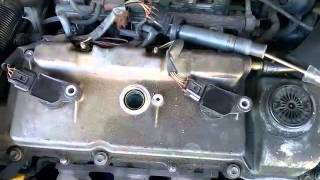

- Rough Idle or Stalling: The engine may shake, run unevenly, or stall at stops due to an incorrect air-fuel mixture from a vacuum leak. 🎬 Watch this guide on diagnosing a rough idle.
- Engine Overheating: If the gasket fails around a coolant passage, leaking coolant can lead to low levels and cause the engine to overheat.
- Coolant Leaks: You might notice puddles of green, red, or yellow fluid under your car or a sweet smell after driving.
- Check Engine Light: A vacuum leak will often trigger a Check Engine Light with lean condition codes (like P0171, P0174) or random misfire codes (P0300).
- Hissing or Whistling Noises: A distinct sucking or hissing sound from the engine bay at idle is a classic sign of a vacuum leak caused by a bad gasket.
A Note on the 1MZ-FE Engine (1994-2003)
The 1MZ-FE V6 engine is known for being reliable, but it can be prone to oil sludge if oil changes are neglected. It's also common for the valve cover gaskets to leak over time. A clogged PCV (Positive Crankcase Ventilation) valve can increase pressure inside the engine, putting extra stress on all seals, including the intake manifold gaskets. When replacing your intake gaskets, it's a perfect time to also replace the PCV valve and inspect the valve covers.

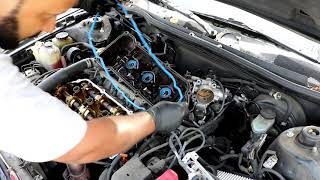

🎬 See how to replace valve cover gaskets on this engine.Choosing the Right Aftermarket Gasket Set
For a vehicle of this age, an aftermarket gasket set offers excellent value and quality. Brands like Fel-Pro often engineer their gaskets for the repair environment, meaning they are designed to seal surfaces that may have minor imperfections from age. OEM gaskets are excellent, but high-quality aftermarket options from reputable brands are perfectly suitable for this repair.
Brand Tiers for Your ES300
- Premium Aftermarket (Beck Arnley, Victor Reinz): Beck Arnley is well-known for often repackaging OEM Japanese parts, which is a great sign for a Lexus. Victor Reinz is another top-tier brand, often an OEM supplier for European cars, known for high-quality materials. You can trust these brands for OEM-level fit and durability.
- Trusted Aftermarket (Apex): Brands like Apex provide a reliable, cost-effective solution. While they may not have the same OEM-supplier reputation as the premium brands, they manufacture gaskets that meet or exceed standard specifications and are a solid choice for a budget-conscious repair.
Pro Tip: Replace More Than Just the Gaskets
The intake manifold must be removed for this job, giving you direct access to other parts. To save on future labor costs, consider replacing the spark plugs, PCV valve, and valve cover gaskets at the same time. If you have high mileage, inspecting or replacing the knock sensors and their harness is also a wise move, as they are located under the manifold.

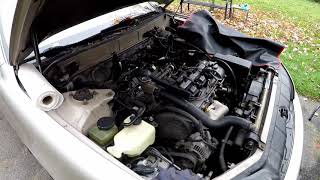

🎬 Watch: How to replace knock sensors while the manifold is off.Replacement Cost and Information
Replacing the intake manifold gasket set is a labor-intensive job. While the parts themselves are not extremely expensive, accessing them takes time. The total cost will depend on shop labor rates and which other parts you decide to replace at the same time.
| Item | Estimated Cost |
|---|---|
| Aftermarket Intake Gasket Set | $58 - $147 |
| Shop Labor | $270 - $400 |
| Total Professional Repair | $500 - $740 |
Frequently Asked Questions
Do I need to replace both upper and lower intake gaskets?
Yes. The intake system on the ES300 V6 has an upper plenum and a lower manifold. A complete job requires replacing the gaskets for both sections to ensure all potential leak points are sealed. Gasket sets typically include all necessary seals for the job.
Can I reuse my old intake gaskets if they look okay?
No. Gaskets are designed for one-time use. They compress and deform to create a seal. Once removed, they will not seal properly again, and you will almost certainly have leaks. Always use new gaskets.
Is this a good DIY job?
This is a challenging DIY job for a beginner. It requires disconnecting numerous hoses, sensors, and removing the upper intake plenum. If you are an experienced home mechanic with the right tools and a service manual, it is achievable. For most owners, professional installation is recommended to ensure it's done correctly.
Were there any recalls for the ES300 intake manifold gasket?
No specific recalls or technical service bulletins (TSBs) were issued by Lexus or the NHTSA for intake manifold gasket failure on the 1992-2003 ES300. This is generally considered a wear-and-tear item that fails with age and mileage.
Helpful Videos
Technical Specifications
OEM Part Numbers: 17177-20020 17178-20020 17176-20010
Set typically includes upper (plenum) and lower (manifold-to-head) gaskets. Materials vary by brand, including multi-layer steel (MLS) and rubber composites.
