Ford Explorer (1991-2004) Idle Air Control Valve Guide
Solve your Explorer's rough idle, stalling, and hard starts by understanding and choosing the right Idle Air Control Valve.
- A bad IAC valve is a primary cause of stalling and rough idle on 1991-2004 Explorers.
- Replacement is a simple, beginner-friendly DIY job that takes less than 30 minutes.
- For best results and longevity, choose the OEM Motorcraft part or the OE-equivalent Hitachi brand.
- Cleaning a sticky valve is only a temporary fix; replacement is the reliable, long-term solution.
Is Your Explorer's Idle Acting Up?
A faulty Idle Air Control (IAC) valve is a very common reason for idle problems in the 1991-2004 Ford Explorer. When this part fails, it can no longer accurately control the air entering the engine at idle. This leads to a variety of noticeable symptoms, from an annoying bouncing idle 🎬 Watch a video breakdown of common bad IAC valve symptoms. to the engine stalling completely at a stoplight. Because it's a frequent failure point, especially on older vehicles, it's one of the first parts to check for these kinds of issues.
Symptoms of a Failing IAC Valve
- Rough or Unstable Idle: The most common sign. The engine RPM may bounce up and down, or the engine might feel like it's sputtering or shaking while stopped.
- Engine Stalling: The engine may stall when you come to a stop, put the vehicle in gear, or turn on the A/C. This happens because the valve gets stuck closed, starving the engine of air.
- High Idle Speed: If the valve gets stuck open, it allows too much air in, causing the engine to idle much faster than normal (often above 1000 RPM).
- Hard Starting: A bad IAC valve can make it difficult to start the engine, especially when it's cold.
- Check Engine Light: A failing IAC valve can trigger the Check Engine Light. A common trouble code associated with this is P0505 (Idle Air Control System Malfunction), though other codes may appear.
Choosing the Right Aftermarket IAC Valve
When replacing the IAC valve on your Explorer, you have a choice between OEM (Motorcraft) and several aftermarket brands. While some aftermarket parts can be questionable, many offer a good balance of quality and value.
Brand Quality Tiers
| Tier | Brands | Assessment |
|---|---|---|
| OEM / Premium | Motorcraft, Hitachi | Motorcraft is the original Ford part and offers the best guarantee of fit and long-term reliability. Forum users consistently recommend it as the top choice. Hitachi is reported to be an original equipment manufacturer for Ford, meaning their part is often identical to the Motorcraft one, just in a different box. It's considered a top-tier alternative. |
| Quality Aftermarket | Standard Motor Products (SMP), Holstein | Standard Motor Products is a well-regarded aftermarket brand that generally produces reliable parts. Some users note that their main line is good, but to be cautious of their budget "T-series" line, if available. Holstein promotes its parts as being manufactured to high standards using quality materials to meet or exceed OE performance. |
| Economy | True Tech, Store Brands | These brands offer the lowest price point. While they may function correctly initially, forum discussions often warn that cheaper, unbranded, or store-brand IAC valves have a higher failure rate and may not perform as smoothly as OEM or premium aftermarket options. They can be a viable short-term solution, but may not last as long. |
Typical Replacement Costs
The cost to replace the IAC valve on a 1991-2004 Explorer is reasonable, especially if you do the work yourself. The part is generally easy to access on top of the engine.
| Cost Type | Estimated Price Range |
|---|---|
| New OEM (Motorcraft) | $90 - $150+ |
| New Aftermarket | $54.21 - $122.02 |
| Shop Labor | $50 - $100 |
Pro Tip: Cleaning vs. Replacing
Many owners try cleaning the IAC valve with throttle body cleaner to resolve issues. Carbon buildup can cause the internal plunger to stick. While cleaning can sometimes restore function temporarily, it is often not a permanent fix. If the electronics inside the valve are failing, or if it's worn internally, the problems will return. Given the low cost of a new part and the high likelihood of the issue coming back, replacement is the recommended long-term solution.
Frequently Asked Questions
Where is the IAC valve located on a 1991-2004 Explorer?
The IAC valve is typically located on or near the throttle body on top of the engine. It is a small, cylindrical metal component with an electrical connector and is usually held in place by two bolts (often 8mm or 10mm). On some later models, it may be under a plastic engine cover.
Is replacing the IAC valve a difficult job?
No, this is considered an easy DIY repair. The job typically involves disconnecting the battery, unplugging one electrical connector, and removing two bolts. The entire process usually takes less than 30 minutes and requires only basic hand tools like a socket wrench.
🎬 Follow this step-by-step guide to replacing your Explorer's IAC valve.Are there any recalls for the IAC valve on these Explorers?
Searches of the NHTSA database did not find any specific recalls for the Idle Air Control valve on 1991-2004 Ford Explorers. However, Ford did issue a Technical Service Bulletin (TSB 03-3-5) for some 2000-2003 models that provided diagnostic tips for idle concerns related to the IAC valve, indicating it's a known issue.
Do I need to reset the computer after replacing the IAC valve?
It is a good practice to reset the Powertrain Control Module (PCM) after replacement. You can do this by disconnecting the negative battery terminal for about 15 minutes. This allows the computer to clear any old data and relearn the idle strategy with the new valve.
Helpful Videos
Technical Specifications
OEM Part Numbers: F77Z9F715AB CX1528 97JZ9F715BA CX2381 1L2E9F715AC

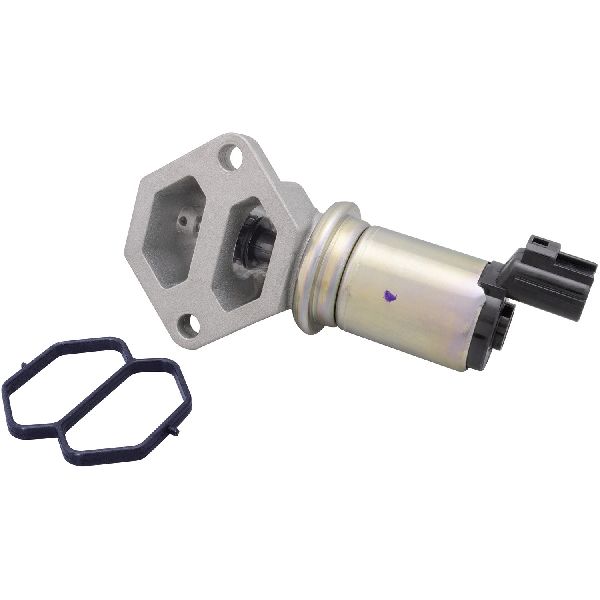

Typically a 2-bolt flange mount with a 2-pin electrical connector. Always includes a new gasket for installation.
