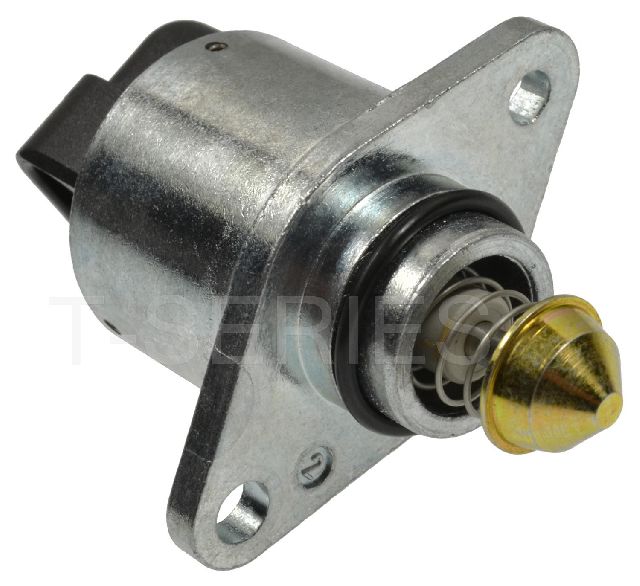

Your 1989-1990 GMC C6000 Idle Air Control Valve: A Guide to Solving Idle Issues
If your medium-duty truck is stalling, surging, or idling rough, the Idle Air Control valve is a likely suspect.
- Symptoms of a bad IAC valve include rough idle, stalling, and a high idle speed.
- Always check for vacuum leaks before replacing the IAC valve, as they can cause similar symptoms.
- Standard Ignition is a well-known aftermarket brand; True Tech is likely a budget-friendly store brand.
- Replacement is a simple, low-cost DIY job that can be done in under 30 minutes with basic tools.
Is Your Truck's Idle Acting Up?
The Idle Air Control (IAC) valve is a common failure point on older GM trucks with throttle body injection (TBI). When it fails, it directly impacts how your truck runs when you're not pressing the gas pedal. The symptoms are often very noticeable and can range from annoying to making the truck difficult to drive.
Symptoms of a Failing IAC Valve
- Rough or Bouncing Idle: The engine RPMs may jump up and down unpredictably while parked or at a stoplight.
- Stalling: The engine may die when you come to a stop, put it in gear, or when turning on accessories like the A/C. This happens because the valve closes completely and chokes the engine of air.
- High Idle: The engine may race at a high RPM even after it's warmed up. This is often caused by an IAC valve that is stuck open, allowing too much air into the engine.
- Hard Starting: A faulty IAC can disrupt the air/fuel mixture enough to make the engine difficult to start without pressing the gas pedal.
- Check Engine Light: The engine computer can detect a problem with the IAC circuit, which will turn on the Check Engine Light and store a trouble code like P0505.
Check for Vacuum Leaks First
Before replacing the IAC valve, check for vacuum leaks. Cracked or disconnected vacuum hoses can cause the exact same symptoms as a bad IAC valve, especially a high or surging idle. A thorough visual inspection can save you from replacing a part that isn't broken.
Choosing the Right Aftermarket Part
For a vehicle from this era, finding a new original equipment (OEM) part is nearly impossible. The aftermarket is your go-to source. Quality is important, but even a budget-friendly part will often solve the problem.
- Standard Ignition (Standard Motor Products): This is a well-known brand in the aftermarket world. They are generally considered a reliable, mid-to-upper-tier option that provides good performance and durability. If you want a part you can trust from a company with a long history, this is a solid choice.
- True Tech: There is no major parts manufacturer found under the name "True Tech." This name is commonly used by independent repair shops. A part branded as "True Tech" is likely a private-label product from a specific retailer, positioning it as a budget or value option. Quality and longevity are unknown, but it may be a cost-effective solution.
Cost of Replacing the IAC Valve
This is a relatively inexpensive repair, especially if you do it yourself. The part itself is affordable, and labor time is minimal.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard, True Tech) | $39.81 - $63.73 |
| Shop Labor | $75 - $150 |
| New OEM | Likely Discontinued |
| Used OEM | Varies, Not Recommended |
DIY Installation is Easy
Replacing the IAC valve is a great job for a beginner. It is located on the side of the throttle body and is typically held on by two Torx screws. The job requires only basic hand tools and can be completed in under 30 minutes.
Frequently Asked Questions
Can I just clean the IAC valve?
Sometimes, yes. Carbon can build up on the valve's pintle (the moving pin), causing it to stick. You can remove the valve and carefully clean the pintle with throttle body cleaner. However, cleaning is often a temporary fix. If the internal motor is failing, cleaning will not help, and replacement is the only solution.
What happens if I don't replace a bad IAC valve?
You will continue to have frustrating idle problems. The most significant risk is the engine stalling in traffic or while maneuvering at low speeds, which can be a safety hazard. It generally won't cause major engine damage, but it makes the truck unreliable.
Do I need to reset the computer after replacing the IAC?
It's a good idea. After installing the new valve, you can reset the computer by disconnecting the negative battery terminal for about 30 seconds. This clears any learned values and allows the computer to properly calibrate to the new valve. Some procedures for GM TBI trucks involve jumping pins on the diagnostic link connector (ALDL) to fully retract the new IAC before installation, but a simple battery disconnect and a few minutes of idling usually works.
Why is my idle still high after replacing the part?
If a new IAC valve doesn't fix a high idle, you likely have another issue. The most common cause is a vacuum leak from a cracked hose or a bad gasket. It could also be an issue with the Throttle Position Sensor (TPS) or incorrect base idle adjustment, though the latter should not be tampered with unless you are certain it's wrong.
Technical Specifications
Designed for GM Throttle Body Injection (TBI) systems used on 1989-1990 C-series medium-duty trucks.
