Chevrolet C1500 HVAC Blower Control Switch Guide (1988-1999)
If your C1500's fan is acting up, this guide will help you diagnose the problem and choose the right replacement switch.
- First, confirm your dash style: 1988-1994 (sliders) and 1995-1999 (knobs) use different, non-interchangeable parts.
- If the fan only works on high, the problem is almost certainly the blower motor resistor, not the switch.
- For 1995-1999 models, you can replace just the small, affordable switch on the back of the control unit.
- Be gentle when removing the dash trim, as the plastic tabs become very brittle with age and can break easily.
Is Your C1500 HVAC Switch Failing?
When you lose control of the fan speeds in your 1988-1999 Chevy C1500, the blower control switch is a common suspect. However, the symptoms can sometimes point to other, related parts. Before you buy a new switch, it's important to correctly identify the problem.
First: Identify Your HVAC Control Style
The HVAC controls on these trucks changed in 1995, and the parts are not interchangeable. It is critical to order the part that matches your truck's year.
- 1988-1994 Models: These trucks have a horizontal control unit, often with slider controls. For these models, the fan switch is usually part of the entire HVAC control module. You will typically need to replace the whole control unit.
- 1995-1999 Models: These trucks use a more modern-looking panel with three rotary knobs for fan speed, temperature, and mode. On these models, the blower motor switch is a small, separate part that can be unbolted from the back of the main control unit.
Pro Tip: Check the Blower Motor Resistor First

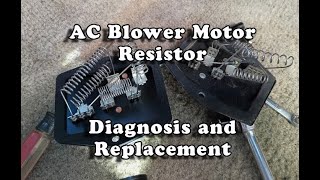

If your fan only works on the highest speed, the problem is almost always the blower motor resistor, not the switch. The 'high' setting bypasses the resistor, which is why it's the only one that works when the resistor fails. This part is cheap and located behind the glove compartment 🎬 Watch this step-by-step diagnosis and replacement of the blower motor resistor, held in by two screws. A failing blower motor can draw too much power and burn out the resistor, so if you replace a resistor, inspect the blower motor as well.
🎬 See how to replace the blower motor on GMT400 trucksCommon Failure Symptoms
Here are the most common signs that your blower control switch itself is the problem:
- Fan doesn't work on any speed: If you've checked the fuse and the blower motor itself works when given direct power, the switch is a likely culprit.
- Some speeds work, but not all (and it's not just 'high'): If one or more of the lower or intermediate speeds have stopped working, the contacts inside the switch may be worn out.
- Intermittent operation: If you have to jiggle the knob or slider to get the fan to work, the switch is failing.
Choosing the Right Aftermarket Part
For a vehicle of this age, aftermarket parts offer excellent value. The original OEM switches are often discontinued or only available as expensive, complete control units. Aftermarket brands like Four Seasons, Global Parts Distributors (GPD), and Rostra provide direct-fit replacements that meet or exceed original specifications.
- Good Tier (Value): Brands like Global Parts Distributors (GPD) offer affordable replacement parts that get the job done. They are a national brand for automotive A/C system products. While user reviews are sometimes mixed depending on the complexity of the part, for a simple switch, they provide a cost-effective solution.
- Better Tier (OEM Quality): Four Seasons is a well-known aftermarket brand for HVAC components. While some online discussions show mixed experiences with more complex parts like compressors, their simpler electronic components are generally considered reliable.
- Best Tier (Enhanced Durability): Rostra Powertrain is known for producing robust electronic components. While they may be priced slightly higher, they often feature durable materials designed for longevity.
For a simple component like a blower switch on a GMT400 truck, any of these brands should provide a reliable repair without the high cost of searching for a New Old Stock (NOS) OEM part.
Common Ordering Mistake
The biggest mistake is ordering a part for the wrong year range. The 1988-1994 control unit is completely different from the 1995-1999 switch. Always confirm your truck's model year before purchasing.
Installation Overview
Replacing the blower control switch is a straightforward DIY job for most owners.
- Disconnect the negative battery terminal.
- Carefully pull off the dash bezel that surrounds the instrument cluster and radio. It is held in by clips.
- For 1995-1999 models, you will see the HVAC control unit. Unplug the electrical connectors from the back.
- Remove the screws holding the switch to the back of the control panel, swap in the new switch, and reassemble. 🎬 Watch: 5-minute GMT400 heater control unit replacement guide
Be aware that the plastic tabs on the dash and control unit can be very brittle after decades and may break during removal.
Frequently Asked Questions (FAQ)
Why does my fan only work on high?
This is a classic symptom of a failed blower motor resistor, not the control switch. The resistor controls the lower fan speeds, and the high setting bypasses it. The resistor is an inexpensive part located behind the glove box.
Do I need to replace the whole control unit or just the switch?
It depends on your truck's year. For 1988-1994 models with slider controls, you typically have to replace the entire control unit. For 1995-1999 models with rotary knobs, you can replace just the small switch on the back of the unit.
Are there any recalls for the HVAC switch on my C1500?
No specific recalls for the HVAC blower control switch were found for the 1988-1999 Chevrolet C1500 after a search of the NHTSA database.
Is an aftermarket switch as good as the original GM part?
For this component, a quality aftermarket switch from a reputable brand is a perfectly acceptable and cost-effective replacement. Given the age of the vehicle, finding a new OEM part is difficult and often unnecessary for a simple switch. Aftermarket brands often use modern materials that can be just as durable.
Helpful Videos
Technical Specifications
OEM Part Numbers: 16192099 1572275 16268157 9354237
Varies by year range. 1988-1994 models typically integrate the switch into the main control unit. 1995-1999 models use a separate 5-position rotary switch with a 4-pin connector.
