Dodge Dakota Engine Oil Pressure Switch and Sender Guide (1987-1997)
Is your oil gauge acting strange? Here’s what every 1987-1997 Dodge Dakota owner should know about the oil pressure switch.
- An erratic oil gauge on a 1987-1997 Dakota is very often a bad sending unit, not a bad oil pump.
- Before replacing, always check the oil level and consider a mechanical pressure test to rule out a real engine issue.
- Replacement is a simple DIY job, but you need a special oil pressure switch socket to do it correctly.
- The sensor is usually located near the distributor at the back of the engine on V6/V8 models and can be hard to reach.
Is Your Dakota's Oil Gauge Lying to You?
If you own a first-generation Dodge Dakota, you might see your oil pressure gauge behave erratically. It might drop to zero at a stoplight, then jump back up when you accelerate. Or, it might stay pegged high or low. While this is alarming, the cause is often a faulty oil pressure sending unit, not a serious internal engine problem. These sensors are a common failure point on Dodge trucks of this era. This guide will help you diagnose the problem and choose the right replacement part.
Symptoms of a Failing Oil Pressure Switch
A bad oil pressure switch can create a lot of worry. The good news is that the switch itself is usually the problem, not your engine's oil pump. Here are the most common signs that your Dakota's oil pressure switch needs replacement:
- Erratic Gauge Readings: The needle on the oil pressure gauge may jump around wildly, drop to zero intermittently, or read incorrectly high or low. This is the most frequent complaint from Dakota owners.
- Oil Pressure Light On: The "Check Gauges" or oil warning light may illuminate, especially at idle or after the engine has warmed up.
- Visible Oil Leak: The sensor itself can fail, causing oil to leak from its body or the electrical connector. You might notice an oily residue on the sensor or drips under the truck near the back of the engine.
Pro Tip: Verify the Pressure First
If you see a low oil pressure reading, don't panic, but don't ignore it. First, check your oil level. If the level is correct, the safest next step is to verify the actual oil pressure with a mechanical gauge. This test will confirm whether you have a real pressure problem or just a bad sensor. Most shops can perform this test quickly. If the mechanical gauge shows good pressure, you can be confident that simply replacing the sensor will fix the issue.
Choosing the Right Aftermarket Switch
For a vehicle like the 1987-1997 Dakota, aftermarket parts offer a significant cost saving over discontinued OEM parts. However, quality can vary. Forum discussions among Dodge owners suggest that while some budget parts work, they may not last as long. Investing in a recognized brand is often worth the small extra cost to avoid replacing the part again in a year.
- Standard Motor Products (Standard Ignition): A widely respected aftermarket brand with a long history. They manufacture many of their own components and are generally considered a reliable choice for sensors and electrical parts. 🎬 See how Standard Motor Products manufactures their oil pressure switches.
- Crown Automotive: Known primarily for Jeep parts, Crown also offers a wide range of components for Dodge vehicles. They are generally seen as a good quality OEM-style replacement, often better than generic, no-name parts but sometimes viewed as a step below top-tier aftermarket or original Mopar.
- Rostra Powertrain / Global Parts: These brands are available but have less feedback in owner forums specifically for this part. They are typically functional, budget-friendly options.
Some owners strongly recommend using an OEM Mopar part if one can be found, citing that cheap aftermarket sensors can fail frequently. However, for this model year, a quality aftermarket part from a brand like Standard is a very common and acceptable repair.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $10 - $52 |
| New OEM (Mopar) Switch | $45 - $80 (if available) |
| Shop Labor | $75 - $150 |
| Total (DIY) | $10 - $52 |
| Total (Shop Installed) | $85 - $202 |
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on a 1987-1997 Dakota?
The location varies slightly by engine. On the 3.9L V6 and 5.2L V8 engines, the sensor is typically located at the top of the engine block, near the back by the firewall, just to the passenger side of the distributor. It can be difficult to reach. On some other engine configurations, it may be located just above the oil filter. Always clean the area before removing the old sensor to prevent dirt from falling into the engine.
Can I replace this part myself?
Yes, this is a very feasible DIY job for most home mechanics. The main challenge is access, as the sensor is often in a tight spot. You will need a special deep socket designed for oil pressure switches to avoid damaging the new part. The process involves disconnecting the electrical connector, unscrewing the old switch, screwing in the new one, and reconnecting the plug.

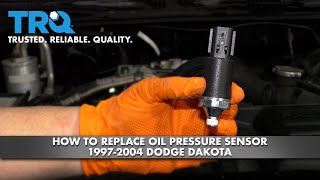

🎬 Follow this step-by-step video guide to replace your Dakota's sensor.Do I need a special tool to replace the oil pressure switch?
Yes, it is highly recommended to use an oil pressure switch socket. This is a special deep socket with a cutout to fit over the plastic electrical connector. Using a standard deep socket can break the sensor. Some owners have used wrenches, but a socket makes the job much easier and safer for the part.
Is it a switch or a sending unit?
The terms are often used interchangeably. Technically, a "switch" just turns a light on or off at a set pressure. A "sending unit" or "sender" provides a variable signal for a gauge. Your Dakota may have one or the other depending on its instrument cluster options. It's important to buy the correct part for your truck's configuration (gauge vs. light).
Were there any recalls for this part?
No, there were no specific recalls issued by the NHTSA for the engine oil pressure switch on the 1987-1997 Dodge Dakota. While Chrysler has issued Technical Service Bulletins (TSBs) for oil pressure sensor issues on other models, like TSB 18-034-14 for a P0520 code, these are for much newer vehicles and do not apply to this generation of Dakota.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5149097AB 56031005AB 4289926
Varies by engine and model year. Some switches are for warning lights only (1-terminal), while sending units for gauges are often larger and may have 2 or 3 terminals. It is critical to match the new part to the vehicle's specific engine and dash configuration (light or gauge).
