Cadillac DeVille Starter Motor: A Guide for the 1984-1996 Generations
Understanding the common causes of that dreaded 'click' and how to choose the right replacement starter for your DeVille.
- First, identify your engine. The starter replacement procedure and cost for a Northstar V8 are vastly different from a 4.9L or HT4100 V8.
- For Northstar engines, the starter is under the intake manifold, making replacement a 3-4 hour job. Consider a higher-quality new part to avoid repeating this difficult repair.
- For pre-Northstar engines, the starter is externally mounted and is a more straightforward 1-2 hour job.
- Before replacing the starter, always check for simpler issues like a weak battery, corroded battery terminals, and loose connections at the starter itself.
Is Your DeVille a Pre-Northstar or Northstar Engine?
Before you even think about buying a starter, you must know which engine is in your DeVille. The replacement job is drastically different depending on the engine. This is the most important factor for any 1984-1996 DeVille owner.
- 1984-1993 (approx.): HT4100, 4.5L, and 4.9L V8 Engines. On these models, the starter is mounted externally on the side of the engine block. It is accessible from underneath the car. While sometimes in a tight spot, the replacement is a traditional job that can be done in a home garage with the right tools.

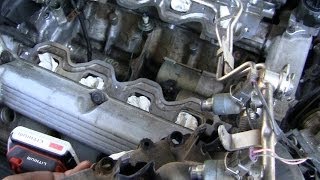

- 1994-1996 (approx.): Northstar V8 Engine. The starter on the Northstar engine is located underneath the intake manifold, deep in the 'V' of the engine. This is a much more complex and labor-intensive job that requires removing the entire top part of the engine to gain access. 🎬 Watch this step-by-step walkthrough of a Northstar starter replacement.
Labor Cost is the Key Difference
Replacing a starter on a 4.9L engine might take 1-2 hours. Replacing a starter on a Northstar engine can take a professional 3-4 hours or more, making the labor cost three to four times higher.
Signs of a Failing Starter Motor
A starter motor rarely fails without warning. Look out for these common symptoms:
- Single, Loud Click: You turn the key and hear one loud 'CLICK' but the engine doesn't crank. This usually means the starter's solenoid is working, but the motor itself is not. It can also be caused by a poor battery cable connection.
- No Sound at All: If your battery is good and the lights work, but you get nothing when you turn the key, the problem could be the starter or the ignition system.
- Slow, Labored Cranking: If the engine turns over very slowly, like the battery is dying (even when it's fully charged), the starter is likely worn out and drawing too much power.
- Intermittent Starting: The car fails to start, but then starts up fine on the second or third try. This is a classic sign of a starter on its way out. 🎬 See how to diagnose why your Cadillac won't start. Sometimes this is caused by a loose wire, but often it's an internal failure.
- Engine Won't Start When Hot: On pre-Northstar models, the starter can get hot from being near the exhaust manifold. When it fails, it may work when cold but not have the strength to crank the engine when hot. This is called 'heat soak'.
Choosing the Right Aftermarket Starter
When buying a new aftermarket starter, you generally get what you pay for. For a difficult job like the Northstar starter, it is often worth spending more on a high-quality part to avoid doing the job twice.
| Brand Tier | Brands | Quality & Use Case |
|---|---|---|
| High-Performance / Heavy-Duty | Powermaster | Often built with higher-quality components than stock. A good choice for enthusiasts or those who want maximum reliability and cranking power, especially for the difficult-to-access Northstar starter. |
| OEM-Quality Replacement | ACDelco | As a GM-affiliated brand, ACDelco parts are considered a trusted, reliable choice that meets or exceeds original specifications. A safe bet for any DeVille owner. |
| Standard Replacement | MPA | These starters offer a balance of affordability and function. They are a good budget-friendly option for getting your vehicle back on the road, especially for the easier-to-replace pre-Northstar models. |
Known Issues, Recalls, and Bulletins
No specific recalls have been issued by the NHTSA for the starter motor on the 1984-1996 Cadillac DeVille. However, General Motors has issued a Technical Service Bulletin (TSB) that applies to some vehicles. It notes that a rattle from the engine area can be caused by a loose starter pinion gear. The fix is to replace the starter motor.
Frequently Asked Questions (FAQ)
Is the Northstar starter replacement really that hard?
It is not a simple job. It requires removing the fuel lines, electrical connectors, and the entire intake manifold. While many experienced mechanics say its reputation is worse than the actual job, it is considered a difficult and time-consuming task for a DIYer. If you are not comfortable with extensive engine work, it is best left to a professional.

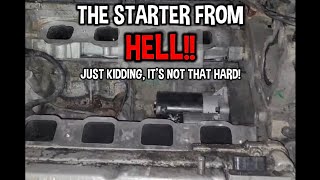

🎬 Watch a mechanic explain why this job isn't actually impossible.My car just clicks. Can I just replace the solenoid?
On most modern starters, the solenoid is integrated into the starter assembly. While it's sometimes possible to replace just the solenoid, it is almost always sold as a complete unit with the motor. Given the labor involved, especially on a Northstar, it is always recommended to replace the entire starter assembly.
What are starter shims and will I need them?
Starter shims are thin metal spacers used to create the correct distance between the starter gear and the engine's flywheel. Some pre-Northstar DeVille models may require them. If your old starter has shims, you must reinstall them with the new starter in the exact same way.
Could my problem just be a loose wire?
Yes. Before replacing the starter, always check that the battery terminals are clean and tight, and inspect the main power cable running to the starter. On Northstar engines, owners have gone through the entire process of removing the intake manifold only to find a loose nut on the starter solenoid was the real problem. Always check the simple things first.
Helpful Videos
Technical Specifications
Due to significant engine changes during this period (HT4100, 4.5L, 4.9L, Northstar), starter part numbers are not interchangeable. Always confirm the correct part for your specific year, model, and engine using your vehicle's VIN.
