Engine Water Pump: A Guide for 1983-2002 Toyota Camry Owners
Everything you need to know before replacing your Camry's engine water pump.
- For maximum reliability, choose an Aisin or GMB brand water pump, as Aisin is the original Toyota supplier.
- On most 1983-2002 Camry engines, the water pump is driven by the timing belt. Always replace them together as a kit to save on future labor costs.
- Symptoms like coolant leaks, overheating, or grinding noises from the engine are serious warnings that should not be ignored.
- A slow leak from the 'weep hole' is a definite sign the pump is failing and needs to be scheduled for replacement.
Symptoms of a Failing Water Pump
A failing water pump rarely dies without warning. For 1983-2002 Camry models, the signs are usually clear. Ignoring them can lead to severe engine damage, like a warped cylinder head or blown head gasket. Be aware of the following symptoms:
🎬 Watch: How to diagnose a failing water pump- Coolant Leaks: This is the most common sign. You may see puddles of green, pink, or orange fluid under the front-center of your car. Look for drips or crusty, colored stains around the pump itself. Even a small leak from the pump's "weep hole" indicates the internal seal has failed and replacement is needed soon.
- Engine Overheating: If your temperature gauge is climbing into the red, the pump may no longer be circulating coolant effectively. This is a critical situation. Pull over and shut off the engine immediately to prevent major damage.
- Whining or Grinding Noises: A high-pitched whining or a low-pitched grinding sound from the front of the engine can signal a bad water pump bearing. The noise often gets louder as you increase engine speed.
- Wobbly Pulley: With the engine off and cool, try to wiggle the water pump pulley. If there is any movement or play, the internal bearing is worn out and the pump needs to be replaced.
Choosing the Right Aftermarket Water Pump
When replacing the water pump on your Camry, you have a choice between OEM (Original Equipment Manufacturer) and aftermarket parts. For a vehicle of this age, a quality aftermarket part can offer the same performance as OEM for a better price. However, not all aftermarket brands are created equal.
Aftermarket Brand Tiers for 1983-2002 Toyota Camry
| Tier | Brands | Quality & Reputation |
|---|---|---|
| Tier 1: OEM Supplier Quality | Aisin, GMB | Aisin is the original manufacturer for Toyota water pumps. Buying an Aisin pump is often getting the same part that came from the factory, sometimes with the "Toyota" logo ground off, for a lower price. GMB is another well-regarded Japanese manufacturer known for producing high-quality, reliable water pumps. These are the top choices for reliability and peace of mind. |
| Tier 2: Reputable Aftermarket | Beck Arnley, Dayco, Gates, ACDelco | Beck Arnley specializes in parts for foreign nameplates and aims to match OE form and function. Gates and Dayco are major names in the aftermarket, often sold in kits with timing belts. However, owner reviews are mixed; some have experienced premature failures, while others report good service life. ACDelco is a well-known brand offering parts for a wide range of vehicles, including Toyota. These brands can be a good value but may not have the same consistent quality as the OEM suppliers. |
| Tier 3: Economy Brands | Airtex, US Motor Works, Ackoja, Graf | These brands fall into the budget-friendly category. While they meet the price point, there is less consistent, long-term feedback available from Camry owners. For a critical component like a water pump, especially on engines where it is difficult to access, investing in a higher-tier brand is strongly recommended to avoid costly repeat repairs. |
Pro Tip: Replace the Timing Belt at the Same Time
On many 1983-2002 Camry engines, the water pump is driven by the timing belt. The labor involved to access the water pump is nearly identical to the labor for replacing the timing belt. Because of this, it is standard practice and highly recommended to replace the water pump, timing belt, tensioner, and idler pulleys all at the same time. This saves you from paying for the same labor-intensive job twice.

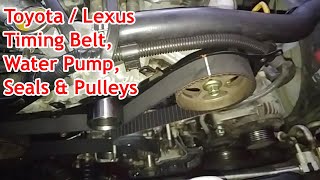

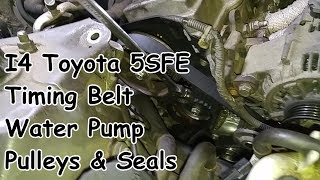

🎬 See this full timing belt and water pump replacement walkthroughFrequently Asked Questions
How much does it cost to replace a water pump on a 1983-2002 Camry?

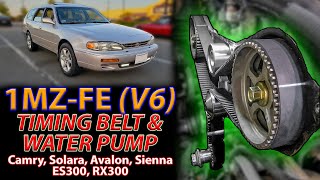

The cost varies by engine and who does the work. 🎬 Watch: 1MZ-FE V6 timing belt and water pump installation guide The aftermarket part itself can range from about $36 to $99. If a shop performs the work, labor costs can be anywhere from $250 to $500 or more, especially if the timing belt is replaced at the same time (which is recommended).
Is Aisin the same as a genuine Toyota water pump?
Yes, Aisin is the original equipment manufacturer (OEM) for Toyota water pumps. An aftermarket Aisin pump is widely considered to be identical in quality to the part you would buy from a Toyota dealership, often at a lower cost.
Are there any recalls for the 1983-2002 Camry water pump?
No, there are no specific water pump recalls issued by the NHTSA for the 1983-2002 Toyota Camry models. A recall in 2012 for water pumps primarily affected hybrid models like the Prius, which used a different type of electric water pump.
What kind of coolant should I use for my Camry?
Using the correct coolant is critical for the life of your new water pump and entire cooling system. For this generation of Camry, you should typically use a high-quality, phosphate-based "red" or "pink" Asian vehicle antifreeze/coolant. Always check your owner's manual or the coolant bottle to confirm compatibility.
What is a water pump "weep hole"?
The weep hole is a small opening on the bottom of the water pump housing. Its purpose is to allow a tiny amount of coolant to escape if the internal shaft seal begins to fail. If you see coolant stains or dripping from this hole, it's a definite sign that the water pump is failing and needs to be replaced soon.

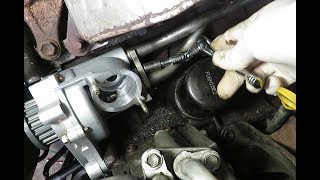

Helpful Videos
Technical Specifications
OEM Part Numbers: 16100-69206 16100-69205 16100-39456 16100-09440
The water pump for the 1983-2002 Toyota Camry is a mechanical, belt-driven unit. Depending on the engine (e.g., 5S-FE, 1MZ-FE), it is typically driven by the timing belt. The pump housing is usually cast aluminum and includes a gasket or O-ring for sealing against the engine block. Impeller design can vary by brand, but all are designed to move coolant efficiently through the system.
