Ford EXP Starter Solenoid Guide for 1982-1988 Models
If your Ford EXP clicks but won't start, the starter solenoid is a likely culprit and an easy fix.
- The starter solenoid on the 1982-1988 EXP is a fender-mounted relay, making it very easy to access and replace.
- A single, loud click when turning the key is the most common symptom of a failed solenoid.
- Quality aftermarket brands like Standard Ignition are a reliable and cost-effective choice, as new OEM parts are generally unavailable.
- Always check your battery and clean all electrical connections before replacing the solenoid, as these can cause similar symptoms.
Is Your EXP's Starter Solenoid Failing?
A bad starter solenoid can leave you stranded. Because the Ford EXP uses a fender-mounted solenoid, the symptoms are usually clear and the part is simple to replace. If you turn the key and hear a single, loud 'click' but the engine doesn't crank, the solenoid is the prime suspect. This means the solenoid is receiving power from the ignition but isn't successfully sending it to the starter motor.
Other Possible Symptoms:
- No sound at all: If there's no click and no crank, the solenoid might have failed completely, or there could be a bad connection.
- Rapid clicking: A fast clicking noise often points to a weak or dead battery, not the solenoid itself. Always test your battery first.

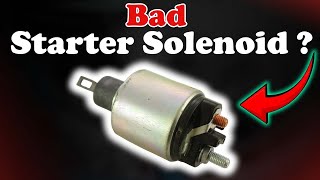

- Starter keeps running: In rare cases, the solenoid's internal contacts can stick together, causing the starter motor to run even after you've released the key. This is a serious issue that requires immediate attention to prevent damage. 🎬 Watch this video to see common symptoms of solenoid failure.
- Smell of burning plastic: A smoking or melting solenoid indicates a severe electrical problem, likely a short in the starter motor drawing too much current.
Choosing a New Aftermarket Solenoid
For a vehicle like the 1982-1988 Ford EXP, finding a new original equipment (OEM) starter solenoid from Ford is highly unlikely. The aftermarket is your primary source for this part. Fortunately, the fender-mounted solenoid design was used on millions of Ford vehicles, so quality aftermarket replacements are widely available and affordable.
Standard Ignition Brand Quality:
Standard Ignition is a well-established brand in the aftermarket industry. Their solenoids are generally considered a reliable, quality replacement part. They often feature heavy-duty copper contacts and more windings than standard parts, which helps create a stronger magnetic field for reliable starting and a longer service life. For an older vehicle like the EXP, a quality aftermarket part from a known brand like Standard Ignition is a smart and cost-effective choice.
Pro Tip: When replacing your solenoid, take a moment to clean the mounting area on the fender and all the electrical contact points with a wire brush. A clean, solid ground connection is critical for the new part to work correctly. Also, inspect the battery cables for corrosion or damage, as they can cause similar starting issues.

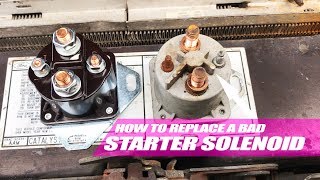

🎬 Follow this step-by-step guide to replacing your Ford starter solenoid.Cost of Replacing Your Starter Solenoid
Replacing the starter solenoid on an EXP is one of the more affordable repairs you can make. The part itself is inexpensive, and because it's so easy to access, labor costs are minimal if you choose to have a shop do the work.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Solenoid | $45.57 - $58.17 |
| Shop Labor | $50 - $100 |
| Total Professional Repair | $95 - $158 |
Frequently Asked Questions
Is it hard to replace the starter solenoid on a Ford EXP?
No, it is considered a very easy job. The solenoid is mounted on the inner fender in the engine bay, usually near the battery. It is held in place by a couple of small bolts and has several wires attached with nuts. Basic hand tools are all that's needed, and the job can typically be done in under 30 minutes.
🎬 See how easy it is to replace a Ford solenoid.Do I need a special solenoid for my EXP?
While the design is common, you should use a part that is specified for your 1982-1988 Ford EXP. The Ford EXP shares its chassis with the Ford Escort of the same era, so parts are often interchangeable. The key is to get a 12-volt, fender-mounted solenoid with the correct number of terminals (usually three or four).
My new solenoid just clicks. Is it bad?
Not necessarily. A clicking sound means the solenoid is trying to work. The problem could be a weak battery, poor connections, or a faulty starter motor that is drawing too much power. Before blaming the new solenoid, ensure your battery is fully charged and all cable connections are clean and tight.
Are there any recalls for the Ford EXP starter solenoid?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database and other official sources show no specific recalls or technical service bulletins (TSBs) for the starter solenoid on the 1982-1988 Ford EXP. Any issues would be related to the age and wear of the original components.
Helpful Videos
Technical Specifications
OEM Part Numbers: E9TZ-11450-B E7TZ-11450-B E9TZ-11450-A E5TZ-11450-A
Voltage: 12V, Mount Type: Fender, Terminal Count: 3 or 4
