Chevrolet S10 Distributor Ignition Pickup Guide (1982-1987)
Solving stalling and no-start problems in your first-generation S10 requires understanding this critical ignition part.
- A bad ignition pickup is a very common cause of no-start and stalling issues on 1982-1987 S10s.
- Symptoms often appear when the engine is hot and disappear after it cools down.
- Replacement requires removing and disassembling the entire distributor, making it a moderately difficult job.
- Since new OEM parts are unavailable, a quality aftermarket brand like Standard Ignition is the recommended choice.
Is Your 1982-1987 S10 Stalling or Refusing to Start?
A common failure point on the first-generation Chevy S10, especially those with the 2.8L V6 or 2.5L 4-cylinder engines, is the distributor ignition pickup. When this small electronic part inside the distributor fails, it can leave you stranded without warning. The symptoms often appear suddenly and can be mistaken for a bad ignition coil or module, but understanding the pickup's role is key to a correct diagnosis.
Symptoms of a Bad Ignition Pickup
A failing pickup coil typically causes a complete loss of spark. The issues can be intermittent at first, often appearing when the engine gets hot, but will eventually lead to a total failure.
- Engine Cranks but Won't Start: This is the most common symptom. The starter will turn the engine over, but there is no spark to ignite the fuel.
- Sudden Stalling: The engine may run fine and then suddenly shut off as if you turned the key. This often happens after the truck has warmed up and can be very dangerous in traffic.
- Intermittent Spark: Before it fails completely, the pickup coil might work sporadically, causing the engine to sputter, misfire, or hesitate.
- No Spark from the Ignition Coil: If you've tested for spark at the coil wire and there's nothing, the pickup coil is a primary suspect, along with the ignition module. 🎬 Watch this S10 walkthrough on swapping the module and switch.
Heat-Related Failure is Common
A classic sign of a failing pickup coil is when the truck stalls after reaching operating temperature and then refuses to restart until it has cooled down for 30-60 minutes. The delicate wires in the coil expand when hot, breaking the connection and killing the signal.
Choosing the Right Aftermarket Pickup: OEM vs. Aftermarket
For a vehicle from the 1980s, new original equipment (OEM) parts from GM are generally not available. Your choice will be between new aftermarket parts, a complete remanufactured distributor, or a used part from a junkyard. For a component this critical and prone to failure, a new aftermarket part is the most reliable and cost-effective solution.
Standard Motor Products (Standard Ignition) is a well-regarded aftermarket brand that has been producing ignition components for decades. They are known for making quality replacement parts that often meet or exceed the original specifications. For many S10 owners, Standard is the go-to choice for ignition system repairs due to its reliability and availability.
| Part Type | Estimated Cost (Part Only) | Notes |
|---|---|---|
| New Aftermarket Pickup (e.g., Standard Ignition) | $39.59 - $69.19 | This is the recommended repair. Provides a new, reliable component. |

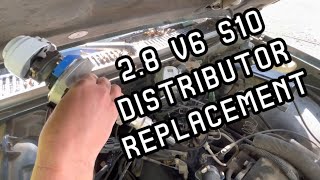

| Remanufactured Distributor (Complete) | $80 - $150 | A good option if your distributor housing or shaft is worn. 🎬 See how to replace the entire distributor on a 2.8L V6. Includes a new pickup, cap, and rotor. |
| Used OEM Distributor (Junkyard) | $40 - $75 | A gamble. The pickup coil in a used part could be just as old as the one you are replacing. |
Consider a Full Distributor Tune-Up
Since you have to remove and disassemble the distributor to replace the pickup coil, it's the perfect time to also replace the distributor cap, rotor, and ignition control module. This essentially gives you a fully refreshed distributor and prevents future ignition problems.
Frequently Asked Questions (FAQ)
Can I replace just the pickup coil?
Yes, the pickup coil is sold as an individual part. However, the replacement process requires removing the distributor from the engine and taking it apart on a workbench. 🎬 Watch a step-by-step guide on installing a new pickup coil. Because of the labor involved, many mechanics recommend replacing the ignition module, cap, and rotor at the same time.
What's the difference between the pickup coil and the ignition module?
They work together but do different jobs. The pickup coil creates the timing signal. The ignition module, located under the distributor cap, receives that signal and acts like a switch, turning the ignition coil on and off to create a spark. Both can cause a no-spark condition when they fail.
Do I need special tools for this job?
You will need basic hand tools, a timing light, and a distributor wrench to make accessing the hold-down bolt easier. To disassemble the distributor, you will also need a hammer and a punch to remove the roll pin that holds the drive gear onto the shaft.
Why does my S10 stall when it gets warm but restart when it's cold?
This is a classic symptom of electronic component failure, especially common with pickup coils and ignition modules. Heat increases electrical resistance. A component with internal damage may work when cold, but once it heats up, the connection can break, causing the engine to stall. After it cools down, the connection is restored, and the engine starts again.
Helpful Videos
Technical Specifications
This part is also known as a pickup coil or pole piece. It is located inside the GM HEI (High Energy Ignition) distributor. A common aftermarket part number for this application is Standard Motor Products LX127. Resistance should typically measure between 500 and 1500 ohms.
