Jaguar XJ12 (1981-1989) Universal Joint Replacement Guide
Keep your classic Jaguar's complex driveline smooth and reliable by understanding its unique universal joint needs.
- Your XJ12 has six U-joints due to its independent rear suspension; four on the half-shafts are very difficult to replace.
- Listen for clunks when shifting, squeaks at low speeds, and vibrations as key indicators of failure.
- Spicer is considered a top-tier aftermarket brand for this part, with SKF and GMB being other reliable options.
- Due to the high labor cost and difficulty, especially for the rear half-shafts, using a high-quality part is crucial to avoid repeat repairs.
Signs of a Failing Universal Joint
A worn U-joint on your XJ12 will give you clear warning signs. Ignoring them can lead to more significant driveline damage or a breakdown. Listen and feel for these symptoms:
- Clunking or Clacking Noises: A distinct "clunk" when you shift from drive to reverse is a classic sign of a worn U-joint. You might also hear a "clack-clack-clack" sound when accelerating, especially around turns.
- Squeaking at Low Speeds: A metallic squeak that is noticeable at low speeds (5-10 mph) often points to a U-joint that has lost its lubrication. The sound may be drowned out by other noises as you go faster.
- Vibrations: A vibration you can feel through the floor or center armrest, especially at specific speeds (like 30-35 mph), is a common symptom. This happens because the worn joint allows the driveshaft to become unbalanced.
- Visible Rust or Damage: If you see rust dust around the U-joint's bearing caps, it's a sign that the needle bearings inside are failing.
Choosing the Right Aftermarket U-Joint
For a classic vehicle like the 1981-1989 XJ12, original equipment (OEM) parts are often unavailable. Fortunately, several reputable aftermarket brands produce quality replacements. The U-joints for this Jaguar are common sizes also used on some domestic vehicles, making them widely available. Your choice depends on your budget and performance expectations.
Aftermarket Brand Quality Tiers
| Tier | Brands | Notes |
|---|---|---|
| Premium Quality | Dana Spicer Chassis | Spicer is widely regarded as a top-tier brand, often matching or exceeding original factory quality. They are known for excellent machining and durability. Many enthusiasts prefer their non-greaseable joints for maximum strength. |

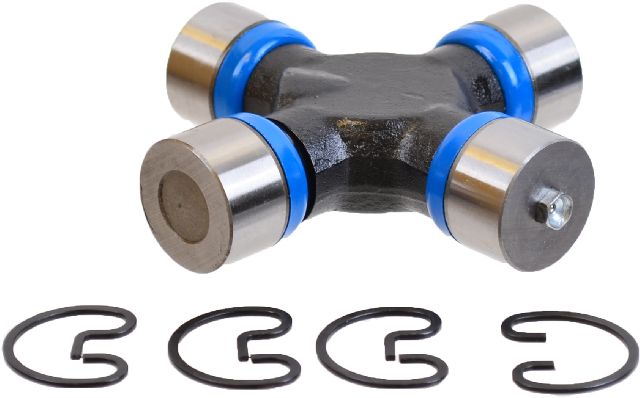

| High Quality | SKF | SKF is a world leader in bearings and produces high-quality driveline components. While some driveshaft specialists have noted occasional tolerance issues, they are generally considered a very reliable choice with good seal designs. |
| Standard Quality | GMB | GMB is a well-known aftermarket manufacturer that offers a good balance of quality and value. They are a solid choice for a standard replacement on a daily driven vehicle. |
Pro Tip: Greaseable vs. Sealed Joints
🎬 Watch this comparison of different universal joint designs and brands.You will find both greaseable (with a zerk fitting) and sealed (non-greaseable) U-joints. Sealed joints are often considered stronger because the cross is solid metal. Factory original joints were typically sealed and lasted a very long time. Greaseable joints can also last a long time but require regular maintenance every 12,000 miles. For most owners, a high-quality sealed joint from a brand like Spicer is a fit-and-forget solution.
🎬 See a detailed breakdown of premium versus standard U-joint quality.Known Issues & Recalls
No recalls or Technical Service Bulletins (TSBs) were found specifically for universal joint failure on the 1981-1989 Jaguar XJ12. The primary "issue" is the difficulty of replacement, particularly for the four U-joints on the rear half-shafts. This job often requires specialized tools and may even necessitate removing the entire independent rear suspension (IRS) cage, which is a very involved process. The two U-joints on the main propshaft are much easier to access and replace.
Frequently Asked Questions (FAQ)
How many U-joints does my 1981-1989 XJ12 have?
Your Jaguar XJ12 has a total of six universal joints. There are two on the main driveshaft (propshaft) and two on each of the two rear axle half-shafts.
Is replacing the U-joints a DIY job?
Replacing the two main driveshaft U-joints is feasible for an experienced DIY mechanic. However, replacing the four half-shaft U-joints is a very difficult job. It often requires removing the axle shafts from the hubs, which can be stubborn, and may even require dropping the entire rear suspension assembly. This is often best left to a specialist familiar with classic Jaguars.
Should I replace all six U-joints at once?
If you are having the difficult job of replacing the half-shaft U-joints done, it is highly recommended to replace all four on both shafts at the same time. If only a main driveshaft joint has failed, you can replace just that one, but it's good practice to replace both on that shaft as a pair.
Do I need to balance the driveshaft after replacing the U-joints?
If you carefully mark the orientation of the driveshaft parts before disassembly and reassemble them in the exact same way, balancing is not always necessary for a simple U-joint swap. However, if you experience any vibration after the repair, the driveshaft may need to be professionally balanced.
Helpful Videos
Technical Specifications
OEM Part Numbers: JLM001388
The main propshaft U-joints are a common size, often cross-referenced to Spicer part number 5-153X. The half-shaft U-joints are also a standard size. Always confirm fitment for your specific shaft before ordering.
