Throttle Position Sensor (TPS) Guide for 1980-1989 Chevrolet Camaro
Solve hesitation, stalling, and poor idle by choosing the right new aftermarket throttle position sensor for your third-gen Camaro.
- You must verify if your Camaro has a TBI or TPI fuel system before ordering, as the sensors are different.
- Symptoms like hesitation and high idle are very common but can also be caused by other failing sensors, like the IAC valve.
- For most models in this year range, the new sensor must be manually adjusted with a multimeter to the correct idle voltage.
- Reputable aftermarket brands like ACDelco, NGK, and Standard Motor Products are reliable choices for this part.
Is Your Camaro's Throttle Position Sensor Failing?
A bad Throttle Position Sensor (TPS) on a 1980-1989 Camaro can cause a range of frustrating engine problems. Because the sensor's signal is so important for fuel and timing calculations, a faulty one can make the car run poorly without always triggering a Check Engine Light. Owners often report symptoms like sudden hesitation when accelerating, a rough or surging idle, and even stalling when coming to a stop. In some cases, the engine might idle very high, around 1,500 RPM, and refuse to drop lower. 🎬 Watch: Troubleshooting high idle issues and adjusting your TPS. These issues happen because the computer receives jumpy or incorrect voltage signals from the worn-out sensor, leading it to deliver the wrong fuel mixture for the actual throttle position.
Critical: Match the Sensor to Your Engine!
The 1980-1989 Camaro used several different fuel systems, most commonly Throttle Body Injection (TBI) and Tuned Port Injection (TPI). These systems use different Throttle Position Sensors. TBI looks like a carburetor with two injectors on top, while TPI has a distinctive "spider" like intake manifold with long runners. Always verify which system your car has before ordering a new TPS to avoid getting the wrong part.
Choosing the Right Aftermarket TPS Brand
For a classic vehicle like the third-generation Camaro, aftermarket parts are often the most practical and available choice. Here’s an honest breakdown of the brands you'll find:
- Premium Aftermarket (ACDelco, NGK): ACDelco is GM's original parts brand, and while many of their service parts are now made by third parties, they are generally built to meet original equipment (OE) specifications. NGK (under their NTK sensors brand) is another top-tier manufacturer known for quality electronics that meet or exceed OE standards. For owners wanting the highest confidence in fit and function, these brands are a solid choice.
- Quality Aftermarket (Standard Motor Products): Standard Motor Products (SMP) is a well-respected name in the aftermarket and has been making quality electronic parts for decades. Many professional shops use Standard parts with great success. They offer a reliable balance of quality and cost.
- Standard/Economy (Walker Products, Motorad): Brands like Walker and Motorad provide a cost-effective solution. They are a good option for budget-conscious repairs, but may not have the same long-term durability or precise calibration as premium brands.
Cost of Replacing a Camaro Throttle Position Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket TPS | $49.51 - $118.92 |
| New OEM (ACDelco) | $57 - $280 |
| Shop Labor | $50 - $100 |

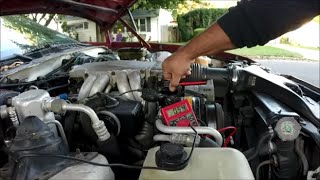

Pro Tip: Replacement is straightforward. The TPS is held on by two Torx screws (usually T25) on the side of the throttle body. After unplugging the electrical connector and removing the screws, the old sensor comes right off. 🎬 See this walkthrough for installing a new third-gen sensor. The key step is adjusting the new one.
Frequently Asked Questions
Do I need to adjust the new TPS?
Yes, on most 1980-1989 Camaros, the TPS is adjustable and proper adjustment is critical. Using a multimeter, you need to set the idle voltage to a specific value (typically around 0.54 volts for TPI models) with the key on and engine off. The mounting holes on the sensor are slotted to allow for this rotation. Failure to adjust it correctly can lead to the same symptoms as a bad sensor.
Can I just clean my old TPS?
No, cleaning the outside of the sensor won't fix an internal failure. The TPS is a sealed electronic component. The problem is wear on the internal electrical contacts, which causes the signal to become erratic. Once it starts failing, replacement is the only solution.
What tools do I need to replace and adjust a Camaro TPS?
You will need a basic socket set, a Torx T25 screwdriver or bit, and a digital multimeter. You may also need small wires or paper clips to back-probe the electrical connector to read the voltage during adjustment.
Will a bad TPS always cause a Check Engine Light?
Not always. On these older OBD-I systems, the sensor might send a signal that is jumpy or incorrect but still within the range the computer sees as "valid." This can cause significant drivability problems like hesitation and poor idle without ever storing a trouble code.
Helpful Videos
Technical Specifications
OEM Part Numbers: 17112368 17111471 213-908
3-pin variable resistor sensor mounted to the throttle body. Adjustable via slotted mounting holes on most models. Requires setting to a specific voltage at idle (approx. 0.54V for TPI).
