Ford E-150 Econoline Distributor Pickup Coil (PIP Sensor) Guide: 1980-1986
Searching for a crankshaft position sensor for your van? The part you actually need is the pickup coil inside your distributor.
- Your van does not have a crank sensor; the part you need is the distributor pickup coil (PIP sensor).
- The most practical repair is to replace the entire distributor assembly, not just the coil inside it.
- Symptoms of a bad PIP sensor (no-start, stalling when hot) are identical to a bad TFI ignition module.
- Ensure you buy a distributor that is correct for your van's specific engine and fuel system (carbureted or EFI).
Your Van Doesn't Have a Crankshaft Sensor
Important: Stop Looking for a Crankshaft Position Sensor
The 1980-1986 Ford E-150 Econoline does not use a standalone crankshaft position sensor. The function is performed by the Profile Ignition Pickup (PIP) sensor located inside the distributor. Many auto parts catalogs incorrectly list a crank sensor for this vehicle, which causes confusion. If your van is having issues like stalling or not starting, the PIP sensor or the related TFI module is the likely cause, not a non-existent crank sensor.
Symptoms of a Failing Distributor Pickup (PIP) Sensor
A bad PIP sensor will leave you stranded. The symptoms are often heat-related, appearing after the engine has warmed up and sometimes disappearing once it cools down. Be aware that these symptoms can also be caused by a failing TFI ignition module, a common issue on these Fords.
- No Start: The most common symptom is an engine that cranks but will not start because there is no spark.
- Intermittent Stalling: The engine may run fine but then suddenly die for no reason, especially when hot. It might restart after cooling down.
- Engine Stumbling or Misfiring: While driving, the engine may hesitate or run rough as the sensor signal cuts out.
- No Fuel Injector Pulse: The computer uses the PIP signal to time the fuel injectors. Without this signal, the injectors won't fire.
- Check Engine Light: On OBD-I systems, a failing PIP sensor can trigger a code 14.
Choosing the Right Aftermarket Part: Coil vs. Full Distributor
You have two main options for this repair, but one is much more practical for most owners.
Pro Tip: Replace the Entire Distributor
While you can buy the PIP sensor (pickup coil) separately, replacing it requires completely disassembling the distributor. This includes pressing the gear off the distributor shaft, a job that requires a hydraulic press and specialized knowledge. For most DIY mechanics and even many shops, the standard and recommended repair is to replace the entire distributor assembly. This is faster, avoids the need for special tools, and replaces other wearable parts like the shaft bushings at the same time.
Aftermarket Brand Quality
When shopping for a complete distributor, you will find new and remanufactured options.
- Standard Ignition (SMP): Generally considered a reliable aftermarket brand for ignition components like pickup coils and distributors.
- Walker Products: A known aftermarket sensor and fuel system component manufacturer.
- Cardone (A1 Cardone): One of the largest remanufacturers. Their quality can be inconsistent; some users have good experiences, while others report receiving faulty parts. Given the critical nature of this part, a new unit or a premium remanufactured one is a safer bet.
Cost to Replace the Distributor Pickup Sensor
| Part Option | Estimated Part Cost | Notes |
|---|---|---|
| Aftermarket Pickup Coil Only | $55 - $60 | Part is inexpensive, but labor is very high due to difficulty. Not recommended for most. |
| Remanufactured Distributor | $80 - $150 | A common and cost-effective option. Quality varies by brand. |
| New Aftermarket Distributor | $100 - $250+ | Often the most reliable choice. Includes new cap, rotor, and PIP sensor. |
| Shop Labor | $146 - $215 | Labor to replace the entire distributor assembly. |
Frequently Asked Questions (FAQ)
Why can't I find a crankshaft position sensor for my 1984 Econoline?
Because it doesn't have one. Ford's TFI ignition system of that era used a Profile Ignition Pickup (PIP) sensor inside the distributor to determine engine position. You need to search for a distributor pickup coil or a complete distributor assembly.
Can I replace just the pickup coil myself?
It is not recommended for the average DIY mechanic. The distributor must be removed from the engine and its shaft must be pressed apart to access the coil. This requires a shop press and experience. Replacing the entire distributor is a much more straightforward job.
Are the symptoms of a bad pickup coil and a bad TFI module the same?
Yes, their symptoms are nearly identical: stalling when hot, no-start conditions, and rough running. The TFI module is the small electronic box mounted on the side of the distributor (or on a heat sink on the fender on some later models). It is common for one to be misdiagnosed as the other. Both parts are known failure points.
Is there a difference between distributors for carbureted and fuel-injected engines?
Yes, there can be differences. While they are both TFI distributors, the computer-controlled advance curves and specific components may differ. Always ensure you are buying the correct distributor for your specific engine (4.9L, 5.0L, or 5.8L) and fuel system (carbureted or EFI) for that year.

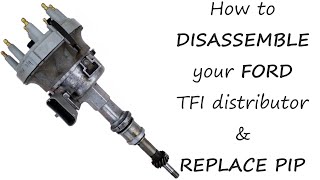

Helpful Videos
Technical Specifications
OEM Part Numbers: E3TZ12127A E4TZ12127C E5TZ12127A D9TE12127BCA
The sensor is a Hall effect type, integrated into the distributor assembly. It generates a digital square-wave signal known as the Profile Ignition Pickup (PIP) signal.
