Ford Bronco Starter Solenoid Guide: 1980-1984
Solve your Bronco's 'click, no-start' problem with the right fender-mounted starter solenoid.
- The starter solenoid on a 1980-84 Bronco is a fender-mounted relay, making it very easy to access and replace.
- A single 'click' with no crank is the most common symptom, but always check your battery and cable connections first.
- Avoid the cheapest aftermarket options, as they have a reputation for poor quality and early failure.
- Replacement is a beginner-friendly DIY job that takes less than 30 minutes with basic tools.
Is Your Bronco Clicking But Not Starting?

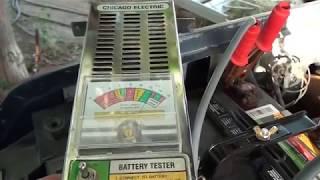

A common issue for the 1980-1984 Ford Bronco is turning the key and hearing a single, loud "click" from the engine bay, but the engine doesn't crank. More often than not, this points to a failing starter solenoid. 🎬 Watch: Diagnosing that clicking sound on a classic Ford truck. Other times, you might hear nothing at all, or the starter might get stuck on even after you've released the key. While these symptoms strongly suggest a bad solenoid, it's crucial to check other simple things first.
Pro Tip: Check Before You Replace. Many starting problems on these older trucks are caused by simple electrical issues. Before buying a new solenoid, make sure your battery is fully charged and that the battery terminals are clean and tight. Also, inspect the ground wires—especially the main battery ground to the engine block and the smaller grounds to the fender and frame—for corrosion or looseness. A bad ground can cause the exact same symptoms as a failed solenoid.
Choosing the Right Aftermarket Solenoid
For a vehicle of this age, aftermarket parts are the most common choice. However, quality can vary significantly. Forum discussions among Bronco and Ford truck owners frequently warn against using the cheapest available parts-store solenoids, as they have a reputation for failing quickly, sometimes right out of the box. A common failure is the solenoid sticking, which keeps the starter engaged and can cause damage.
- Standard Ignition (SMP): Generally regarded as a reliable aftermarket manufacturer for electrical components. This is often considered a solid choice that balances cost and quality.
- ACDelco: While a huge name in auto parts, ACDelco is more closely associated with GM vehicles. Some users have reported issues with their starters and solenoids on Ford applications. Between the two available brands, Standard Ignition has a stronger reputation within the Ford truck community for this specific part.
- OEM/Motorcraft: If available, a Motorcraft solenoid is what Ford originally used and is highly recommended for reliability by many enthusiasts.
Known Issues, Recalls, and Service Bulletins
Searches of the National Highway Traffic Safety Administration (NHTSA) database and other technical resources show no specific recalls or Technical Service Bulletins (TSBs) for the starter solenoid on the 1980-1984 Ford Bronco. Any issues you encounter are typically due to the age and wear of the original components or problems with previous repairs.
| Part Type | Price Range |
|---|---|
| New Aftermarket (Premium) | $44.56 - $58.17 |
| New OEM (Motorcraft) | $30 - $50 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Where is the starter solenoid located on my 1980-1984 Bronco?
It is not on the starter. Look in the engine compartment on the passenger side inner fender, close to the battery. It's a small, usually black or metallic, box with two large posts and one or two smaller ones.
Is this part difficult to replace myself?
No, this is one of the easiest repairs you can do on your Bronco. It requires basic hand tools (typically 9/16" and 5/16" sockets or wrenches) and usually takes less than 30 minutes. 🎬 Watch this quick walkthrough of a Bullnose Ford solenoid replacement. Just be sure to disconnect the negative battery cable before you begin.
How do I test my old solenoid?
A common driveway test is to carefully jump the two large terminals on the solenoid with an old screwdriver or pliers (expect sparks). If the engine cranks, but it won't crank with the key, the solenoid is likely bad. This confirms the starter motor itself is working. 🎬 See a demonstration on how to test and jump your solenoid. Always ensure the vehicle is in Park or Neutral with the parking brake set before performing this test.
Is a starter relay the same as a starter solenoid?
For this generation of Ford trucks, the terms are used interchangeably for the same fender-mounted part. It functions as a relay, but because it handles the high current for the starter, it's commonly called a solenoid.
Helpful Videos
Technical Specifications
OEM Part Numbers: SW-1951-C
Fender-mounted, 4-post starter relay/solenoid. Requires proper grounding through its mounting bracket to the vehicle body.
