GMC C2500 A/C Compressor Wiring Harness Guide (1979-1996)
Fix your truck's A/C by addressing the most common electrical failure point at the compressor.
- The most common failure is a melted or corroded connector at the compressor.
- Visually match your old connector to the new part, as styles changed between the Square Body and OBS generations.
- Aftermarket harnesses from brands like Standard Ignition are the standard, reliable repair as OEM parts are unavailable.
- Before replacing, confirm the A/C system is charged and the fuse is good to rule out other simple issues.
Is Your C2500 A/C Wiring Harness Failing?
On a classic GMC C2500 from the Square Body or OBS era, the A/C compressor wiring harness lives in a hot, high-vibration environment. Over decades, the plastic connector can become brittle and crack, and the wires can corrode. The most common failure is the connector itself melting due to high electrical resistance from a poor connection or a failing compressor clutch. This prevents power from reaching the clutch, leaving you with no cold air.
Symptoms of a Bad A/C Compressor Harness
- A/C Blows Warm Air: The most obvious sign is an A/C system that doesn't work at all. The fans blow, but the air never gets cold because the compressor isn't engaging.
- Intermittent A/C Operation: The A/C might work sometimes but cut out unexpectedly. This can happen if the wires inside the harness are broken or the connector has a loose fit, causing the connection to come and go.
- Visible Damage: A visual inspection may reveal a melted, burnt, or cracked connector at the A/C compressor. The wires may also look frayed or have damaged insulation.
Pro Tip: Check the Basics First
Before blaming the harness, make sure your A/C system is properly charged with refrigerant and that the fuse or relay for the A/C circuit is good. A low-pressure safety switch will prevent the compressor from turning on to avoid damage, which can mimic a wiring problem.
Choosing the Right Aftermarket Harness
For trucks in the 1979-1996 year range, new Original Equipment (OEM) parts are typically discontinued and unavailable. The good news is that high-quality aftermarket harnesses are readily available and are the standard repair method.

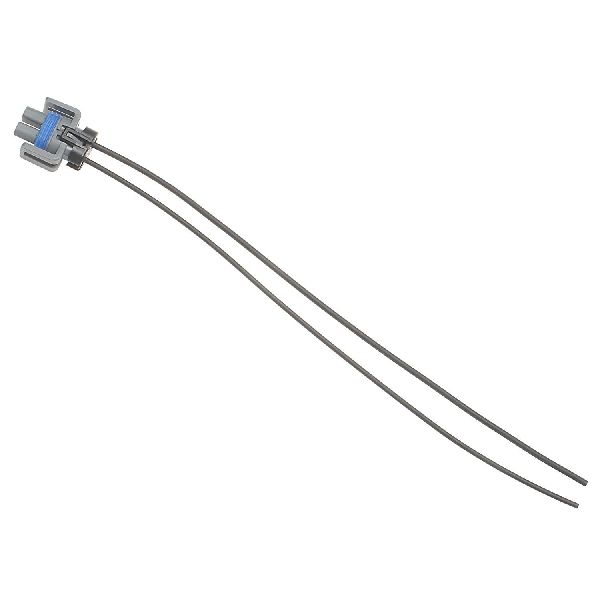

Standard Ignition is a well-regarded brand in the aftermarket that produces replacement electrical components, including A/C pigtail connectors. For a simple part like a harness, a component from a reputable manufacturer like Standard Ignition is a reliable choice.
Generation Differences: Square Body vs. OBS (GMT400)
The 1979-1996 range covers two different truck generations, and the A/C wiring can differ.
- 1979-1987 (Square Body): These trucks typically use a simpler two-wire connector for the compressor clutch.
- 1988-1996 (OBS/GMT400): The wiring on these models can be more complex, sometimes involving multiple connectors for pressure switches on the compressor itself. Later models (1996) use the vehicle's computer (PCM) to control the A/C clutch relay.
It is critical to visually match your truck's original connector to the new part before ordering. The three products available likely correspond to different connector styles used across these years.
Estimated Replacement Costs
| Part Type | Cost Range |
|---|---|
| New Aftermarket Harness | $17.31 - $36.31 |
| Shop Labor | $60 - $120 |
| Total Estimated Cost | $77 - $156 |
Frequently Asked Questions (FAQ)
Why did my A/C connector melt?
A melted connector is caused by excessive heat from high electrical resistance. This usually happens when the connection between the harness and the compressor terminals becomes loose or corroded over time. It can also be a sign that the A/C compressor clutch coil is failing and drawing too much electrical current.
Is replacing the A/C harness a DIY job?
Yes, for most people with basic tools and electrical skills. The job involves cutting off the old connector and splicing the new one in its place using butt connectors. It is very important to make a secure, weatherproof connection to prevent future issues. The difficulty is low, and it typically takes less than an hour.
How do I test my current harness?
With the engine running and A/C turned on, carefully use a multimeter to check for 12-volt power at the connector. If you have power and a good ground connection but the clutch doesn't engage, the problem is likely the clutch itself. If you have no power, the problem is upstream in the circuit (fuse, relay, pressure switch, or the harness wiring).
Are there any recalls for this part?
No, a search of the National Highway Traffic Safety Administration (NHTSA) database shows no safety recalls for the A/C compressor wiring harness on the 1979-1996 GMC C2500.
Technical Specifications
The key specification is the connector type. It must match the vehicle's specific compressor and wiring for the model year (Square Body vs. GMT400). The harness is a pigtail that requires splicing into the existing vehicle wiring.
