Choosing the Right Transmission Filter Kit for Your 1968-1974 Dodge D100
Keep your classic D100's automatic transmission shifting smoothly by selecting the correct filter and gasket.
- You must correctly identify your transmission; V8 trucks usually have the A-727 and Slant-6 trucks the A-904, and they use different filter kits.
- Symptoms like delayed shifting, slipping, or a burning smell strongly point to a needed filter and fluid change.
- Quality aftermarket brands like Wix or ATP are excellent choices for these vintage trucks, as OEM parts are unavailable.
- Do not overtighten the transmission pan bolts; torque them to spec (around 12 ft-lbs) in a crisscross pattern to prevent leaks.
Is Your D100 Showing Signs of a Clogged Transmission Filter?
For a 1968-1974 Dodge D100, the automatic transmission is a durable workhorse, but it depends on clean fluid to operate correctly. A clogged filter restricts fluid flow, essentially starving the transmission. This can lead to serious issues. Watch for these common symptoms:
- Delayed or Harsh Shifting: You might notice a long pause or a clunk when shifting from Park to Drive, or between gears while driving. This is a classic sign of low fluid pressure caused by a blockage.
- Slipping Gears: The transmission may unexpectedly slip out of gear or struggle to stay engaged, especially under load like climbing a hill or hauling.
- Whining or Grinding Noises: A whining sound from the transmission area can indicate the pump is straining to pull fluid through a clogged filter.
- Burning Smell: Restricted fluid flow leads to overheating. Overheated transmission fluid has a distinct burnt toast smell and is a sign of potential damage.
A Critical Detail: A-727 vs. A-904 Transmissions
Your 1968-1974 D100 most likely came with one of two automatic transmissions: the heavy-duty A-727 TorqueFlite (common with V8 engines) or the lighter-duty A-904 TorqueFlite (common with Slant-6 engines). These two transmissions use different filter kits. The A-727 is physically larger with bigger internal components. Always verify which transmission your truck has before ordering a kit to avoid installation problems. A visual inspection of the oil pan shape is the easiest way to tell them apart; the A-727 pan is more irregular, while the A-904 pan is more rectangular.

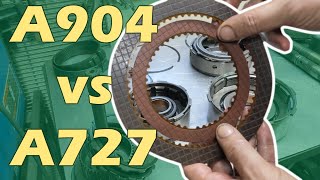

🎬 Watch this comparison to identify your A904 or A727 transmission.Choosing the Right Aftermarket Filter Kit
For a vintage truck like the D100, original equipment (OEM) parts are virtually non-existent. Aftermarket parts are the standard and offer excellent performance. The key is to choose a reputable brand. Here’s a breakdown of available options:
Tier 1: Premium Aftermarket (Wix)
- Wix: Widely regarded as a top-tier filter manufacturer, Wix kits are known for quality materials and excellent fit. They provide reliable filtration that meets or exceeds original specifications, making them a trusted choice for protecting your classic transmission.
Tier 2: Standard Aftermarket (ATP, Pioneer Cable, Premium Guard)
- ATP (Automatic Transmission Parts): ATP has a long history in the transmission parts industry, since 1955. They are a well-known and reliable choice, with some users preferring their fiber gaskets for ease of installation.
- Pioneer Cable: Pioneer is a known aftermarket supplier offering a range of drivetrain components. Their kits are a budget-friendly, standard replacement option suitable for regular maintenance.
- Premium Guard: This brand offers a cost-effective solution for owners looking for a standard replacement filter to perform routine service.
Pro Tip: When installing the new pan gasket, do not overtighten the bolts. This is a very common mistake that can warp the pan or split the gasket, causing a leak. The recommended torque for the pan bolts is typically around 12-13 ft-lbs. Tighten the bolts in a crisscross pattern to ensure the pan seals evenly.
🎬 See a step-by-step guide for changing your TorqueFlite fluid and filter.Cost of a New Transmission Filter Kit (1968-1974 Dodge D100)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Kit (ATP, Pioneer, Premium Guard, Wix) | $16 - $57 |
| Shop Labor for Installation | $100 - $200 |
Frequently Asked Questions
How often should I change the transmission filter on my D100?
For these classic trucks, a good rule of thumb is to change the fluid and filter every 30,000 miles or every two to three years, especially if you use the truck for towing or hauling. It's cheap insurance against a major transmission failure.
🎬 Learn how to change transmission oil and filters on Dodge vehicles.Do I have to use a new gasket every time?
Yes. The transmission filter kit comes with a new pan gasket for a reason. The old gasket will be compressed and possibly brittle, and reusing it will almost certainly cause a leak. Always use the new gasket on a clean, dry pan and transmission surface.
What kind of fluid should I use in my TorqueFlite transmission?
Most TorqueFlite transmissions of this era use ATF+4 fluid. Always check your owner's manual or a reliable service guide for the exact specification for your truck's year and model to ensure you use the correct fluid type and quantity.
Are there any recalls or service bulletins for this issue?
No. There are no active recalls or technical service bulletins (TSBs) from the NHTSA related to transmission filters for the 1968-1974 Dodge D100 pickup. Any issues you encounter are due to the age and maintenance history of the vehicle.
Helpful Videos
Technical Specifications
Kit includes transmission filter and pan gasket. Two main versions exist, one for the A-727 transmission and one for the A-904 transmission.
