2012-2019 VW Beetle Window Motor: Part Numbers & Programming Explained

Symptoms of a Failing Window Motor

A bad window motor in your Beetle can manifest in several ways. Because the motor and the window regulator (the track mechanism) work together, symptoms can sometimes overlap. However, issues pointing specifically to the motor often involve electrical or programming glitches.

• Slow or Sluggish Operation: The window moves up and down much slower than it used to. This often indicates a weak, aging motor that is struggling to move the glass.
• Intermittent Function: The window works sometimes and fails at other times. This can be a sign of the motor overheating or developing an internal electrical fault.
• No Movement, Possible Humming Sound: When you press the switch, you might hear a faint hum or click from inside the door, but the window doesn't move. This suggests the motor is receiving power but is seized or too weak to lift the glass.
• Window Drops or Won't Stay Up: While often a regulator issue, a motor with stripped internal gears can also cause the window to slide down on its own.
• Loss of Auto-Up/Down or Indexing: If the one-touch feature or the slight drop/rise of the window when opening/closing the door stops working, it often points to a problem with the motor's control module or a need for re-initialization.
• Grinding or Clicking Noises: Loud grinding or clicking sounds when operating the window usually point to a problem with the motor's internal gears or the regulator it drives.

Known Issues for 2012-2019 Beetle Window Motors

The window system in the A5 generation Beetle is a common source of complaints. The complexity of the frameless door design places specific demands on the window motor and regulator assembly.

Technical Service Bulletins (TSBs)

In October 2012, Volkswagen issued Technical Bulletin 2028594 (also referenced as V641203 and VSS-12-05) related to power window issues on 2012-2013 models. This bulletin provided updated repair instructions for technicians, demonstrating a new window motor replacement procedure, regulator check, and window adjustment. This indicates that VW was aware of early issues and revised the repair process accordingly.

Recalls

There are no NHTSA recalls specifically for the power window motors on the 2012-2019 Volkswagen Beetle. Existing recalls for this vehicle primarily concern airbags, brake systems, and ignition switch issues.

The Window Indexing and Re-initialization Requirement

A very common issue that owners mistake for a failed motor is the loss of window memory. This happens after the vehicle's battery has been disconnected or replaced. The motor 'forgets' the top and bottom limits of the window travel, causing the auto-up/down and indexing features to fail. Before assuming the motor is bad, perform a window reset:

1. Close the doors and, if it's a convertible, the top.
2. Put the key in the ignition or have the ignition on.
3. Raise the affected window completely by holding the switch up.
4. Once the window is fully closed, release the switch and then pull it up again, holding it for 3-5 seconds.
5. Lower the window completely, holding the switch down.
6. Once fully down, release the switch and then press it down again, holding for 3-5 seconds.
7. This should restore the one-touch and indexing functions. If not, a key-in-door procedure may be required.
🎬 Watch: Step-by-step Beetle window reset procedure video

Buying a Used 2012-2019 Beetle Window Motor: What to Check

Purchasing a used OEM window motor is often a smart choice, as it guarantees the correct internal logic for your Beetle's specific features—something cheap aftermarket parts often fail to replicate. Here’s what to look for:

• Verify the Part Number: This is non-negotiable. Get the part number from your original motor. The driver's side (left) typically starts with 5C5-959-801, and the passenger's side (right) with 5C5-959-802. The suffix letter (e.g., B, D, L, M) is crucial and must match.
• Inspect the Connector: Check the electrical connector pins for any signs of corrosion, discoloration (from overheating), or physical damage. The pins should be clean and straight.
• Check the Gear Shaft: Look at the splined gear that engages with the window regulator. The teeth should be well-defined with no signs of being stripped or worn down.
• Ask About the Donor Vehicle: Knowing the mileage of the vehicle the part came from can give you an idea of its remaining lifespan. A motor from a low-mileage vehicle is always preferable.
• Look for Water Damage: Inspect the motor's casing for any signs of water intrusion, like rust or mineral deposits. Water is a primary cause of motor failure.

Replacement Overview & Difficulty

Replacing the window motor is a moderately difficult task for a DIYer, primarily involving the removal of the interior door panel.

• Difficulty: 3 out of 5
• Process: The job requires removing the door trim panel, peeling back the vapor barrier, disconnecting the motor's electrical harness, and unbolting the three Torx screws holding the motor to the window regulator assembly. The motor can usually be replaced without removing the entire regulator from the door.

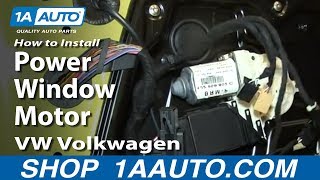

🎬 See this detailed 2012-2018 Beetle door disassembly and regulator guide
• Tools: You will need a trim removal tool kit, Phillips head screwdrivers, and Torx drivers (commonly T25 or T30).
• Post-Installation: After installing the new motor, you MUST perform the window re-initialization procedure described above for the features to work correctly.

Cost to Replace a Beetle Window Motor

Costs can vary significantly between doing it yourself and having a shop perform the work. A Reddit user reported a shop quote of $1600 to replace both motors and regulators with OEM parts, highlighting how expensive this repair can be.
