2002-2006 Jaguar X-Type Power Steering Pump: Diagnosing Whines, Leaks, and Stiff Steering

Symptoms of a Failing Jaguar X-Type Power Steering Pump

A failing power steering pump on a 2002-2006 X-Type will usually provide clear warning signs. Ignoring these can lead to a complete loss of power assist, making the vehicle difficult to control in an emergency.

Whining or Groaning Noises

The most common symptom is a distinct whining or groaning sound that changes with engine RPM. The noise will often get louder when you turn the steering wheel. This is typically caused by air getting into the system (cavitation) due to low fluid, or by internal wear within the pump itself. A rattling noise that gets worse as you approach full steering lock can also indicate a failing pump.

Stiff or Heavy Steering

If turning the wheel, especially at parking lot speeds, requires significantly more effort than usual, the pump is likely not producing enough hydraulic pressure. This can be an intermittent problem at first, sometimes temporarily resolving after turning the wheel lock-to-lock, but it indicates a serious issue with the pump or a major leak in the system.

Visible Fluid Leaks

Red or brownish fluid puddles under the front of the car are a tell-tale sign of a power steering leak. On the X-Type, leaks can originate from the pump body itself, the seals where the hoses connect, or the high-pressure lines. A fine spray of fluid on surrounding components below the pump is a common indicator of a pump seal failure.

Contaminated Power Steering Fluid

Healthy power steering fluid should be reddish and relatively clear. If the fluid in the reservoir looks dark brown or black, it's burnt and has lost its lubricating properties. The presence of shiny metal flakes in the fluid is a critical sign of internal pump components grinding themselves apart. Continuing to operate the vehicle with contaminated fluid will quickly damage other parts of the steering system, including the expensive steering rack.

Known Issues, TSBs, and Recalls for 2002-2006 X-Type Power Steering

While there are no specific NHTSA recalls for the power steering pump on the 2002-2006 Jaguar X-Type, Jaguar has issued Technical Service Bulletins (TSBs) related to the power steering system.

• TSB XT211-001 (and others): This bulletin addresses a squeaking noise that can occur when turning the steering wheel. The noise is caused by a dry seal inside the steering rack, not the pump itself. The fix involves adding a special fluid additive (Part No. C2S 48887) to the power steering reservoir to lubricate the seal. It's important to diagnose this correctly to avoid replacing a perfectly good pump.
• Common Leak Points: Technical documents highlight frequent leaks at the quick-connector where the high-pressure hose attaches to the pump. This can sometimes be fixed by replacing a washer (Part No. XR85010) rather than the entire pump or hose.

Buying a Used 2002-2006 X-Type Power Steering Pump: What to Look For

A quality used OEM pump can be a reliable and cost-effective alternative to expensive new parts. Given that even new pumps can fail prematurely if the system isn't properly flushed and bled, a low-mileage used unit is often a smart choice.

1. Verify Part Numbers: Match the part number on the used pump to your original. Known compatible OEM numbers include 1X433A696AB, C2S3673, C2S45010, C2S47002, and C2S47856.
2. Inspect the Pulley: The pulley should be free of cracks, chips, or significant corrosion. Spin the pulley by hand; it should turn smoothly with minimal resistance and no grinding sounds.
3. Check the Shaft: Try to wiggle the pulley shaft from side-to-side and in-and-out. There should be no noticeable play or wobble. Any movement indicates worn internal bearings.
4. Examine Hose Ports: Look for stripped threads or damage on the high-pressure and low-pressure ports. Ensure there are no cracks in the pump housing, especially around the mounting points.
5. Ask About Mileage: While there's no exact failure mileage, pumps from vehicles with under 100,000 miles are generally a safer bet. Failures on low-mileage cars are not unheard of, but are less common.
6. Why Used OEM vs. New Aftermarket: Used OEM (Original Equipment Manufacturer) pumps are built to Jaguar's original specifications for fit and performance. Cheaper new aftermarket pumps can sometimes have slightly different tolerances, leading to fitment issues or premature noise and failure.

Related Parts to Replace with the Power Steering Pump

To ensure a long-lasting repair, it's wise to replace several related components at the same time as the pump.

• Power Steering Fluid: The entire system should be flushed with fresh, correct-spec fluid. The X-Type typically uses fluid meeting Dexron specifications (ATF).

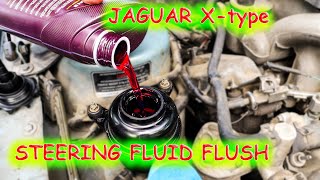

🎬 See how to perform a power steering fluid change
• Power Steering Hoses: The high-pressure and return hoses become brittle over time. A new pump putting out correct pressure can cause old, weak hoses to burst. Inspect them carefully for cracks, swelling, and leaks.
• Serpentine Belt: The belt must be removed for the job, making it the perfect time for a replacement if it shows any signs of cracking or wear.
• Reservoir: The power steering fluid reservoir can contain a non-serviceable internal filter. If the old pump failed catastrophically and sent debris through the system, replacing the reservoir is cheap insurance against contaminating the new pump.

Cost Comparison: New vs. Used X-Type Power Steering Pump

Prices can vary based on supplier and location, but this table provides a general estimate for the parts and labor involved.

Installation Tips and Torque Specs

Replacing the pump is a moderately difficult job that can be done by a skilled DIY mechanic. Access is tight, and the job is typically done by removing the driver's side front wheel and wheel arch liner.

Bleeding the Power Steering System (Crucial Step)

Failure to properly bleed air from the system is the #1 cause of a noisy or failed replacement pump. Never start the engine until the initial bleed is complete.

1. With the new pump installed, fill the reservoir to the 'Full Cold' mark.
2. Raise the front wheels off the ground so they can turn freely.
3. With the engine OFF, slowly turn the steering wheel from full lock to full lock at least 15-20 times.
4. Check the fluid level in the reservoir. You will see it has dropped and there may be bubbles. Top up the fluid.
5. Repeat the lock-to-lock turning process until the fluid level remains stable and you no longer see bubbles in the reservoir.
6. Once you are confident most of the air is out, you can start the engine for a few seconds, then shut it off and recheck the fluid. Repeat this process, topping up as needed, until the pump runs quietly.

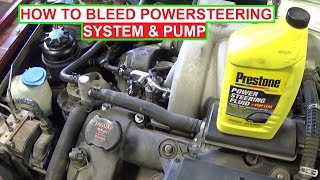

🎬 Watch this demonstration on bleeding the X-Type steering system

Torque Specifications

Using correct torque is important for preventing leaks and damage. While specs can vary slightly, data for the V6 engine family provides a reliable guide:

• Power Steering Pump Mounting Bolts: 25 Nm (18 ft-lbs)
• High-Pressure Hose Connector (to pump): 57 Nm (42 ft-lbs)
