2024-2025 Cybertruck 48V Power Conversion System (PCS): Failure Symptoms and Replacement Guide
Diagnose the common 'AC Charging Unavailable' warning, understand the revolutionary PCS2, and learn what to check before buying a used Mid Voltage Controller.
- Failures of the Power Conversion System (PCS) are a known and relatively common issue on early-build 2024 Cybertrucks.
- The most frequent symptom is an 'AC Charging Unavailable' warning on the screen, preventing home charging.
- Replacement is for professionals only due to the hazardous 48V and high-voltage systems; this is NOT a DIY job.
- A used replacement controller will likely require programming by a Tesla service center or specialist to function correctly.
A Revolutionary (and Complex) 48-Volt System

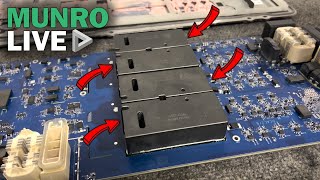

The Tesla Cybertruck is the first mass-market vehicle to fully commit to a 48V low-voltage system, a change engineers have debated for decades. This system powers everything except the main drive motors, including power steering, air suspension, windows, doors, and all control computers. The Power Conversion System (PCS2) is the brain and heart of this architecture. It's a single, compact unit that combines the on-board AC charger with dual, redundant DC-DC converters. 🎬 Watch: A deep dive into the 48V architecture and PCS2. This redundancy is a critical safety feature; if one converter fails, the other can take over to ensure systems like the steer-by-wire remain operational. However, as an entirely new design, early production models have experienced some notable issues with this system.
Common Symptoms of Power Converter Failure
A failing Power Conversion System or one of its controllers can cause a range of problems, from inconvenient to critical. Owners of early-build Cybertrucks have reported several common symptoms pointing to a PCS issue.
- "AC Charging Unavailable" Warning: This is the most common and direct symptom of a PCS failure. The truck will display this message on the screen and refuse to charge from a home wall connector or other AC power source.
- Error Codes PCS2_a094 and PCS2_a095: These specific codes may appear in the service menu, directly indicating a fault within the Power Conversion System.
- Vehicle Won't Wake Up or Unlock: In some cases, a complete failure of the 48V system will leave the truck completely unresponsive. It will not wake up from sleep, and you will be unable to open the doors with the app, key card, or phone key.
- Sudden Loss of Power or "Limp Mode": In the most severe cases, a PCS failure can cause the truck to shut down while driving or enter a reduced-power limp mode, creating a significant safety hazard. 🎬 Watch: What happens when a Cybertruck goes completely dead.
- Widespread, Random Electrical Issues: As the 48V system becomes unstable, you may notice flickering screens, slow power windows, or other seemingly unrelated electrical gremlins as various control modules lose stable power.
Known Issues, Service Bulletins, and Recalls
While the Cybertruck is new, a few key issues related to its power systems have already been identified.
Widespread Power Conversion System (PCS) Failures
Numerous owners of early Foundation Series Cybertrucks have reported failures of the PCS2 unit. The problem appears common enough that some service centers are proactively replacing the PCS on early-build trucks when they come in for other service, even if the owner hasn't reported a charging issue yet. This is currently being handled under warranty, but it points to a potential weakness in the initial batch of components.
🎬 See why some call the PCS2 a hidden time bomb.Service Bulletin SB-24-16-002: Loose Ancillary Harness
Tesla issued this service bulletin on January 23, 2024, for a non-safety-related condition on some Cybertrucks. The bulletin states that the ancillary bay electrical harness may not be properly secured to the Power Conversion System (PCS2). This poor connection could potentially cause a loss of Mid Voltage (48V) power, leading to many of the symptoms described above. The fix is to replace the entire ancillary bay harness.
Related Recall: Drive Inverter Failure (NHTSA 24V832)
Important: This is for a different part than the Power Conversion System, but it is often confused. The Drive Inverter converts high-voltage DC power to AC power for the wheels. The Power Conversion System (PCS) converts high-voltage DC power to low-voltage (48V) DC power for accessories.
Tesla recalled 2,431 Cybertrucks built between November 2023 and July 2024 for a faulty drive inverter. A failure in this component can cause a complete loss of drive power to the wheels, increasing the risk of a crash. While you may see alerts on the screen, there is no warning before the power loss occurs. The remedy is a full replacement of the drive inverter.
Buying a Used Cybertruck Power Converter or Controller
Given the high cost of a new unit out of warranty, a used OEM controller is a practical alternative. However, due to the complexity of the Cybertruck's electrical system, there are critical factors to consider.
- Verify the Part Number: The Cybertruck uses many new and unique parts. Ensure the part number on the listing exactly matches your original part. The primary part number for the front left controller is 1814265-11-E. Do not install a part with a different number.
- Inspect Connectors: When you receive the part, carefully inspect all electrical connectors for any signs of corrosion, bent pins, or damage to the plastic housings. A poor connection is a common point of failure.
- Check for Physical Damage: Look for any cracks, deep scratches, or signs of heat stress (discoloration, melting) on the unit's casing. The PCS and its related components are located in a protected area, so any damage may indicate it came from a severely wrecked vehicle.
- Programming May Be Required: Be prepared for the possibility that the replacement module will need to be programmed or configured by a qualified Tesla service center or a specialist with the proper tools. It may not be a simple plug-and-play replacement. Failure to program the module could result in it not functioning or causing other system errors.
- No Aftermarket Options: Due to the proprietary and cutting-edge nature of the 48V system, there are currently no new aftermarket or remanufactured versions of these controllers. A used OEM part is the only cost-effective alternative to a new one from Tesla.
Pro Tip: When purchasing a used controller, ask the seller for the VIN of the donor vehicle if possible. This can sometimes help a service center in verifying compatibility or during the programming process.
Replacement Cost & Difficulty
Replacing any component of the Power Conversion System is a complex and dangerous job that should not be attempted by untrained individuals.
- Installation Difficulty: 5 out of 5 (Professional Only)
- DIY Feasible: No
Warning: The Cybertruck's 48V system carries a significantly higher risk of personal injury, arcing, and component damage than a traditional 12V system. Servicing these components requires specialized training and equipment to properly de-energize the high-voltage and mid-voltage systems. This repair must be performed by a certified technician.
| Item | Estimated Cost |
|---|---|
| New OEM Replacement (Out of Warranty) | $7,200+ |
| Used OEM Replacement | $1,300 - $1,900 |
| New Aftermarket | Not Available |
| Remanufactured | Not Available |
| Shop Labor (Specialist) | $600 - $1,000 |
Frequently Asked Questions (FAQ)
What does the Cybertruck's power converter do?
The Power Conversion System (PCS2) is a critical component that converts the main battery's high-voltage DC power into 48V DC power. This 48V supply runs all of the truck's accessories and control modules, including the lights, screens, windows, and vital steer-by-wire system. It also functions as the onboard charger for AC charging.
Can I drive my Cybertruck with a failing power converter?
No. A failing power converter is a critical issue. Because it supplies power to essential systems like power steering and all vehicle controllers, a failure could lead to a complete and sudden shutdown while driving. If you see any warnings related to the PCS or charging system, it is not safe to drive the vehicle. Have it towed to a service center.
Does a used power converter or controller need to be programmed?
It is very likely. Modern vehicle modules are often coded to the specific vehicle they are installed in. You should assume that a replacement controller will require programming or configuration by a Tesla service center or a qualified independent repair facility with the correct diagnostic tools.
Is the Drive Inverter recall the same as a PCS failure?
No, they are different parts with different functions. The Drive Inverter provides power to the wheels for propulsion. The Power Conversion System (PCS) provides 48V power to the truck's accessories and computers. While both can cause the truck to stop, a PCS failure typically presents with charging errors and electrical system problems first.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1814265-11-E
The Power Conversion System (PCS2) is an integrated unit combining an 11.5 kW bidirectional On-Board Charger (OBC) and dual redundant DC-DC converters that step down ~800V to the 48V mid-voltage architecture.
