2025 Kia Carnival Passenger Storage Tray: Compatibility, Issues, and Replacement
This guide covers the essential details for the 2025 Kia Carnival's glove box, focusing on part number variations, common problems, and what to check before buying a used unit.
- A 2025 Kia Carnival requires a glove box with a part number starting in '84510-R0AB0'; parts from 2022-2024 models will not fit.
- Replacement is extremely easy and requires no tools, following the same procedure as accessing the cabin air filter.
- Verify the interior color (black, brown, gray, etc.) and whether the donor vehicle had the Bose audio system to ensure perfect compatibility.
- The most common failure is a broken latch, which requires replacing the entire glove box assembly as the latch is not sold separately.
Symptoms of a Failing Passenger Storage Tray
Failures of the 2025 Kia Carnival's glove box are typically mechanical and related to physical wear or damage. Since the latch and handle are integrated into the assembly, the entire unit usually needs to be replaced if they break.
- Won't Stay Closed: The most frequent issue is a glove box door that will not latch shut. This is almost always caused by a broken internal latch mechanism or a damaged striker. Over-stuffing the compartment can also cause this, so be sure to check for obstructions first.
- Door Slams Open: A small, arm-like damper is designed to make the glove box door open slowly and smoothly. If this damper breaks or becomes disconnected, the door will fall open abruptly when unlatched.
- Broken Hinge: The plastic hinges that hold the door to the dashboard can crack or break from excessive force or impact, causing the door to hang unevenly or detach completely.
- Rattling Noises: A loose glove box assembly, worn-out hinge pins, or items shifting inside can cause persistent rattling noises from the passenger side of the dashboard, especially when driving on rough roads.
Warning: A significant model refresh occurred in 2025. Glove box assemblies from 2022-2024 Carnival models are NOT interchangeable with 2025 models. The part numbers and physical design are different.
Buying a Used 2025 Kia Carnival Passenger Storage Tray
Purchasing a used glove box assembly is a great way to save money, but careful inspection is key to getting a good part. Since the part is mostly cosmetic and mechanical, a visual check is very effective.
Key Inspection Points:
- Verify Compatibility: This is the most critical step. The 2025 model year uses part numbers starting with 84510-R0AB0. Do not use parts from 2022-2024 models (which start with 84510-R0100).
- Check Audio System Configuration: The initial data warning is important. The shape of the glove box may differ on models with the 12-speaker Bose premium audio system, which is standard on the SX Prestige trim. Always try to source a replacement from a vehicle with the same audio system as yours.
- Inspect the Latch Mechanism: Open and close the door several times. The latch should click securely into place and release smoothly. Look for any cracks in the plastic around the handle and latching point.
- Examine the Hinges: Check the hinge points at the bottom of the assembly for stress marks (whitening of the plastic) or cracks. Ensure the door moves freely without binding.
- Test the Damper Arm: If possible, check that the small damper arm is present and provides resistance. This ensures the door will open slowly as intended.
- Match the Color: The 2025 Carnival was offered with several interior color schemes, including Off-Black, Taupe, Deep Navy, Misty Gray, and Tuscan Umber. Part numbers will vary for color. For example, 84510-R0AB0OFB is for a black interior, while 84510-R0AB0TPB is for a brown interior. Verify the color of the donor vehicle or match the full part number.
Pro Tip: The easiest way to remove the glove box is the same procedure used to access the cabin air filter. This requires no tools and can be done in minutes, making it easy to inspect a part at a salvage yard before purchase.
🎬 See how to easily release the glove box dampersKnown Issues, TSBs, and Recalls
As of mid-2026, there are no specific recalls or Technical Service Bulletins (TSBs) issued by Kia or the NHTSA that directly address the passenger storage compartment tray for the 2025 Kia Carnival.
However, owners of the 2025 Carnival have filed numerous complaints with the NHTSA regarding electrical issues, such as parasitic battery drain, which may be relevant for technicians diagnosing problems in the dashboard area. There is also a recall (SC361) for the 2025 Carnival involving a software error that could cause the instrument panel display to fail, but this is unrelated to the glove box itself.
Installation Walkthrough
Replacing the glove box assembly is a very simple DIY task. 🎬 Watch: Step-by-step 2025 Carnival glove box removal video The process is identical to the steps required to access the cabin air filter.
- Open the glove box completely.
- Locate the black damper arm on the right side. Gently pull it to disconnect it from the side of the glove box door.
- Squeeze both sides of the glove box inward to allow the rubber stoppers on the sides to clear the dashboard frame.
- Let the glove box door swing down further. It is now resting on its lower hinges.
- To remove it completely, simply pull the entire assembly up and away from the hinges.
- Installation is the reverse of removal. Align the new glove box on the lower hinges, swing it up, re-engage the side stoppers, and reconnect the damper arm.
Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $180 - $255 |
| New Aftermarket | Not commonly available at this time. |
| Used OEM (Salvage) | $75 - $150 |
| Shop Labor | $40 - $80 |
Frequently Asked Questions (FAQ)
Can I just replace the broken handle or latch on my glove box?
No, on the 2025 Kia Carnival, the handle and latch mechanism are built into the glove box door assembly. If either of these parts breaks, the entire glove box unit must be replaced.
Will a glove box from a 2024 Carnival fit my 2025 model?
No. The 2025 Kia Carnival received a dashboard refresh, and the glove box design was changed. Parts from 2022-2024 models are not compatible with 2025 and newer vehicles. You must use a part with the 'R0AB0' prefix for a 2025 model.
Is it difficult to replace the glove box myself?
No, it is a very easy job that requires no tools and can be completed in under 5 minutes. The process involves releasing a damper arm and squeezing the sides of the box to lower it past its stoppers.
Why does it matter if my Carnival has the Bose audio system?
The Bose premium audio system, found on the SX Prestige trim, may include components located in or around the dashboard that could change the shape or mounting points of the glove box assembly. To ensure a perfect fit, it is best to source a replacement part from a vehicle with the same audio system as yours.

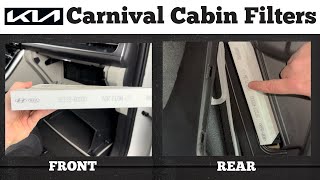

Helpful Videos
Technical Specifications
OEM Part Numbers: 84510-R0AB0OFB 84510-R0AB0TPB 84735-R0AA0TPB 84735-R0AB0OFB
Compatibility is dependent on model year (2025+), interior color, and presence of the Bose premium audio system.
