2019-2021 Genesis G70 Overhead Console: A Guide to Rattles, Sunroof, and Color Variations

Key Differences for 2019-2021 Genesis G70 Models

When replacing the overhead console on a 2019-2021 Genesis G70, it is critical to get the exact correct part for your vehicle's specific options. The G70 received a major interior and exterior update for the 2022 model year, so parts from 2022-2024 models will not fit. For the pre-facelift 2019-2021 models, there are two main variations to be aware of.

• Sunroof vs. No Sunroof: The most important difference is the button layout. Consoles for vehicles with a sunroof have a large, multi-function switch to control the glass panel. Consoles for vehicles without a sunroof have a blank plate in this location. They are not interchangeable.
• Interior Color: Genesis offered several interior colors, and the console plastic was molded to match. The part number's suffix indicates the color. For example, part numbers ending in -NNB are typically for black interiors, while -RJS often corresponds to gray. Always verify the color before purchasing.

Symptoms of a Failing Overhead Console

Failures of the overhead console are typically related to electronic glitches or physical wear. Here are the most common symptoms owners report.

1. Rattling or Buzzing Noises

This is the most widely reported issue with the G70's overhead console. Owners often describe a 'Geiger counter' or crackling sound coming from the area, especially in warm weather when the plastic components expand. The noise can be caused by the main housing vibrating against the headliner or by internal trim pieces rattling against each other. Pressing on the console often temporarily stops the noise.

2. Inoperative Lights or Buttons

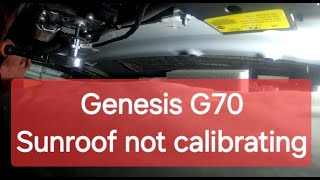

Individual map lights, the main dome light, or the sunroof switch may stop working. 🎬 Watch: Troubleshoot a G70 sunroof that won't work This can be due to a failed button, a bad solder joint on the internal circuit board, or a problem with the wiring harness. Since the lights are typically integrated LEDs, you cannot simply replace a bulb; the entire console assembly must be replaced if a light fails.

3. SOS or Blue Link System Malfunctions

The console houses the buttons and microphone for the vehicle's telematics system. A fault in the console's circuitry can lead to error messages related to the SOS or Blue Link services, or cause the microphone to stop working for hands-free calls.

Buying a Used Overhead Dome Light Console

Since aftermarket options are virtually nonexistent, a used OEM console is the most practical and cost-effective solution. Here’s what to check to ensure you get a good part.

1. Verify Sunroof Configuration: This is the most critical step. Visually confirm the button layout in the seller's photos. Make sure it has the sunroof switch if your car has one, or a blank plate if it does not.
2. Match the Part Number and Color: If possible, get the part number from your original console. Pay close attention to the suffix (e.g., 92810-G9070-NNB for black) to ensure the color matches your car's headliner and interior trim.
3. Inspect All Mounting Clips: Carefully examine the photos of the back of the console. There are several plastic clips that secure the unit to the headliner. If these are broken, the console will not fit securely and will almost certainly rattle.
4. Check for Button and Lens Condition: Ensure the buttons are not worn, sticky, or broken. The clear plastic lenses for the map lights should be free of cracks and hazing.

Known Issues, TSBs, and Recalls

At the time of writing, there are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA for the overhead console itself. However, a related TSB (21-BD-007G) was issued for some 2019-2020 G70s to address a headliner noise near the sun visor pivots by installing foam pads. While not directly for the console, it highlights the known sensitivity to rattles in this area of the vehicle.

It is also important to be aware of other major recalls for the 2019-2021 G70, such as NHTSA recall 21V161000 for a potential short circuit in the ABS module that could cause a fire. Owners are advised to park outside until this recall is addressed. Always check the NHTSA website with your vehicle's VIN to see if any open recalls apply.

Cost Comparison

Replacement Overview

Replacing the overhead console is a straightforward DIY task that most owners can complete in under 30 minutes.

• Difficulty: 1 out of 5
• Estimated Time: 0.5 hours
• Tools Required: Phillips head screwdriver, plastic trim removal tool.

The general process involves opening the sunglasses holder to access two Phillips head screws. After removing the screws, the console can be gently pried down from the headliner using a trim tool. It is held in by several clips. Once it's loose, disconnect the two electrical harnesses to free the console. Installation is the reverse of removal.
