2009-2014 Ford Edge Overhead Console: A Guide to Failures, Colors, and Replacement

Symptoms of a Failing Overhead Console

Problems with the overhead console on a 2009-2014 Ford Edge are common and usually easy to spot. Failures can range from minor annoyances to a complete loss of function.

1. Broken Sunglass Holder

This is the most frequent complaint. The latch or hinge mechanism for the sunglass storage door is made of plastic and can break from use, age, or placing oversized glasses inside. When it fails, the door may not stay closed, or it might not open at all. Since Ford typically does not sell the door or latch separately, a broken holder often requires replacing the entire console assembly. Some owners have created DIY fixes using pins or clips, but for a clean look, replacement is the best option.

2. Map Lights or Dome Lights Not Working

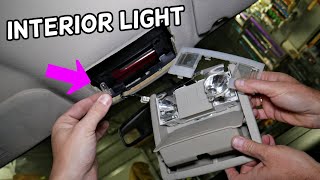

Individual map lights that won't turn on, or lights that flicker, are a common symptom. This can be as simple as a burnt-out bulb. 🎬 Watch a quick video tip on changing the map light bulbs However, it can also indicate a problem with the switch inside the console, a loose connection, or a fault on the console's internal circuit board. If multiple lights are flashing or acting erratically, the issue might be related to the vehicle's Body Control Module (BCM) or a bad ground, not the console itself.

3. Complete Loss of Power to the Console

If the map lights, sunroof switch, and any other console functions are completely dead, the problem may not be the console. Owners often report that this is caused by a wiring issue within the A-pillar (the pillar between the windshield and the driver's door) or a poor ground connection. Before replacing the console, it's wise to check fuses #4 and #12 in the interior fuse panel, 🎬 Watch how to locate and check the dome light fuses as these are related to the dome and interior lights. A technician can also check for power at the electrical connector that plugs into the console to confirm if power is reaching the unit.

4. Console is Loose or Sagging

The console is held to the roof by several plastic clips. Over time, or due to improper removal, these clips can break. This will cause the console to hang down, rattle, or feel loose. A related issue is a sagging headliner, which was noted in a Technical Service Bulletin (TSB-14-0088) for 2012-2014 models; a loose headliner can prevent the console from seating securely.

Buying a Used Overhead Console Panel

Since new aftermarket consoles are generally not available and new OEM units are expensive or discontinued, a quality used OEM console is often the best choice. Here’s what to look for:

1. Verify Sunroof Compatibility

This is the most important check. The console is different for models with a sunroof versus those without. A console for a sunroof-equipped Edge will have a switch and wiring that a base model does not. Ensure the part you are buying explicitly matches your vehicle's configuration.

2. Match Your Interior Color Code

Ford offered the Edge with several interior colors, such as Light Stone (tan/beige), Gray, and Black. To ensure a perfect match, find your vehicle's interior trim code. You can find this code on the certification label on the driver's side door jamb. Look for "INT TR" on the sticker; the two-character code below it is your trim code. Provide this code to the seller to confirm a color match.

3. Inspect for Common Failure Points

• Sunglass Door: Ask the seller to confirm that the sunglass holder door latches securely and opens smoothly. This is the most common part to fail.
• Mounting Clips: Look at photos of the top and sides of the console. Ensure all plastic mounting tabs and clips are intact and not cracked or broken. A console with broken clips will not fit tightly.
• Switches and Lenses: Check that the light lenses are not cracked and that the switches feel intact.

Cost of Replacing a 2009-2014 Ford Edge Overhead Console

Installation Guide

Replacing the overhead console is a straightforward DIY job that requires no special tools.

• Difficulty: 1/5 (Very Easy)
• Time: 10-15 minutes
• Tools Needed: None (a plastic trim removal tool can be helpful but is not required)

Step-by-Step Replacement:

1. Grip the console firmly at the rear edge (closest to the windshield).
2. Pull straight down. The rear of the console is held in by two metal spring clips and will pop out.
3. Once the rear is loose, slide the entire console assembly toward the windshield to release the front tabs.
4. Let the console hang by its wiring harness. Locate the single electrical connector and press the release tab to unplug it.
5. To install the new console, plug in the electrical connector.
6. Slide the front tabs of the new console into the slots in the headliner.
7. Push the rear of the console straight up until the metal clips snap firmly into place.
