U3003 on 2022-2023 Ford Maverick: Battery Voltage Fault Causes and Fixes

What's Unique About the 2022-2023 Ford MAVERICK

Unlike the non-hybrid Maverick which uses a traditional alternator, the Maverick Hybrid uses a DC/DC converter to keep its 12V battery charged. This specific component and its related high-current fuse are the subject of a Technical Service Bulletin (TSB) from Ford for this exact problem. This makes the diagnosis for the hybrid model very different from its gas-only counterpart, as the fault lies within the hybrid's unique power management system. This same system and issue are also found on the Ford Escape Hybrid and Lincoln Corsair.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Completely dead 12V battery / vehicle will not start
• "Deep Sleep" messages from the FordPass app
• Warning lights on the instrument cluster, sometimes showing a 'Stop Safely Now' message
• Dimming interior or exterior lights
• Slow or non-responsive electrical accessories (power windows, radio)
• Needing to jump-start the vehicle frequently, with the battery draining again shortly after
• Message on the dash stating the vehicle is shutting off functions to preserve the 12V battery

Most Likely Causes

1. Open 300 Amp High-Current Fuse (Hybrid Models) 🔴 High Probability Ford TSB SSM 52201 directly identifies an open (blown or cracked) 300-amp fuse in the high-current Battery Junction Box (BJB) as a primary cause for this issue on FHEV models. A technician on a forum noted these fuses can develop hairline cracks from road shock and vibration, leading to an intermittent connection that is difficult to diagnose.
   How to confirm: A technician must follow the diagnostic procedure in the workshop manual (Pinpoint Test H in WSM Section 414-05) to verify the fuse's condition. A simple visual check or continuity test may not be sufficient if the crack is intermittent. Dealers have had to be specifically directed to this TSB by owners in some cases.
   Typical fix: Replace the 300-amp high-current fuse and fully test/recharge the 12V battery. The technician must also determine what caused the fuse to fail, which could be the DC/DC converter itself. One owner on MaverickTruckClub.com confirmed this fix worked after a dealer initially misdiagnosed the problem as only a bad battery.
   Est. part cost: $20-$60
2. Failing 12V Battery (All Models) 🟡 Medium Probability Many owners report premature failure of the factory-installed 12V AGM battery. However, a failing battery is often a symptom of the charging system fault (like the 300-amp fuse) rather than the root cause. A battery that can no longer hold a sufficient charge will trigger low-voltage codes.
   How to confirm: Perform a professional load test on the 12V battery. A simple voltage check is not enough. The battery may fail the test even if it can be temporarily recharged.

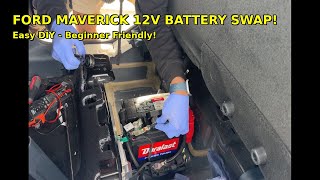

   Typical fix: Replace the 12V AGM battery. Ensure the Battery Monitoring System (BMS) is reset after installation. 🎬 Watch: Step-by-step guide to replacing your 12V AGM battery. IMPORTANT: If this is done without confirming the charging system is working, the new battery will also drain and fail. Multiple owners have reported that replacing the battery alone did not fix the issue.
   Est. part cost: $200-$300
3. Failing DC/DC Converter Control Module (Hybrid Models) 🟡 Medium Probability The TSB points to the DC/DC converter module as the component that stores the code. A fault within this module can prevent it from charging the 12V battery or cause it to blow the high-current fuse.
   How to confirm: This is diagnosed by a dealer technician after ruling out the fuse and battery. It often involves checking software versions and running specific module diagnostics.
   Typical fix: Replacement of the DC/DC Converter Control Module. This is typically done under warranty.
   Est. part cost: $250-$350
4. Failing Alternator (2.0L EcoBoost Models) ⚪ Low Probability On the non-hybrid models, the alternator is responsible for charging the 12V battery. A failing alternator will cause the battery voltage to drop while the engine is running, triggering code U3003.
   How to confirm: With the engine running, measure the voltage at the battery terminals. A healthy charging system should read between 13.8 and 14.5 volts. If it's near battery voltage (12.6V or less), the alternator is likely faulty.
   Typical fix: Replace the alternator.
   Est. part cost: $300-$600

Rare But Worth Checking

• Corroded or Loose Battery Terminals/Grounds: Always check the basics first. A poor connection at the battery or a main chassis ground can mimic a failed component by causing a voltage drop under load.
• Loose Battery Cable Assembly Connection (Early 2022 Models): Per TSB 22-2340, some Maverick Hybrids built on or before May 13, 2022, may have a loose or detached eyelet solder connection (C1617E) on the battery cable assembly. This can cause a no-start condition with no 12V power to the battery junction box and requires replacement of the wiring assembly (Part No. LX6Z-14290-PA).
🎬 See why a good battery might still result in no power.
• Software-Related Parasitic Drain: Other Ford service bulletins point to software issues causing battery drain. SSM 53801 addresses a problem with the air conditioning control system draining the battery when the truck is off. Another, SSM 50804, warns that third-party remote access apps can keep the vehicle's modem awake, causing a parasitic draw.

Diagnosis Steps

1. Scan all vehicle modules for Diagnostic Trouble Codes (DTCs). Note the specific suffix for U3003 (e.g., :16, :62).
2. Check for applicable Technical Service Bulletins (TSBs), specifically SSM 52201 for hybrid models.
3. Perform a professional load test on the 12V battery to verify its health. Do not skip this step, but be aware a bad battery may be a symptom, not the cause.
4. If the battery is healthy, inspect the battery terminals and main ground connections for corrosion or looseness.
5. For Hybrid Models: Insist on the diagnostic procedure in TSB SSM 52201, which involves Workshop Manual Section 414-05, Pinpoint Test H, to inspect the 300-amp high-current fuse in the Battery Junction Box.
6. For EcoBoost Models: With the engine running, test the alternator output voltage at the battery. It should be approximately 14.0-14.5V.
7. If the fuse and battery are good (Hybrid) or the alternator is good (EcoBoost), further diagnostics on the DC/DC converter or for a parasitic drain (per TSBs 22-2340 or SSM 53801) will be required, likely by a dealer.

Parts You'll Likely Need

• DC/DC Converter Control Module (OEM #NZ6Z-10B687-A) — This module is responsible for charging the 12V battery on hybrid models and is a common failure point related to this code. Note: Part number NZ6Z-10B687-B is for other Ford/Lincoln models.
  Trusted brands: Motorcraft
  OEM price range: $250-$350
• 300 Amp High-Current Fuse (OEM #MU5Z14526K) — Identified in Ford TSB SSM 52201 as a primary point of failure that stops the 12V battery from being charged. It can crack and cause an intermittent open circuit.
  Trusted brands: Motorcraft
  OEM price range: $20-$60
  Aftermarket price range: $15-$40
• 12V AGM Battery (OEM #BAGM-48H6-760) — The original 12V battery is a common failure item and is often replaced to resolve low voltage issues, though it may not be the root cause.
  Trusted brands: Motorcraft, Interstate, DieHard
  OEM price range: $200-$250
  Aftermarket price range: $180-$280

Related Codes That Often Appear With This One

• U3003:62 — This specific sub-type means 'Signal Compare Failure' and is explicitly cited in TSB SSM 52201 as the primary code for this issue.
• U3003:16 — This sub-type means 'Circuit Voltage Below Threshold' and is also mentioned in the TSB as a related code that may appear.
• U3000:04 — This code for 'Control Module: System Internal Failures' can be stored in the DC/DC module alongside U3003, indicating a potential module fault.

Technical Service Bulletins (TSBs) & Recalls

• SSM 52201: For 2022-2023 Maverick FHEV, 2020-2023 Escape FHEV/PHEV, and 2021-2023 Corsair FHEV/PHEV, a low or discharged 12V battery with DTC U3003:62, U3003:16, and/or U3000:04 may be caused by an open 300-amp fuse in the high-current battery junction box.
• TSB 22-2340: For early 2022 Maverick FHEVs (built on or before 13-May-2022), a no-start condition can be caused by a loose eyelet connection on the battery cable assembly, requiring a new wiring harness.

Platform-Specific Known Issues

• A significant number of 2022-2023 Maverick Hybrids have experienced issues with the 12V battery draining, leading to no-start conditions. Ford has issued TSB SSM 52201 to address a common cause related to the DC/DC converter's high-current fuse.
• A real-world repair story from an owner on MaverickTruckClub.com illustrates the common diagnostic pitfall: the dealer first replaced the 12V battery, but the 'low battery' warnings returned the same day. On the second visit, the technician was directed to TSB SSM 52201, found the open 300-amp fuse, and replacing the fuse resolved the problem permanently.

Mechanic-Grade Diagnostic Values

• DC/DC Converter Output Voltage — expected: 13.0 to 15.5 volts. Failure: Voltage outside of this range indicates a fault in the DC/DC converter.
• 12V Battery Voltage (pre-test) — expected: Greater than 12.2 volts. Failure: Voltage below this level may prevent accurate charging system diagnosis. The battery must be charged before proceeding.

Scan Tool Commands That Help

• Ford Diagnosis And Repair System (FDRS): BCM-reset the battery monitoring sensor learned values — This function must be run after replacing the 12V battery to ensure the Battery Monitoring System (BMS) correctly charges the new battery.
• Ford Diagnosis And Repair System (FDRS): air conditioning control module (ACCM) software update — This software update is required per SSM 53801 to fix a known bug on vehicles built before Feb 17, 2025, where the ACCM causes a parasitic drain on the 12V battery.

Wiring & Ground Locations

• Passenger Footwell Ground Bolts — In the passenger footwell, to the left, under the BCM and fusebox. Two threaded bolts are available on the firewall.. A poor ground connection can cause a variety of electrical issues, including voltage drops that could trigger a U3003 code. Verifying main ground points is a fundamental step in diagnosing electrical faults.
• High Current Battery Junction Box (BJB) — In the engine compartment. The 300-amp mega fuse at the center of this issue is located within this box.. This is the specific location a technician must access to perform Pinpoint Test H and inspect the 300-amp fuse as directed by TSB SSM 52201.

Real Owner Repair Stories

• MaverickTruckClub.com user (2022-2023 Ford Maverick Hybrid (specific year not stated)) — Message on dash stating 'shutting off functions to preserve 12v battery'.
  ❌ Tried (didn't work) Dealer initially diagnosed a dead cell in the 12V battery and replaced it. The problem returned within hours of picking the vehicle up.
  ✅ What actually fixed it On the second visit, the technician test-drove the vehicle until the message reappeared. They then found the TSB for the 300-amp fuse, tested it with guidance from Ford's electronics team, confirmed the fuse was open, and replaced it. The issue was resolved.
• MaverickTruckClub.com user (2023 XLT Hybrid) — Vehicle went into 'deep sleep mode' 30 minutes after leaving the dealership.
  ❌ Tried (didn't work) Dealer replaced the battery monitor sensor, which took 10 days.
  ✅ What actually fixed it The user's story was ongoing, but they were aware of the TSB regarding the 300-amp fuse and were trying to get the dealer to investigate it as the root cause, highlighting a common misdiagnosis pattern.

Model Year Variations Within This Range

• 2022 models built on or before May 13, 2022: Per TSB 22-2340, these early-build hybrid models may have a faulty battery cable assembly with a loose or detached eyelet solder connection (C1617E). This can cause a no-start condition with no 12V power. The fix is a complete replacement of the wiring assembly (Part No. LX6Z-14290-PA), not just a fuse or battery.
• 2022-2025 models built on or before February 17, 2025: Per SSM 53801, these vehicles may have a software bug in the Air Conditioning Control Module (ACCM) that causes a 12V battery drain. The fix is a software update using the FDRS scan tool, not a hardware replacement.
