U3002 on 2022-2024 Ford Expedition: VIN Mismatch & Programming Fixes

What's Unique About the 2022-2024 Ford EXPEDITION

For the 2022-2024 Expedition, this code is a known issue documented by Ford in multiple Technical Service Bulletins. It frequently appears in driver-assist modules like the Cruise Control Module (CCM) and Side Obstacle Detection (blind spot) Modules (SODL/SODR). The problem is almost always related to software configuration after a module replacement (e.g., following a front or rear-end collision repair) rather than a random component failure. The official TSBs explicitly state that swapping modules from another vehicle will cause this DTC and is considered a non-warrantable repair.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Warning light for Pre-Collision Assist
• Adaptive Cruise Control unavailable or malfunctioning

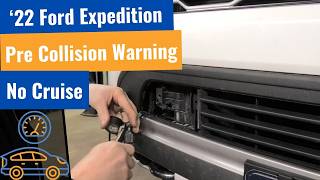

🎬 Watch: Real-world diagnosis of these cruise control and collision warnings.
• Blind Spot Information System (BLIS) warning light or system inoperative
• Check engine light may be on
• In some rare cases on other platforms, it can cause a no-start condition if the ABS or security modules are affected.

Most Likely Causes

1. Replaced Module Not Programmed 🔴 High Probability As per Ford TSBs, this is the most common reason. After a collision or component replacement, modules like the CCM (front radar) or SODR (rear corner radar) are often replaced but not VIN-programmed by the installer. This also occurs if a used module from another vehicle is installed.
   How to confirm: Use a Ford-specific scan tool (FDRS, FORScan) to identify which module has the U3002 code. Check the vehicle's repair history for recent collision work or module replacements.
   Typical fix: Program the module using the 'Vehicle Identification Number (VIN) Write' or 'Programmable Module Installation (PMI)' procedure in the Ford Diagnosis and Repair System (FDRS). 🎬 Watch: Quick tip on performing a Ford Programmable Module Installation.
   Est. part cost: $0
2. Software Glitch or Data Corruption 🟡 Medium Probability The TSBs suggest that sometimes the code can be set intermittently without a specific hardware change, possibly due to a software anomaly or a temporary loss of communication that corrupts the VIN data in the module's memory (EEPROM).
   How to confirm: If no modules have been replaced, the first step is to attempt the VIN Write procedure. If it succeeds and the code clears, the cause was likely a glitch.
   Typical fix: Perform the 'VIN Write' procedure using FDRS. If that fails, re-flashing the module's software may be necessary.
   Est. part cost: $0
3. Faulty Control Module ⚪ Low Probability While less common than a programming issue, the module's internal memory (EEPROM) can fail, preventing it from storing the VIN correctly. This is only considered after programming attempts have failed.
   How to confirm: If the 'VIN Write' or PMI procedure in FDRS repeatedly fails and all wiring is confirmed to be good, the module itself is suspect.
   Typical fix: Replace the affected module (e.g., CCM, SODL, SODR) and then perform the PMI procedure on the new part.
   Est. part cost: $250-$500

Rare But Worth Checking

• Damaged Wiring or Connectors: A poor connection on the CAN bus network can corrupt data packets, including the VIN verification message. This is worth checking if programming fails and the module is new, but it's not a common cause for this specific code. TSB 24-2028 also notes that corrosion on SODL/SODR connectors from moisture can cause related faults.

Diagnosis Steps

1. Verify the vehicle's battery is fully charged and in good health to ensure stable voltage during diagnosis.
2. Connect a Ford-specific scan tool (like FDRS or a high-level FORScan setup) to the vehicle.
3. Perform a full network scan to identify which specific module(s) are storing the U3002 code (e.g., CCM, SODL, SODR, SODCMC, SODCMD).
4. Professional Method (FDRS): Access the 'Toolbox' and 'Multi-Module' tab within the Ford Diagnosis and Repair System (FDRS).
5. Run the 'Vehicle Identification Number (VIN) Write' application for the affected module.
6. If the module was recently replaced, run the 'Programmable Module Installation (PMI)' procedure instead.
7. Advanced DIY Method (FORScan): For advanced users, connect with FORScan and an extended license. Attempt to rewrite the As-Built data for the module and perform a module reset. This is a known workaround on related platforms but carries risk.
8. Follow the on-screen prompts, which will likely include cycling the ignition.
9. After the procedure is complete, clear all DTCs and run the network test again to confirm the U3002 code is gone.
10. If programming fails, inspect the wiring and connectors for the specific module for any damage or corrosion.
11. If wiring is intact and programming continues to fail, the module itself is likely defective and requires replacement.

Parts You'll Likely Need

• Cruise Control Module (CCM) (OEM #ML3T-9G768-AL) — This is one of the primary modules cited in Ford's TSBs for this issue. It is only needed if the original module is faulty and will not accept reprogramming. This part is a radar sensor located in the front bumper/grille area.
  Trusted brands: Motorcraft
  OEM price range: $350-$500
  Aftermarket price range: $200-$350
• Side Obstacle Detection Control Module (SODL/SODR) — Also known as the blind-spot module, this is frequently cited in TSBs for the U3002 code. It requires replacement only if it's damaged (e.g., from a rear corner collision or moisture intrusion) or fails to accept a VIN write.
  Trusted brands: Motorcraft
  OEM price range: $250-$400
  Aftermarket price range: $150-$250

Related Codes That Often Appear With This One

• U2100 — This code means 'Initial Configuration Not Complete' and is cited in the exact same Ford TSBs as U3002. They often appear together when a new module is installed but not set up, and they are resolved with the same programming procedure.
• U3002:62 — This is a more specific version of the code with a Failure Type Byte (FTB). The ':62' indicates a 'Signal Compare Failure,' meaning the VIN stored in the module does not match the VIN being broadcast by the primary control module (like the PCM or BCM).

Technical Service Bulletins (TSBs) & Recalls

• SSM 53569: For 2021-2025 vehicles, states U3002 may set if a module has an incorrect VIN and advises using the FDRS 'VIN Write' application.
• SSM 53018: An earlier version of the bulletin for 2021-2024 vehicles with the same guidance.
• SSM 51903: The initial bulletin for 2021-2023 vehicles, confirming the cause is an incorrect VIN and the fix is the FDRS 'VIN Write' procedure.

Platform-Specific Known Issues

• Ford has issued multiple Technical Service Bulletins (SSM 53569, SSM 53018, SSM 51903) for 2021-2025 vehicles, including the Expedition, specifically for codes U3002 and U2100. The TSBs cover the CCM, SODL, SODR, and on some vehicles, SODCMC and SODCMD modules. The official fix is to use the FDRS software to perform a 'VIN Write' or 'PMI' procedure. The TSB explicitly warns that installing a used module from another vehicle is a common cause and is not a warrantable repair.

Mechanic-Grade Diagnostic Values

• CAN Bus Network Resistance — expected: Approximately 60 Ohms. Failure: A reading of 120 Ohms indicates an open circuit or a missing termination resistor. A reading near 0 Ohms indicates a short between the CAN High and CAN Low wires.
• HS-CAN Bus Voltage (Key On) — expected: CAN High: ~2.6V to Ground. CAN Low: ~2.4V to Ground.. Failure: Voltages that are the same (e.g., both 2.5V) may indicate a short between the two lines. Both lines at 0V could indicate a short to ground.

Hidden / Shadow Codes Worth Checking

• U3002:62: Indicates a 'Signal Compare Failure'. This specific Failure Type Byte (FTB) is set when the VIN received from a primary module (like the BCM or PCM) over the CAN bus does not match the VIN stored locally in the module setting the code (e.g., ABS, CCM, SODR). (see via Ford's FDRS/IDS or advanced aftermarket scan tools like FORScan that can read manufacturer-specific DTCs with FTBs.)

Scan Tool Commands That Help

• Ford FDRS: Programmable Module Installation (PMI) — Used when installing a brand new, unprogrammed module. FDRS will attempt to save configuration data from the old module first, then install it onto the new one along with the correct VIN and software.
• Ford FDRS: Vehicle Identification Number (VIN) Write — A specific routine used to correct a VIN mismatch on an existing or replaced module, as recommended by Ford's TSBs for U3002. It directly addresses the VIN data without a full re-flash.
• FORScan: Module Configuration (As-Built format) — For advanced DIY users, this allows direct editing of the module's configuration data. It can be used to manually enter the correct VIN information if the automated procedures fail, but requires an extended license and carries significant risk.

Wiring & Ground Locations

• Gateway Module (GWM) — Located under the driver's side instrument panel. The OBD-II diagnostic port is often directly attached to or wired into the GWM.. The GWM is the central hub that translates messages between all vehicle CAN networks. A fault within the GWM can corrupt the VIN broadcast, causing other modules to set a U3002 code even if they are not faulty themselves.
• Cruise Control Module (CCM) — Located in the front bumper or grille area of the vehicle.. This is one of the most common modules to set U3002, especially after a front-end collision. Its location makes it vulnerable to damage and replacement, often leading to programming being overlooked.
• Chassis Ground Points — General locations include two grounds in the rear bolted to the frame on either side, and at least three in the front: one at the stock location and two additional grounds to the frame behind the upper control arms.. While not a primary cause, a poor ground connection for a module can cause intermittent data corruption and unpredictable network behavior, potentially leading to a U3002 code if programming attempts fail.

Real Owner Repair Stories

• YouTube video on a Ford Edge with a used ABS module (Ford Edge (similar CAN architecture)) — ABS and traction control lights on, U3002:62 code stored in the ABS module after installing a used part.
  ❌ Tried (didn't work) Standard Programmable Module Installation (PMI) procedure using Ford's IDS software failed to write the VIN.
  ✅ What actually fixed it The technician had to perform a manual As-Built data configuration. This involved manually editing the hexadecimal code of the module's configuration to insert the correct VIN and then using the scan tool to write this modified data to the module.
• Ford F-150 Forum user (2022 Ford F-150 Lariat (platform mate)) — Over-The-Air (OTA) updates stopped working and the truck would not connect to the Ford cloud.
  ❌ Tried (didn't work) Initial dealer troubleshooting could not resolve the communication issue.
  ✅ What actually fixed it After two weeks of diagnosis, the dealer replaced the Gateway Module (GWM), which resolved the network communication problems.

"I Checked Everything" — The Actual Cause

• In the context of a network code, the equivalent of a 'smoke test clean' scenario is when the standard software procedure fails. In one documented case, the standard 'Programmable Module Installation (PMI)' procedure repeatedly failed to program a used ABS module. The actual fix was not to replace the module again, but to perform a more advanced manual As-Built data edit, changing the hexadecimal values to force the correct VIN into the module's memory.

OEM Part Supersession History

• ML3T-9G768-AL → ML3Z-9E731-D, ML3Z-9E731-E — Standard part number evolution for service replacement.
  Heads up: This is the Cruise Control Module (CCM). Regardless of the part number used, the module is not plug-and-play. It requires programming (PMI or VIN Write) with FDRS after installation to learn the vehicle's VIN and configuration. Failure to program will result in a U3002 code.

Model Year Variations Within This Range

• 2022-2024: In modern Ford architecture, the Body Control Module (BCM) is often the 'VIN master'. At ignition-on, the BCM broadcasts the VIN to other modules like the Powertrain Control Module (PCM). The PCM then reports this VIN to the scan tool during a diagnostic request. If the scan tool shows an incorrect VIN, the fault could lie with the BCM broadcasting the wrong information, not necessarily the module flagging the U3002 code.
