U3000 on 2014-2017 Mazda 6: Control Module Failure Causes and Fixes

What's Unique About the 2014-2017 Mazda 6

The third-generation Mazda 6 (2014-2017) was one of the first models to feature the comprehensive i-ACTIVSENSE suite of safety technologies. This network relies on numerous advanced modules like the Forward Sensing Camera and radar-based Blind Spot Monitors that are networked together. As a result, a U3000 code on this platform is very frequently related to one of these specific safety system modules failing, rather than a more traditional computer like the ECU or TCU. Mazda has issued several Technical Service Bulletins (TSBs) that directly address U3000 failures in these specific modules, making diagnosis more precise if you have the full code.

Symptoms You May Notice

• Check Engine Light or wrench light on the dashboard
• ABS, Traction Control (TCS/DSC), and/or TPMS warning lights illuminated
• Airbag warning light on

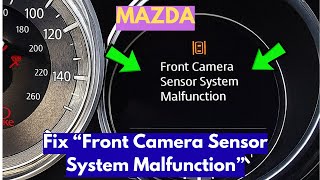

• "SCBS Inspection Required" or "Forward Sensing Camera System Malfunction" message in the instrument cluster
• "BSM System Malfunction" message in the instrument cluster or flashing BSM OFF light
• Automatic emergency braking (Smart City Brake Support - SCBS) is disabled
• Lane Departure Warning (LDWS) and Lane-Keep Assist (LAS) systems are inoperative
• Blind Spot Monitoring (BSM) warning lights on door mirrors do not work or flash

Most Likely Causes

1. Forward Sensing Camera (FSC) Internal Failure 🔴 High Probability A known issue documented in Mazda TSB 15-002/19 for 2017-2018 models, where an internal hardware failure occurs. Manufacturer TSB Bulletin #15-001-25 further notes that vehicles may experience i-ACTIVSENSE warning lights and system error messages when DTC U3000:04 is stored due to an FSC internal malfunction.
   How to confirm: Use a Mazda-specific scan tool to find DTC U3000:04-0A stored in the FSC module. This code often cannot be erased, indicating a permanent fault.
   Typical fix: The Forward Sensing Camera, located on the windshield, must be replaced with a modified part. The new camera requires aiming/calibration by a dealer or qualified shop. 🎬 Watch: How a Mazda 6 front camera is calibrated
   Est. part cost: $450-$750
2. SAS Control Module Internal Failure 🟡 Medium Probability A documented issue in Mazda TSB 08-001/15 for 2015 models where the SAS (Steering Angle Sensor and Airbag) module fails internally, causing numerous warning lights, often described as a 'Christmas tree' on the dash.
   How to confirm: Scan the vehicle for DTC U3000:49 stored in the SAS module. This is often accompanied by ABS, TCS, and Airbag warning lights, as well as secondary codes like C0061, C0062, and C0063.
   Typical fix: The SAS control module needs to be replaced and configured to the vehicle using Mazda's diagnostic software. An owner on mazda6club.com documented a dealer repair cost of around $1100 for this exact issue.
   Est. part cost: $300-$600
3. Blind Spot Monitoring (BSM) Module Malfunction 🟡 Medium Probability For 2014-2015 models, TSB 09-037/14 notes that inadequate control logic can cause the BSM OFF light to flash. This is a software issue. The modules are also highly susceptible to physical damage or misalignment from minor rear bumper impacts, which can also store a U3000:54 code. Manufacturer TSB Bulletin #09-005-26 notes that if a BSM module is replaced alone, aiming may fail and store U3000:54 because new modules do not retain vehicle specifications.
   How to confirm: Scan for DTC U3000:54 in the BSM module(s). If this code is present on a vehicle produced before August 2014, 🎬 See how to troubleshoot Mazda blind spot malfunctions a software update may be the fix. Also, inspect the rear bumper for any signs of damage near the corners where the radar units are located.
   Typical fix: If related to the TSB, the BSM control module needs to be reprogrammed with updated software by a dealer. If the module is physically damaged, it will require replacement and calibration. A forum user reported a dealer quote of $2300 to replace both modules.
   Est. part cost: $0 (software update) or $400-$800 (module replacement)
4. Low Battery Voltage or Poor Connection ⚪ Low Probability
   How to confirm: Test the 12V battery with a digital multimeter or electronic tester. A healthy battery should read approximately 12.6V with the engine off and 13.7V-14.7V with the engine running. Inspect battery terminals for corrosion.
   Typical fix: Recharge or replace the battery. Clean the battery terminals and cable ends. Low voltage can sometimes trigger false communication codes.
   Est. part cost: $150-$300

Rare But Worth Checking

• Forward Sensing Camera (FSC) Overheating: TSB 15-002/18 addresses an issue where the FSC can temporarily shut down in high temperatures, storing DTC U3000:98. This is a normal protective function to prevent hardware damage, though a modified camera with better heat radiation was released to reduce the frequency of these shutdowns.

Diagnosis Steps

1. Connect a professional-grade scan tool capable of reading 🎬 Watch: How to use FORScan like a pro manufacturer-specific codes from all modules (e.g., FORScan, Autel, Mazda M-MDS).
2. Perform a full vehicle network scan to identify which module has stored the U3000 code.
3. Record the full DTC, including the critical two-digit suffix (e.g., :04, :49, :54).
4. Check the vehicle's 12V battery health and charging system performance to rule out low voltage as a cause.
5. If U3000:04 is in the Forward Sensing Camera (FSC), follow TSB 15-002/19, which points to camera replacement.
6. If U3000:49 is in the SAS Control Module, follow TSB 08-001/15, which points to module replacement after verifying power/ground.
7. If U3000:54 is in a Blind Spot Monitor (BSM) module, check for rear bumper damage and inquire with a dealer about the software update from TSB 09-037/14, especially for vehicles built before August 2014.
8. Inspect the wiring and connectors to the identified module for any visible damage, corrosion, or looseness.
9. If all external factors are ruled out, the module itself has failed and requires replacement and programming.

Parts You'll Likely Need

• Forward Sensing Camera (FSC) (OEM #B61L-67-XCXT, GHP9-67-XCXA, KDD1-67-XCX) — This is the most common cause, especially on 2017+ models, due to a documented internal hardware failure per TSB 15-002/19.
  Trusted brands: Mazda (OEM)
  OEM price range: $500-$750
  Aftermarket price range: $350-$550 (Used/Remanufactured)
• SAS Control Module (OEM #GHR1-67-CS0B) — A known failure point on 2015 models causing code U3000:49 and multiple warning lights, as documented in TSB 08-001/15.
  Trusted brands: Mazda (OEM)
  OEM price range: $300-$600
• Blind Spot Monitoring (BSM) Module (OEM #GJR9-67-Y30E) — Can fail due to software glitches (U3000:54) or physical damage to the rear bumper area.
  Trusted brands: Mazda (OEM)
  OEM price range: $400-$800
  Aftermarket price range: $200-$400 (Used)

Related Codes That Often Appear With This One

• U3000:04 — This specific suffix points directly to an internal hardware failure, most commonly in the Forward Sensing Camera (FSC) per TSB 15-002/19.
• U3000:49 — This suffix indicates an internal electronic failure, frequently traced to the SAS (Airbag/Stability) control module per TSB 08-001/15.
• U3000:54 — This suffix indicates a performance/misalignment issue, commonly associated with the Blind Spot Monitoring (BSM) modules, either from a software glitch or physical misalignment.
• C0061, C0062, C0063 — These codes for internal G-sensors and yaw rate sensors often appear alongside U3000:49 when the SAS module fails, as they are integrated within the same unit.

Technical Service Bulletins (TSBs) & Recalls

• 15-002/19: SBS/SCBS, LAS/LDWS AND/OR HBC WARNING LIGHTS ON WITH DTC U3000:04-0A [FORWARD SENSING CAMERA (FSC)] STORED.
• 08-001/15: MULTIPLE WARNING LIGHTS ON WITH SAS CONTROL MODULE DTC U3000:49.
• 09-037/14: BSM OFF INDICATOR LIGHT FLASHING WITH DTC U3000:54.
• 15-002/18: SBS/SCBS, LAS/LDWS AND/OR HBC WARNING LIGHTS ON WITH DTC U3000:98 [FORWARD SENSING CAMERA (FSC)] STORED IN HIGH TEMPERATURE.
• TSB Bulletin #15-001-25: i-ACTIVSENSE/ALH warning lights and system error messages with DTC U3000:04 (FSC) stored due to internal hardware failure.
• TSB Bulletin #09-005-26: BSM aiming failure and DTC U3000:54 stored if a module is replaced without retaining vehicle specifications.

Platform-Specific Known Issues

• A 2015 Mazda 6 owner on mazda6club.com experienced a dashboard lit up with ABS, TCS, Airbag, and SCBS warnings. A dealer diagnosed a failed SAS module (U3000:49) and replaced it, resolving all issues. The total cost was approximately $1100, confirming the fix outlined in TSB 08-001/15.
• A 2016 Mazda 6 owner on mazdas247.com reported a 'BSM System Malfunction' message and code U3000:54. The dealer inspected and found no physical damage, but quoted $2300 to replace both rear BSM sensors, illustrating the high cost when the issue is not a simple software update.
• On Reddit, a 2017 Mazda 6 owner with the 'SCBS Malfunction' light was quoted over $1200 by a dealer to replace and calibrate the Forward Sensing Camera (FSC), a common failure addressed by TSB 15-002/19.
• NHTSA ODI #11495196 describes an owner report where the BSM indicator was flashing with DTC U3000; despite no accidents or body damage, the dealer requested $2100 for the repair.

Mechanic-Grade Diagnostic Values

• CAN Bus Network Resistance — expected: ~60 Ohms. Failure: A reading of ~120 Ohms indicates an open circuit or one of the two terminating resistors is offline. A reading near 0 Ohms indicates a short between CAN High and CAN Low wires.
• CAN High Voltage to Ground — expected: ~2.6V (Key On, Engine Off). Failure: Significant deviation from this voltage can indicate a short or open on the CAN High line.
• CAN Low Voltage to Ground — expected: ~2.4V (Key On, Engine Off). Failure: Significant deviation from this voltage can indicate a short or open on the CAN Low line.

Scan Tool Commands That Help

• Mazda M-MDS / FORScan: FSC Aiming (Dynamic Calibration) — This procedure is mandatory after replacing the Forward Sensing Camera (FSC). The function is initiated with the scan tool, and then requires driving the vehicle on a road with clear lane markings for the camera to self-align.
• Mazda M-MDS: SAS Control Module Configuration (Read/Write Function) — This is a critical two-part process for replacing the SAS module. Before removing the old module, the technician must use this function to read and save the vehicle's configuration data. After installing the new module, the saved data is written to it. Failure to do this will result in a non-functional system and may set DTC B0003:53.
• Mazda M-MDS / FORScan: BSM Configuration — Required after replacing one or both Blind Spot Monitoring (BSM) modules, particularly to resolve a U3000:54 fault. This function ensures the system is aware of the new hardware.

Wiring & Ground Locations

• SAS Control Module Location — Located under the center console, beneath the radio and shift lever assembly.. Physical access is required for inspection of connectors and for replacement. The module is secured with several nuts and requires significant interior trim removal to access.
• BSM Module Location — The two radar sensors are installed inside the rear bumper, one on each corner.. These modules are vulnerable to physical damage from minor rear-end collisions, which can cause misalignment and trigger a U3000:54 code. Visual inspection of the rear bumper is a key diagnostic step.
• FSC Location — Mounted high on the interior side of the windshield, near the rearview mirror.. Its location makes it susceptible to issues from improper windshield replacement. The connection and mounting should be inspected, especially if a new windshield was recently installed.
• Main Body Ground — A common ground point is located under the airbox in the engine bay, near the front driver's side.. This ground point is in a direct path of water splash from the front tire and is known to corrode, potentially causing intermittent communication issues for various modules. Other key grounds are near the passenger motor mount and on the transmission.

Real Owner Repair Stories

• Reddit user in r/Miata (describing a similar Mazda SAS/RCM replacement process) (Mazda Miata (similar SAS/RCM module)) — Airbag light on, various codes stored in the Restraint Control Module (RCM).
  ❌ Tried (didn't work) Clearing codes with a standard scanner.
  ✅ What actually fixed it The user successfully replaced the SAS/RCM module using a VCX Nano interface and a downloaded copy of Mazda IDS software. The key steps were using the 'Module Reprogramming' function to copy the configuration from the old module, physically swapping the module (which is located under the center console), and then writing the configuration to the new module. Disconnecting the battery for more than one minute before the swap was noted as a critical step.

OEM Part Supersession History

• GHP9-67-XCXA → B61L-67-XCXT — The part was modified to improve durability and prevent the internal hardware failure that causes DTC U3000:04-0A, as noted in TSB 15-002/19.
  Heads up: While older part numbers may physically fit, installing them is not recommended as they are prone to the original failure. Always use the latest superseded part number for the repair.

Model Year Variations Within This Range

• 2016-2017: The 2016 model year marked a significant refresh for the Mazda 6. While the powertrain remained the same, the interior received a major update with a redesigned dashboard, a new 'floating' 7-inch center display, an electronic parking brake, and an updated center console. The exterior featured a new grille and LED headlights on some trims. These changes mean that interior components, including some control modules and their locations, may differ from the 2014-2015 models.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Infotainment Screen 'Ghost Touch' and Delamination 🟠 Medium — Very common on 2014-2016 models. The screen registers false touches or becomes unresponsive. The touch-sensitive layer (digitizer) fails due to moisture/corrosion. (Ref: SSPB6 (Warranty Extension for Mazda 3, but same issue affects Mazda 6))
• Sticky/Melting Dashboard Surface 🟡 Low — Common in hot, humid climates. The dashboard material deteriorates and becomes sticky or shiny. This primarily affected the previous generation, but some early 3rd-gen cars can show similar, less severe symptoms. (Ref: Warranty Extension Program (Primarily for 2009-2013 models))
• Direct-Injection Intake Valve Carbon Buildup 🟠 Medium — A potential long-term issue inherent to all Skyactiv-G engines, typically becoming noticeable after 80,000+ miles. Can cause rough idle, hesitation, and reduced fuel economy.
• Premature Rear Brake Pad Wear / Sticking Calipers 🟠 Medium — A frequently cited complaint where rear brake pads wear out significantly faster than the fronts, sometimes due to sticking electronic parking brake calipers or caliper slide pins.
• Early Model Transmission Whine 🔴 High — Some 2014 models developed a distinct whining noise from the automatic transmission, which in some cases led to transmission replacement.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used part can be a cost-effective option for the Forward Sensing Camera (FSC) and Blind Spot Monitoring (BSM) modules. Since the common FSC failure is a known hardware defect, a used part from a newer donor vehicle may have the updated, more reliable hardware. For BSM modules, failure is often due to physical damage, so a used part from an undamaged vehicle is a viable replacement.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For FSC, verify the part number is the latest superseded version (e.g., B61L-67-XCXT) if possible.
• For BSM modules, inspect the donor vehicle's rear bumper for any signs of impact or repair, as this can damage the sensor.
• Purchase from a reputable dismantler that offers a warranty.
• Ensure the part number on the used module exactly matches the original or its official supersession.

OEM-only on this vehicle (don't cheap out):

• SAS Control Module

Aftermarket brands forum-validated for this vehicle:

• No well-documented, forum-validated aftermarket brands exist for these specific, complex control modules. The primary options are new OEM or used OEM.

Brands owners have reported issues with on this vehicle:

• Be cautious of unbranded 'clone' modules from online marketplaces. While they may be cheaper, they have a high failure rate during programming and may not be compatible with the vehicle's software.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• U3000:04 — Specific sub-fault indicating an internal hardware failure of the Forward Sensing Camera (FSC).
• U3000:49 — Specific sub-fault indicating an internal failure of the SAS (Airbag) Control Module.
• U3000:54 — Specific sub-fault associated with Blind Spot Monitoring (BSM) module software logic or alignment issues.
• U3000:98 — A variant of the FSC failure code that occurs specifically when the camera is exposed to high temperatures, as noted in TSB 15-002/18.
• C0061 — Secondary code often stored alongside U3000:49 in the SAS module.
• C0062 — Secondary code often stored alongside U3000:49 in the SAS module.
• C0063 — Secondary code often stored alongside U3000:49 in the SAS module.
