U3000 on 2016-2023 Lincoln Navigator: Control Module Fault Causes & Fixes

What's Unique About the 2016-2023 Lincoln NAVIGATOR

The Lincoln Navigator, especially the fourth generation (2018-2023), is a technologically complex vehicle with dozens of interconnected electronic modules for features like advanced driver-assistance systems (ADAS) and 'Phone As A Key'. Manufacturer Technical Service Bulletins (TSBs) show that this code is frequently set due to software anomalies that can be fixed by reprogramming a module, rather than a hardware failure requiring replacement. This is different from older or less complex vehicles where a U3000 code more commonly pointed to a failed module.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This range covers two Navigator generations: the third (2015-2017) and the fourth (2018-2023). While the U3000 code's general meaning is the same, specific issues are tied to each generation. TSB SSM 46048 for a U3000:04 in the APIM applies to 2016-2017 models. TSBs SSM 50048, TSB 23-2040, and others for U3000:49 in modules like the RFA and IPMA apply to the 2020-2023 models.

Symptoms You May Notice

• "Pre-Collision Assist Not Available" message on the instrument cluster.
• "Front Camera Fault Service Required" message.
• "Reverse Brake Assist Not Available" message.
• "Lane-Keeping System Fault Service Required" message.
• Adaptive cruise control or lane centering may be inoperative.
• Unable to pair a phone using the 'Phone As A Key' feature.
• SYNC 3 or SYNC 4 system may be glitchy, unresponsive, or display a black screen.
• Check Engine Light or other service warning lamps illuminated.

Most Likely Causes

1. Software Anomaly in Image Processing Module A (IPMA) 🔴 High Probability On 2022 Navigators built on or before May 13, 2022, the IPMA software is prone to a glitch causing various driver-assist warnings and storing DTC U3000:49.
   How to confirm: A scan tool finds U3000:49 (and possibly other codes like C1001:54) in the IPMA, and the vehicle displays messages like "Pre-Collision Assist Not Available". The vehicle's build date falls within the range specified in TSB 23-2040.
   Typical fix: Reprogram the IPMA and potentially other coordinated modules (PSCM, CCM, CMR) to the latest software level using Ford's FDRS, as detailed in TSB 23-2040. This is a dealer or specialty shop repair.
   Est. part cost: $0-$0
2. Transient Fault in Remote Function Actuator (RFA) Module 🟡 Medium Probability Specifically on 2020-2021 models, the RFA module can get into a state where it stores a U3000:49 and prevents 'Phone As A Key' pairing.
   How to confirm: A U3000:49 code is found in the RFA module, and the 'Phone As A Key' feature will not pair or connect.
   Typical fix: Perform a hard reset by removing the RFA fuse or disconnecting the battery for at least 5 minutes, then reinstalling, per TSB SSM 50048. If this fails, a dealer visit for further diagnosis is needed.
   Est. part cost: $0-$0
3. Benign Fault in APIM (SYNC 3 Module) 🟡 Medium Probability On 2016-2017 models, the APIM can store a U3000:04 code without any noticeable symptoms. It is often considered a 'ghost' code.
   How to confirm: DTC U3000:04 is present in the APIM, but the customer reports no issues with the SYNC system.
   Typical fix: Clear the DTC. If no other symptoms are present and the code does not immediately return, no further action is needed per TSB SSM 46048.
   Est. part cost: $0-$0
4. Internal Module Failure ⚪ Low Probability While less common than software issues, any electronic module can fail internally due to factors like moisture, vibration, or component age.
   How to confirm: After all applicable TSB software updates are performed and all wiring is confirmed to be good, the code returns. The module fails self-tests on the diagnostic scanner.
   Typical fix: Replace the failed control module (e.g., IPMA, RFA, APIM) and program the new module to the vehicle.
   Est. part cost: $400-$1500

Rare But Worth Checking

• Low Battery Voltage or Power Interruption: A weak battery or recent jump-start can sometimes cause modules to store erroneous U-codes. TSB 23-2040 specifically notes that low voltage may have been exhibited previously, resulting in U3000:49 in the IPMA. Always ensure the battery is fully charged and connections are clean before diagnosing module faults.

Diagnosis Steps

1. Connect an advanced, manufacturer-capable scan tool (like Ford's FDRS or a high-end tool with FORScan) to the OBD-II port.
2. Perform a full vehicle network scan to identify which specific module(s) have stored the U3000 code.
3. Record the full DTC, including the two-digit suffix (e.g., :49, :04).
4. Check for any applicable Technical Service Bulletins (TSBs) based on the vehicle year, module, and specific DTC. Key TSBs include TSB 23-2040 (IPMA), SSM 50048 (RFA), and SSM 46048 (APIM).
5. If TSB 23-2040 applies (U3000:49 in IPMA), follow the procedure to reprogram the module. This may also require running the 'Reset the Image Processing Module A (IPMA) Learned Values' application in FDRS.
6. If the code is U3000:49 in the RFA module and 'Phone As A Key' is not working, attempt the hard reset procedure from TSB SSM 50048 (disconnect battery or RFA fuse for 5+ minutes).
7. If the code is U3000:04 in the APIM with no symptoms, clear the code and see if it returns, per TSB SSM 46048.
8. If no TSB applies, inspect the wiring and connectors for the affected module for any signs of damage, corrosion, or looseness.
9. Check the module's power and ground circuits using a multimeter.
10. If software updates and wiring checks do not resolve the issue, the module itself may have failed and requires replacement and programming.

Parts You'll Likely Need

• No Parts - Software Reprogramming — The most frequent fix for U3000 on this platform is a software update performed by a dealer to correct glitches in various control modules, as documented in multiple TSBs.
  OEM price range: $150-$300
  Aftermarket price range: N/A
• Image Processing Module A (IPMA) (OEM #NL1Z-19H406-A, ML1Z-19H406-A (Verify with VIN)) — If a software update doesn't fix a U3000 code related to driver-assist features, the module itself may have failed. 🎬 Watch this walkthrough on how to swap a failed APIM. TSB 23-2040 addresses software issues in this module, but hardware failure is the next step.
  Trusted brands: Motorcraft
  OEM price range: $500-$800
  Aftermarket price range: $300-$500
• Remote Function Actuator (RFA) Module (OEM #LX6Z-15607-B, KL1Z-15607-C (Verify with VIN)) — This module is implicated in TSB SSM 50048 for 'Phone As A Key' issues. If a hard reset and software update fail, the module may need replacement.
  Trusted brands: Motorcraft
  OEM price range: $300-$500
  Aftermarket price range: N/A

Related Codes That Often Appear With This One

• U3000:49 — This is the most common suffix, indicating an internal electronic failure. It is cited in TSBs for the IPMA, RFA, and CCM modules.
• U3000:04 — This suffix, meaning 'System Internal Failure' or 'Not Programmed', is cited in a TSB for the APIM (SYNC) module on 2016-2017 models.
• C1001:54 / C1001:78 — These codes can appear alongside U3000 in the IPMA when there are software-related issues with the driver assistance systems, per TSB 23-2040.
• U3000:89 — This suffix, indicating a 'No Communication' or 'Component Failure' status, can also be stored in the IPMA along with U3000:49 per TSB 23-2040.

Technical Service Bulletins (TSBs) & Recalls

• SSM 50048: Addresses U3000:49 in the RFA module preventing 'Phone As A Key' pairing on 2020-2021 models.
• TSB 23-2040: Covers U3000:49 in the IPMA causing driver assistance system issues on 2022 models, fixed by a software update.
• SSM 46048: Notes that U3000:04 in the APIM on 2016-2017 models can be cleared if no other symptoms are present.
• TSB 25-2512 / TSB 24-2251: Mention the absence of U3000:49 as part of diagnosing other camera module DTCs, confirming its relevance to that system.

Platform-Specific Known Issues

• IPMA Software Fault on 2022 Models: On Navigators built on or before May 13, 2022, a software glitch in the Image Processing Module A (IPMA) is common. It triggers a cascade of warnings like 'Pre-Collision Assist Not Available' and stores DTC U3000:49. The official fix is a dealer-performed software update outlined in TSB 23-2040.
• 'Phone As A Key' Failure on 2020-2021 Models: DTC U3000:49 in the Remote Function Actuator (RFA) module can prevent pairing a phone for the 'Phone As A Key' feature. TSB SSM 50048 recommends a simple hard reset (disconnecting the battery or RFA fuse for 5+ minutes) as the first step.
• Benign SYNC 3 APIM Fault on 2016-2017 Models: DTC U3000:04 is often found in the Accessory Protocol Interface Module (APIM) on earlier third-generation Navigators. Per TSB SSM 46048, if the SYNC system is working correctly and no symptoms are reported, the code should simply be cleared and no repair is necessary.

Mechanic-Grade Diagnostic Values

• HS-CAN Bus Network Resistance — expected: Approximately 60 Ohms (with a tolerance of +/- 1-2 Ohms).. Failure: A reading of 120 Ohms indicates an open circuit or a missing termination resistor in one of the main modules. A reading near 0 Ohms indicates the CAN High and CAN Low wires are shorted together.
• HS-CAN Bus Voltage (Key On, Engine Off) — expected: CAN High (Pin 6 to Ground): ~2.6-2.7V. CAN Low (Pin 14 to Ground): ~2.3-2.4V.. Failure: Voltages that are identical (e.g., 2.5V on both) can indicate the wires are shorted together. Zero volts on both lines when the network should be active indicates a network-wide failure or that the bus is asleep.

Scan Tool Commands That Help

• Ford FDRS/IDS: IPMA - Reset the Image Processing Module A (IPMA) Learned Values — This is a specific procedure called for in TSBs 23-2040 and SSM 49684 to clear a persistent U3000:49 code from the IPMA that won't clear with a standard DTC reset.
• Ford FDRS/IDS: IPMA - Image Processing Module A (IPMA) Alignment — This dynamic calibration procedure is mandatory after replacing the IPMA, replacing the windshield, or performing certain software updates. The vehicle must be driven at a specified speed on well-marked roads for the camera to align itself.
• Ford FDRS/IDS: Programmable Module Installation (PMI) — When replacing a module like the IPMA, the PMI function must be used. It reads the configuration data from the old module, saves it, and then writes it to the new module after installation to ensure all vehicle-specific features work correctly.
• Ford FDRS/IDS or FORScan: APIM Module Reset — For issues related to the SYNC system (APIM), a module reset can often resolve temporary glitches causing a U3000 code. This is less invasive than a full battery disconnect.

Wiring & Ground Locations

• Image Processing Module A (IPMA) — Mounted to the interior of the windshield, inside the housing behind the rearview mirror.. This is the most common module to set a U3000 code on the 2018+ Navigator. Physical access is required for replacement or to check its connector, which can be a source of faults.

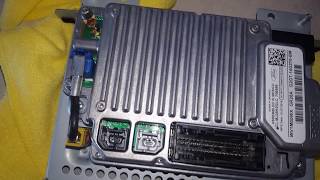

• Accessory Protocol Interface Module (APIM) — Located behind the main infotainment touch screen in the center of the dashboard.. This module controls the SYNC system and is a known source for U3000:04. Access requires removing dashboard trim and the screen itself.
• Remote Function Actuator (RFA) Module — Typically located in the rear of the vehicle, often behind the right-side trim panel in the cargo area.. The RFA module is cited in TSB SSM 50048 for U3000:49 related to 'Phone As A Key'. Knowing its location is necessary to check its connections or access its dedicated fuse.
• SRS (Airbag) Module — Located under the center console, between the driver and passenger seats.. While not a primary cause of U3000, its location under the center console is a good example of how deeply integrated modules are. Removal of the entire center console is required for access.

Real Owner Repair Stories

• Ford F150 Forum (2017 Ford F-150 (platform-similar)) — SYNC system acting up, navigation showing 'NO GPS'.
  ❌ Tried (didn't work) Clearing the U3000 code from the APIM.
  ✅ What actually fixed it A soft reset of the APIM (holding the power and fast-forward buttons for 5+ seconds) temporarily fixed the issue. The user noted this was a recurring problem often leading to eventual APIM replacement, but the reset provided temporary relief.
• Ford Expedition Forum (2017 Ford Expedition) — Random engine power loss while driving, with a wrench light on the dash. A U3000:04 code was present in the APIM.
  ❌ Tried (didn't work) Resetting the DTC did not clear the code., Cleaning the throttle body (based on the power loss symptom) did not clear the APIM code.
  ✅ What actually fixed it The forum thread did not reach a final conclusion on the U3000 code, but the user's experience highlights how a seemingly unrelated module code (APIM) can appear alongside significant drivability issues, complicating diagnosis.

OEM Part Supersession History

• JL1Z-19H406-A / JL3Z-19H406-A → LL1Z-19H406-A, then ML1Z-19H406-A — Hardware and software revisions for the Image Processing Module A (IPMA).
  Heads up: Using the wrong part number for the IPMA can result in failed programming or inoperative driver-assist features. The part must be matched to the vehicle's VIN and specific feature set (e.g., with or without 360-degree camera).

Model Year Variations Within This Range

• 2016-2021: These models are primarily equipped with the SYNC 3 system. U3000 codes in the APIM are often related to the issues described in TSB SSM 46048 or require a master/soft reset.
• 2022-2023: These models transitioned to the more powerful SYNC 4 system. The APIM hardware and software are different, featuring twice the processing power, cloud-based navigation, and wireless CarPlay/Android Auto. While a U3000 code would still point to an internal fault, the diagnostic and software update procedures are specific to the SYNC 4 architecture. There is no upgrade path from a SYNC 3 to a SYNC 4 APIM.
