U3000 on 2021-2025 Cadillac CT5: Control Module Fault Causes and Fixes

What's Unique About the 2021-2025 Cadillac CT5

The Cadillac CT5 is built on GM's Vehicle Intelligence Platform (VIP), a highly complex and software-driven network of interconnected modules that communicates over CAN and high-speed Ethernet buses. For this reason, a U3000 code is frequently a software-related issue or a temporary condition rather than a hard part failure. GM has issued multiple Technical Service Bulletins (TSBs) advising technicians to perform software updates or even just cycle the battery before replacing expensive components like the Serial Data Gateway Module (SDGM) or Long Range Radar 🎬 See how to access and install an SDGM bypass harness. (LRR). Programming on the VIP architecture has specific requirements, such as needing the ignition to be OFF and maintaining stable battery voltage, or module damage can occur.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service Driver Assist" message on the instrument cluster.
• Adaptive Cruise Control is unavailable.
• SuperCruise is unavailable, sometimes with a "No road info" message.
• Forward Collision Alert system is disabled.
• "Service Power Steering" message (if related to the PSCM).
• Backup camera or 360 camera feed is lost or intermittent.
• Check Engine Light may be illuminated.

Most Likely Causes

1. Software Anomaly / False Code 🔴 High Probability As a modern, software-heavy vehicle built on the VIP platform, glitches are common. Multiple TSBs confirm that false codes can be set and that software updates are often the required fix for various modules.
   How to confirm: A dealer can check for and apply the latest software updates for the specific module setting the code. TSB #PIT6398 specifically notes a false U3000 SYM49 in the Serial Data Gateway Module that can be cleared with a battery cycle.

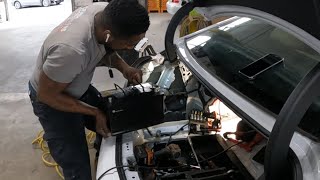

   Typical fix: Reprogram the affected module (e.g., Long Range Radar, Power Steering Control Module) with updated software at a dealership. In some cases, simply cycling the battery (disconnecting the negative terminal for 15 minutes 🎬 Watch: Step-by-step guide to safely removing and replacing the battery.) can clear a false code, as noted in TSB #PIT6398 and confirmed by an owner's experience.
   Est. part cost: $0
2. Blocked Long Range Radar Sensor 🔴 High Probability The front-mounted radar sensor, located in the grille area, is susceptible to being blocked by dirt, snow, ice, or road debris, which can trigger a U3000-97 code.
   How to confirm: Visually inspect the front grille and bumper area where the radar sensor is located. The code U3000-97 specifically points to a blocked component. This is confirmed by TSB #PIT6423.
   Typical fix: Thoroughly clean the front of the vehicle where the sensor is housed. The code should clear after cleaning and an ignition cycle.
   Est. part cost: $0
3. Long Range Radar Internal Fault 🟡 Medium Probability TSB #20-NA-233 was released to address the Long Range Radar setting a U3000 49 code due to sensitivity in highly reflective environments, like tunnels or when facing certain structures.
   How to confirm: If the code U3000-49 from the LRR module persists after cleaning the sensor and performing a battery reset, the module itself is the likely suspect.
   Typical fix: A software update is the first and required step, as per TSB #20-NA-233. If the update does not resolve the issue, the Long Range Radar module may need to be replaced and calibrated by a dealer.
   Est. part cost: $400-$800
4. Low Battery Voltage ⚪ Low Probability Complex modern vehicles with dozens of modules are sensitive to battery voltage. A weak or failing battery can cause numerous, seemingly unrelated electronic modules to set codes, especially on the VIP platform where stable voltage is critical during operation and programming.
   How to confirm: Test the 12V battery's state of charge and health with a multimeter or battery tester. A resting voltage below 12.4V can indicate a problem. Check for parasitic drain if the battery dies repeatedly.
   Typical fix: Recharge or replace the 12V battery.
   Est. part cost: $150-$350

Rare But Worth Checking

• Failed Serial Data Gateway Module (SDGM): While TSB #PIT6398 mentions this module setting a false code, a true hardware failure is still possible, though rare. A failed SDGM can cause widespread communication issues, a no-start condition, or parasitic battery drain. TSB #PIT6398 specifically advises against immediate replacement without performing a battery cycle first.
• Failed Automated Map Module (HDLM): TSB #24-NA-027 describes a scenario where this module sets a U3000 code, disabling SuperCruise with a "No road info" message. This applies to vehicles with specific part numbers for the HDLM and requires module replacement if confirmed.
• Failed Power Steering Control Module (PSCM): TSB #20-NA-190 and its successor #23-NA-088 address a U3000-44 code in the PSCM. The primary fix is a software reprogram, but a persistent fault could indicate a hardware failure.

Diagnosis Steps

1. Connect a professional scan tool (e.g., GM MDI 2 with GDS2 software) capable of reading GM-specific codes, including symptom bytes, from all modules.
2. Identify which module has stored the U3000 code and what the 2-digit symptom byte is (e.g., 49, 97, 44).
3. If the code is U3000-97 from the Long Range Radar, thoroughly inspect and clean the front bumper and grille area. Clear codes and re-test.
4. Check for relevant TSBs based on the module and symptom byte. TSBs #20-NA-233 (LRR), #PIT6398 (SDGM), #24-NA-027 (HDLM), and #23-NA-088 (PSCM) are highly relevant.
5. If the code is U3000-49, especially in the SDGM or in history, perform a battery cycle: disconnect the negative battery terminal for at least 15 minutes, reconnect, clear codes, and see if the fault returns.
6. If a TSB indicates a software update is available for the faulting module (like the LRR or PSCM), have a dealer perform the reprogramming. This requires stable voltage (approx. 13.4V) from a dedicated power supply and specific procedures for the VIP platform, such as having the ignition OFF.
7. Test the 12V battery to ensure it is providing stable voltage above 12.4V at rest and is in good health.
8. If all software and external factors are ruled out, proceed with circuit testing (power, ground, data lines) for the specific module before considering replacement.

Parts You'll Likely Need

• Long Range Radar Module (OEM #85597751) — If cleaning and software updates fail to resolve a persistent U3000-49 from the radar module, the unit itself may have an internal failure. Replacement requires professional calibration. 🎬 Watch: How a technician performs a Long Range Radar calibration.
  Trusted brands: ACDelco (Genuine GM)
  OEM price range: $600-$800
  Aftermarket price range: $400-$600

Related Codes That Often Appear With This One

• U1624 — Often appears with U3000 when there are communication issues, particularly related to the Telematics Control Module as noted in TSB #PIT6411.
• U0140 — Indicates a loss of communication with the Body Control Module (BCM), which can be a related network fault when the SDGM is having issues.
• U023B — Loss of communication with the Image Processing Module B, mentioned alongside U3000 in TSB #PIC6607B.

Technical Service Bulletins (TSBs) & Recalls

• PIC6607B: Do not replace Image Processing Module for history DTCs U3000 SYM49, U1624, U0140, U023B SYM00, U053C, B1DD SYM57.
• PIT6398: U3000 SYM49 may be set falsely in the Serial Data Gateway Module; fix is to cycle the battery.
• PIT6423: Provides diagnostic guidance for U3000-97 related to a blocked Long Range Radar.
• 20-NA-233: Provides a software update to correct a U3000 49 code set by the Long Range Radar in highly reflective environments.
• 23-NA-088: Supercedes 20-NA-190. Addresses a "Service Power Steering" message with DTC U3000 by reprogramming the Power Steering Control Module.
• 24-NA-027: Addresses DTC U3000 in the Automated Map Module (HDLM) causing SuperCruise to be unavailable.

Platform-Specific Known Issues

• TSB #PIT6398: Notes that U3000 SYM49 can be set falsely in the Serial Data Gateway Module and advises resetting the module by cycling the battery, not replacing the part.
• TSB #20-NA-233: Provides a software update to correct a U3000 49 code set by the Long Range Radar due to sensitivity in highly reflective environments.
• TSB #PIC6607B: Warns against replacing the Image Processing Module if U3000 SYM49 is only a history code.
• TSB #23-NA-088 (supercedes #20-NA-190): Addresses U3000 in the Power Steering Control Module on 2020+ models including the CT5, with the fix being a software reprogram.
• TSB #24-NA-027: Details a U3000 code in the Automated Map Module (HDLM) causing SuperCruise to be unavailable. The fix is to replace the module if the part number matches those listed in the bulletin.

Mechanic-Grade Diagnostic Values

• Module Programming Battery Voltage — expected: ~13.4 V, maintained with a dedicated programming power supply (not a charger).. Failure: Any fluctuation, spiking, or loss of voltage can interrupt programming and potentially damage the module.
• Long Range Radar Module Alignment — expected: The mounting bracket must be 90 degrees (+/- 3 degrees) vertically relative to a level surface (like an alignment rack).. Failure: If the angle is outside the tolerance, the bracket is likely bent and must be replaced; it is not adjustable.

Hidden / Shadow Codes Worth Checking

• U3000 SYM 78: Indicates the Long Range Radar Module (LRRM) calibration has timed out and not completed. (see via GM GDS2 Scan Tool.)
• U3000 SYM 42: Control Module General Memory Failure, noted as a potential code in the Electronic Suspension Control Module. (see via GM GDS2 Scan Tool.)
• U3000 SYM 57: Invalid/Incompatible Software Component. Can be set in modules like the Park Assist Control Module after an update if a pre-existing fault is present. (see via GM GDS2 Scan Tool.)

Scan Tool Commands That Help

• GM GDS2: Long Range Radar Sensor Module Learn — After replacing the Long Range Radar module, this function must be initiated to start the dynamic calibration process while driving.
• GM GDS2: Module Programming (via SPS2) — Used to load new software/firmware onto a control module, which is the primary fix for many U3000-related TSBs. This must be done with the ignition OFF and stable voltage on the VIP platform.
• GM GDS2: Vehicle Wide DTC Information / Clear All DTCs — To perform a full vehicle scan to see which module(s) are setting codes and to clear them after a repair attempt like a battery cycle or cleaning a sensor.
• GM GDS2: Calibration History > Learn Status — Used to check if a radar learn procedure is 'in progress' even if the main screen shows a communication loss, preventing an unnecessary restart of the process.

Wiring & Ground Locations

• K56 Serial Data Gateway Module (SDGM) — Located in the passenger footwell. Requires removal of a felt cover and a plastic heating vent for access.. This is the central communication hub on the VIP platform. TSB #PIT6398 points to this module setting false U3000 codes, and its connectors are a key diagnostic checkpoint.
• B233B Long Range Radar Sensor Module — Located in the center of the front grille area, often behind the brand emblem or in the lower grille.. This module is the source of U3000-97 (blocked) and U3000-49 (internal fault) codes. Its physical location makes it vulnerable to blockage and collision damage.
• GM Ground Point Numbering — GM uses a standard system: G1xx grounds are in the engine bay/front of the vehicle, G2xx are in the front passenger area, G3xx in the rear passenger area, and G4xx in the rear/cargo area.. A poor ground connection for any of the critical ADAS modules (often G1xx or G2xx points) can cause intermittent communication faults and trigger U-codes like U3000.

Real Owner Repair Stories

• Reddit user @JoJorCo in r/CadillacV_Series (2025 CT5-V with 1,060 miles) — Multiple warnings including "Service Driver Assist," no cruise control, no backup camera, no 360 camera, and no parking sensors.
  ❌ Tried (didn't work) Checking for camera blockages.
  ✅ What actually fixed it Disconnecting the battery resolved the issue.

OEM Part Supersession History

• 85157018 → 85597751 — Part number was updated for the Long Range Radar Module.

Model Year Variations Within This Range

• 2020-2021: Service update N212353390 was issued for vehicles where the Serial Data Gateway Module (SDGM) may have been replaced and programmed incorrectly, preventing Over-the-Air (OTA) updates. This requires dealer reprogramming to fix.
