OBD-II Code U2099: High Speed Communication Enable Circuit Fault

What Does U2099 Mean?

U2099 means the Body Control Module (BCM) detects a fault on the dedicated circuit used to 'wake up' other essential computers. When you turn the key, the BCM sends a voltage signal over this wire. If a short, open circuit, or failed module blocks this signal, critical systems like the Anti-lock Brake Module (EBCM) fail to power on. This severs CAN bus network communication and triggers an immediate no-start condition.

Technical definition: The SAE/OBD-II definition for U2099 is "High Speed Communication Enable Circuit." The BCM sets this code upon detecting a short to ground, short to voltage, or open circuit on the wake-up signal line. This leaves modules on the high-speed CAN bus offline and unable to authorize engine cranking.

Can I Drive With U2099?

No — Do Not Drive. This code causes a hard no-crank or no-start condition, rendering the vehicle undrivable. If the vehicle starts, driving is dangerous because critical safety systems like anti-lock brakes (ABS), traction control, and stability control are disabled, increasing crash risk.

Common Causes

• Weak or failing battery (Very Common) — System voltage below 12.4 volts causes unpredictable communication errors and prevents modules from waking up correctly. Always ensure the battery passes a load test before complex diagnostics.
• A failed electronic module (Very Common) — A module on the network, such as the Anti-lock Brake Module (EBCM), Suspension Control Module, or Trailer Brake Control Module, fails internally and shorts the wake-up circuit to ground. This is the primary cause on GM trucks and SUVs.
• Damaged wiring or loose connectors (Common) — The wake-up signal wire breaks (open) or shorts to ground from chafing against a metal bracket. Corrosion inside a major connector or a spread-out female pin (fretting corrosion) also causes total loss of the wake-up signal.
• Improperly Installed Aftermarket Accessories (Common) — Aftermarket remote starters or alarms installed by incorrectly splicing into the vehicle's CAN bus introduce interference or voltage drops that prevent modules from waking up.
• Corroded Ground Connection (Less Common) — A corroded main ground stud for the communication network (such as ground G401 on Ford F-150s) causes high resistance and leads to communication codes identical to a U2099 fault.
• Faulty Body Control Module (BCM) (Rare) — While the BCM sets the code, it is rarely the source of the problem. The BCM is only condemned after all external wiring and module faults are exhaustively ruled out.

Symptoms

• Engine will not crank or start — This is the primary symptom. The BCM and Engine Control Module (ECM) require input from modules like the EBCM to verify system integrity. If offline, the engine is prevented from cranking.
• Multiple warning lights on the dash — The Check Engine Light, ABS light, Traction Control light, and messages like 'Service StabiliTrak' or 'Service Suspension System' illuminate.
• Loss of specific features — Functions controlled by offline modules cease to work, including anti-lock brakes, electronic stability control, and active suspension.
• Remote start inoperative — A U2099 fault or related active Check Engine Light disables factory and aftermarket remote start systems.
• Multiple 'Lost Communication' codes stored (scan-tool only — no driver-felt sign) — Alongside U2099, a series of other 'U' codes (like U0121 for ABS or U0132 for suspension) indicate a loss of communication with specific modules.
• Scan tool cannot communicate with certain modules (scan-tool only — no driver-felt sign) — An advanced scan tool communicates with the BCM but cannot establish communication with modules on the disabled wake-up circuit.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replace the vehicle battery — Parts: $150-$350, Labor: $0-$50, ~0.5 hr book time (DIY)
• Replace a failed electronic module (EBCM, Suspension, etc.) — Parts: $250-$1,500, Labor: $150-$300, ~1.5 hr book time (Professional)
  GMC Yukon / Cadillac Escalade (2007-2014): OEM 15095294, 25971217, 84450254 (Alt: Dorman, ACDelco (25971218))
  Chevy Silverado / GMC Sierra (2007-2014): OEM 25802684, 22761034 (Reman) (Alt: ACDelco, Cardone)
• Bypass a non-essential faulty module — Parts: $0-$10, Labor: $100-$250, ~1.5 hr book time (Professional)
• Repair or service a failed module — Parts: $100-$300, Labor: $100-$200, ~1.5 hr book time (DIY)
• Repair damaged wiring or connector — Parts: $20-$150, Labor: $200-$1,200, ~4 hr book time (Intermediate)
• Replace the Body Control Module (BCM) — Parts: $300-$900, Labor: $200-$400, ~2.5 hr book time (Professional)
  GM Trucks/SUVs (2007-2014): OEM 13534192 (Alt: ACDelco, Dorman)

Used vs. New Parts: Buying Guide

When a used part is worth it: For electronic modules like an EBCM or Suspension Controller, a used part makes sense on older vehicles (over 100k miles) where a new OEM part is a significant fraction of the vehicle's value.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Match the OEM part number EXACTLY.
• Avoid parts from vehicles in flood zones or heavy rust-belt states.
• Ask the seller for the donor vehicle's VIN to verify it wasn't scrapped for a related system failure.
• For BCMs, a used module is risky as it is VIN-locked and requires a 'cloning' service.

Decision logic:

• If Vehicle is under warranty or less than 5 years old → Buy new OEM. A used part jeopardizes remaining warranty coverage.
• If The part requires programming (like a BCM) → Favor a new part or a reputable remanufactured unit that comes pre-programmed.
• If Vehicle is over 10 years old and budget is the main concern → A used part from a reputable salvage yard with a short-term warranty is a viable option.

Warranty tradeoff: Used parts have a 30-90 day warranty covering only the part. New aftermarket parts offer a 1-year to limited lifetime warranty. New OEM parts offer a 1-2 year warranty.

Worst-case if a used part fails: $300-$600. This represents repeat labor to remove the faulty used part and install another one, plus diagnostic fees.

What Happens If You Wait — Timeline

1. First Occurrence (Intermittent): The vehicle fails to start once, but starts normally on the second or third try. Warning messages flash briefly. Triggered by temperature changes or vibration. (Added cost: $0)
2. Days to Weeks (Frequent Intermittent): The no-start condition occurs frequently. The faulty module causes a parasitic battery drain by not 'sleeping,' leading to a dead battery overnight. (Added cost: $150-$350 if the parasitic drain ruins the battery.)
3. Weeks to Months (Hard Fault): The internal short or open circuit becomes permanent. The vehicle will not crank or start under any circumstances. Multiple warning lights are constantly illuminated. (Added cost: $100-$300 for towing to a repair shop plus the mandatory diagnostic fee.)
4. Post-Hard Fault: There is no further degradation path as the vehicle is disabled. The BCM's safety protocols prevent engine cranking, protecting other components. (Added cost: $400 - $2,000+ for the final repair (module replacement, wiring repair, etc.).)

Cost of Not Fixing It

• Immediate: Vehicle will not start or crank. You will be stranded. (Added cost: $100-$300 for towing and initial diagnostic fees.)
• Intermittent (Days to Weeks): You risk being stranded unpredictably. The faulty module causes a parasitic battery drain by not going to 'sleep' properly, leading to a dead battery overnight. (Added cost: $150-$350 for a new battery, plus the cost of being stranded.)
• Long Term: The vehicle is rendered inoperable until repaired. Continued attempts to start the vehicle with a known short stresses other electronic components. (Added cost: N/A)

Diagnosis Steps

1. Check Battery and System Voltage
   Verify the battery is fully charged (12.4V or higher engine off) and passes a load test. Low system voltage is a primary cause of network communication faults.
   Tools: Multimeter, Battery Load Tester (Beginner)
2. Perform a Full Vehicle Code Scan
   Use a professional-grade OBD-II scanner to read codes from ALL vehicle modules. Note which modules report 'Lost Communication' to map the affected circuit.
   Tools: Advanced OBD-II Scanner (Beginner)
3. Isolate the Faulty Module (Disconnect Method)
   With the ignition OFF, disconnect the modules on the faulty circuit one by one, starting with the easiest to access (e.g., suspension module on a GM SUV). Cycle the ignition and clear codes after each disconnect. If communication returns, the last module unplugged is causing the short.
   Tools: Socket set, trim removal tools (Intermediate)
4. Visually Inspect Wiring, Connectors, and Grounds
   Inspect harnesses for chafing around the steering column and near offline modules. Check for corrosion in major connectors and verify main ground points are clean and tight.
   Tools: Flashlight, trim removal tools (Intermediate)
5. [PRO TIP] Wake-Up Circuit Voltage Test
   Access the wake-up wire at the BCM connector. With the BCM connected and all other modules disconnected, probe the wire. It reads 0V with the key OFF and jumps to battery voltage (12V+) when the key is turned to ACC or ON. No voltage indicates a BCM or wiring fault.
   Tools: Multimeter, vehicle-specific wiring diagram, T-pins (Advanced)
6. Test the Wake-Up Circuit for Shorts to Ground
   Disconnect the BCM and all modules on the circuit. Set a multimeter to Ohms. Check for continuity between the wake-up signal wire terminal at the BCM connector and a known good chassis ground. A reading less than infinite (O.L.) indicates the wire is shorted to ground.
   Tools: Multimeter, vehicle-specific wiring diagram (Advanced)
7. [ADVANCED] CAN Bus Termination Resistance Test
   With the battery disconnected, measure resistance between Pin 6 (CAN High) and Pin 14 (CAN Low) at the OBD-II port. A healthy network reads 60 Ohms. A reading of 120 Ohms indicates one terminating resistor is offline.
   Tools: Multimeter, OBD-II breakout box (optional) (Advanced)
8. [PRO TIP] Oscilloscope Signal Analysis
   Back-probe the wake-up signal wire. When the ignition turns on, you see a clean, sharp digital transition from 0V to battery voltage. A slow rising signal or excessive noise indicates high resistance or a failing module.
   Tools: Oscilloscope, wiring diagram, back-probe pins (Professional)
9. Confirm BCM Failure by Elimination
   Condemn the BCM only after confirming the battery is good, all external modules are good via isolation testing, and the wiring is not shorted or open.
   Tools: Advanced OBD-II Scanner, Multimeter (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• Ignition Status: ACC / ON / START (The fault sets the moment the BCM attempts to wake up the network after a key-on or remote start command.)
• System Voltage: 9-16V (The BCM runs the diagnostic and sets the code only if system voltage is within the normal operating range.)
• Engine RPM: 0 (The engine is disabled from cranking as a safety measure, so RPM remains zero.)
• Vehicle Speed: 0 mph (The vehicle is stationary as the fault occurs during the startup sequence.)

Related Codes

• U0121 — 'Lost Communication With Anti-Lock Brake System (ABS) Control Module.' This code is a direct symptom of U2099. The U2099 fault prevents the ABS module from turning on. Fix U2099 first.
• U0132 — 'Lost Communication With Suspension Control Module.' A classic symptom code on GM SUVs. The suspension module itself fails and shorts the circuit, causing U2099 in the BCM and U0132 in other modules.
• U0100 — 'Lost Communication With ECM/PCM.' A critical consequence of U2099. The engine controller isn't receiving vital data from the offline ABS module, preventing the engine from starting.
• U0140 — 'Lost Communication With Body Control Module.' While U2099 is stored in the BCM, U0140 is stored in other modules when the BCM goes offline due to a bad ground or wiring issue.

Climate & Environmental Factors

• High Humidity / Salt Belt Climates: Regions using road salt experience a higher incidence of corrosion-related failures. Moisture seeps into connectors and module housings, causing shorts. Road salt accelerates corrosion of critical ground connections, leading to high resistance.
• Extreme Cold: Very cold temperatures degrade a weak battery's performance, dropping voltage low enough to trigger communication codes during startup. Wiring harnesses become stiff and brittle, making them susceptible to breaking.

How to Talk to a Mechanic About This Code

Say this: "I have a no-start condition and my scanner shows code U2099 in the Body Control Module. I'd like to schedule a diagnostic to perform a module isolation test on the high-speed communication enable circuit. Please begin by checking the most common failure points, like the suspension or brake modules, before testing the wiring or BCM."

This signals you understand the code is for a network fault, directing the technician to use the correct diagnostic procedure (module isolation) and preventing an expensive BCM misdiagnosis.

Avoid saying:

• 'My car won't start, I think it's the computer.'
• 'Just fix whatever's wrong with the check engine light.'
• 'My car is dead, can you take a look?'

Questions to ask before authorizing the repair:

• Which specific module did you disconnect that allowed the other modules to communicate again?
• If you are recommending a wiring repair, can you show me the location of the short or open you found?
• If you are recommending a BCM replacement, what tests did you perform to rule out every other module and the wiring harness itself?
• Does the replacement part require programming and is that included in the estimate?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Safest bet. For a complex electrical fault that disables the vehicle, the dealer's access to brand-specific tools provides the highest chance of a correct first-time diagnosis.
  Best for: Vehicles under warranty, or with a known recall or Technical Service Bulletin (TSB) for this issue., Complex, brand-specific network issues where access to proprietary software and wiring diagrams is critical.
  Downsides: Highest labor rates., Defaults to replacing an entire module assembly rather than attempting a targeted wiring or connector repair. (Typical cost: +50% vs. baseline)
• Independent Shop: Good alternative, IF you find the right shop. An independent specialist in electrical systems is as effective as a dealer at a lower cost. A non-specialist will struggle.
  Best for: Out-of-warranty vehicles where cost is a major factor., Shops specializing in automotive electrical diagnostics (look for ASE L1 certification).
  Downsides: A general mechanic lacks the specific tools or experience for network diagnostics and resorts to guesswork., Quality and expertise vary widely; vetting the shop's reputation for electrical work is crucial. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID. There is a very high risk of misdiagnosis, unnecessary parts replacement, and ultimately being told to take the vehicle to a specialist anyway.
  Best for: Simple, routine maintenance like battery replacement or oil changes.
  Downsides: Technicians are not equipped or trained for in-depth electrical network diagnosis., Business model prioritizes speed and volume, incompatible with tracing communication faults. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 50% of the car's private-party value, seriously consider selling the vehicle as-is or trading it in.

• Car worth $8000, fix is $2200: Fix it — the repair cost is ~28% of the vehicle's value, well below the threshold.
• Car worth $5000, fix is $2500: Borderline — this is exactly 50% of the car's value. Get a second opinion and assess the car's overall health before proceeding.
• Car worth $3000, fix is $2800: Walk away — the repair cost is over 90% of the car's value. It is not economically viable to fix.

What Scan Tool You Need for This Code

Minimum: A scanner that reads manufacturer-specific codes from ALL vehicle modules, including the Body Control Module (BCM), ABS, and SRS.

A basic $20 code reader only communicates with the Engine Control Module (PCM) for emissions-related codes. It will NOT see the U2099 code stored in the BCM, rendering it useless for this diagnosis.

Budget: BlueDriver Pro or Autel AP200 (~$100) — These Bluetooth dongles pair with a smartphone app to perform a full system scan, allowing you to read the U2099 code from the BCM and see the corresponding 'U' codes in other modules.

Mid-range: Foxwell NT510 Elite or Innova 5610 (~$180) — These handheld tools offer full system diagnostics plus some bidirectional controls, allowing you to command certain modules or tests.

Professional: Autel MaxiCOM MK808 / MK906BT (~$500-1200) — Provides full bidirectional control, allowing a technician to command modules on and off, view live network data streams, and perform advanced functions.

Rent vs buy: Free 'loaner' scanners from auto parts stores are basic code readers that CANNOT read BCM codes. Buying a tool in the 'budget' or 'mid-range' category is a worthwhile investment for serious DIYers.

How to Clear the Code After You Fix It

1. Perform the physical repair (e.g., replace the faulty module, repair the wiring).
2. Reconnect the vehicle battery if it was disconnected.
3. Use a professional-grade OBD-II scan tool to erase the U2099 code from the Body Control Module (BCM).
4. Perform a full network scan to ensure all modules are communicating again.

Drive cycle (~25 minutes): After repair, a drive cycle runs internal self-tests. A GM-specific cycle includes: 1. Cold start (engine temp below 122°F). 2. Idle for 2-3 minutes with electrical loads on. 3. Accelerate to 55 mph and hold steady for 3-5 minutes. 4. Coast down to 20 mph without braking. 5. Accelerate to 55-60 mph and hold for 5 minutes. 6. Coast down again.

Readiness monitors affected: Comprehensive Component Monitor, Catalyst Monitor, EVAP System Monitor, Oxygen Sensor Monitor

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Clearing the code does not fix the problem; it is a hard electrical fault and returns immediately if the root cause is not repaired.
• Disconnecting the battery resets all readiness monitors, guaranteeing an emissions test failure until a full drive cycle is completed.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An illuminated Check Engine Light results in an automatic smog check failure. A full drive cycle must be completed to set readiness monitors before a re-test.
• New York: The NYS DMV inspection includes an OBD-II scan. An active U2099 code and illuminated Check Engine Light is an automatic failure.
• Texas: In the 17 counties requiring emissions testing, a vehicle fails if the Check Engine Light is on or active diagnostic trouble codes like U2099 are present.

Most Commonly Affected Vehicles

• GMC Yukon / Sierra (2007-2014) — Extremely common failure of the Electronic Suspension Control Module shorting the wake-up circuit. If unplugging it restores communication, the CAN bus wires in the connector must be jumped.

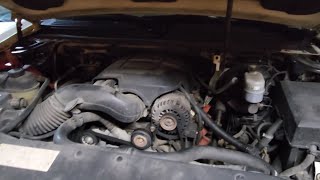

• Cadillac Escalade (2007-2014) — The active suspension control module is the primary cause of U2099. Unplugging this module is the first diagnostic step.
• Chevrolet Tahoe / Silverado (2007-2014) — The suspension or brake control modules are the most likely culprits. Water intrusion into connectors is a known issue.
• Ford F-150 (2015-2020) — Identical no-start symptoms are caused by corrosion at ground G401 on the frame under the driver's door, disrupting MS-CAN communication. Cleaning this ground is a critical first step.
• Ford F-Series, Expedition, Ranger, Maverick (2021-2026) — Recall 26C10 / 26V104 addresses loss of communication with the trailer module at startup. This software issue is fixed with an over-the-air or dealer update.
• Buick Enclave / LaCrosse (2009-2017) — Susceptible to BCM-related wake-up circuit faults caused by shorted modules or wiring on the GMLAN architecture.
• SAAB 9-5 (2010-2011) — Built on a GM platform, these vehicles experience the exact same U2099 no-start condition due to a short on the communication enable circuit.
• Jeep Grand Cherokee / Cherokee (2014-2018) — Intermittent no-start issues link directly to improperly installed aftermarket remote starters interfering with the CAN bus network.

Manufacturer-Specific Notes

• General Motors (Chevrolet, GMC, Cadillac, Buick): The most common failure is an internally shorted Suspension Control Module. CRITICAL: If you disconnect a module 'in-line' on the CAN bus, you must install jumpers for the CAN High and CAN Low wires on the harness connector to close the circuit, or the network remains open.
• Ford: Similar no-start symptoms with multiple 'U' codes on an F-150 (2015-2020) are frequently caused by corrosion at ground point G401 under the driver's side door, not a module failure. Always check this ground before replacing parts.
• Mazda: On the Mazda3, ABS module failure is a well-documented issue disrupting network communication and causing 'U' codes. These modules are often sent out for repair at a fraction of replacement cost.
• Vauxhall / Opel: On diesel models, a U2099 code relates to a 'Turbo Fault' and is accompanied by P0299 (Underboost). This manufacturer-specific definition points towards a boost control solenoid rather than a network wake-up issue.

Real Owner Stories

2009 GMC Yukon Denali with intermittent no-start

Owner experienced an intermittent no-start condition that progressed into a hard no-start with multiple warning lights.

What they tried:

1. Tested battery and starter, which passed.
2. Scanned for codes and found U2099 in the BCM alongside loss of communication codes for the suspension and brake modules.

Outcome: The owner unplugged the Suspension Control Module located on the frame rail. The vehicle started immediately. The module had failed internally, shorting the communication circuit. The owner bypassed the module by jumping the CAN bus wires in the connector to restore operation of the downstream ABS module, making the truck drivable.

Lesson: On GM SUVs from 2007-2014, the Suspension Control Module is the most common failure point. Unplugging it is the first and easiest diagnostic step before suspecting wiring or the BCM.

2015 Ford F-150 with multiple 'U' codes and no-start

After wet weather, the truck refused to start and displayed numerous communication error codes, including U0140, mimicking U2099 symptoms.

What they tried:

1. Replaced the battery, with no change in the no-start condition.
2. A shop quoted $1,500 to replace and program the Body Control Module (BCM).

Outcome: The owner located ground G401 on the frame rail under the driver's door, which was heavily corroded. After disassembling, cleaning the connection to bare metal, and reassembling with dielectric grease, the truck started perfectly.

Lesson: On 2015-2020 Ford F-150s, always inspect and clean ground G401 before replacing expensive modules like the BCM, as it is a frequent cause of widespread communication failure.

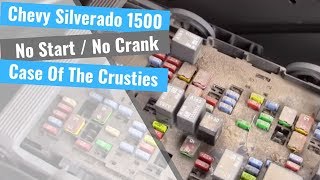

2012 Chevy Silverado 2500HD with intermittent no-crank

A fleet vehicle intermittently failed to crank, stranding the driver. The issue resolved itself after waiting but became more frequent.

What they tried:

1. Technicians suspected a wiring issue but found no obvious damage.
2. Used a multimeter's MIN/MAX function while wiggling harnesses to find an intermittent short.

Outcome: The problem traced to a faulty Trailer Brake Control Module (TBCM). The module's internal circuitry failed when heated, shorting the wake-up line. Disconnecting the TBCM resolved the no-start condition permanently.

Lesson: For intermittent faults, consider modules beyond the most common culprits. On trucks, the Trailer Brake Control Module is on this circuit and causes identical symptoms. The module isolation test is key.

How to Prevent This Code From Triggering

• Apply Dielectric Grease to Connectors (Whenever a connector is unplugged) — Dielectric grease seals electrical connectors from moisture and oxygen, preventing pin corrosion that leads to high resistance or short circuits.
• Periodically Clean Key Ground Points (Every 3-5 years, especially in Salt Belt states) — Corrosion on main chassis grounds creates high resistance, disrupting module communication. Cleaning to bare metal prevents voltage drops.
• Secure and Protect Wiring Harnesses (During any under-dash or under-vehicle repairs) — Wiring harnesses rubbing against sharp metal brackets chafe through, causing a short to ground. Ensure harnesses are secured with zip ties or loom.
• Ensure Professional Installation of Aftermarket Electronics (When adding alarms, remote starters, or audio systems) — Improperly tapping into CAN bus or wake-up circuits causes communication faults. Professionals use proper T-harnesses or solder connections, avoiding 'quick splice' connectors.
• Maintain Battery Health (Annually) — A weak battery providing low voltage during startup is a primary cause of module communication failure. Load-test your battery annually.

Frequently Asked Questions

What is the absolute first thing I should check for a U2099 code?

Check the battery. Ensure the battery has at least 12.4 volts and passes a load test. A weak battery is a very common cause of communication codes like U2099.

Will clearing the U2099 code make my car start?

No. U2099 indicates a hard electrical fault. The code returns immediately upon the next key cycle, and the vehicle will not start until the physical problem is repaired.

What is the most common misdiagnosis for U2099?

The biggest mistake is replacing the Body Control Module (BCM) without proper diagnosis. The fault is almost always external—a different module shorting the circuit or a wiring issue. Always perform the module isolation test before condemning the BCM.

My car only has this problem intermittently. What's the cause?

Intermittent faults are caused by a failing module sensitive to temperature, a loose connector pin, or a chafing wire. A multimeter's MIN/MAX function catches intermittent voltage drops.

Can a bad battery cause code U2099?

Yes. If system voltage drops below 12.4 volts during cranking, modules fail to power on and communicate correctly, setting a U2099 code.

Why won't my car start with code U2099?

Computers essential for engine operation are not 'waking up' to communicate. Without receiving critical data, the BCM and ECM prevent the engine from cranking as a safety measure.

Is U2099 expensive to fix?

A battery replacement is $150-$350, while replacing a failed module like an EBCM costs $800 to over $2,000 at a dealership. Opting for a mail-in repair of your existing module brings the cost down to a few hundred dollars.

Can I fix code U2099 myself?

A DIYer can handle the initial checks: testing the battery, inspecting wires, and performing the module isolation test. Stop DIY diagnosis and tow the vehicle to an electrical specialist if these steps fail to restore communication. Advanced wiring diagnostics and BCM programming require professional tools.

Key Takeaways

• Test the battery first; system voltage below 12.4V prevents modules from waking up and triggers false U2099 communication codes.
• On 2007-2014 GM SUVs, unplugging the Electronic Suspension Control Module on the frame rail is the #1 diagnostic step to isolate a shorted wake-up circuit.
• For 2015-2020 Ford F-150s, cleaning the G401 ground connection under the driver's door resolves over 80% of MS-CAN communication failures mimicking U2099.
• Never replace the Body Control Module (BCM) without first performing a module isolation test, as the BCM is the reporter of the U2099 code, rarely the cause.
• Remove any aftermarket remote starters or alarms immediately, as improper T-tap splices into the CAN bus cause severe voltage drops that prevent module wake-up.
