U1510 on 2015-2017 Cadillac Escalade ESV: Causes and Fixes for LIN Bus Communication Loss

What's Unique About the 2015-2017 Cadillac ESCALADE ESV

For the 2015-2017 Escalade and its GM K2XX platform siblings (Chevrolet Tahoe, Suburban, GMC Yukon), code U1510 is frequently a symptom of a larger, well-documented electrical issue rather than a failure of a single component. Manufacturer service bulletin PIT5405C specifically points to a poorly secured ground wire for the Body Control Module (G218) as the root cause for a host of seemingly unrelated communication codes, including U1510. The factory issue is often dash sound-deadening material getting trapped under the ground terminal, creating a poor connection. This makes checking the G218 ground the most critical first step, distinguishing it from other vehicles where U1510 might more directly point to a failed part like an active grille shutter.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• "Service Stabilitrak" message on the instrument panel
• Instrument panel, radio, or HVAC displays may go blank intermittently
• Steering may feel jerky or heavy at low speeds
• Engine may stall unexpectedly
• Door locks may cycle or alarm may sound when locking doors
• Interior dome lights may flash when shifting into reverse
• Active Grille Shutters may not operate correctly, often staying stuck open
• Remote start may be disabled

Most Likely Causes

1. Poor Body Control Module (BCM) Ground at G218 🔴 High Probability As documented in GM Technical Service Bulletins PIT5405B and PIT5405C, the G218 ground nut can be loose, or more commonly, the front dash insulator mat gets trapped under the ground terminal eyelet from the factory, creating high resistance and a host of electrical gremlins.
   How to confirm: Locate the G218 ground stud, found under the driver's side dash, behind the side kick panel near the A-pillar and dash speaker. Visually inspect if the dash insulation is caught under the ground's ring terminal. Check if the 10mm nut is tight. A video on a related GM truck shows the location and fix clearly.
   Typical fix: Disconnect the battery. Remove the 10mm nut. Pull the ground terminal off the stud. Cut away the interfering insulation material with a utility knife. Clean the terminal eyelet and the body surface with a wire brush or sandpaper to ensure good metal-to-metal contact. Reinstall the ground terminal and nut, then reconnect the battery.
   Est. part cost: $0-$5

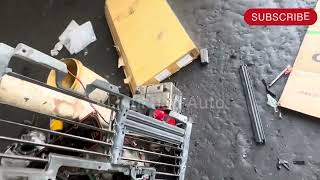

2. Failed Active Grille Shutter Actuator/Assembly 🟡 Medium Probability The active grille shutter assembly, located behind the front grille, is exposed to the elements and road debris. The actuator motor or its internal electronics can fail, causing a loss of communication on the LIN bus and triggering U1510. This is a very common failure point on many modern GM trucks and SUVs. Sometimes debris like a bird's or mouse's nest can physically jam the shutters and burn out the motor.
   How to confirm: Using a capable scan tool, attempt to command the shutters open and closed. If they do not respond, check the 3-wire connector for power (violet/blue wire), ground (black wire), and a fluctuating data signal on the LIN wire (green/violet wire). A constant 12V or 0V on the LIN wire often indicates a failed module within the shutter assembly. A known-good LIN signal waveform toggles between approximately 1V and battery voltage.
   Typical fix: The actuator is not sold separately, requiring the replacement of the entire active grille shutter assembly. This involves removing the front grille for access, which is held by four 10mm bolts and clips. The shutter assembly itself is then held by several more bolts.
   Est. part cost: $250-$450
3. Damaged Wiring or Loose Connector ⚪ Low Probability Wiring to components like the active grille shutters can be damaged by road debris, corrosion, or previous front-end collision repairs. TSB 17-NA-102 notes that the front fascia harness connection can be loose or have high resistance. A user on a Silverado forum reported finding a corroded wire near the driver-side headlight assembly connector that caused the U1510 code.
   How to confirm: Visually inspect the wiring harness leading to the active grille shutter for any signs of chafing, breaks, or corrosion, paying close attention to the connector plugs and where the harness is routed near the front of the vehicle.
   Typical fix: Repair the damaged section of wire or clean/replace the faulty connector. This can be a simple fix if the break is found.
   Est. part cost: $5-$50

Rare But Worth Checking

• Failing Body Control Module (BCM): While possible, the BCM itself is far less likely to fail than its ground connection. This should only be considered after thoroughly ruling out all wiring and ground issues. No forum posts or TSBs point to this as a common failure for this code.
• Loose or Corroded Battery Terminals: Poor main battery connections can cause widespread, intermittent electrical issues and communication codes across multiple modules. TSB PIT5405C also advises checking battery cable connections at the battery, fuse block, and engine block. Always ensure battery terminals are clean and tight.

Diagnosis Steps

1. Read all codes from all vehicle modules with a professional-grade scanner. Note all codes present, as U1510 is often accompanied by others when the G218 ground is at fault.
2. Crucial First Step: Locate and inspect the BCM ground G218. It is under the driver's side dashboard, behind the plastic kick panel near the A-pillar speaker.
3. Disconnect the negative battery terminal for safety.
4. Remove the 10mm ground nut. Check for and remove any dash insulation material caught under the terminal. Use a utility knife to trim it back.
5. Thoroughly clean the ground terminal eyelet, the stud, and the metal body surface with a wire brush or sandpaper to ensure bare metal contact.
6. Securely reinstall the ground terminal and nut. Reconnect the battery. Clear all codes and re-test the vehicle to see if the issue is resolved.
7. If codes return, investigate the component most commonly associated with U1510 on GM trucks: the Active Grille Shutter.
8. Visually inspect the shutter for damage or obstruction (like a bird's nest or road debris).
9. With the key on, back-probe the shutter's 3-wire electrical connector. Check for 12V power (Violet/Blue wire), good ground (Black wire), and a fluctuating data signal (typically not 0V or a steady 12V) on the LIN wire (Green/Violet wire).
10. If power and ground are good but the data line is dead or stuck at a fixed voltage, the shutter assembly actuator has likely failed and the entire assembly needs replacement.
11. If all wiring and components seem fine, the issue could be a rare internal fault in the Body Control Module (BCM).

Parts You'll Likely Need

• Active Grille Shutter Assembly (OEM #85043806 (supersedes 84378163, 84046019)) — If the G218 ground is not the cause, the internal actuator motor in the shutter assembly is the next most likely failure point for this code.
  Trusted brands: ACDelco (GM Genuine), Dorman, Action Crash
  OEM price range: $350-$500
  Aftermarket price range: $200-$350
• Shop Supplies — Often, the only 'parts' needed are a wire brush, sandpaper, and dielectric grease to clean and protect the G218 ground connection.
  OEM price range: $5-$15
  Aftermarket price range: $5-$15

Related Codes That Often Appear With This One

• U0073 — Control Module Communication Bus A Off
• U0100 — Lost Communication With ECM/PCM
• U0121 — Lost Communication With Anti-Lock Brake System (ABS) Control Module
• U0140 — Lost Communication With Body Control Module
• C0544 — Steering Wheel Angle Sensor related code
• P0513 — Incorrect Immobilizer Key
• P0128 — Coolant Thermostat (Coolant Temperature Below Thermostat Regulating Temperature) - sometimes misdiagnosed alongside U1510, but is a separate issue.

Technical Service Bulletins (TSBs) & Recalls

• PIT5405C: Addresses various electrical issues including stalls, blank screens, and numerous DTCs (including U1510) caused by a poor BCM ground at G218. Details the fix of cutting away trapped dash insulator mat.
• PIT5405B: An earlier version of the same bulletin, also pointing to the G218 ground as a primary cause for U1510 and other communication codes.
• 17-NA-102: Addresses inoperative active shutters and associated codes (including U1510), pointing to potential issues with the front fascia wiring harness connection.

Platform-Specific Known Issues

• A widespread issue documented in TSB PIT5405C involves a poor BCM ground at G218 causing a multitude of electrical problems, including setting code U1510. The fix is to ensure the ground is clean and free of interfering dash insulation.

Mechanic-Grade Diagnostic Values

• LIN Bus Voltage (at rest, key on) — expected: ~12V (or approx. 1V less than system voltage). Failure: Voltage significantly lower than 12V, or 0V.
• LIN Bus Communicating Voltage (using DMM with Peak Min/Max) — expected: Toggling between a MAX of ~12V and a MIN of ~1V.. Failure: A steady, non-toggling voltage (e.g., stuck at 12V or 0V) indicates a communication failure or short.
• Active Grille Shutter Connector - Pin 1 (Violet/Blue wire) — expected: Battery Voltage (12V+). Failure: No voltage indicates a power supply issue, possibly from fuse F47 in the underhood fuse block.
• Active Grille Shutter Connector - Pin 4 (Black wire) — expected: Good ground (near 0V with minimal resistance to chassis ground). Failure: High resistance or voltage present indicates a bad ground connection.
• Active Grille Shutter Connector - Pin 3 (Green/Violet wire) — expected: A toggling LIN bus signal (approx. 1V to 12V). A known-good waveform shows sharp drops from battery voltage to near-ground.. Failure: Stuck at a constant voltage (e.g. 14.5V with engine running) indicates an internally shorted/failed shutter actuator module.

Scan Tool Commands That Help

• GM GDS2 (or equivalent high-end scanner): Active Grille Shutter System - Bidirectional Control — This function allows a technician to command the grille shutters to open or close, directly testing the functionality of the actuator motor and linkage. If the shutters do not respond to the command despite having good power and ground, it strongly indicates a failed shutter assembly.

Wiring & Ground Locations

• G218 — Under the driver's side dash, behind the side kick panel, near the A-pillar and dash speaker.. This is the primary ground for the Body Control Module (BCM). TSB PIT5405C identifies a poor connection here (due to a loose nut or trapped insulation) as a root cause for U1510 and many other communication codes.
• Active Grille Shutter Connector — Behind the front grille, plugged into the shutter assembly. It is a 3-wire connector.. This is the connection point for the LIN device that most commonly fails and triggers U1510. Testing for power, ground, and data signal at this connector is a key diagnostic step. The pins are: Pin 1 - Power (Violet/Blue), Pin 3 - LIN Data (Green/Violet), Pin 4 - Ground (Black).
• X50A Underhood Fuse Block — In the engine compartment.. This fuse block contains the fuse (often F47) that supplies power to the Active Grille Shutter assembly. A blown fuse will cause a loss of communication.

Real Owner Repair Stories

• Reddit user FDH1966 (Chevy Silverado (K2XX Platform sibling)) — Check Engine Light with U1510, remote start disabled for the entire winter.
  ❌ Tried (didn't work) Replacing the active grille shutter actuator/assembly did not fix the problem initially.
  ✅ What actually fixed it Found a broken and corroded communication wire in the harness near the driver-side headlight assembly connector. Repairing the wire with a scotch lock connector resolved the code and restored function.
• YouTube channel 'Traildisc' (Chevy Silverado (K2XX Platform sibling)) — Check Engine Light with U1510, loss of communication with active grille shutter.
  ✅ What actually fixed it Diagnosis with an oscilloscope showed the LIN bus signal wire was stuck at battery voltage (14.5V). Power and ground to the shutter assembly were good. Replacing the entire active grille shutter assembly produced a known-good toggling waveform and fixed the code.
• YouTube channel 'Baldeagle242' (Chevy Silverado with 106,000 miles (K2XX Platform sibling)) — Check Engine Light with U1510.
  ❌ Tried (didn't work) Cleaning out a large bird's/mouse's nest from the shutter assembly did not restore function, suggesting the motor was already burned out from being jammed.
  ✅ What actually fixed it Checked fuse 47, which was good. Replaced the entire active grille shutter assembly. After replacement, the shutters opened correctly once the engine warmed up, and clearing the code with a scanner resolved the Check Engine Light.

OEM Part Supersession History

• 84046019 → 84378163, then 85043806 — Standard part revision and improvement by the manufacturer.
  Heads up: The latest part number, 85043806, is the correct service replacement for the entire 2015-2017 range.

Model Year Variations Within This Range

• 2015: Early 2015 models were equipped with a 6-speed automatic transmission, while mid-year 2015i and later models received an 8-speed automatic. This change also coincided with an update to the Cadillac crest logo and the introduction of 4G LTE Wi-Fi. However, this powertrain and tech update does not appear to have changed the fundamental cause or diagnosis for code U1510 related to the BCM ground or active grille shutter.
