OBD-II Code U1510: Lost Communication With a LIN Bus Device

What Does U1510 Mean?

U1510 means a master computer in your car, like the Engine Control Module (ECM) or Body Control Module (BCM), lost its connection to a smaller component. This connection happens on a simple, single-wire network called a Local Interconnect Network (LIN) bus. Think of it as a smart light switch losing connection to the main smart home hub. The LIN bus is a cost-effective sub-network handling non-critical functions like active grille shutters, HVAC controls, or wiper motors, bypassing the more complex CAN bus network.

Technical definition: Lost Communication with Device on Local Interconnect Network (LIN) Bus. A master control module failed to receive a response signal from a specific sensor or actuator on the single-wire LIN data bus.

Can I Drive With U1510?

Yes, But With Caution. You can drive, but address the issue promptly. A bad BCM ground causes sudden loss of power steering, engine stalling, or instrument cluster blackouts—a severe safety hazard. Failed active grille shutters typically default to the open position, causing the engine to run cooler, reducing fuel economy, and weakening heater performance. Shutters stuck closed in hot climates cause engine overheating and costly damage.

Common Causes

• Failed Active Grille Shutter Assembly (Very Common) — The electric motor and integrated control module inside the active grille shutter assembly fail electronically. Normal wear or debris like leaves and bird nests jam the shutters, burning out the motor.
• Poor Body Control Module (BCM) Ground Connection (GM) (Very Common) — A factory defect on 2014-2019 GM trucks and SUVs traps dash insulation under the G218 ground terminal behind the driver's kick panel. 🎬 See how to repair the G218 ground connection This poor connection triggers U1510 alongside widespread electrical failures.
• Damaged Wiring or Corroded Connector (Common) — The LIN bus wire routes near the front bumper, exposing it to moisture and road debris. Broken wires or corroded connectors interrupt the signal, especially in regions using winter road salt.
• Failed HVAC Control Module (Less Common) — On sedans like the Chevy Malibu or Cruze, the HVAC control module operates on the LIN bus. Internal failure stops communication, triggering U1510 and disabling climate controls.

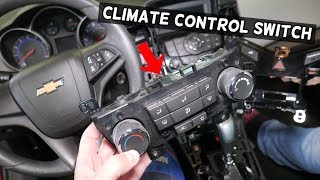

🎬 Watch: How to replace the HVAC control module
• Blown Fuse (Less Common) — A blown fuse cuts power to LIN bus components, halting communication. On GM trucks, check the 10A F47 fuse 🎬 Watch: How to fix U1510 on a Silverado in the under-hood fuse box before replacing parts.
• Low or Unstable Battery Voltage (Rare) — Low or fluctuating voltage from a weak battery or failing alternator forces modules offline. A loaded voltage drop over 200mV on the negative battery cable indicates a bad connection.
• Failed Body Control Module (BCM) (Rare) — A failed BCM floods the system with communication codes (like U0140) and causes erratic lights, door locks, and security issues. Rule out the G218 ground before replacing the BCM.

Symptoms

• Erratic Electrical Failures (GM) — A bad G218 ground causes the instrument cluster or radio to go blank, loss of power steering, engine stalling at low speeds, and 'Service Stabilitrak' messages.
• Dead Climate Controls — On vehicles like the Chevy Malibu, heating and A/C controls become completely unresponsive.
• Engine Overheating or Slow Warm-Up — Shutters stuck closed block radiator airflow, causing overheating. Shutters stuck open delay engine warm-up and weaken cabin heating in cold weather.
• Remote Start Disabled — The vehicle disables remote start when the Check Engine Light illuminates for communication codes.
• Reduced Fuel Economy — Shutters failing in the open position cannot close at highway speeds, increasing aerodynamic drag and slightly reducing fuel efficiency.
• Check Engine Light is On (also visible on scanner) — The most common and often the only symptom, especially if the fault lies with the active grille shutters.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replace Blown Fuse — Parts: $1 - $5, Labor: $0, ~0.1 hr book time (DIY)
• Clean and Secure BCM Ground G218 (GM) — Parts: $0 - $10, Labor: $50 - $150, ~1.0 hr book time (DIY)
• Replace Active Grille Shutter Assembly — Parts: $150 - $350, Labor: $150 - $400, ~2.5 hr book time (Intermediate)
  Chevrolet Silverado / GMC Sierra (2017-2018): OEM ACDelco / GM Genuine: 84646340 (Alt: Dorman: 601-374)
• Repair Damaged Wiring or Connector — Parts: $5 - $30, Labor: $100 - $400, ~1.5 hr book time (Intermediate)
• Replace HVAC Control Module — Parts: $100 - $350, Labor: $100 - $250, ~1.5 hr book time (Intermediate)
  Chevrolet Malibu (2016-2018): OEM ACDelco / GM Genuine: 84188426 (Alt: Duralast: SW6402)

Used vs. New Parts: Buying Guide

When a used part is worth it: A used active grille shutter assembly from a low-mileage donor vehicle offers a budget-friendly option for older vehicles. However, it risks premature failure of the used electronics.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the donor vehicle lacked widespread electrical issues.
• Inspect the used part for cracks in the plastic frame or linkages.
• Match the OEM part number exactly to ensure software compatibility.

Decision logic:

• If Vehicle is under 100K miles or budget allows → Buy a new OEM or reputable aftermarket part. The reliability and warranty justify the cost.
• If Vehicle is over 150K miles and budget is tight → A used part is viable, but accept the risk of early failure.
• If The failure is the electronic motor inside the assembly → Strongly favor a new part, as used parts carry the same impending electronic failure risk.

Warranty tradeoff: Used parts offer a 30-90 day warranty. New aftermarket parts provide 1-year to limited lifetime warranties. New OEM parts carry a 1-2 year warranty.

Worst-case if a used part fails: $200-500 if a used part fails, requiring a second labor charge.

What Happens If You Wait — Timeline

1. 0-1 month (Shutter Fails Open): Check Engine Light illuminates. Remote start disables. The engine warms up slowly, and cabin heating weakens in cold weather. (MPG impact: 1-3%% · Added cost: $0-20 in wasted fuel)
2. 1-6 months (Shutter Fails Open): The vehicle fails state OBD-II emissions inspections. Fuel economy suffers a persistent penalty at highway speeds. (MPG impact: 1-3%% · Added cost: $50-150 in wasted fuel and emissions test fees.)
3. Immediate (Shutter Fails Closed): The engine lacks adequate radiator airflow. The temperature gauge climbs rapidly in hot weather or slow traffic, leading to overheating. (MPG impact: 0%% · Added cost: $0 if caught immediately, but high risk.)
4. 1+ overheating event (Shutter Fails Closed): Driving an overheating engine causes catastrophic damage, including warped cylinder heads and blown head gaskets. (MPG impact: N/A% · Added cost: $2000 - $7000+ for major engine repair.)

Cost of Not Fixing It

• Immediate: A bad G218 ground on GM vehicles causes sudden stalling and loss of power steering. This is a major safety hazard requiring immediate attention. (Added cost: $0 (if self-repaired) to $4000+ (if it causes an accident))
• 0-6 months: A shutter failed open reduces fuel economy by 1-2 MPG and weakens winter heater performance. The Check Engine Light disables remote start and fails emissions tests. (Added cost: $50 - $150 in extra fuel costs.)
• 6+ months: A shutter stuck closed blocks radiator airflow, causing engine overheating in hot weather or traffic. Chronic overheating warps cylinder heads and blows head gaskets. (Added cost: $2000 - $5000+ for major engine repairs.)

Diagnosis Steps

1. Perform a Full System Scan
   Use an OBD-II scanner to check all modules. If U1510 appears alone or with P059F, the active grille shutter assembly is the culprit. If U1510 accompanies a flood of 'U' codes (U0073, U0140) and electrical codes, suspect a network-wide issue like the GM G218 ground fault.
   Tools: OBD-II Scanner (all-module capability) (Beginner)
2. Check the Component Fuse
   Locate the fuse for the suspected component in the owner's manual. On many GM trucks, this is the 10A F47 fuse in the under-hood box. Pull the fuse and inspect for a blown filament, indicating a short circuit.
   Tools: Owner's Manual, Fuse Puller or Pliers (Beginner)
3. Inspect the BCM Ground G218 (GM Specific)
   For 2014-2019 GM trucks and SUVs, locate the G218 ground stud behind the driver's side kick panel near the A-pillar. Remove the 10mm nut and clear any dash insulation trapped under the terminal. Clean the terminal to bare metal and re-tighten securely (TSBs PIT5405C and 18-NA-161).
   Tools: 10mm Socket, Ratchet, Trim Removal Tool, Wire Brush (Intermediate)
4. Visually Inspect the Component and Wiring
   Examine the active grille shutter assembly behind the main grille. Check for physical damage, debris blocking the shutters, and inspect the wiring harness for breaks or chafing. Look closely at the connector for green or white corrosion.
   Tools: Flashlight (Beginner)
5. Test the Connector for Power and Ground
   Unplug the electrical connector from the suspect component. With the key 'on', use a multimeter to check the power wire for 12V+ and the ground wire for continuity to chassis ground (<1.0 ohm). No power indicates an upstream fuse/wiring issue; high resistance indicates a bad ground.
   Tools: Multimeter, Wiring Diagram (Intermediate)
6. Test the LIN Bus Signal Wire (Unplugged)
   With the connector unplugged and key 'on', probe the LIN bus signal wire. A healthy master module sends a signal causing the voltage to float, typically fluctuating between 7V and 11V. This confirms intact wiring from the master module.
   Tools: Multimeter, T-pins (Advanced)
7. Test the LIN Bus Signal Wire (Plugged In)
   Plug the connector back in. With the key 'on', back-probe the LIN bus signal wire. A healthy module pulls the voltage down periodically. If the voltage remains a steady 12V-14V, the component's internal module has shorted to power and requires replacement.
   Tools: Multimeter, T-pins (Advanced)
8. Verify with an Oscilloscope (Expert Level)
   Connect an oscilloscope to the communicating LIN bus signal wire. A healthy bus shows a distinct square wave pattern, pulling high (12-14V) and low (~1V). A flat line at 12V confirms a short to power in the slave module. A flat line at 0V indicates a short to ground.
   Tools: Oscilloscope, Back-probing pins (Expert)

When This Code Triggers (Freeze-Frame Conditions)

• Engine Coolant Temp: 180-210°F (Fully warmed up during steady driving.)
• RPM: 1500-2500 (Steady cruise control or light throttle application.)
• Vehicle Speed: 45-65 mph (Highway driving where the ECM commands the shutters to close for aerodynamics.)
• Ambient Air Temperature: 40-90°F (Normal operating temperatures; extreme cold keeps shutters closed by design.)

Related Codes

• P059F — Indicates 'Active Grille Air Shutter Performance'. U1510 means the module is completely offline; P059F means it is online but mechanically stuck. Seeing only U1510 suggests dead internal electronics.
• U0140 — Indicates 'Lost Communication With Body Control Module'. Seeing U0140 with U1510 signals a network-wide problem, almost always pointing to the G218 ground fault on GM vehicles.
• U0073 — Indicates 'Control Module Communication Bus A Off'. Strongly suggests a systemic issue and is listed in GM's TSB for the G218 ground fault.
• P0128 — Indicates 'Coolant Thermostat Below Regulating Temperature'. A shutter stuck open (U1510) mimics a thermostat stuck open (P0128). Fix U1510 first.

Climate & Environmental Factors

• Road Salt / High Humidity: Regions using winter road salt experience higher U1510 rates from wiring failure. Saltwater accelerates corrosion on exposed front-mounted connectors, increasing resistance and breaking communication.
• Cold Weather / Ice Buildup: Freezing temperatures form ice on active grille shutters. The actuator motor burns out trying to move jammed shutters, causing electronic failure.
• Debris: Leaves, plastic bags, or animal nests physically block shutter movement. This strains and fails the actuator motor, resulting in communication loss.

How to Talk to a Mechanic About This Code

Say this: "I have a U1510 code on my [Make/Model]. If it's a GM truck, please check the G218 ground and the F47 fuse before diagnosing the active grille shutter. If it's a Malibu/Cruze, please check communication with the HVAC module."

This directs the technician to perform a logical, cost-effective diagnosis based on known TSBs instead of immediately quoting the most expensive common failure part.

Avoid saying:

• 'My check engine light is on, can you look at it?'
• 'Just replace the active grille shutters.'
• 'The internet said it's the grille thingy.'

Questions to ask before authorizing the repair:

• Did you find other communication codes like U0140 or U0073? Have you confirmed the G218 ground is clean?
• Did you test for 12V power, good ground, and a fluctuating signal on the LIN bus wire at the connector?
• What was the voltage on the LIN wire when back-probed while plugged in? Was it a steady 12-14V?
• Is the connector corroded? Can we try cleaning it and adding dielectric grease first?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Good for accurate TSB diagnosis, but the most expensive option. Best for warranty work.
  Best for: Vehicles under warranty., Diagnosing the G218 ground fault using proprietary TSBs., Complex electrical issues requiring OEM software.
  Downsides: Highest labor rates., Quick to replace the entire shutter assembly before checking cheaper causes. (Typical cost: +40% vs. baseline)
• Independent Shop: Excellent fit. Vet the shop by asking if they are comfortable diagnosing LIN bus communication issues.
  Best for: Out-of-warranty vehicles., Brand-specific specialists., Straightforward part replacements like the active grille shutter or HVAC module.
  Downsides: Diagnostic skill varies widely., May lack awareness of specific manufacturer TSBs. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID. U1510 requires diagnostic expertise beyond a simple code read.
  Best for: Reading the initial code for free., Simple maintenance like oil changes.
  Downsides: Technicians often lack complex electrical diagnostic skills., High pressure to upsell unnecessary parts. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 40-50% of the car's private-party value, consider selling or trading it in.

• Car worth $20000, fix is $800: Fix it. The repair cost is minor compared to the vehicle's value.
• Car worth $8000, fix is $1200: Borderline, but likely worth fixing. Get a second opinion to confirm the diagnosis.
• Car worth $3500, fix is $1500: Walk away. The repair cost approaches half the car's value.

What Scan Tool You Need for This Code

Minimum: A scanner that reads codes from ALL vehicle modules (ECM, BCM) to identify network-wide problems.

A basic $20 reader only checks generic engine codes. It cannot scan the Body Control Module (BCM), which is essential for diagnosing U1510 on GM vehicles.

Budget: BlueDriver Pro (~$99) — Performs an all-system scan to read codes from the BCM and ECM, providing freeze-frame data to identify the scope of the problem.

Mid-range: Foxwell NT510 Elite (~$180) — Offers full system diagnostics and bidirectional controls to actively test replacement components.

Professional: Autel MaxiCOM MK808 (~$500-1200) — Provides OEM-level diagnostics and graphically displays LIN bus data to visualize communication breakdowns.

Rent vs buy: Buy. Investing in a budget pick like the BlueDriver Pro allows necessary all-module scans and saves money on future diagnostic fees.

How to Clear the Code After You Fix It

1. Use an OBD-II scan tool to clear all diagnostic trouble codes.
2. Perform a complete drive cycle to allow the vehicle's readiness monitors to run self-tests.
3. Re-scan the vehicle to confirm U1510 has not returned and monitors are set to 'Ready'.

Drive cycle (~20 minutes): Start the engine cold (coolant below 122°F). Idle for 3 minutes. Accelerate to a steady 55 mph for 5 minutes. Decelerate to 20 mph without braking. Accelerate back to 55 mph for 5 minutes. Decelerate to a stop.

Readiness monitors affected: Catalyst (CAT) Monitor, Evaporative (EVAP) System Monitor, Oxygen (O2) Sensor Monitor

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Disconnecting the battery clears the light but resets all readiness monitors to 'Not Ready,' causing an automatic emissions failure.
• The code returns immediately on the next key cycle if the communication loss remains unfixed.
• Failing to perform a full drive cycle leaves monitors incomplete, preventing emissions test passage.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An illuminated Check Engine Light is an automatic failure. A complete drive cycle must set all readiness monitors to 'Ready' before a re-test.
• New York: An active U1510 code fails the OBD-II scan. You can pass with one monitor 'Not Ready', but clearing codes right before the test leaves too many monitors incomplete.
• Texas: An illuminated Check Engine Light is an automatic failure. Drive 50-100 miles post-repair to reset readiness monitors before re-inspection.

Most Commonly Affected Vehicles

• Chevrolet Silverado 1500/2500/3500 (2014-2019) — Extremely common due to faulty active grille shutter assemblies and the G218 BCM ground issue (TSB 18-NA-161).
• GMC Sierra 1500/2500/3500 (2014-2019) — Shares the K2XX platform with the Silverado, making it equally prone to G218 ground and shutter failures.
• Chevrolet Suburban/Tahoe (2015-2020) — Highly susceptible to the G218 ground fault causing U1510 and widespread electrical chaos.
• Cadillac Escalade / Escalade ESV (2015-2020) — Experiences U1510 from both shutter failures and the G218 ground issue. Updated part numbers exist for the shutter assembly.
• Chevrolet Malibu (2016-2019) — Commonly linked to a loss of communication with the HVAC control module on the LIN bus.
• Chevrolet Cruze (2016-2019) — Frequently points to a communication failure with the HVAC module on the LIN bus.
• Ford F-150 (2015-2020) — Failure of the shutter's actuator motor or wiring triggers U1510. The assembly often splits into upper and lower sections.
• Cadillac ATS, CTS (2016-2017) — Sets U1510 due to shutter failure or corroded connectors. Addressed in GM TSB 17-NA-102.
• Ram 1500 (2019-2022) — Failure of the active grille shutter motor or wiring triggers a U1510 code.

Manufacturer-Specific Notes

• General Motors (Chevrolet/GMC/Cadillac): The G218 BCM ground fault is a widespread factory defect on 2014-2020 K2XX vehicles. Check this first if multiple 'U' codes appear (TSBs PIT5405C and 18-NA-161).
• Ford: F-150 active grille shutter systems often feature separate upper and lower assemblies with independent motors. Diagnosis requires identifying which motor failed.
• Cadillac: ATS and CTS models suffer from water intrusion at the shutter assembly electrical connector. Inspect pins for green corrosion before replacing the assembly (TSB 17-NA-102).
• Chevrolet (Sedans): On the Malibu and Cruze, U1510 frequently targets the HVAC control module. Dead climate controls confirm the HVAC module as the primary suspect.

Real Owner Stories

2017 Chevy Silverado 1500 at 106K miles

Check Engine Light illuminated with code U1510. Found a large bird's nest packed inside the grille shutter assembly.

What they tried:

1. Checked fuse F47, which was intact.
2. Cleaned out all nest debris.
3. Cleared the code, but it returned immediately.

Outcome: Replaced the entire active grille shutter assembly for $300. The motor had burned out trying to move against the blockage. The code cleared permanently after replacement.

Lesson: Physical obstructions permanently damage the electronic module. Always check the fuse first, but expect to replace the assembly if the motor burns out.

2015 GMC Sierra with multiple electrical issues

Truck experienced intermittent stalling, flickering instrument cluster, 'Service Stabilitrak' messages, and codes U1510, U0140, and U0073.

What they tried:

1. Tested battery and alternator, both passed.
2. Received a $1000 quote for BCM replacement.
3. Researched GM TSB 18-NA-161 regarding the G218 ground.

Outcome: Located the G218 ground behind the driver's kick panel and found dash insulation trapped under the terminal. Cleaned the contact to bare metal. All electrical issues and codes resolved for $0.

Lesson: On 2014-2019 GM trucks, U1510 paired with erratic electrical symptoms points directly to the G218 ground. Check this factory defect before replacing expensive modules.

2016 Chevy Malibu with dead HVAC controls

Check Engine Light showed U1510, and the heat/AC control panel was completely unresponsive.

What they tried:

1. Checked all HVAC fuses, finding none blown.
2. Researched Malibu-specific forums linking U1510 to the HVAC module.

Outcome: Replaced the internally failed HVAC control module in the dash. This plug-and-play repair restored climate controls and cleared the U1510 code.

Lesson: Match the primary symptom to the failed part. On sedans like the Malibu, dead climate controls confirm the HVAC module as the LIN bus culprit.

2017 Cadillac ATS with U1510 and P059F

Check Engine Light appeared after a winter of heavy road salt use, storing codes U1510 and P059F.

What they tried:

1. Visually inspected grille shutters, finding no physical damage.
2. Prepared to order a $400 replacement shutter assembly.

Outcome: Inspected the electrical connector and found heavy green corrosion. Cleaned the pins and applied dielectric grease, restoring communication and clearing the codes for under $10 (TSB 17-NA-173).

Lesson: In regions using road salt, inspect connectors for corrosion before condemning expensive parts. Dielectric grease prevents future moisture intrusion.

How to Prevent This Code From Triggering

• Periodically clean debris from the front grille (Every 3-6 months) — Prevents leaves and nests from jamming the shutter blades and burning out the actuator motor.
• Gently wash the front grille (During car washes) — Avoids forcing high-pressure water into the actuator motor's seals, preventing moisture intrusion and electronic failure.
• Apply dielectric grease to the shutter connector (Once, or after disconnection) — Seals the electrical connector against moisture and salt, preventing pin corrosion in rust-belt states.
• Wash the vehicle's undercarriage in winter (After major snow/salting events) — Reduces corrosive road salt buildup on front-mounted wiring harnesses and ground points.

Frequently Asked Questions

Can I just remove the active grille shutters to fix the code?

No, simply removing or unplugging the shutters will not fix the code. The ECM requires a communication signal from the shutter's module. Unplugging it leaves the communication lost and the Check Engine Light on.

What is the G218 ground and where is it?

G218 is a specific Body Control Module (BCM) ground connection on 2014-2019 GM trucks and SUVs. It sits under the dashboard on the driver's side, behind the kick panel near the hood release. A factory error trapped dash insulation under the connector, causing poor grounding.

A shop quoted me $800 to replace the shutters. Is that a fair price?

Dealerships typically charge $600-$800 for parts and labor, requiring 1-3 hours to remove the front fascia. You can purchase the OEM part online for $150-$350. Always diagnose the fuse and ground connections before approving a costly shutter replacement.

Will clearing the code make it go away?

Clearing the code with a scanner provides only a temporary fix. The code returns on the next key cycle if the underlying communication failure remains. The master module constantly polls LIN bus devices and immediately detects the missing signal.

Do I need to reprogram anything after replacing the active grille shutters?

No, replacing the shutter assembly is a plug-and-play repair for most vehicles. Once installed and communicating, clear the code with a scanner. No special programming or calibration is required.

My mechanic says the code is for my thermostat, but the auto parts store said it's the grille shutters. Who is right?

Code U1510 indicates a LIN bus communication failure, pointing to the active grille shutters on most trucks. A thermostat issue sets a separate P0128 code. Mechanics confirm the U1510 fault by testing the wiring and communication directly at the shutter assembly.

What does a LIN bus do?

A Local Interconnect Network (LIN) is a low-speed, single-wire communication network. It provides a cheaper alternative to the main CAN bus for non-critical components like active grille shutters, HVAC controls, and window switches.

Key Takeaways

• Code U1510 indicates a master computer lost communication with a secondary component over the single-wire LIN bus network.
• On 2014-2020 GM trucks, inspect the G218 ground behind the driver's kick panel first if U1510 appears alongside other electrical failures or 'U' codes.
• Check the 10A component fuse (like F47 on GM trucks) before replacing the $300+ active grille shutter assembly.
• A steady 12V reading on the LIN signal wire while plugged into the component confirms an internal short, requiring full module replacement.
• For Chevy Malibu and Cruze models, U1510 frequently points to a failed HVAC control module requiring replacement behind the dash.
