U1500 on 2002-2009 Cadillac Escalade EXT: OnStar and HVAC Faults Explained

What's Unique About the 2002-2009 Cadillac ESCALADE EXT

This Escalade EXT range covers two vehicle generations (GMT800 and GMT900) with different potential causes for this code. The key factor for all years is the obsolescence of the OnStar system. The modules in these trucks were built for 2G and 3G cellular networks. AT&T shut down its 3G network in February 2022, and Verizon followed in December 2022, making the service permanently non-functional. This means that even a brand-new OnStar module cannot provide service, making a full repair impractical. Therefore, diagnosis for U1500 on this truck is less about restoring function and more about identifying the faulty module to eliminate error messages and potential battery drain.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: The 2002-2009 range covers two generations of the Escalade EXT, and the cause of U1500 can differ between them. * 1st Gen (2002-2006, GMT800 Platform): U1500 can be caused by either a faulty OnStar module OR a communication failure between the front and rear HVAC control modules. Diagnosis depends on the symptoms (e.g., 'Phone Unavailable' message vs. inoperative rear A/C). The HVAC issue is specific to a dedicated bus between the front and rear units. * 2nd Gen (2007-2009, GMT900 Platform): U1500 is almost exclusively related to an internal fault in the OnStar (VCIM) module, as documented in GM Technical Service Bulletins. The programming method for a replacement VCIM also changed for the 2009 model year, moving from a Tech 2-based setup to a Service Programming System (SPS) application.

Symptoms You May Notice

• "Phone Unavailable" audio message playing through the speakers
• OnStar status light on the mirror is red or off
• OnStar system is completely non-functional
• Inoperative rear climate controls (2002-2006 models only)
• Potential for parasitic battery drain, leading to a dead battery over a few days

Most Likely Causes

1. Internal Failure of the OnStar Module (VCIM) 🔴 High Probability This is a well-documented pattern failure across many GM vehicles from this era, confirmed by multiple Technical Service Bulletins (PIC3278 series). The module's internal electronics fail over time, causing a communication breakdown between its own internal components.
   How to confirm: Check for OnStar-related symptoms like a red status light and 'Phone Unavailable' message. Scan the vehicle; if U1500 is stored as a current DTC and linked to the Telematics module, the VCIM is the cause. A significant parasitic battery drain that disappears when the OnStar fuse is pulled is also a strong confirmation.
   Typical fix: Due to network obsolescence, the practical fix is to disable the module by pulling its fuse (often labeled ONSTAR or INFO in the underhood fuse box) or by physically disconnecting it. Replacement is possible but costly and requires programming, without restoring OnStar service.
   Est. part cost: $0
2. Rear HVAC Communication Fault (2002-2006 Models Only) 🟡 Medium Probability These models use a dedicated communication bus between the front and rear climate control modules which can be interrupted by a faulty module or wiring. The rear module or its actuators are common failure points.
   How to confirm: Verify that the rear climate controls are completely unresponsive to commands from the front panel. A professional scan tool will show no communication with the 'AUX HVAC' module. Check for related HVAC-specific DTCs.
   Typical fix: Diagnose whether the front control head, rear control module, wiring, or a rear actuator is at fault. The most common fix is replacing the rear (auxiliary) HVAC control module or a failed blend door actuator in the rear unit.
   Est. part cost: $80-$300
3. Wiring or Connector Damage ⚪ Low Probability
   How to confirm: Visually inspect the wiring harness and connectors at the suspect module (either the OnStar VCIM or the rear HVAC module). Check for corrosion, chafing, or loose pins. Pay special attention to key ground locations like G200/G201 (GMT900) or G410 (GMT800).
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the faulty connector.
   Est. part cost: $10-$50

Diagnosis Steps

1. First, identify the primary symptom. Is the OnStar system failing ('Phone Unavailable' message) or are the rear climate controls inoperative (on a 2002-2006 model)?
2. If OnStar is the issue (all years):

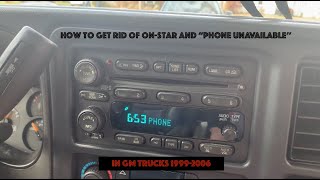

3. The easiest first step is to pull the fuse for the OnStar module. Check the owner's manual for the fuse box diagram (often under the hood or at the driver's side dash panel) and remove the fuse labeled ONSTAR or, commonly, 'INFO'. This will disable the module and should stop the error messages and any battery drain.
4. Alternatively, locate the Vehicle Communication Interface Module (VCIM) to disconnect it fully.
5. - 2002-2006 (GMT800): The VCIM is typically located behind the instrument panel, to the right of the glove box, or sometimes under the rear seat.
6. - 2007-2009 (GMT900): The VCIM is typically located deep in the center of the dashboard, behind and below the radio/climate control head unit.
7. Disconnect the electrical and antenna connectors from the VCIM. This will take it off the network and prevent it from causing codes or draining the battery.
8. Clear all DTCs with a scan tool. If the U1500 code does not return, the faulty/obsolete VCIM was the cause.
9. If Rear HVAC is the issue (2002-2006 models only):
10. Check all fuses related to the HVAC system.
11. Using a capable scan tool, attempt to communicate with the rear HVAC module (often called AUX HVAC). If it does not respond, a communication breakdown has occurred.
12. Inspect the wiring between the front and rear HVAC units. The rear unit is located in the passenger side rear quarter panel area, requiring removal of interior trim for access.
13. If wiring is intact, the fault is likely the rear HVAC control module itself or one of the actuators within the rear HVAC case.
🎬 See this walkthrough for replacing the rear AC blower actuator.

Parts You'll Likely Need

• OnStar Module (Vehicle Communication Interface Module - VCIM) (OEM #25911919 (supersedes 15935016, 25826499)) — This is the most common cause of U1500. It fails internally. Note that replacement is not recommended due to service obsolescence; disabling the old module is the preferred fix.
  Trusted brands: ACDelco (OEM)
  OEM price range: $250-$500
  Aftermarket price range: $100-$250 (Used/Remanufactured)
• Auxiliary HVAC Control Module (2002-2006 only) (OEM #15-73505, 15-72997) — For first-generation models, this module can fail and cause a U1500 code if the rear climate controls are inoperative.

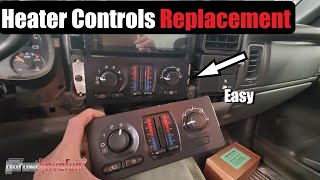

  Trusted brands: ACDelco, Dorman (e.g., 599-211, 599-211XD) 🎬 Watch: Step-by-step guide for replacing the GMT800 climate control unit.
  OEM price range: $200-$350
  Aftermarket price range: $80-$200

Related Codes That Often Appear With This One

• B1000 — GM Technical Service Bulletins PIC3278G and PIC3278F state that an internal OnStar module fault can produce either a U1500 or a B1000 code.

Technical Service Bulletins (TSBs) & Recalls

• PIC3278G: States that an internal fault in the OnStar module can cause a 'Phone Unavailable' message and set a U1500 or B1000 code. This is the final version of this bulletin.
• PIC3278F: An earlier version of the same bulletin, identifying the same OnStar module internal fault.
• PIC3718E: Another related bulletin addressing OnStar communication failures on GM platforms.

Platform-Specific Known Issues

• OnStar Network Shutdown: The most critical issue is that the 2G and 3G cellular networks required by the OnStar systems in these vehicles were shut down by all major carriers (AT&T, Verizon) by the end of 2022. This makes the service permanently inoperable, regardless of the module's condition. Replacing the module will not restore service, which is why disabling it is the most common and logical solution.
• Real Owner Stories: On a 2CarPros forum post regarding a 2004 Cadillac Escalade ESV with no rear heat, the confirmed fix was replacing a rear blend door actuator. While this sets a B-code, a malfunctioning actuator can disrupt the local HVAC bus and contribute to a U1500 communication code being logged.

Mechanic-Grade Diagnostic Values

• Power and Ground at Module Connector — expected: With the key on, you should have battery voltage (approx. 12.6V) at the power pin and less than 1.0 ohm of resistance to ground on the ground pin.. Failure: No voltage or high resistance on the ground circuit indicates a wiring problem upstream of the module, not an internal module fault.

Scan Tool Commands That Help

• GM Tech 2: Phone Call Test — To directly test the functionality of the OnStar module (VCIM). Navigate via: Body > Onstar (or Vehicle Comm. Interface Module) > Special Functions > Phone Call Test. This forces the module to attempt a connection, confirming if it's responsive.
• GM Tech 2: Module ID Information — To verify if the scan tool can communicate with the OnStar module at all. Path: Body > OnStar® > VCIM > Module 2 Information. If the tool cannot retrieve this info, the module is offline.
• GM Tech 2: Rear Climate Control Panel Output Control — For 2002-2006 models with rear HVAC issues, this allows the technician to command specific functions of the rear HVAC system to test actuators and controls independently. Path: Body > Rear Climate Control Panel > Special Functions > Output Control.

Wiring & Ground Locations

• G200 / G201 — For GMT900 (2007-2009), G200 is located at the base of the right 'A' pillar, while G201 is behind the upper left side of the dashboard.. These are primary instrument panel grounds. The OnStar VCIM and BCM rely on these grounds for proper communication on the GMLAN bus. A poor connection here can cause widespread communication codes, including U1500.
• G410 — For GMT800 (2002-2006), G410 is located behind the right rear quarter panel trim.. This is a key ground point for the rear body section. The auxiliary (rear) HVAC control module is located in this area and often uses this ground. Corrosion or a loose connection at G410 can directly cause a loss of communication with the rear HVAC module, triggering U1500.
• G302 / G303 — For GMT900 (2007-2009), G302 is under the right side of the passenger seat and G303 is on the left side B-pillar behind the trim panel.. These grounds serve various body components in the rear passenger area. While not a primary cause, they should be inspected if other electrical issues are present along with the U1500 code.
• Splice Pack SP200 / SP201 — Located in the upper left corner of the passenger compartment, behind the instrument panel on GMT900 models.. These are junction points where the Low-Speed GMLAN serial data wires for multiple modules, including the VCIM, meet. Corrosion or a bad pin connection in these splice packs can take down the entire network segment, causing a U1500.
• Rear HVAC Unit — On GMT800 (2002-2006) models, the entire rear HVAC unit, including the auxiliary control module and actuators, is located in the passenger side rear quarter panel area, accessible by removing the interior trim.. This is the physical location to inspect wiring, connectors, and replace the auxiliary HVAC module if it is diagnosed as the cause of the U1500 code.

Real Owner Repair Stories

• GMTNation Forum (GM SUV (GMT800 platform, similar to 2002-2006 Escalade EXT)) — No rear A/C function.
  ❌ Tried (didn't work) Initial diagnosis was unclear.
  ✅ What actually fixed it The user replaced the rear blower speed control module (resistor). The new part initially overheated because it was not properly installed against its heat sink inside the HVAC case. This highlights the difficulty of working in the tight space behind the rear quarter panel trim and the importance of correct installation for related HVAC components that can cause communication issues.

OEM Part Supersession History

• 15935016, 25826499 → 25911919 — Part consolidation and revision by the manufacturer.
  Heads up: While these parts are officially interchangeable, programming is always required. A used module must be from a vehicle with an identical option configuration to have a chance of working without immediate reprogramming. Due to the 2G/3G network shutdown, replacing the module is not recommended.

Model Year Variations Within This Range

• 2007-2008 vs 2009: The procedure to set up and activate a replacement OnStar VCIM changed. For 2008 and prior models, programming was done using the Tech 2 scan tool. For 2009 models, the setup process was moved to the PC-based Service Programming System (SPS) application, similar to other body modules.
