OBD-II Code U1103: Expert Guide to Communication Network Errors

What Does U1103 Mean?

Code U1103 signifies a communication breakdown between your car's computer modules on the CAN bus network. One module expects data from another, but the message is missing or invalid. This forces the receiving module to use a default failsafe value and triggers the check engine light.

Technical definition: The SAE definition is 'SCP (J1850) Invalid or Missing Data for Primary Id.' Manufacturers use specific descriptions: Hyundai/Kia defines it as 'Lost Communication With TGS (Transmission Gear Selector) Lever,' while Toyota uses 'Lost Communication with Stop and Start Control Module.' You must use an all-module scanner to read the exact manufacturer definition.

Can I Drive With U1103?

Yes, But With Caution. You can drive short distances to a safe location, but the vehicle often enters 'limp mode' with a 30-50 mph speed limit. Erratic shifting creates a significant safety risk in traffic. Continuing to drive strains the transmission and risks $800-$2500 in catalytic converter damage.

Common Causes

• Low Battery Voltage or Bad Ground (Very Common) — Modern vehicles require stable voltage. A weak battery, a failing alternator, or a corroded ground wire causes unpredictable communication errors between modules. This is the primary cause of phantom U-codes.

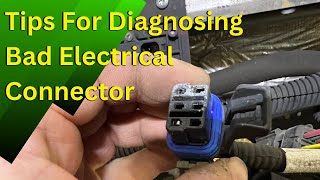

• Damaged Wiring or Loose Connector Pins (Very Common) — The CAN bus wires can short out, chafe, or corrode. Additionally, female terminals within a connector loosen over time due to vibration, creating high resistance. A 'pin drag test' is required to verify secure connections, especially at the shifter module.
🎬 Watch: Diagnosing a Hyundai Veloster shifter with code U1103.
• Faulty Transmission Gear Shifter (TGS) Assembly (Common) — In vehicles where U1103 points to the TGS, the shifter assembly contains a small electronic module. This module fails internally, cutting off communication with the transmission and engine computers.
• Failing Control Module (ECM, TCM, BCM) (Common) — A computer module on the network fails internally due to software glitches, water intrusion, or electrical surges, taking down its branch of the communication network.
• Blown Fuse or Faulty Relay (Less Common) — A blown fuse or a failed relay supplying power to a specific control module takes that module offline. Other modules log a communication fault because they stop receiving its broadcasts.
• Improperly Installed Aftermarket Accessories (Less Common) — Aftermarket alarms, remote starters, or stereos incorrectly tapped into the CAN bus wiring introduce electrical noise, disrupting module communication.
• Faulty Fuel Pump or Sensor Circuit (Rare) — A failing component not directly on the communication network, like a fuel pump or crankshaft position sensor, creates severe electrical interference that disrupts module communication.

Symptoms

• Inability to Shift Gears or Erratic Shifting — The gear indicator (PRNDL) displays incorrectly, the transmission locks in Park, or it gets stuck in a single gear.
• Vehicle Enters 'Limp Mode' — The ECU drastically reduces engine power and limits top speed to 30-50 mph to prevent drivetrain damage.
• Engine Stalls or Fails to Start — If communication is lost with the gear selector or engine computer, the immobilizer prevents starting or stalls the engine while driving.
• Multiple Warning Lights On — ABS, traction control, transmission, and battery warning lights illuminate simultaneously due to network-wide data loss.
• Check Engine Light is On (also visible on scanner) — This is the first and most consistent indicator of a network communication failure.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replacing a Weak Battery — Parts: $150-$400, Labor: $50-$100, ~0.5 hr book time (DIY)
• Repairing Damaged Wiring or Connectors — Parts: $5-$50, Labor: $150-$600, ~1.5 hr book time (Intermediate)
• Replacing a Faulty Transmission Shifter Assembly — Parts: $250-$900, Labor: $125-$400, ~2.5 hr book time (Professional)
• Module Reprogramming or Software Update — Parts: $0, Labor: $150-$300, ~1.5 hr book time (Professional)
• Replacing a Faulty Control Module (ECM, BCM, etc.) — Parts: $500-$2000, Labor: $150-$400, ~2.0 hr book time (Professional)

Used vs. New Parts: Buying Guide

When a used part is worth it: For a transmission shifter assembly, a used part from a low-mileage vehicle saves up to 70%. For critical control modules (ECM, TCM), the risk of hidden electronic faults makes used parts a poor choice.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the donor vehicle's VIN to ensure exact part number and software compatibility.
• Avoid parts from flood-damaged or high-humidity climate vehicles.
• Ensure the seller offers a warranty and has tested the part for functionality.

Decision logic:

• If The part is a simple mechanical component or the vehicle is old with low value → A used part from a reputable salvage yard is a reasonable choice.
• If The part is a complex electronic module (ECM, TCM) that requires programming → A new or professionally remanufactured part with a warranty is mandatory to avoid repeat labor costs.
• If The failure is due to a known wear item (e.g., internal shifter electronics) → Favor a new or remanufactured part, as a used part has the same wear and a limited lifespan.

Warranty tradeoff: Used parts typically come with a 30-90 day warranty. New aftermarket parts offer a 1-year or limited lifetime warranty. New OEM parts carry a 12-month manufacturer warranty.

Worst-case if a used part fails: $500-1500 if a used electronic module fails after installation, requiring repeat diagnostic, labor, and programming fees.

What Happens If You Wait — Timeline

1. 0-1 month: Intermittent check engine light. The code clears itself and returns days later. Vehicle occasionally hesitates to start. (MPG impact: 0-2%% · Added cost: $0)
2. 1-3 months: The vehicle enters limp mode unpredictably, limiting speed to 30-50 mph. You are unable to shift out of Park, or the engine stalls at idle. Safety risk increases. (MPG impact: 5-15% (when in limp mode)% · Added cost: $50-$150 in wasted fuel and towing costs.)
3. 3-6 months: Continued driving with erratic signals puts extra strain on the transmission. The engine runs in a non-optimized state, fouling spark plugs and stressing the catalytic converter. (MPG impact: 10-20%% · Added cost: $500-$1500)
4. 6+ months: Catastrophic failure. A persistent short circuit damages multiple control modules. Severe transmission damage occurs from prolonged operation in a single gear. (MPG impact: N/A (Vehicle may be undrivable)% · Added cost: $2000-$7000+)

Cost of Not Fixing It

• 0-1 month: Intermittent no-start or stalling, inability to shift out of Park, and unpredictable limp mode activation, posing a significant safety risk. (Added cost: Negligible, but high safety and inconvenience cost.)
• 1-6 months: Continued operation in limp mode causes the engine to run rich, overheating and damaging the catalytic converter. (Added cost: $1200-$2800)
• 6+ months: Increased strain on the transmission from erratic shifting leads to premature wear and internal damage, requiring a transmission rebuild. (Added cost: $3000-$7000)

Diagnosis Steps

1. Check Battery and Charging System Health
   Test the battery with the car off; it must read at least 12.4 volts. With the engine running, the alternator must output between 13.7 and 14.7 volts. Clean and tighten main ground straps to the chassis and engine.
   Tools: Multimeter or Battery Tester (Beginner)
2. Read All Trouble Codes from All Modules
   Use an advanced OBD-II scanner to read codes from the TCM, BCM, and ABS. Diagnose and fix non-'U' codes first, as they pinpoint the root cause of the network crash.
   Tools: OBD-II Scanner (All-Module Capable) (Beginner)
3. Inspect Fuses and Relays
   Check all cabin and under-hood fuse boxes for blown fuses related to the ECU, TCM, BCM, or gear selector module (TGS). Test associated power relays.
   Tools: Fuse Puller, Multimeter, Owner's Manual (Intermediate)
4. Perform Visual Inspection and Pin Drag Test
   Inspect wiring harnesses around the gear shifter, transmission, and main ECU for chafing or melting. Disconnect the suspected module's connector and use a male terminal to test the tension of the female pins. Loose pins on power, ground, or CAN lines cause intermittent faults.
   Tools: Flashlight, Terminal Pin Kit (Advanced)
5. Check CAN Bus Resistance (Pro Tip)
   Disconnect the battery. Measure resistance between CAN High (Pin 6) and CAN Low (Pin 14) at the OBD-II port. A healthy network reads exactly 60 ohms. 120 ohms indicates an open circuit; 0 ohms indicates a short circuit.
   Tools: Multimeter (Advanced)
6. Check CAN Bus Voltages (Pro Tip)
   Reconnect the battery and turn ignition ON (engine off). Measure voltage on the CAN lines. Idle state is ~2.5V for both. Active state: CAN High rises to ~3.5V, CAN Low drops to ~1.5V. 0V indicates a short to ground; 5V/12V indicates a short to power.
   Tools: Multimeter (Advanced)
7. Isolate the Faulty Module
   Disconnect one module at a time from the CAN bus and re-check network resistance or signal to see if the problem disappears. Use an oscilloscope to view the CAN signal waveform and spot interference.
   Tools: Multimeter, Oscilloscope, Wiring Diagram (Professional)
8. Check Fuel Pressure (Rare Cause)
   If electrical interference is suspected, check fuel pressure to rule out a failing fuel pump creating electrical noise. Low or erratic pressure indicates a faulty pump.
   Tools: Fuel Pressure Gauge (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• Engine Coolant Temp: 170-210°F (The fault occurs at normal operating temperature, indicating a hard fault rather than a cold-start voltage drop.)
• RPM: 0-800 (Logged during startup (ignition ON) or at idle, as communication checks happen before driving.)
• Battery Voltage: <12.0V or >15.0V (Triggers during a low voltage event on startup or a high voltage spike from a faulty alternator.)
• Vehicle Speed: 0 mph (Since many U1103 faults relate to the gear shifter, the error is frequently logged when the vehicle is stationary.)

Related Codes

• U0103 — Lost Communication With Gear Shift Module. The generic SAE equivalent to U1103. If both are present, the problem is definitively in the shifter circuit.
• U0100 — Lost Communication With ECM/PCM. A severe code indicating the main engine computer is offline. If you have U1103 but NOT U0100, the ECM is functioning and the fault is on a different network branch.
• U0101 — Lost Communication with TCM. If U1103 is set in the TCM and other modules set U0101, the TCM itself (or its power/ground) is the source of the network failure.
• P0700 — Transmission Control System Malfunction. A generic code stored in the ECM when the TCM has stored a specific fault code like U1103. You must scan the TCM to find the actual fault.

Climate & Environmental Factors

• High Humidity: Moisture penetrates connectors and wiring, causing corrosion and short circuits that disrupt network signals. This is a primary contributor to wiring-related U1103 faults in coastal climates.
• Cold Weather: Cold temperatures increase internal battery resistance, causing voltage to drop significantly during startup and triggering communication codes.
• Road Salt: Corrosive road salt accelerates the degradation of wiring harnesses and ground connections under the vehicle, creating high resistance or open circuits.

How to Talk to a Mechanic About This Code

Say this: "I have a U1103 communication code. Before replacing any modules, please test the battery and charging system, and check the CAN bus network for proper resistance and voltage. I also need you to inspect the wiring and connector pins for the module dropping communication."

This signals you understand U1103 is a network problem caused by simple things like battery, wiring, and connectors. It directs the technician to perform a logical diagnosis instead of jumping to an expensive module replacement.

Avoid saying:

• 'Just fix whatever's wrong'
• 'My check engine light is on, can you look at it?'
• 'I think I need a new shifter/computer.'

Questions to ask before authorizing the repair:

• What were the battery voltage readings at rest and while running?
• Did you check for other codes in other modules? Which module is logging the U1103 fault?
• What was the CAN bus resistance reading? Was it exactly 60 ohms?
• If recommending a module replacement, did you verify its power, ground, and connector pin tension first?
• Will you provide a printout of the freeze-frame data and all fault codes found?
• What is the warranty on this specific repair, including both parts and labor?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: A reliable, but expensive, choice. Best if you suspect a software update is needed or if other shops failed to find the problem.
  Best for: Vehicles still under warranty, Known issues covered by a Technical Service Bulletin (TSB) requiring a software update, Complex, brand-specific electronic problems
  Downsides: Highest labor rates, Defaults to replacing an entire assembly instead of repairing a wire (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit, provided you choose a shop with strong electrical diagnostic skills. Ask if they are comfortable diagnosing CAN bus communication problems.
  Best for: Out-of-warranty vehicles where cost is a factor, Diagnosing wiring, connector, and battery issues, Shops specializing in automotive electronics
  Downsides: Quality and diagnostic capabilities vary widely., Lacks access to the latest manufacturer software updates. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID for initial diagnosis. Their diagnostic process is not deep enough for a U1103 code, leading to wasted money on incorrect repairs.
  Best for: Simple, related fixes like a battery replacement (if confirmed as the cause).
  Downsides: Technicians lack specialized training for complex network diagnostics., High pressure to sell parts leads to misdiagnosis. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 40-50% of the car's private-party value, sell the car as-is or trade it in.

• Car worth $4000, fix is $2000: Borderline. The repair is 50% of the car's value. Get a second opinion before authorizing.
• Car worth $12000, fix is $1800: Fix it. The repair cost is 15% of the car's value and well below the threshold.
• Car worth $2500, fix is $1500: Walk away. The repair cost is 60% of the car's value. It is not financially sound to proceed.

What Scan Tool You Need for This Code

Minimum: A scanner that reads manufacturer-specific codes from ALL vehicle modules (Engine, Transmission, ABS, Airbag, Body, etc.).

A basic $20 code reader only checks for generic engine codes. U1103 is a network fault stored in the Transmission (TCM) or Body (BCM) module. A basic reader will not see these codes.

Budget: BlueDriver Pro (~$119) — Connects to your smartphone and performs a full system scan to read enhanced codes from modules like the TCM and ABS. Provides freeze frame data and live data graphing.

Mid-range: Foxwell NT510 Elite (~$150) — A handheld tool offering full-system diagnostics and bi-directional controls, allowing you to command and test specific components to pinpoint the fault.

Professional: Autel MaxiCOM MK808 / MK808BT (~$450-600) — Provides full OE-level diagnostics for all systems. Bi-directional control allows technicians to activate relays and solenoids to test functionality, crucial for isolating a network fault.

Rent vs buy: Auto parts stores rent basic scanners insufficient for U1103. Buying a tool like the BlueDriver or Foxwell NT510 is a worthwhile investment that saves money on future diagnostic fees.

How to Clear the Code After You Fix It

1. Reconnect battery if disconnected for repair
2. Use an OBD-II scan tool to clear all fault codes
3. Perform a complete OBD-II drive cycle to allow readiness monitors to run

Drive cycle (~20 minutes): Cold start (coolant temp below 122°F). Idle for 2-3 minutes. Drive at a steady speed of 55 mph for 3-5 minutes. Let the vehicle coast down to 20 mph without braking. Accelerate back to 55 mph and hold for 5 minutes. Let the vehicle coast to a stop.

Readiness monitors affected: Catalyst Monitor, Evaporative (EVAP) System Monitor, Oxygen (O2) Sensor Monitor

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Clearing the code without performing a drive cycle results in a 'Not Ready' status for emissions testing.
• The code returns immediately if the root cause is a hard fault and has not been fixed.
• The EVAP monitor requires the fuel level to be between 15% and 85% to run.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An illuminated Check Engine Light results in an automatic failure. A drive cycle of 50-100 miles is needed to set readiness monitors before a retest.
• New York: Automatic failure if the Check Engine Light is on. Clearing the code right before the test results in failure because readiness monitors report as 'Not Ready'.
• Texas: In emissions-testing counties, an illuminated Check Engine Light is an automatic failure. You pass with one readiness monitor not set (two for 1996-2000 models).

Most Commonly Affected Vehicles

• Hyundai Veloster, Tucson, Elantra (2011-2020) — Presents as 'Lost Communication With TGS Lever,' causing a no-start or inability to shift. Frequently caused by poor pin tension in the shifter connector.
• Jeep Grand Cherokee (2010-2022) — On 2011-2022 WK2 models, electrical issues are common, including failures of the Drivetrain Control Module (DTCM) or Radio Frequency Hub Module.
• Dodge / Ram Charger, Challenger, Ram 1500 (2007-2022) — Low battery voltage is the most common cause. TSB 08-084-23 exists for 2022 Ram 1500s to reprogram the Electronic Shift Module (ESM).
• Volkswagen / Audi Golf, Passat, A3, Q2 (with DSG) (2012-2023) — The generic equivalent code U0103 points to an internal electronic failure in the gearshift mechanism (J587), causing the car to get stuck in Park.
• Ford F-150, Expedition, Super Duty (2015-2020) — Highly sensitive to low battery voltage. Check the battery and charging system first for any communication codes.
• Chevrolet / GMC Silverado, Sierra (2007-2024) — Indicates a failure on the GMLAN high-speed communication bus. Diagnosis requires checking network integrity (60-ohm resistance).
• Chrysler 300, Pacifica (2005-2022) — On newer models like the Pacifica, TSBs exist to update PCM software to resolve implausible shifter signals.
• Toyota RAV4, and other models with Start/Stop (2018-2022) — Often means 'Lost Communication with Stop and Start Control Module,' pointing to an issue in the CAN communication circuit between the ECM and the start/stop ECU.

Manufacturer-Specific Notes

• Hyundai/Kia: A very common failure point is poor pin tension in the shifter's electrical connector, not the shifter itself. On some Veloster models, the CAN bus wiring at the diagnostic port uses pins 3 and 11 instead of the standard 6 and 14.
• Chrysler/Dodge/Jeep/Ram: Notoriously sensitive to battery voltage. U1103 is frequently the first sign of a failing battery or alternator. Always start diagnosis here.
• Toyota: On newer models, U1103 links to the Engine Stop and Start ECU. The service manual directs technicians to check the CAN communication system first before replacing parts.
• Volkswagen/Audi: On MQB platform vehicles with a DSG transmission, code U0103 almost always indicates a failure of the electronics inside the gear selector assembly itself.

Real Owner Stories

2013 Hyundai Veloster with DCT - Misdiagnosis Story

Check engine light on with code U1103 stored in the TCM. The owner replaced the shifter assembly three times, but the code remained active.

What they tried:

1. Replaced shifter assembly multiple times.

Outcome: A technician diagnosed a broken CAN bus wire. The wire was repaired, and the code cleared permanently.

Lesson: Do not repeatedly replace an expensive module. If the code persists after one replacement, the fault is in the wiring, connectors, or power/ground supply.

2016 Hyundai Veloster DCT - Easy Fix

Car struggled to start and would not go into Drive or Reverse. Code U1103 was present.

What they tried:

1. Suspected the crankshaft position sensor based on identical symptoms found on forums.

Outcome: The crankshaft position sensor was replaced in ten minutes, resolving all symptoms.

Lesson: A communication code is sometimes a symptom of another failing part creating electrical noise. A failing crankshaft position sensor manifests as a U1103 code on Velosters.

2013 Hyundai Veloster Base - Unusual Root Cause

Intermittent no-start condition over several months, which became permanent in cold weather.

What they tried:

1. Waited 5 minutes, after which the car would sometimes start.

Outcome: A dealership diagnosed a faulty fuel pump and related sensor. The repair cost $1,700.

Lesson: A component not directly on the communication network causes a U1103 code. A failing fuel pump creates electrical interference that disrupts module communication.

How to Prevent This Code From Triggering

• Perform regular battery terminal cleaning and checks (Every 6 months or during oil changes) — Corrosion on battery terminals increases resistance and causes low voltage conditions that trigger communication faults. Clean terminals with baking soda and apply anti-corrosion gel.
• Apply dielectric grease to critical connectors (When servicing or exposing connectors) — Dielectric grease seals electrical contacts from moisture, salt, and dirt. Applying a thin layer to the connector housing prevents future communication problems.
• Ensure regular, longer drives (At least one 20-30 minute drive per week) — Frequent short trips prevent the alternator from fully recharging the battery. An undercharged battery causes low-voltage communication codes.
• Protect exposed wiring harnesses (As needed) — Using adhesive-lined heat shrink tubing or quality electrical tape seals out moisture and prevents physical damage from road debris, primary causes of CAN bus wire failure.
• Avoid leaving accessories on with the engine off (Daily habit) — Leaving lights or the radio on drains the battery, leading to a no-start condition and triggering low-voltage codes upon the next startup attempt.

Frequently Asked Questions

Can a bad battery really cause this U1103 code?

Yes. Modules require a stable 12.4V minimum to communicate. A weak battery causes voltage drops during startup that interrupt signals and trigger U1103.

My mechanic replaced the shifter but the U1103 code is still there. What now?

The problem is in the supporting circuit. Perform a 'pin drag test' to check for loose terminals in the connector. The fault usually lies in a broken wire or loose pin, not the module itself.

What does it mean if I clear the code and it comes back immediately?

This signifies a 'hard' fault, meaning the problem is constant. It points to a broken wire, a completely failed module, a blown fuse, or a direct short circuit.

Is it expensive to fix code U1103?

Costs range from $200 for a battery or fuse to over $2,000 for a complex wiring repair or module replacement. Proper diagnosis prevents wasting money on unneeded parts.

What's the difference between U1103 and U0103?

U0103 is the generic SAE code for 'Lost Communication With Gear Shift Module,' while U1103 is manufacturer-specific. If both are present, the problem is definitively in the gear shifter circuit.

Can I fix U1103 myself?

You can easily test the battery, check fuses, and inspect wiring. However, diagnosing CAN bus faults requires an all-module scanner, a multimeter, and advanced electrical knowledge. Stop DIY and go to a shop if basic voltage and fuse checks pass.

What is a CAN bus?

The Controller Area Network (CAN) is your car's primary communication system. It allows electronic modules to share information using just two wires (CAN High and CAN Low). A fault on this network causes widespread, confusing symptoms.

Key Takeaways

• Code U1103 flags a communication failure on the CAN bus network, most frequently pointing to a disconnected or faulty Transmission Gear Selector (TGS).
• Test the battery first; a resting voltage below 12.4V or a running voltage outside 13.7-14.7V causes modules to drop offline and trigger this code.
• Perform a pin drag test on the shifter module connector before replacing any parts, as loose female terminals cause a majority of intermittent U1103 faults.
• Never replace the ECM or TCM without first verifying the CAN bus network resistance reads exactly 60 ohms across pins 6 and 14 at the OBD-II port.
• Driving with a U1103 code risks sudden limp mode activation, limiting your speed to 30 mph and creating a severe safety hazard in traffic.
