U0452 on 2017-2018 Ford Fusion: Invalid Airbag Module Data Causes and Fixes

What's Unique About the 2017-2018 Ford FUSION

For this specific generation of Ford Fusion and its platform-mate, the Lincoln MKZ, the U0452 code is most frequently caused by a known software bug. Ford acknowledged this by issuing Technical Service Bulletins (TSBs) that instruct technicians to reprogram the Restraints Control Module (RCM) with updated software rather than immediately replacing hardware. This makes a software update the first and most important diagnostic step, as confirmed by the official TSBs.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Airbag warning light illuminated on the dashboard.
• A warning message related to the restraint system may appear in the instrument cluster.
• In some cases, ABS and Traction Control lights may also illuminate, as the ABS module relies on data from the RCM and may set the U0452 code when that data is invalid.

Most Likely Causes

1. Outdated Restraints Control Module (RCM) Software 🔴 High Probability Ford issued TSBs #SSM 46901 and #SSM 46109 specifically for this issue on 2017 Fusions, indicating a known software anomaly from the factory for vehicles built before late 2016/early 2017.
   How to confirm: A Ford dealer or a qualified shop with Ford's diagnostic software (IDS or FJDS version 107.04 or higher) can check the RCM's current software calibration level and compare it against the latest available version.
   Typical fix: Reprogram the RCM to the latest software level and then perform an 'as-built' configuration of the module as per the TSB instructions. This is a software-only fix that does not require part replacement.
   Est. part cost: $0
2. Internal RCM Failure ⚪ Low Probability While less common than the software issue, modules can fail due to age, thermal stress, or internal component degradation. A short circuit within the module is also a possibility.
   How to confirm: If reprogramming the RCM does not resolve the code, and all wiring has been checked, the module itself is suspect. This is typically a process-of-elimination diagnosis. A technician might also monitor the module's voltage; significant fluctuations or drops well below 12V could indicate an internal issue.
   Typical fix: Replace the Restraints Control Module and program the new module to the vehicle's VIN and specific 'as-built' configuration.
   Est. part cost: $450-$600
3. Wiring or Connector Issue ⚪ Low Probability Corrosion or loose pins in the RCM harness can corrupt the communication signals between modules. The RCM is typically located under the center console, where liquid spills could potentially reach.
   How to confirm: Visually inspect the RCM connectors and nearby wiring harness for signs of damage, corrosion, or moisture. Perform a pin-out test to check for continuity and proper voltage at the RCM connector.
   Typical fix: Repair the damaged wiring or clean/replace the affected connector.
   Est. part cost: $10-$50

Rare But Worth Checking

• Failing or Weak 12V Battery:

Diagnosis Steps

1. Scan all vehicle modules with a Ford-compatible scanner (like FORScan 🎬 See this guide on how to use FORScan for diagnostics or Ford's IDS) to confirm which module is logging the U0452 code (e.g., ABS, APIM, BCM). Note that the RCM is the *source* of the invalid data.
2. Check for any other DTCs stored in the RCM itself, noting any codes mentioned in TSBs SSM 46901 or SSM 46109.
3. Using Ford's IDS or FJDS software (or equivalent), check the current calibration/software level of the RCM.
4. If the software is outdated, reprogram the RCM to the latest level as per the TSB instructions.
5. Crucially, after reprogramming, perform an 'as-built' configuration of the RCM to match the vehicle's specific features.
6. After reprogramming and configuration, clear all DTCs and cycle the ignition. Re-scan to see if the U0452 code returns.
7. If the code persists, inspect the RCM wiring harness and connectors for damage, corrosion, or loose pins. The RCM is located under the center console, forward of the shifter.

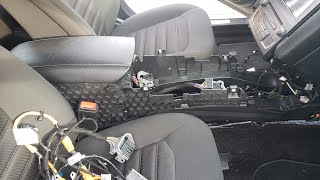

🎬 Watch: How to remove the center console to access the module
8. Test the 12V battery under load to rule out voltage-related communication issues.
9. If wiring and battery are good and the reprogram was unsuccessful, the RCM is likely faulty and requires replacement and programming.

Parts You'll Likely Need

• Restraints Control Module (RCM) (OEM #HS7Z-14B321-A) — This part is only needed if the primary fix, a software update, fails to resolve the issue, or if the module has suffered physical damage or internal failure. Must be programmed to the vehicle. 🎬 Watch: How to flash and program a Ford RCM
  Trusted brands: Motorcraft
  OEM price range: $450-$600
  Aftermarket price range: $250-$400 (Remanufactured)

Related Codes That Often Appear With This One

• U3000 — This is a general Control Module failure code often listed alongside U0452 in Ford TSBs SSM 46901 and SSM 46109.
• U2100 — Initial Configuration Not Complete. This code is also mentioned in the TSBs related to the RCM software issue, highlighting the importance of correct programming.
• U2101 — Control Module Configuration Incompatible. Also listed in TSBs SSM 46901 and SSM 46109 as part of the same software-related fault pattern.
• B-series codes (e.g., B0080, B141B, B141C) — These are body codes related to specific seatbelt and restraint components. The TSBs note that these may be stored in the RCM along with U0452 due to the software glitch.

Technical Service Bulletins (TSBs) & Recalls

• SSM 46901: Instructs technicians to reprogram the RCM to the latest level and then perform an as-built configuration if U0452 or a list of other specific DTCs are present in various modules.
• SSM 46109: An earlier bulletin for 2017 models with the same airbag light complaint, also directing a reprogram of the RCM for code U0452 and others, specifically for vehicles built on or before 18-Aug-2016.

Platform-Specific Known Issues

• A known software bug in the RCM of 2017 models can cause the U0452 code to be set, often with other codes. Ford addressed this with TSBs SSM 46109 and SSM 46901, with the official fix being a module reprogram.
• The U0452 code is often set in a 'victim' module like the ABS or BCM, which is receiving bad data. The actual fault lies in the 'source' module, the RCM.

Mechanic-Grade Diagnostic Values

• RCM Power Supply Voltage — expected: 12.4 V ± 0.2 V with ignition on.. Failure: Significant drops or fluctuations, such as readings as low as 8V, indicate a power supply or internal module fault.
• RCM Ground Resistance — expected: Under 0.1 Ω.. Failure: A higher resistance reading indicates a poor ground connection, which can cause communication errors.
• CAN Bus Network Resistance — expected: Approximately 60 Ω between CAN_H and CAN_L pins at the DLC (OBD-II port) with the battery disconnected.. Failure: A reading of ~120 Ω suggests a break in the circuit or a missing terminating resistor in one of the modules. A reading of 0 Ω indicates a short between the two CAN lines.
• CAN Bus Signal Voltage (Lab Scope) — expected: A clean square wave pattern. On a healthy Ford network, voltages switch between roughly 1.8V and 3.4V.. Failure: A distorted, noisy, or flat-lined waveform indicates a communication failure, which can be caused by a faulty module (like the RCM), wiring short, or interference.

Hidden / Shadow Codes Worth Checking

• U0452:86: Signal Invalid. This sub-code indicates that a data signal was received, but its value is not plausible under the current operating conditions. (see via Ford IDS, FORScan, or other advanced diagnostic tools capable of reading manufacturer-specific failure type bytes.)
• U0452:82: Alive/Sequence Counter Incorrect. This means a signal was received, but its rolling security counter (a value that changes with each message to ensure validity) was not updated correctly. (see via Ford IDS, FORScan, or other advanced diagnostic tools.)
• U0452:81: Invalid Serial Data Received. The signal was received with a specific bit indicating that the data is invalid. (see via Ford IDS, FORScan, or other advanced diagnostic tools.)

Scan Tool Commands That Help

• Ford IDS/FJDS: Programmable Module Installation (PMI) — This is the required service function when replacing the RCM. It downloads the vehicle's 'As-Built' data from Ford's network and configures the new module to work correctly with the specific options on the car.
• Ford IDS/FJDS: Network Test — To quickly verify communication with all modules on the CAN bus. It will flag any module, including the RCM, that fails to respond to a network ping.
• FORScan: RCM Module Configuration (As-Built format) — Used to manually write the vehicle's 'As-Built' data to a new or used RCM. This is critical if a module is replaced without using the IDS PMI process, as incorrect configuration data will cause the U0452 code to be set.

Wiring & Ground Locations

• Restraints Control Module (RCM) — Located under the center console, beneath the storage compartments and forward of the shifter assembly.. This is the source module for the invalid data. Its location makes it susceptible to liquid spills from the cup holders, which can cause corrosion and failure.
• RCM Power Fuse — Fuse F35 (5A) in the Body Control Module (BCM) / passenger compartment fuse panel, located under the dashboard to the left of the steering column.. This fuse supplies power to the RCM. A fault here would cause the RCM to stop communicating entirely, though this would likely set 'Lost Communication' codes rather than just 'Invalid Data'.

Real Owner Repair Stories

• CyanLabs Official Community Forum (2018 Ford Ecosport (similar electronics)) — ABS, Traction Control, and Airbag lights on. DTC U0452 present.
  ❌ Tried (didn't work) Replacing the liquid-damaged RCM with a used unit., Having the used RCM 'cloned' by a third-party service.
  ✅ What actually fixed it The problem was incorrect module configuration. The 'cloned' module did not have the correct 'As-Built' data for the vehicle. The recommended fix was to use FORScan to download the correct As-Built data from Ford using the vehicle's VIN and write it directly to the replacement RCM.

OEM Part Supersession History

• HS7Z-14B321-A → HS7Z-14B321-H — Standard part revision and consolidation by the manufacturer.
  Heads up: The new part HS7Z-14B321-H also replaces intermediate part numbers HS7Z-14B321-F and HS7Z-14B321-G.

Model Year Variations Within This Range

• 2017: TSB SSM 46109, which calls for an RCM reprogram for code U0452, specifically applies to vehicles built on or before August 18, 2016. Vehicles built after this date may have already received the updated software from the factory.
