U0269 on 2015-2018 Cadillac Escalade: Causes and Fixes for Lost Communication with Side Obstacle Detection Module

What's Unique About the 2015-2018 Cadillac ESCALADE

On this generation of Escalade and its K2XX platform mates, the active safety system's wiring is uniquely susceptible to a specific failure. General Motors issued a Technical Service Bulletin (TSB) #PIT5487B pointing to the front fascia wiring harness shorting out against the right front bumper bar. This makes a wiring inspection in that specific area the top diagnostic priority, unlike in other vehicles where the sensor itself might be the first suspect. This issue is common across the 2015-2020 Tahoe, Suburban, Yukon, and Escalade family.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service Active Safety" message on the dashboard
• "Adaptive Cruise Temporarily Unavailable" message.
• "Service Driver Assist" message on the dashb 🎬 Watch: How to fix the haptic seat actuator system.oard.
• Blind-spot monitoring system is inoperative
• Lane departure warning system is disabled.
• Rear automatic braking is unavailable.
• Forward collision warning system may be disabled or cannot be turned off.
• One or more related fuses may be blown

Most Likely Causes

1. Shorted Front Fascia Wiring Harness 🔴 High Probability As documented in GM TSB #PIT5487B, the harness can rub against the sharp end of the right front bumper reinforcement bar, causing wires to chafe and short to ground. This is a well-known failure point on the K2XX platform.
   How to confirm: Remove the front fascia (bumper cover) and visually inspect the wiring harness 🎬 See how to troubleshoot and repair the front wiring harness. where it passes near the end of the right-side bumper reinforcement bar. Look for chafed, melted, or exposed copper wires. The damage is often found on the back side of the harness, where it makes contact with the metal bar.
   Typical fix: Repair the damaged section of the wiring harness by splicing in new wire and protecting it with loom or high-quality electrical tape. Reroute the harness to provide more clearance or add a protective sleeve to prevent future contact. Ensure all connections are sealed against moisture.
   Est. part cost: $5-$25 for wire and loom
2. Blown Fuse(s) 🟡 Medium Probability A short circuit in the fascia harness, as described above, will often cause the circuit's fuse to blow as a protective measure. TSB #PIT5487B specifically mentions fuses F10DL, F19DR, F43UA, and/or F46DR.
   How to confirm: Check the identified fuses in the vehicle's fuse boxes (underhood and interior). A visual inspection or a multimeter test will confirm if a fuse is blown.
   Typical fix: Replace the blown fuse. However, the fuse will likely blow again immediately or soon after if the underlying short circuit is not repaired first. This is a symptom, not the root cause.
   Est. part cost: $1-$10
3. Failed Side Obstacle Detection Module ⚪ Low Probability While less common than the wiring issue, the modules themselves can fail. They are located in vulnerable areas (behind the bumper) and can be damaged by moisture intrusion, corrosion, or physical impact.
   How to confirm: After confirming the wiring and fuses are good, a diagnostic scan tool would be used to attempt direct communication with the module. If it doesn't respond, and power/ground are confirmed at the module connector, the module has likely failed.
   Typical fix: Replace the faulty Side Obstacle Detection Module. This requires bumper removal and the new module must be programmed/calibrated to the vehicle using a GM-specific scan tool.
   Est. part cost: $200-$400

Rare But Worth Checking

• Faulty Diagnostic Scan Tool Cable: Per TSB #PIT5441C, a faulty Multiple Diagnostic Interface (MDI) cable used by technicians can create false U-codes, including U0269. The object detection bus communicates on DLC pins 3 and 11, which are not used by all systems. A fault in the cable specific to these pins can induce communication codes when none exist in the vehicle itself.

Diagnosis Steps

1. Check for TSBs: Confirm TSBs #PIT5487B and #PIT5441C apply to your vehicle's VIN.
2. Scan for Other Codes: Note all other codes present, especially other 'U' codes related to the active safety system like U0265 and U0268.
3. Check Fuses: Inspect fuses F10DL, F19DR, F43UA, and F46DR as mentioned in TSB #PIT5487B. If any are blown, suspect a short circuit.

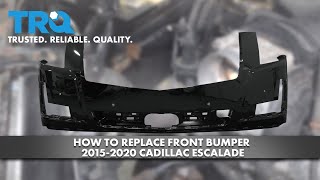

4. Inspect Front Fascia Harness: This is the most critical step. Remove the front bumper cover. A video guide from 1A Auto shows the process. 🎬 Watch: Step-by-step guide to removing the front bumper cover. Carefully inspect the wiring harness at the end of the right front bumper bar for any signs of chafing, melting, or exposed wires.
5. Repair Harness: If damage is found, repair the affected wires. Ensure the repaired harness is properly secured and protected with additional loom and rerouted to prevent the issue from recurring.
6. Inspect Module and Connector: While the bumper is off, inspect the module itself and its electrical connector for any signs of corrosion or damage. One owner found a rear module and its connector completely corroded, causing similar ADAS failures.
7. Replace Fuse and Clear Codes: After repairing the harness, replace any blown fuses and clear all diagnostic trouble codes.
8. Test Drive: Drive the vehicle to confirm the 'Service Active Safety' message does not return and that related features are functional.
9. Test Module: If the wiring and fuses are intact, further diagnostics will be needed to check for power, ground, and data signals at the sensor module connector before condemning the module itself.

Parts You'll Likely Need

• Front Bumper Cover Wiring Harness (OEM #23444884 (For 2015-2016 models without forward/rev auto braking). Other numbers like 84117832 exist for different option packages. Always verify with VIN.) — This harness is prone to shorting against the bumper bar, as documented in a manufacturer TSB. Often it can be repaired, but sometimes replacement is necessary if the damage is severe.
  Trusted brands: ACDelco, GM Genuine
  OEM price range: $150-$250
  Aftermarket price range: $100-$180
• Side Obstacle Detection Module (OEM #84440527 (replaces 22844861, 22960672) or 42625292 (replaces 84121020, 84121021). Part numbers are frequently superseded; always verify with VIN.) — If the wiring and fuses are confirmed to be good, the module itself may have failed internally, preventing communication. Corrosion is a possible cause of failure.
  Trusted brands: ACDelco, GM Genuine, Standard Motor Products
  OEM price range: $250-$400
  Aftermarket price range: $200-$300

Related Codes That Often Appear With This One

• U0075 — This is a general CAN bus communication code often set alongside more specific module communication codes when a wiring issue is present.
• U0265, U0268, U026A, U026B, U026C — These are all communication codes for various modules in the Active Safety System (front short-range, long-range, etc.). TSBs #PIT5441C and #PIT5487B list them together, indicating a shared wiring harness or power source is often the cause. A forum user with a 2015 Escalade ESV reported U0265, U0268, and U0269 together when their adaptive cruise failed.

Technical Service Bulletins (TSBs) & Recalls

• PIT5487B: Warns that blown fuses and codes like U0269 can be caused by the fascia harness shorting at the right front bumper bar.
• PIT5441C: Notes that U0269 and other active safety codes can be falsely triggered by a faulty MDI (scan tool) cable during diagnosis, specifically due to an issue with the pins for the object detection bus (DLC pins 3 and 11).

Platform-Specific Known Issues

• A known issue documented in TSB #PIT5487B is the front fascia harness shorting out at the end of the right front bumper bar, causing this and other related codes.
• This issue is not isolated to the Escalade but is common across the entire GM K2XX truck and SUV platform from 2015-2020, including the popular Chevrolet Tahoe and GMC Yukon.

Mechanic-Grade Diagnostic Values

• Object Detection CAN Bus Resistance — expected: 60 Ohms. Failure: A reading of 120 Ohms indicates an open in the bus or one of the two terminating resistors is not being seen. A reading significantly less than 60 Ohms (e.g., <45 Ohms) suggests a shorted wire or a faulty module.
• Module Connector Voltage — expected: 11.8 - 12.6 V (Key On, Engine Off). Failure: Low or no voltage indicates a problem with the power supply wire or a blown fuse.
• Module Connector Ground Resistance — expected: < 5 Ohms. Failure: High resistance indicates a poor ground connection, which can cause intermittent communication and other faults.

Scan Tool Commands That Help

• GDS2 (GM Global Diagnostic System 2): SPS (Service Programming System) -> Side Object Detection Module Programming — This function is required after replacing a Side Obstacle Detection Module to load the correct software and calibration for the vehicle, ensuring it communicates correctly with the Active Safety Control Module.

Wiring & Ground Locations

• DLC Pins 3 & 11 — Data Link Connector (OBD-II port) under the driver's side dashboard.. The Object Detection modules communicate on a dedicated bus using these specific pins. TSB #PIT5441C highlights that a faulty diagnostic cable with issues on these pins can induce false U0269 codes.
• Front Fascia Harness — Routed behind the front bumper cover, specifically near the end of the right front bumper reinforcement bar.. This is the location of the common chafe point described in TSB #PIT5487B. The harness can rub against the metal bar, shorting out the communication or power wires for the object detection modules.
• Gxxx (General Ground Points) — Multiple locations on the frame rails, engine block, and behind the A-pillar kick panels.. While no specific ground point is solely responsible for this module, poor grounds are a common source of electrical issues on K2XX trucks. Verifying the main engine-to-chassis and battery-to-chassis grounds are clean and tight is a crucial preventative step.

Real Owner Repair Stories

• AR15.com forum user (2015 Cadillac Escalade ESV) — "Service driver assist system" message, cruise control inoperative, occasional phantom automatic emergency braking.
  ❌ Tried (didn't work) Replaced the driver assist control module (the new one fried immediately)., Replaced the fried module again., Replaced the front wiring harness for the driver assist sensors.
  ✅ What actually fixed it The issue was NOT resolved even after a dealer replaced the control module and the entire front harness. The dealer refunded the $2500 repair fee and the owner was left with the same problem, highlighting the diagnostic difficulty even for professionals when the common TSB fix doesn't work.
• TahoeYukonForum.com user 'security6' (2015 Cadillac Escalade ESV) — "Adaptive cruise control temporarily unavailable" message, codes U0265, U0268, and U0269 stored.
  ✅ What actually fixed it The user posted seeking help and suspected a wiring or control module issue based on the codes. The thread confirms that multiple communication codes for different radar sensors often appear together, pointing towards a shared problem like a harness fault, which is consistent with TSBs. The final fix was not posted by the original user.

OEM Part Supersession History

• 22844861, 22960672 → 84440527 — Standard part evolution and potential internal revisions for reliability.
  Heads up: Part 84440527 is listed as a direct replacement for the earlier numbers and is widely used across many GM models from 2013-2017. However, some vendors note this part is discontinued, with 84626587 listed as a related 'module kit'. Always verify the latest part number with a dealer using the vehicle's VIN.
