U0268 on 2015-2018 Cadillac Escalade: Causes for Lost Communication With Object Detection Module

What's Unique About the 2015-2018 Cadillac ESCALADE

On this generation of Cadillac Escalade and its GM platform-mates (Tahoe, Yukon), the U0268 code is very frequently caused by a specific, well-documented issue. The front fascia and bumper wiring harness is often routed in a way that allows it to chafe and short-circuit against the metal bumper reinforcement bar on the passenger side. This known problem is detailed in GM Technical Service Bulletin #PIT5487 and its later revisions (e.g., PIT5487A, PIT5487B, PIT5487F), which provide a clear diagnostic path.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service Park Assist System" message on the driver information center (DIC)

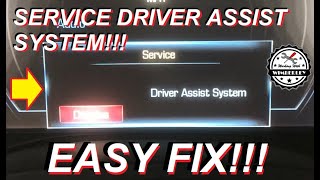

• "Service Driver Assist" message on the DIC
• Adaptive Cruise Control is unavailable or inoperative
• Blind-spot monitoring system is disabled (indicator lights in mirrors may stay on or not work at all)
• Parking assist sensors do not function; no audible beeping when approaching objects
🎬 Watch: Why using OEM sensors is critical for this fix.
• Check Engine Light or other malfunction indicator lamp is on
• On-screen rear camera display shows "no symbols available"

Most Likely Causes

1. Front Fascia/Bumper Harness Chafing 🔴 High Probability As documented in GM TSB #PIT5487F, the harness is commonly mis-routed, causing it to rub against the sharp metal edge of the right front bumper bar and short out the wires. This is the most widely reported cause in owner forums.
   How to confirm: Remove the front fascia to physically inspect the wiring harness where it passes near the right (passenger side) end of the bumper reinforcement bar. Look for worn insulation, exposed copper wires, or signs of arcing/melting.
   Typical fix: Repair the damaged wires using solder and heat shrink. Securely reroute the repaired harness away from the sharp edge of the bumper bar, using a zip tie to attach it to the inside of the fascia itself, as instructed by the TSB. 🎬 Watch: A professional walkthrough of the harness repair process.
   Est. part cost: $5-$20
2. Blown Fuses 🟡 Medium Probability This is a direct consequence of the harness shorting out. TSB #PIT5487 specifically mentions that fuses F10DL, F19DR, F43UA, and/or F46DR may be blown as a result of the short circuit. These are typically located in the underhood fuse block.
   How to confirm: Check the specified fuses in the vehicle's fuse boxes. A visual inspection or a multimeter can confirm if a fuse is blown.
   Typical fix: Replace the blown fuse(s) AFTER the underlying short circuit in the harness has been repaired. Replacing the fuse without fixing the short will only cause it to blow again.
   Est. part cost: $1-$10
3. Corroded or Damaged Radar Module/Connector ⚪ Low Probability The radar modules are located in the bumpers and are exposed to the elements. In regions with heavy road salt use, moisture can penetrate the module or its electrical connector, causing corrosion (green or white powder) and pin damage.
   How to confirm: After confirming the harness is intact, unplug and inspect the radar sensor module and its connector for green or white corrosion, bent, or broken pins.
   Typical fix: Replace the corroded radar module and/or repair/replace the connector pigtail. The new module may require calibration by a dealer.
   Est. part cost: $180-$400
4. Broken/Misaligned Rear Radar Module Bracket ⚪ Low Probability As per TSB PIT5622B, the rear radar modules are heat-staked to plastic brackets on the inside of the rear bumper. A minor bumper impact, even one that doesn't leave a mark, can break the bracket. The module then points at the wrong angle, eventually setting a "Side Detection System Unavailable" message after a few drive cycles.
   How to confirm: Remove the rear bumper fascia and inspect the plastic brackets holding the side detection modules. Look for broken heat stakes, cracks in the bracket, or evidence of a previous repair with adhesive.
   Typical fix: If the bracket is broken, the official repair is often to replace the entire rear bumper fascia, as the brackets may not be serviced separately. The module itself may also need replacement and programming.
   Est. part cost: $500-$1500 (for bumper fascia)

Rare But Worth Checking

• Faulty Active Safety Control Module: While rare, the main control module that manages all the driver-assist sensors can fail. This would typically set multiple communication codes for different sensors, not just U0268.
• Faulty Diagnostic Tool (MDI Cable): TSB #PIT5441C notes that a faulty MDI (Multiple Diagnostic Interface) cable used by technicians can sometimes induce false communication codes, including U0268. This is a diagnostic issue, not a vehicle fault.

Diagnosis Steps

1. Connect a professional scan tool and check for any DTCs in the Active Safety Control Module (K172).
2. Note all present codes. If U0268 is accompanied by other codes like U0265, U0269, etc., a harness or power issue is highly likely.
3. Check the fuses mentioned in TSB #PIT5487F: F10DL, F19DR, F43UA, and F46DR in the underhood fuse block. Replace if blown, but only after finding the cause.
4. Gain access to the front bumper area. This will require removing the front fascia. Videos are available showing this process.
5. Carefully inspect the front bumper wiring harness, paying close attention to the area near the end of the right (passenger side) bumper reinforcement bar.
6. Look for signs of chafing, exposed wires, or melting. This is the most probable cause.
7. If damage is found, repair the affected wires using appropriate connectors and heat shrink.
8. Securely reroute the repaired harness away from the bumper bar, using zip ties to attach it to the inside of the fascia, as shown in the TSB.
9. If no harness damage is found, inspect the connectors and the radar modules themselves (both front and rear) for corrosion or physical damage.
10. Inspect the mounting brackets for the rear radar modules for any cracks or signs of being broken loose from the bumper.
11. Clear all DTCs and perform a test drive to verify that the driver-assist systems are functional and the codes do not return.

Parts You'll Likely Need

• Front Object Alarm Sensor Wiring Harness (OEM #84117832) — If the harness is severely damaged, replacement is better than repair. This part contains the wiring for the front sensors. This part number supersedes 23240868.
  Trusted brands: ACDelco, GM Genuine
  OEM price range: $175-$315
  Aftermarket price range: $100-$200
• Side Object Detection Module (Radar Sensor) (OEM #23428268) — If the sensor itself is damaged by corrosion or impact, it will need to be replaced. This part is used for multiple locations. May require dealer programming. 🎬 See how to replace the forward range radar sensor.
  Trusted brands: ACDelco, GM Genuine
  OEM price range: $185-$285
  Aftermarket price range: $50-$120

Related Codes That Often Appear With This One

• U0075 — This is a general 'Control Module Communication Bus 'A' Off' code, often set alongside more specific communication loss codes when a wiring issue is present.
• U0265, U0269, U026A, U026B, U026C — These are all communication loss codes for various front and side object detection modules. They frequently appear as a group when there is a fault in the shared wiring harness or a blown fuse that powers multiple components.

Technical Service Bulletins (TSBs) & Recalls

• PIT5487F: Details the common issue of the front fascia harness shorting against the bumper bar, causing blown fuses and various driver-assist system failures. This is the key document for this code.
• PIT5441C: Warns technicians that a faulty diagnostic MDI cable can cause false communication DTCs, including U0268, for the object detection system.
• PIT5622B: Describes how broken or misaligned rear radar module mounting brackets can cause a 'Side Detection System Unavailable' message, which could be related to communication faults.

Platform-Specific Known Issues

• A primary documented issue is the front fascia harness shorting out on the right front bumper bar, as detailed in TSB #PIT5487F.
• Minor impacts to the rear bumper can break the internal plastic mounting brackets for the side detection modules, causing alignment issues and fault codes, as noted in TSB PIT5622B.

Mechanic-Grade Diagnostic Values

• CAN Bus Resistance (Battery Disconnected) — expected: ~60 Ohms. Failure: A reading of ~120 Ohms indicates an open circuit to one of the two terminating resistors. A reading near 0 Ohms indicates a short between the CAN High and CAN Low wires.
• Object Detection CAN Bus Resistance (at DLC) — expected: ~60 Ohms between Pin 3 and Pin 11. Failure: Deviations from 60 Ohms suggest a network integrity problem on the object detection bus (circuits 3813 and 3811).
• CAN Bus Average Voltage (Key On, Engine Off, Multimeter) — expected: CAN High (~2.6V), CAN Low (~2.4V). Failure: Significant deviation from these average voltages, or voltages that don't mirror each other, can indicate a short to power or ground on one of the lines.

Scan Tool Commands That Help

• GDS2 (GM Global Diagnostic System 2): Module Diagnostics -> K172 Active Safety Control Module -> Data Display — To view live data from the main safety module, check communication status with sub-modules, and identify other potential faults that could be causing the U0268 code.
• GDS2 (GM Global Diagnostic System 2): Data Bus Diagnostic Tool — To passively monitor the serial data circuits to see which modules are 'awake' or not communicating. This is especially useful for intermittent communication faults or when multiple 'U' codes are present.
• GDS2 (GM Global Diagnostic System 2): Module Diagnostics -> Long Range Radar Sensor Module -> Data Display -> 'Long Range Radar Sensor Module Blocked' — Although for the front radar, this parameter (and similar ones for side radars) can help determine if the module is reporting a blockage or an internal fault versus a pure communication loss.

Wiring & Ground Locations

• Harness Chafe Point — The front fascia/bumper harness where it passes the end of the right (passenger side) front metal bumper bar.. This is the most common, documented failure point. The harness rubs against the sharp metal edge, causing wires for the object detection modules to short to ground or to each other, directly causing communication loss codes like U0268.
• Object Detection Bus (at DLC) — Pins 3 and 11 of the Data Link Connector (DLC) under the dashboard.. These are the specific pins for the object detection serial data bus (circuits 3813 and 3811). A technician can test for correct CAN bus resistance (60 ohms) directly at these pins to quickly assess the electrical integrity of the entire circuit.
• X100 Connector — Inline connector for the front fascia/bumper harness, located near the right front frame rail.. This is a primary connector for the front bumper components. A fault here (corrosion, loose pins) could disconnect multiple sensors, including the one related to U0268. It's a key point to inspect after checking the main chafe area.
• G218 Ground — Common BCM ground point, typically located under the dashboard/center console area.. A poor ground at G218 is known to cause widespread, bizarre electrical issues and communication faults across the vehicle. While not a direct cause for U0268 alone, if multiple unrelated 'U' codes are present, checking this ground is a valid diagnostic step.

Real Owner Repair Stories

• AR15.com forum user (2015 Cadillac Escalade ESV) — "Service driver assist system" message, cruise control inoperative, occasional phantom automatic emergency braking.
  ❌ Tried (didn't work) Replacing the 12-volt battery., Replacing the driver assist control module (the new module was reportedly fried)., Replacing the front wiring harness for the driver assist sensors.
  ✅ What actually fixed it The final resolution was not posted. The owner picked up the vehicle after the harness replacement, and the error message appeared immediately. The dealer refunded the $2,500 in repair fees, indicating the problem was not solved despite extensive parts replacement. This highlights the difficulty of the diagnosis and that simply replacing parts is not a guaranteed fix.

When the Usual Fixes Don't Work

• In one documented case, replacing the Active Safety Control Module and the entire front bumper wiring harness—the two most likely culprits—did not resolve the 'Service Driver Assist' message and associated codes. This suggests that in rare instances, the fault may lie elsewhere, such as in a secondary wiring harness between the front harness and the main control module, a faulty ground connection (like G218), or a problem with the main module itself that isn't resolved by simple replacement without further programming or system-level diagnosis.

OEM Part Supersession History

• 23163923, 23395350, 23395351, 84121020, 84121021 → 42625292 — Part consolidation and design updates for the Side Obstacle Detection Control Module.
  Heads up: This part requires programming and/or special setup procedures by a dealer after installation.
• 23240868 → 84117832 — Updated Front Object Alarm Sensor Wiring Harness.
