U0265 on 2018 Chevrolet Traverse: Side Detection & Front Camera Fixes

What's Unique About the 2018-2018 Chevrolet TRAVERSE

The second-generation Traverse and its GM C1XX platform-mates, like the GMC Acadia and Buick Enclave, are particularly known for the failure of their Side Obstacle Detection modules. These radar units are located in the rear bumper corners, an area highly susceptible to water and road salt intrusion, which leads to corrosion and failure. While many GM vehicles can get a U0265 code from a front camera software glitch, the physical failure of the side module due to its placement is a more frequent and well-documented issue on this specific SUV platform. This issue is so common that GM has acknowledged it with special coverage programs for other, similar models.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service Side Detection System" me 🎬 Watch: Understanding the service side detection system warningssage in the driver information center (DIC)
• "Service Driver Assist System" message in the DIC
• Blind spot warning light in the side mirror is always on or never turns on
• Rear Cross-Traffic Alert system is disabled or unavailable
• Forward Collision Alert, Lane Keep Assist, and Automatic Emergency Braking are disabled
• In rare cases, a dead battery from a parasitic drain caused by a shorted module
• "Side Detection Temporarily Unavailable" message on startup.

Most Likely Causes

1. Failed Side Obstacle Detection Module (Right/Passenger Side) 🔴 High Probability The module is located in the rear bumper corner, where it is highly exposed to water and road spray. The seals on the module housing and connector fail, allowing moisture to cause severe green or white corrosion 🎬 See how to fix corroded blind spot radar sensors on the circuit board and connector pins. This is a very common failure on this platform.

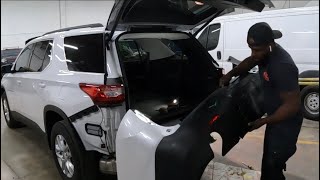

   How to confirm: The primary symptom is a "Service Side Detection System" message. A technician will need to remove the rear bumper cover 🎬 Watch: Step-by-step guide to removing the rear bumper to visually inspect the module (Part No. 84418802) and its connector for corrosion. A professional scan tool will show no communication with the right side object module.
   Typical fix: Replace the failed module and, if corroded, the connector pigtail. The new module must be programmed by a professional using GM's Service Programming System (SPS). Applying dielectric grease to the new connector is highly recommended to prevent future moisture intrusion.
   Est. part cost: $150-$300
2. Front Camera Module Software Anomaly 🟡 Medium Probability Across the GM lineup, this code is frequently caused by a software glitch that can be resolved without replacing parts. GM has issued service bulletins (e.g., 25-NA-050, 22-NA-046) for various models recommending a reprogram as the first step to fix communication loss.
   How to confirm: The primary symptom is a "Service Driver Assist System" message. A dealer or qualified shop must use a scan tool to check for available software updates for the Front Camera Module (B174W).
   Typical fix: Reprogram the Front Camera Module with the latest software calibration. This must be done by a professional with access to GM's Service Programming System (SPS). The fix explicitly states to reprogram and not replace the module if it's a software issue.
   Est. part cost: $0
3. Damaged Wiring or Connectors ⚪ Low Probability Wiring in the bumpers is susceptible to physical damage, chafing, and moisture. A known issue on prior generations involved the side detection harness rubbing against the exhaust, causing shorts. The front camera connector can also be damaged during windshield replacement.
   How to confirm: Visually inspect the wiring harness leading to the side detection modules and front camera. Check for chafed wires, loose pins, and corrosion. Perform continuity and resistance tests on the data lines. Specifically check the harness routing near the exhaust.
   Typical fix: Repair the damaged section of the harness or replace the connector pigtail. The pigtail for the side detection module is GM part PT2869.
   Est. part cost: $20-$100

Rare But Worth Checking

• Faulty Technician Diagnostic Tool: As per TSB PIT5441C, a faulty MDI (Multiple Diagnostic Interface) cable used by a technician can induce this and other communication codes. This is a diagnostic error, not a vehicle fault, but can lead to misdiagnosis.
• Failed Front Camera Module (Hardware Failure): If a software update and wiring check don't resolve the issue, the camera itself may have failed, often due to physical damage from road debris or internal failure.
• Improper Module Mounting: Per TSB PIT5622B, if the side detection module's mounting bracket is broken, loose, or was installed incorrectly at the factory, the module can learn it is in the wrong position over time and disable itself, causing a 'Side Detection System Unavailable' message, often without setting a communication DTC.

Diagnosis Steps

1. Read the trouble codes with a high-end scan tool capable of communicating with all vehicle modules.
2. Note the specific symptoms and warning messages on the dash ('Service Side Detection' vs. 'Service Driver Assist').
3. If 'Service Side Detection' is present, prioritize inspecting the side obstacle modules. Remove the rear bumper cover and visually inspect the right (and left) side modules and their connectors for green/white corrosion or water damage.
4. If 'Service Driver Assist' is present, prioritize checking for software updates for the Front Camera Module (B174W) using a dealer tool, as per GM bulletins.
5. If no corrosion or software updates are found, test the power, ground, and communication circuits at the connector of the suspected module.
6. Inspect the module mounting brackets on the inside of the rear fascia for cracks or broken heat stakes, as this can cause alignment-related shutdowns per TSB PIT5622B.
7. If wiring is good and software is up to date, the module (either side obstacle or front camera) is likely faulty and requires replacement.
8. After replacement, perform the mandatory programming and calibration procedure for the new module using GM's Service Programming System (SPS).

Parts You'll Likely Need

• Side Obstacle Detection Control Module (Right/Passenger) (OEM #84418802) — This is the most common part to fail on a 2018 Traverse for code U0265, typically due to water intrusion and corrosion. This part number supersedes older versions like 84129136 and 84186472.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $150-$230
  Aftermarket price range: $150-$250
• Front View Driver Information Camera (OEM #23165927) — This part is needed if the front camera has failed due to physical damage or an internal hardware fault, and a software update does not fix the issue.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $120-$260
  Aftermarket price range: $80-$150
• Side Detection Module Connector Pigtail (OEM #PT2869) — If the side detection module fails due to water intrusion, the connector is often corroded as well and must be replaced to ensure a good connection for the new module.
  Trusted brands: ACDelco
  OEM price range: $40-$65

Related Codes That Often Appear With This One

• U026A — This code is for 'Lost Communication With Side Obstacle Detection Control Module Left'. It's common for both side modules to fail around the same time due to similar exposure to moisture and corrosion.
• U0232 or U0233 — These are older codes for 'Lost Communication With Side Object Detection Module Left/Right' and were cited in TSB 16-NA-178 for the previous generation Traverse with the exact same water intrusion issue, showing a pattern of this problem.
• U0140, U0155, and others — In severe cases, a shorted side detection module can disrupt the entire low-speed data bus, causing a cascade of communication loss codes with many other modules like the instrument panel cluster, radio, and door modules, as described in GM Preliminary Information bulletin PI1202.

Technical Service Bulletins (TSBs) & Recalls

• PIT5441C: Notes that U0265 and other communication codes can be falsely triggered by a technician's faulty diagnostic interface cable, leading to misdiagnosis.
• 16-NA-178: Although for 2013-14 models, it details the identical failure mode of water intrusion causing corrosion in the side blind zone modules and connectors, and instructs technicians to replace the harness and both modules if corrosion is found.
• PIT5622B: Pertains to the 'Service Side Detection System Unavailable' message that appears without a DTC. It advises that if modules are not physically damaged, the cause could be broken or misaligned mounting brackets on the rear fascia, which requires a physical inspection and possible fascia replacement.
• 25-NA-050: A more recent bulletin (Mar 2025) for other GM models that explicitly states DTC U0265 can be set by a software anomaly in the Front Camera Module and the correction is to reprogram, not replace, the module.

Platform-Specific Known Issues

• A history of side detection module failures on the Traverse platform due to water intrusion is documented in TSB 16-NA-178 for prior model years, indicating a persistent design vulnerability.

Mechanic-Grade Diagnostic Values

• Low-Speed GMLAN Serial Data Circuit Voltage (at rest) — expected: Approximately 0.2V. Failure: Voltage significantly different from 0.2V indicates a bus issue.
• Low-Speed GMLAN Serial Data Circuit Voltage (transmitting) — expected: Toggles between 0V and 5V, with a high-side drive up to 4.0V or higher for a logic '0'.. Failure: Circuit stuck high or low, or not reaching the correct voltage levels during communication attempts.
• Low-Speed GMLAN Serial Data Circuit Resistance to Ground — expected: Greater than 100 Ω. Failure: A reading less than 100 Ω indicates a short to ground in the data circuit.
• Module Ground Circuit Resistance — expected: Less than 5 Ω. Failure: A reading of 5 Ω or greater indicates high resistance in the ground path, which can cause communication issues.

Scan Tool Commands That Help

• GDS2 (GM Global Diagnostic System 2): Module Diagnostics > Side Obstacle Detection Module (Right) > Control Functions — After replacing a side obstacle detection module, this path is used to access the necessary programming and setup functions to make the new module communicate with the vehicle.
• GDS2 (GM Global Diagnostic System 2): Clear Secured High Voltage DTCs — While not directly for U0265, this function demonstrates a specific GDS2 process for clearing persistent or 'latched' codes that standard tools cannot erase, which may be necessary in complex network fault scenarios.
• GDS2 (GM Global Diagnostic System 2): Reset (in Learn Procedure) — If a new module calibration/learn procedure fails to complete after multiple drive cycles, a 'Reset' function is available within GDS2 to restart the learning process from scratch. This should be used as a last resort.

Wiring & Ground Locations

• Side Obstacle Detection Module Connector — Behind the rear bumper cover, in the left and right corners, plugged into the radar modules.. This 8-pin connector is the primary point of failure due to water intrusion and corrosion, directly causing the U0265 communication loss.
• Rear Bumper Wiring Harness — Runs along the inside of the rear bumper, connecting the side obstacle modules, parking sensors, and other components to the main body harness.. This entire harness can become corroded or damaged, especially the section near the modules. In severe cases of water damage, the whole harness must be replaced along with the modules.
• Module Connector Pin 1 (Low Speed GMLAN Serial Data) — Pin 1 on the 8-pin connector for the Side Obstacle Detection Module.. This is the specific pin for the single-wire communication bus. Testing for voltage (0-5V toggle) and shorts on this pin is critical for diagnosing if the fault is in the wiring or the module itself.
• Module Connector Pin 5 (Ground) — Pin 5 on the 8-pin connector for the Side Obstacle Detection Module.. This is the ground circuit for the module. High resistance on this pin will prevent the module from powering on and communicating, even if the data and power wires are intact.

Real Owner Repair Stories

• Vertex AI Search Result based on forum data (2017-2018 GMC Acadia (C1XX Platform sibling to Traverse)) — Service Side Detection System message, no communication with either side object detection module.
  ❌ Tried (didn't work) A previous shop had packed the corroded connector with dielectric grease without replacing it.
  ✅ What actually fixed it The final repair required replacing both the left and right side object detection modules, which were visibly swollen and corroded, AND the entire rear bumper wiring harness that connects to them.

OEM Part Supersession History

• 84129136, 84186472 → 84418802 — Likely internal revisions to improve sealing and prevent the common water intrusion and corrosion failures.
  Heads up: The newest part number, 84418802, is the correct replacement for the 2018 Traverse and is backward compatible with the older numbers.
