U0265 on 2016-2018 Chevrolet Malibu: Lost Communication Causes and Fixes

What's Unique About the 2016-2018 Chevrolet MALIBU

On this generation of Malibu and other contemporary GM vehicles on the E2XX platform, the side detection radar modules mounted in the rear bumper are a known weak point. They are highly susceptible to water intrusion, often through a failed case seam, which leads to internal corrosion of the circuit board. This is especially common in regions that use road salt. While some GM platforms have known issues with wiring harnesses chafing in the front bumper, the Malibu's issue is most commonly the rear radar modules themselves failing. 🎬 Watch: Understanding the Service Side Detection System warning A software update or improper module mounting are also potential causes, as outlined in GM service bulletins.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service Side Detection System" message on the Driver Information Center (DIC).
• Blind-spot monitoring lights in the side mirrors do not work or stay on constantly.
• Related safety features like Rear Cross Traffic Alert are disabled.
• The settings for collision/detection systems may disappear from the vehicle's infotainment menu.
• With the ignition on, the amber warning icon in the side mirrors fails to illuminate during its initial self-check.

Most Likely Causes

1. Failed Side Blind Zone Alert (SBZA) Module 🔴 High Probability The modules are located in the rear bumper corners, making them highly susceptible to water, road salt, and debris, which leads to internal corrosion and failure. The plastic housing is known to swell or crack at the seam, allowing moisture to destroy the internal circuit board.
   How to confirm: Remove the rear bumper cover to visually inspect the modules and their connectors. Look for signs of a swollen or cracked plastic housing, water damage, or green/white corrosion on the connector pins. A scan tool that can communicate with the Active Safety Module can confirm which specific module ('A' or 'B') is offline.
   Typical fix: Replace the failed module. The new module must be programmed by a dealer or a qualified shop with access to GM's Service Programming System (SPS).
   Est. part cost: $75-$250
2. Damaged Wiring or Corroded Connector 🟡 Medium Probability The wiring harness and connectors to the rear bumper modules are exposed to the elements, leading to corrosion or physical damage from minor impacts or road debris.
   How to confirm: After accessing the modules, inspect the wiring harness for chafing, breaks, or pinched wires. Check the connector terminals for corrosion, bent pins, or damage. Use a multimeter to check for 12V power and good ground at the connector.
   Typical fix: Repair the damaged section of the wiring harness or replace the connector pigtail. Ensure the connection is sealed against moisture.
   Est. part cost: $20-$60
3. Software Anomaly ⚪ Low Probability GM has issued service bulletins for various models where a software glitch can cause communication loss. Service Update 18158 for the 2018 Equinox (a similar platform) specifically addresses a "Service Side Detection" message with a software update, indicating this is a possible, though less common, fix.
   How to confirm: A dealer or qualified shop can check for applicable service bulletins (like 18158 for similar vehicles) and determine if the module's software is up to date using GM's service tools.
   Typical fix: Reprogram the Side Blind Zone Alert module with the latest calibration file using SPS2.
   Est. part cost: $0

Rare But Worth Checking

• Improper Module Mounting or Bumper Damage: As noted in TSB PIT5622B for other GM models, a misaligned or broken mounting bracket for the radar module can cause the system to fail its self-check over time, even if there's no visible external damage. The module learns its incorrect position and eventually throws a fault. After fixing the mount, the module must be replaced or reprogrammed to clear the learned error immediately.
• Faulty Diagnostic Tool: TSB #PIT5441C specifically warns technicians that a faulty MDI (Multiple Diagnostic Interface) cable can itself cause false U0265 codes by failing to communicate on the object detection data bus (DLC terminals 3 and 11). This is a diagnostic dead-end for a DIYer but important for a professional to rule out before replacing parts.

Diagnosis Steps

1. Read all DTCs from all modules using a professional-grade scan tool capable of communicating with the Active Safety Module and identifying which specific module is offline.
2. Check for the "Service Side Detection System" message on the DIC.
3. Visually inspect the outside of the rear bumper corners for damage, which could indicate an issue with the modules or their mounting brackets inside.
4. Ensure the bumper area near the sensors is clean and free of dirt, snow, or ice, as this can cause temporary unavailability.

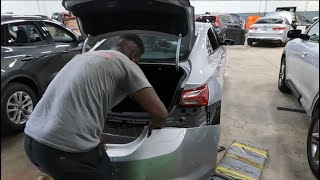

5. Gain access by removing the rear bumper cover to visually inspect the Side Blind Zone Alert modules. Look for cracked housings, swelling, and corrosion on the modules and their electrical connectors.
6. Gently pull on the module mounting brackets to check if the heat stakes that attach them to the bumper have broken loose, per TSB PIT5622B.
7. Inspect the wiring harness leading to the modules for any signs of chafing, breaks, or corrosion.
8. Using a multimeter, verify battery voltage (12.0 ± 0.5 V) and a solid ground (less than 5 Ω resistance) at the module's electrical connector.
9. If no physical damage is found, the issue is likely an internal module failure or a software problem that requires dealer-level diagnostics and programming.

Parts You'll Likely Need

• Side Blind Zone Alert Module (Side Obstacle Detection Sensor) (OEM #23401478, 84402101, 42625292) — This is the most common point of failure due to its location and susceptibility to moisture and corrosion. Part number 23401478 is listed for the 2016-2020 Malibu. Other GM part numbers like 42625292 and 84430634 supersede older numbers for similar systems and may be applicable.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $160-$230
  Aftermarket price range: $75-$180

Related Codes That Often Appear With This One

• U0264 — This code is for 'Lost Communication With Side Obstacle Detection Control Module A' (typically the driver's side). It's common to see both codes if there is a shared wiring, power, or ground issue affecting both modules.
• U0075 — This code indicates a general Control Module Communication Bus 'B' Off issue. It can appear alongside U0265 if the failing module is disrupting the entire object detection network, as mentioned in TSB #PIT5441C.

Technical Service Bulletins (TSBs) & Recalls

• PIT5441C: Mentions U0265 in a list of codes that can be falsely triggered by a technician's faulty diagnostic cable when diagnosing the Object Detection System.
• PIT5622B: Describes how a damaged or misaligned module mounting bracket inside the rear fascia can cause a "Side Detection System Unavailable" message over time, even with no DTCs initially. This is a key diagnostic step before replacing the module itself.
• Service Update 18158: While for the 2018 Chevy Equinox, it shows that a software update was the prescribed fix for a "Service Side Detection" message on a similar GM vehicle, indicating software can be a cause.

Platform-Specific Known Issues

• The Side Blind Zone Alert modules on 2016-2018 Malibus are known to fail due to water intrusion, causing the plastic housing to swell and the internal electronics to corrode.
• A Reddit user noted that the 2016-2018 models of this generation seem to be particularly problematic regarding reliability issues.

Mechanic-Grade Diagnostic Values

• Voltage at the Side Obstacle Detection module power pin — expected: 12.0 ± 0.5 V with ignition on. Failure: Significantly lower voltage indicates a wiring or power supply issue.
• Resistance between the Side Obstacle Detection module ground pin and chassis ground — expected: Below 5 Ω. Failure: Resistance of 5 Ω or greater indicates a poor ground connection, which can cause intermittent faults.

Scan Tool Commands That Help

• GDS2 (GM Global Diagnostic System 2): Module Replacement & Programming — This function is required after physically replacing a Side Blind Zone Alert module. The new module must be programmed to the vehicle's VIN and calibrated using GM's Service Programming System (SPS2) via the GDS2 interface.
• GDS2 (GM Global Diagnostic System 2): Clear All DTCs — After a successful repair and programming, this command should be used to clear the U0265 code and any other related codes from all vehicle modules.
• GDS2 (GM Global Diagnostic System 2): Module Test / Data Display — Before replacing parts, a technician can use this function to attempt to communicate with the 'B' module. If the module does not respond or shows erratic data, it helps confirm a communication failure.

Wiring & Ground Locations

• Instrument Panel Fuse Block — Located on the driver's side of the instrument panel, accessible when the driver's door is open.. A YouTube video identifies fuse F40 in this panel as the fuse for the 'Obstacle Detection System' on a 2017 Malibu. A blown fuse here would cut power to the modules.
• G401 / G404 — These are the primary rear body ground points, located behind the rear quarter trim panels in the trunk area.. GM Service Bulletin 17-NA-097 identifies poor connections at grounds G401 and G404 as a potential cause for side detection system malfunctions. Corrosion or looseness at these points can interrupt power to the modules, causing communication codes like U0265.
• Side Obstacle Detection Module Connector — One connector on each module, located in the rear corners of the vehicle behind the bumper cover.. This is the most common point for corrosion to occur due to water intrusion. Pin 8 is typically the 12V power supply, and Pin 7 is the ground. The other pins are for CAN bus communication.

Real Owner Repair Stories

• YouTube Channel 'Advanced Level Diagnostics' (2017 Chevrolet Equinox (similar GM platform and system)) — "Service Side Detection System" message on the dash, with code U0232 (Lost Communication with Side Obstacle Detection Control Module Left).
  ❌ Tried (didn't work) The video focuses on diagnosis rather than failed repair attempts.
  ✅ What actually fixed it The diagnostic process confirmed the left (master) module was offline. The technician notes that on this system, the left module is the master and the right is the slave. A failure of the master can cause communication loss with the slave. The fix involves checking power, ground, and communication lines before condemning the module. In many similar cases, the final fix is replacing the corroded module.

OEM Part Supersession History

• 23401478 → 84402101 (and others) — Standard part evolution and potential design improvements to address moisture intrusion.
  Heads up: While multiple part numbers like 23401478, 84402101, and 42625292 are used across GM platforms for this function, it is critical to verify the correct part number for the specific vehicle's VIN before ordering. All replacements require programming via SPS2 to function correctly.

Model Year Variations Within This Range

• 2016-2018: The Side Blind Zone Alert system (RPO code UKC) was an optional feature on the LT trim level, often bundled in a 'Convenience and Confidence Package', but was standard equipment on the Premier trim. Therefore, base LS and some LT models will not have this system and cannot set this code.
