OBD-II Code U0255: Lost Communication With Front Display

What Does U0255 Mean?

Code U0255 indicates your car's main computer lost connection to the Front Controls/Display Interface Module (FDIM). This module controls your dashboard displays, including the speedometer, fuel gauge, and central infotainment screen. When this connection drops, your entire dash and center screen go blank.

Technical definition: Lost Communication With Front Controls/Display Interface Module. This code sets when expected network messages from the FDIM are missing for a specified period, typically over 5 seconds.

Can I Drive With U0255?

Yes, But With Caution. Yes, the engine runs and the car drives, but we strongly advise against it. You lose your speedometer, fuel gauge, and all warning lights. Driving without a speedometer risks traffic citations, and lacking warning lights means you miss alerts for catastrophic engine, braking, or airbag failures.

Common Causes

• Damaged Wiring or Loose Connectors (Very Common) — The wires connecting the display module to the car's network get damaged, corroded, or come loose. This frequent cause results from vibrations, moisture, rodents chewing wires, or chafing against sharp edges.
• Blown Fuse or Bad Ground Connection (Common) — The display module requires steady power. A blown fuse cuts off power entirely, while a corroded ground wire prevents the electrical circuit from completing, forcing the module to shut down.
• Failed Front Display Interface Module (FDIM) (Common) — The module itself fails due to internal electronic problems. Components wear out over time or fail from thermal stress, manufacturing defects, or water intrusion.
• Corrupted Software (Less Common) — A failed software update, a random glitch, or a power interruption during an update corrupts the module's programming, preventing correct communication.
• Gateway Module or CAN Bus Network Failure (Less Common) — The display module communicates via the CAN bus network, often routing through a central gateway like the Body Control Module (BCM). A failure in this gateway, loose connectors, or a short circuit anywhere on the CAN bus severs communication to the display.
• Water Intrusion and Corrosion (Less Common) — Water leaking from a bad windshield seal or clogged sunroof drains drips onto the display module or its connectors. This causes corrosion and electrical shorts that destroy communication.
• Improperly Installed Aftermarket Electronics (Rare) — Aftermarket radios or alarms incorrectly wired into the CAN bus network interfere with module communication. These devices introduce electrical noise or draw improper voltage, forcing the FDIM offline.

Symptoms

• Blank or Frozen Instrument Cluster — The speedometer, tachometer, odometer, and fuel gauge stop working or stick at zero.
• Blank or Frozen Infotainment/Radio Screen — The central display for your radio, climate controls, and navigation goes black or freezes.
• All Warning Lights Are Off — The Check Engine, ABS, Airbag, and other critical warning lights do not illuminate when you start the car.
• Car Drives Normally — Despite the dashboard being completely dead, the engine, transmission, and brakes continue functioning as usual.
• Warning Message on Dash — Some vehicles display a specific message like 'Communication Error' or 'Check Display System' right before the cluster fails completely.
• Inability to Communicate with Display Module (scan-tool only — no driver-felt sign) — A professional scan tool cannot establish a connection with the Front Display Interface Module, confirming it is offline.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Blown Fuse Replacement — Parts: $1-$5, Labor: $0, ~0.1 hr book time (DIY)
• Software Reflash/Update — Parts: $0, Labor: $120-$250, ~1.2 hr book time (Professional)
• Wiring Harness or Connector Repair — Parts: $10-$50, Labor: $150-$350, ~2.5 hr book time (Professional)
• Gateway Module Connector Repair/Replacement — Parts: $20-$100, Labor: $200-$400, ~2.8 hr book time (Professional)
• Replace Front Display Interface Module — Parts: $600-$1200, Labor: $150-$250, ~1.5 hr book time (Intermediate)

Used vs. New Parts: Buying Guide

When a used part is worth it: A used display module makes sense for older, out-of-warranty vehicles (10+ years) where an OEM new part is discontinued or prohibitively expensive. Find a donor with a verified low-mileage history and an exact part number match.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Exact part number match is critical; superseded numbers fail without dealer programming.
• Verify the donor vehicle was not scrapped due to flood or electrical fire.
• Ask for photos of the connectors to check for corrosion or bent pins.
• Prefer sellers offering a short-term (30-90 day) functional warranty.

Decision logic:

• If The part requires VIN programming or 'component protection' unlocking (common in VAG, BMW, modern Ford/GM) → Buy new or from a specialized remanufacturer providing pre-programmed units. A used part fails without expensive dealer intervention.
• If Vehicle is less than 8 years old and the part is under $800 new → Buy new (OEM or quality aftermarket) for the longer warranty and to avoid premature failure risks.
• If The part is a simple, non-programmed display from an older vehicle (pre-2010) → A used part is a cost-effective choice, provided the part number matches exactly.

Warranty tradeoff: Used parts typically have a 30-90 day warranty covering the part only. Aftermarket new parts carry a 1-year to limited lifetime warranty. OEM new parts installed by a dealer come with a 1-2 year parts and labor warranty.

Worst-case if a used part fails: $300-$600 if a used part is dead on arrival, representing repeat labor costs plus the cost of another part.

What Happens If You Wait — Timeline

1. Immediate: The instrument cluster and center display go blank. The driver loses access to the speedometer, fuel gauge, temperature gauge, and all warning lights. (MPG impact: 0%% · Added cost: $100 - $500 (Potential cost of a traffic ticket for speeding due to a non-functional speedometer).)
2. 1 week - 2 months: Driving without gauges introduces severe risks. A minor issue like low oil or a slow coolant leak goes unnoticed. An underlying electrical short drains and ruins the battery. (MPG impact: 0-5% (Driver is less efficient without real-time fuel economy data)% · Added cost: $150 - $250 (Cost of a new battery if a parasitic drain ruins the old one).)
3. 2 - 6 months: Un-annunciated minor issues escalate. Low coolant causes an engine overheating event, warping the cylinder head. Low oil leads to increased friction and internal engine wear. (MPG impact: N/A% · Added cost: $2,000 - $4,000 (Cost to repair a blown head gasket from overheating).)
4. 6+ months: Catastrophic failure occurs. The engine seizes completely due to running without oil pressure or from extreme overheating. The vehicle requires a full engine replacement. (MPG impact: N/A% · Added cost: $5,000 - $10,000+ (Cost to replace a seized engine).)

Cost of Not Fixing It

• Immediate: Inability to monitor vehicle speed, fuel level, or engine temperature poses a significant safety risk. No access to warning lights for critical failures (e.g., oil pressure, brakes, airbags). (Added cost: $100 - $500+ (potential traffic tickets for speeding).)
• 1-3 months: A minor, un-annunciated issue like low oil level escalates into a catastrophic failure. Not seeing a low oil pressure warning leads to complete engine seizure. (Added cost: $4,000 - $10,000+ (cost of replacing a seized engine).)
• 3+ months: Continued driving with an underlying electrical short causes unpredictable behavior in other systems or drains the battery completely. (Added cost: $250 - $1,500 (cost of diagnosing subsequent electrical issues or replacing a dead battery).)

Diagnosis Steps

1. Perform a Hard Reset
   Often, the module simply needs a reboot. Disconnect the negative battery terminal for 15 minutes, then reconnect it. On modern Fords, pulling the specific audio and display fuses for a few minutes achieves the same result. This simple step frequently restores communication immediately.
   Tools: Wrench (for battery terminal) (Beginner)
2. Check Fuses
   Using your owner's manual, locate the fuse boxes and find the fuses for the instrument cluster, radio, and display module. Pull each one and visually inspect it. If the internal metal strip is broken, replace it with a new fuse of the exact same amperage.
   Tools: Fuse puller or small pliers (Beginner)
3. Check for Manufacturer Service Programs and TSBs
   Manufacturers like Ford and GM issue Technical Service Bulletins (TSBs) for known software or wiring flaws. Search online for your vehicle's year, make, and model alongside 'display recall'. Ford's CSP 24B47 covers many 2018-2024 SYNC 3 models, and GM's TSB PIT5586D addresses gateway module issues.
   Tools: Computer with internet access (Beginner)
4. Visually Inspect Wiring
   Access the back of the instrument cluster and infotainment display by removing the surrounding trim panels. Inspect the wiring harnesses and connectors for corrosion, bent pins, loose connections, or chafed wires.
   Tools: Trim removal tools, flashlight (Intermediate)
5. Test for Power and Ground (Pro Tip)
   With the key on, use a multimeter to test the module's main connector. Verify battery voltage (12.0V - 12.8V) at the power pin. Switch to resistance (Ohms) and test the ground pin against a known good chassis ground; the reading must be under 0.5 Ω. No power or high resistance indicates an upstream wiring problem.
   Tools: Multimeter, vehicle-specific wiring diagrams (Intermediate)
6. Check CAN Bus Termination Resistors (Pro Tip)
   The CAN bus network utilizes a 120 Ohm resistor at each end. With the battery disconnected, measure resistance between CAN High (Pin 6) and CAN Low (Pin 14) at the OBD-II port. A healthy network reads approximately 60 Ohms. A 120 Ohm reading indicates an open circuit; near 0 Ohms indicates a short.
   Tools: Multimeter (Advanced)
7. Test CAN Bus Network Voltages (Advanced)
   With the key on, measure DC voltage at the OBD-II port. CAN High (Pin 6) operates between 2.5V and 3.5V, while CAN Low (Pin 14) operates between 2.5V and 1.5V. Readings stuck at 0V, 5V, or battery voltage confirm a short to ground or power.
   Tools: Multimeter (Advanced)
8. Analyze CAN Bus Signal with Oscilloscope (Professional)
   An oscilloscope provides a definitive visual representation of network data. A healthy CAN bus shows clean, mirrored square waveforms. The absence of this waveform, or a noisy signal stuck at a fixed voltage, confirms a network communication failure requiring trace diagnostics.
   Tools: Oscilloscope, vehicle-specific wiring diagrams (Professional)
9. Perform Network Integrity Test (Module Isolation)
   If the CAN bus is shorted, disconnect modules one by one from the network until the bus voltage or resistance normalizes. Start with easily accessible modules like the radio. When the faulty module is disconnected, the network comes back online, isolating the short.
   Tools: Scan tool, trim removal tools, wiring diagrams (Professional)

When This Code Triggers (Freeze-Frame Conditions)

• System Voltage: 11.8V - 12.5V (Key-On, Engine-Off (KOEO). The code sets during the initial module 'handshake' before the engine starts. A low voltage reading points to a weak battery as the trigger.)
• Module Status: FDIM Not Detected (During network self-test. The gateway module polls all expected modules on the network. U0255 sets when the FDIM fails to respond within 5 seconds.)
• Vehicle Speed: 0 mph (Stationary. While the fault occurs at any time, it is most frequently logged when the vehicle is first started.)
• Engine RPM: 0 or 700-900 RPM (Either Key-On Engine-Off or at idle immediately after startup. The loss of communication is typically an immediate event upon system power-up.)

Related Codes

• U0155 — Lost Communication With Instrument Panel Cluster (IPC) Control Module. If U0155 is present, the issue is specifically with the instrument cluster itself, whereas U0255 includes the center infotainment screen.
• U0100 — Lost Communication with Engine Control Module (ECM). If U0100 appears with U0255, the problem is a network-wide failure, not an isolated display issue. Diagnose the CAN bus network before inspecting the display module.
• U0101 — Lost Communication with Transmission Control Module (TCM). Seeing U0101 alongside U0255 indicates a broader network problem. Their simultaneous failure means the network connecting them is the root cause.
• U0140 — Lost Communication with Body Control Module (BCM). The BCM acts as the central gateway for the display module. If U0140 is present, the BCM is offline, making U0255 a secondary symptom.

Climate & Environmental Factors

• High Humidity / Water Intrusion: High humidity causes condensation on circuit boards and in connectors. This moisture accelerates corrosion of copper pins, leading to high resistance or short circuits. Water leaks from clogged sunroof drains directly destroy modules.
• Extreme Cold: Cold weather significantly reduces a battery's cranking power. A weak battery provides insufficient voltage during startup, causing communication modules to glitch and set a U0255 code.
• Extreme Heat: Sustained high temperatures cause internal components of the display module to overheat and fail. Thermal stress worsens existing cracks in solder joints, leading to intermittent connection loss.

How to Talk to a Mechanic About This Code

Say this: "I have a U0255 'Lost Communication with Front Display' code and my dash/radio screens are blank. I need to book a diagnostic appointment. Please start by checking for TSBs, verifying power and ground at the module, and checking CAN bus network integrity before quoting a module replacement."

This signals you understand the cause is often a simple wiring or network issue, not a failed expensive module. It directs the technician to perform a proper diagnostic sequence and prevents jumping to the most expensive conclusion.

Avoid saying:

• 'My screen is dead, I think I need a new one.'
• 'Just fix whatever's wrong, I trust you.'
• 'My check engine light is on, can you look at it?' (This code is a communication issue, not a typical check engine light problem).

Questions to ask before authorizing the repair:

• Did you find any Technical Service Bulletins (TSBs) for this issue on my vehicle?
• Was the module getting proper power and ground when you tested it?
• Were there other 'U' codes stored in other modules? If so, what does that indicate?
• If you are recommending a module replacement, what tests did you perform to rule out a wiring or network problem first?
• What is the warranty on this specific repair, including both parts and labor?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Recommended if your vehicle has a known TSB or is under warranty. Their access to proprietary software and bulletins is the fastest path to a fix.
  Best for: Vehicles under warranty., Vehicles with known TSBs or software updates (e.g., Ford, GM)., Complex, brand-specific network issues (e.g., newer German vehicles).
  Downsides: Highest labor rates and part costs., Defaults to module replacement instead of circuit-level repair. (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit for most out-of-warranty situations, provided you choose a reputable shop with strong electrical diagnostic skills. They are more likely to perform a wiring repair than a dealer.
  Best for: Out-of-warranty vehicles where cost is a factor., Diagnosing common electrical faults like bad grounds or wiring shorts., Vehicles where the cause is likely physical damage (rodents, chafing).
  Downsides: Quality varies greatly; must find a shop specializing in electrical diagnostics., Lacks access to the very latest manufacturer software updates. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID for diagnosing U0255. This is a complex communication code requiring specialized knowledge beyond the scope of most chain shops.
  Best for: Simple tasks like battery testing or fuse replacement.
  Downsides: Technicians are generally not equipped or trained for complex network diagnostics., High pressure to sell parts leads to misdiagnosis (e.g., selling a battery when the issue is a wiring short). (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost for the U0255 fault exceeds 40-50% of your car's current private-party value, pause and consider your options. This is especially true if the car has other pending maintenance needs.

• Car worth $5000, fix is $2500: Walk away. The repair cost is 50% of the car's value. It is not economically sensible to proceed.
• Car worth $15000, fix is $1800: Fix it. The repair cost is only 12% of the vehicle's value, which is well within a reasonable limit for a critical safety feature.
• Car worth $3000, fix is $400: Fix it. A $400 wiring repair on a $3,000 car is a sensible investment to restore full functionality and safety.

What Scan Tool You Need for This Code

Minimum: A scanner that reads codes from ALL vehicle modules (ABS, BCM, SRS, etc.), not just the engine computer (ECM). A basic $20 reader fails because it cannot see 'U' codes stored in the Body Control Module.

U0255 is a network code. The fault is often stored in the Body Control Module (BCM) or a Gateway Module, which basic code readers cannot access. Without seeing codes from all modules, you cannot determine if U0255 is an isolated fault or part of a larger network failure.

Budget: BlueDriver Pro Scan Tool (~$100) — Connects to your smartphone and reads codes from all major modules (Engine, ABS, Airbag, BCM) on most vehicles, which is the minimum needed to properly see this code and related network faults.

Mid-range: Autel MaxiCOM MK808 / XTOOL D7 (~$250-400) — These tablet-style scanners offer full-system diagnostics plus bidirectional controls. This allows you to actively test modules and see live data from the network, crucial for diagnosing if the module is truly offline or if there's a wiring issue.

Professional: Autel MS906 Pro / Launch X431 Series (~$1000-2500) — Provides full, dealer-level diagnostics, including network topology mapping and module programming. These tools definitively isolate a single faulty module on the CAN bus, perform software updates, and code new modules to the vehicle.

Rent vs buy: For a one-time fix, take it to a professional. The scanners needed for proper diagnosis are an investment. Buying a mid-range scanner only makes sense if you plan to do your own advanced diagnostics regularly.

How to Clear the Code After You Fix It

1. Reconnect any disconnected modules or battery terminals.
2. Use a professional OBD-II scan tool to clear all DTCs from all modules, not just the engine computer.
3. Perform a key cycle (turn ignition off, then on) and verify the display is functioning.
4. Conduct a test drive including city and highway speeds to ensure the fault does not return.

Drive cycle (~20 minutes): A specific drive cycle is not required for a 'U' code. After clearing the code, start the vehicle and idle for 2 minutes to allow modules to initialize. Drive for 15-20 minutes in mixed conditions to confirm the display remains functional through various electrical loads.

Readiness monitors affected: This code does not directly affect emissions readiness monitors. However, clearing the code with a scanner or disconnecting the battery resets all monitors to 'Not Ready' status.

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Only clearing the code from the ECM. Communication codes are stored in multiple modules (like the BCM or Gateway Module) and must be cleared from all of them.
• Not fixing the root cause. If the underlying wiring fault or module failure exists, the code returns immediately after being cleared.
• Assuming a battery disconnect is enough. A hard reset fixes glitches but does not clear stored fault codes from non-volatile memory.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An active 'U' code like U0255 causes an automatic failure of the OBD-II smog check. The test equipment cannot verify communication with all required vehicle systems.
• New York: The NYS Vehicle Inspection Program (NYVIP) includes an OBD-II scan. A communication DTC is grounds for rejection, as the system cannot confirm emissions component status.
• Texas: In the 17 counties requiring emissions testing, the presence of U0255 results in a 'failed' test because the integrity of the onboard diagnostic system is compromised.

Most Commonly Affected Vehicles

• Ford F-150 (2009-2014) — Failure of the Front Control Interface Module (FCIM) is common. The part is often discontinued by Ford, requiring a used or remanufactured unit.
• Ford Explorer, F-150, Edge, Escape, Mustang, Maverick (2018-2024) — Prone to software glitches in the SYNC 3 system's Accessory Protocol Interface Module (APIM). Ford issued CSP 24B47, providing a free software update at a dealer until August 31, 2025.
• Dodge / Chrysler / Jeep / Ram Grand Caravan, Wrangler, Ram 1500, Grand Cherokee (2008-2024) — Older models suffer CAN bus wiring chafing. Newer models (2022+) with Uconnect 5 experience internal head unit failures requiring expensive dealer exchange parts.
• Chevrolet / GMC Silverado, Sierra, Tahoe, Suburban, Escalade (2017-2020) — Loose terminals at the Serial Data Gateway Module (SDGM) cause U0255 as a secondary fault. TSB PIT5586D addresses bent or corroded terminals in the SDGM's X1 and X2 connectors.
• Honda Accord (2018-2020) — This code appears after a battery replacement if the new battery provides insufficient voltage during initialization. A hard reset resolves the issue.
• Hyundai / Kia Sonata, Optima, Sorento, Santa Fe (2015-2020) — The U0255 code points to an internal failure of the infotainment head unit, requiring replacement to restore communication.
• Subaru Outback, Forester, Crosstrek, Impreza, Legacy, BRZ (2017-2018) — Widespread failure of the Starlink infotainment system triggers U0255. A class-action settlement extended the head unit warranty to 5 years / 100,000 miles.
• Volkswagen Golf, Jetta, Tiguan (2016-2021) — Associated with the MIB infotainment system. Causes range from a software glitch requiring a dealer update to a full internal failure of the control module (unit 5F).

Manufacturer-Specific Notes

• Ford: Software glitches with the SYNC infotainment system are a primary cause. Ford issued Customer Satisfaction Program 24B47 providing a free software update at the dealership for affected models until August 31, 2025.
• General Motors (Chevy/GMC): GM issued TSB PIT5586D for 2017-2020 trucks experiencing communication issues. The bulletin points to bent or corroded terminals at the X1 and X2 connectors of the Serial Data Gateway Module (SDGM).
• Dodge/Chrysler/Jeep/Ram: The CAN bus wiring harness frequently routes too close to hot engine components or chafes in door jambs. This melts or breaks wires, leading to a flood of 'U' codes.
• Subaru: Widespread failures of Harman Gen 3 Starlink head units in 2017-2018 models led to a class-action lawsuit. The settlement extended the warranty on the head unit to 5 years or 100,000 miles.

Real Owner Stories

2018 Honda Accord with U0255 after battery change

The U0255 code and a blank display appeared immediately after installing a new battery.

What they tried:

1. The owner suspected the new battery was defective or the installation damaged a wire.
2. A technician tested the new battery and found it provided inadequate voltage during the vehicle's startup initialization sequence.

Outcome: Replacing the faulty new battery with a properly functioning unit supplied stable voltage. The communication error cleared, and the display returned to normal operation without further repairs.

Lesson: Communication codes appearing right after a battery change point directly to voltage instability. Verify the new battery is fully charged and functioning correctly before diagnosing complex modules.

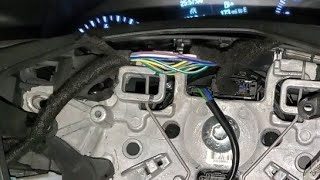

2020 Ford Explorer with black screen and U0255

The main infotainment screen went black, radio controls became unresponsive, and the scan tool showed U0255.

What they tried:

1. Initial diagnostics pointed toward an expensive complete front display screen replacement.
2. The technician performed a 'hard reset' by pulling the audio and display module fuses for several minutes.

Outcome: The hard reset successfully rebooted the system, bringing the screen back to life. Further diagnosis revealed the root cause was a faulty steering wheel switch pack, saving the owner from an unnecessary screen replacement.

Lesson: Always attempt a hard reset by disconnecting the battery or pulling specific fuses before replacing expensive modules. It frequently resolves software glitches or temporary communication lockups.

2017 GMC Sierra with intermittent U0255 and other codes

The driver experienced intermittent blanking of the instrument cluster and radio, alongside a flood of communication codes including U0255.

What they tried:

1. An initial inspection of the display module and its wiring found no obvious faults.
2. A second technician consulted Technical Service Bulletin (TSB) PIT5586D.

Outcome: The TSB directed the technician to inspect the Serial Data Gateway Module (SDGM). They found loose, corroded terminals in the SDGM's X1 connector. Cleaning and tightening the pins restored all communication.

Lesson: When multiple communication codes appear together, the root cause is a network-level issue like a central gateway module fault. Always check for TSBs related to your specific symptoms.

How to Prevent This Code From Triggering

• Maintain Battery and Terminal Health (Every 6 months) — Weak batteries providing low voltage during startup trigger module communication glitches. Regularly cleaning terminals prevents voltage drops that set a U0255 code.
• Clean Sunroof and Cowl Drains (Once per year) — Clogged drains cause rainwater to back up and leak inside the cabin. This water drips onto modules and connectors, causing corrosion and electrical shorts.
• Apply Dielectric Grease to Key Connectors (When servicing or exposing connectors) — Dielectric grease protects electrical pins from moisture and oxygen. Applying a small amount into a connector's seal prevents degradation that leads to high resistance.
• Protect Wiring from Rodents (As needed, especially if parking outdoors) — Modern soy-based wire insulation attracts rodents. A single chewed wire in the CAN bus harness shorts the entire network. Rodent-repellent tape prevents this costly damage.

Frequently Asked Questions

Can I still drive my car with a U0255 code?

You can, but you shouldn't go far. The engine runs, but you lack a speedometer, fuel gauge, and warning lights. Driving without this information is unsafe and risks traffic citations.

Why did my dashboard and radio screen go blank at the same time?

Both the instrument cluster and the center screen are controlled by the same module or gateway. When the car's main computer loses communication with this single node, all connected displays go dark simultaneously.

Can a weak or dead battery cause a U0255 code?

Yes, absolutely. Low voltage during startup causes communication glitches between modules. Clearing the code after fully charging or replacing a weak battery often resolves the issue permanently.

How do I reset the U0255 code?

You can clear the code with an OBD-II scanner, but it returns immediately if the underlying problem remains. A 'hard reset' by disconnecting the battery for 15 minutes fixes temporary glitches and is the best first step.

What's the difference between an FDIM, FCIM, and APIM?

These are Ford terms: FDIM is the screen, FCIM is the physical buttons, and APIM is the SYNC system brain. They work together on the same network. A U0255 code triggers when any of these components or their connecting wires fail.

What are the most common misdiagnosis mistakes for a U0255 code?

The most common mistake is replacing the expensive front display module without proper diagnosis. Technicians often find the true cause is a cheaper fix, like a corroded ground wire, a bent connector pin, or a required software update. Always check for manufacturer TSBs before replacing hardware.

My screen is black, but I don't have a U0255 code. Is it the same problem?

Not necessarily. A U0255 code specifically indicates a communication failure on the vehicle's data network. A black screen with no codes points to a hardware failure like a burnt-out backlight or a dead graphics processor, which does not interrupt network communication.

What is a CAN bus and why does it fail?

The Controller Area Network (CAN) bus is the nervous system allowing all vehicle computers to communicate. It typically consists of a pair of twisted wires. It fails when a wire breaks, shorts to power or ground, or a faulty module floods the network with bad data.

Key Takeaways

• Code U0255 indicates your dashboard displays are offline, leaving you without a speedometer or critical warning lights.
• Check the display module's dedicated fuses and ground wires before assuming the $600+ screen itself has failed.
• Disconnect your negative battery terminal for 15 minutes to perform a hard reset, which clears temporary software glitches for free.
• Search for manufacturer Technical Service Bulletins (TSBs), like Ford's CSP 24B47, which provides a free software update to fix this exact issue.
