U0159 on 2015-2018 Cadillac Escalade: Park Assist Communication Failure Causes and Fixes

What's Unique About the 2015-2018 Cadillac ESCALADE

For this specific generation of Cadillac Escalade and its K2XX platform mates, the U0159 code is frequently a software issue, not a hardware failure. General Motors issued multiple Technical Service Bulletins (TSBs) acknowledging that a random 'Service Parking Assist' message could appear at startup, setting this code. The official fix in many cases is not to replace parts, but to have a dealer reprogram the Parking Assist Control Module (also called K41/K86) with an updated software calibration. A secondary, but notable, platform-wide issue is a wiring harness behind the driver's side dashboard that is prone to being pinched during assembly, which can cause various communication codes, including U0159.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service Parking Assist" or "Park Assist Off" message on the driver information center (DIC).
• The parking assist system is completely inoperative.
• Parking sensor indicators on the infotainment screen do not work or freeze.
• The LED on the park assist switch may be disabled.
• The system may work intermittently, with the error message appearing randomly at startup and sometimes clearing after an ignition cycle.

Most Likely Causes

1. Parking Assist Control Module Software Glitch 🔴 High Probability GM released Technical Service Bulletins #PIT5507E and its predecessors specifically for this issue, noting that a calibration update was developed to correct a random 'Service Parking Assist' message at startup.
   How to confirm: A GM dealer or a shop with a subscription to GM's TIS2WEB service can check if the vehicle's module has the latest software version installed by comparing it to the latest available calibrations.
   Typical fix: Reprogram the K41 Parking Assist Control Module with the latest calibration available from GM.
   Est. part cost: $0
2. Damaged Wiring or Poor Connection 🟡 Medium Probability The rear bumper harness and its main connector are exposed to the elements, risking corrosion. More specifically, a known issue on the K2XX platform involves the main instrument panel (I/P) harness getting pinched between a metal bracket and the body behind the driver's side dash, which can cause this and other communication codes.
   How to confirm: Visually inspect the wiring harness and connectors leading to the Parking Assist Control Module (located in the rear) for any signs of chafing, corrosion, or loose pins. For the dash issue, inspect the harness near the parking brake pedal for being trapped or crushed against the I/P bracket.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the affected connector. For the dash issue, the bracket must be loosened to free the harness, and any damaged wires must be repaired individually.
   Est. part cost: $10-$100
3. Failed Parking Assist Control Module (PAM) ⚪ Low Probability
   How to confirm: If the software is up to date and the wiring, power, and grounds to the module are all confirmed to be good, the module itself is the likely culprit. A bi-directional scan tool that loses communication when trying to query the module can also point to a failed module.
   Typical fix: Replace the Parking Assist Control Module. The new module will require programming by a dealer to work with the vehicle. Common part numbers include 23389288 and 84463922.
   Est. part cost: $150-$400

Rare But Worth Checking

• Low Battery Voltage: Communication modules can drop offline during startup if the battery voltage is too low, setting history codes. Owners on forums have reported that strange electrical messages, including 'Service Park Assist', were a precursor to a failing battery, and the issue was resolved with a new battery.

Diagnosis Steps

1. Check for TSBs: The first step for this specific vehicle is to check for GM bulletin PIT5507E or related TSBs, as a software update is the most common fix.
2. Scan All Modules: Use a professional scan tool capable of reading codes from all vehicle modules (BCM, IPC, etc.), not just the engine computer. Document all codes and which modules are logging the U0159.
3. Check Battery Health: Ensure the battery voltage is stable and above 12.4V. A weak battery can cause random communication faults on GM trucks.
4. Attempt Software Update: If the TSB applies, the primary diagnostic step is to have a dealer attempt to reprogram the Parking Assist Control Module with the latest software.
5. Inspect Rear Module and Harness: If the software update doesn't resolve the issue, locate the Parking Assist Control Module. On the Escalade, it is typically located behind the rear bumper cover or trim panels. Inspect its connector and nearby wiring for any signs of damage, corrosion, or water intrusion.
6. Inspect I/P Wiring Harness: Carefully inspect the main dash wiring harness on the driver's side, near the parking brake pedal. Check if the harness is pinched between the metal I/P support bracket and the body, a known issue on this platform.
7. Verify Power and Ground: Use a multimeter to confirm the module is receiving proper battery voltage and has a solid ground connection at its connector.
8. Test Network Wires: Check the GMLAN (GM's communication network) wires for proper voltage or resistance to identify shorts or open circuits.
9. Replace Module: If all previous steps pass, the Parking Assist Control Module is the most likely failed component.

Parts You'll Likely Need

• Parking Assist Control Module (OEM #23389288, 84463922) — This module is the component that fails or requires a software update. If it needs to be replaced after confirming wiring and software are good, this is the part to buy.
  Trusted brands: ACDelco (Genuine GM)
  OEM price range: $250-$400
  Aftermarket price range: $150-$300

Technical Service Bulletins (TSBs) & Recalls

• PIT5507E: Addresses a diagnostic trouble code U0159 setting in the instrument panel cluster and/or the body control module related to the Ultrasonic Park Assist System, recommending a software calibration update.
• PIT-5507: An earlier version of the bulletin which confirms that GM engineering was developing a calibration update to correct the U0159 concern.
• 22-NA-068: While not for U0159 specifically, this TSB addresses false alerts and 'Park Assist Off' messages caused by physical issues with bumper/sensor fitment, which could be a related factor.

Platform-Specific Known Issues

• A known software issue can cause the U0159 code to set randomly at vehicle startup, often accompanied by a 'Service Park Assist' message that may disappear after an ignition cycle. This is documented in GM TSB #PIT5507E.
• The main instrument panel wiring harness can be pinched by a mounting bracket behind the driver's side dash during factory assembly, leading to chafed wires and network communication faults like U0159. This is documented in TSB #PIT5288H for a similar code.

Mechanic-Grade Diagnostic Values

• Low-Speed GMLAN Circuit Voltage — expected: Approximately 4.0V between the serial data circuit and ground during normal operation. The voltage will be near 0V when the bus is inactive.. Failure: A voltage that is stuck high or low, or does not toggle, indicates a short to power, ground, or an open circuit.
• High-Speed GMLAN Bus Resistance — expected: ~60 Ω when measured across pins 6 and 14 of the DLC with the battery disconnected.. Failure: A reading of ~120 Ω indicates an open circuit or a missing terminating resistor. A reading near 0 Ω indicates a short between the two CAN wires.
• Module Ground Circuit Resistance — expected: < 1.0 Ohm from the module's ground pin to a clean chassis ground point.. Failure: Resistance higher than 1.0 Ohm indicates a poor ground connection, which can cause intermittent module dropout.

Scan Tool Commands That Help

• GDS2 (GM Global Diagnostic System 2): Module Diagnostics > K41 Parking Assist Control Module > Control Functions — To access bidirectional controls to test specific functions of the park assist system, such as activating individual sensors or chimes, to verify if the module is capable of commanding outputs.
• SPS (Service Programming System): K41 Front and Rear Parking Assist Control Module - Programming — This is used to perform the software calibration update as specified in TSB PIT5507E. This function loads the new operating software onto the module.
• SPS (Service Programming System): K41 Front and Rear Parking Assist Control Module - Configuration — After programming a new or existing module, this function must be run to configure the module for the specific options on the vehicle (e.g., front/rear sensors, automatic parking assist).

Wiring & Ground Locations

• K41 Parking Assist Control Module — Located in the rear of the vehicle, typically behind the rear bumper cover or right rear quarter panel trim.. This is the module that is offline. All power, ground, and communication wire checks start at its connector.
• I/P Harness Chafe Point — The main dash harness may be pinched between the left Instrument Panel (I/P) mounting bracket and the body, near the parking brake pedal assembly.. This is a known issue documented in TSB PIT5288H. The chafe can damage GMLAN wires, causing various communication codes, including U0159. The fix involves loosening the bracket, freeing the harness, and repairing damaged wires.
• G218 — A critical body control module (BCM) ground located under the driver's side of the instrument panel.. A poor ground at G218 can cause a multitude of strange electrical issues and communication codes as it is a primary ground for the BCM, which acts as a gateway for network communication.
• G401 / G402 — Located on the left rear body mount behind the left rear tire on the frame.. These are the primary chassis ground points for the rear of the vehicle. The K41 Parking Assist module is in the rear, and a poor ground connection at these points can cause communication loss.

Real Owner Repair Stories

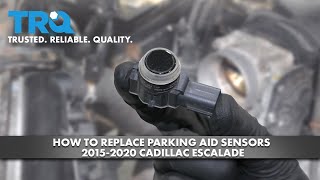

• YouTube - KEI KUSTOM GARAGE (2015 Cadillac Escalade) — Service Park Assist message, system inoperative.
  ❌ Tried (didn't work) Replacing a damaged front parking sensor harness., Replacing broken sensors with aftermarket (eBay) sensors.
  ✅ What actually fixed it The system would not pass its self-test and become operational until the aftermarket sensors were replaced with genuine GM OEM sensors. After installing used OEM sensors and clearing codes, the system began working correctly.

Model Year Variations Within This Range

• 2017: A specific customer satisfaction program (16057) was issued for some 2017 Escalades where the Advanced Park Assist feature would deactivate. The fix was to reprogram the K182 Parking Assist Control Module (a different module name used in this specific bulletin) with an updated configuration file via SPS.
