U0151 on 2010-2017 GMC Terrain: Causes and Fixes for Airbag Communication Loss

What's Unique About the 2010-2017 Gmc TERRAIN

For this generation of GMC Terrain and its platform-mate, the Chevrolet Equinox, the U0151 code is frequently caused by specific, well-documented wiring issues rather than module failure. GM has issued technical service bulletins pointing to a pinched harness behind the dashboard and body connectors prone to water intrusion as the primary culprits. This means a thorough visual inspection of these known problem areas can often lead to a fix without replacing expensive parts.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Airbag warning light is illuminated on the instrument panel.
🎬 Watch: Common reasons why your airbag light is staying on
• "Service Restraint System" or similar message on the driver information center.
• Inoperative interior lamps.
• Inoperative liftgate.
• Inoperative rear wiper.
• Dead battery.
• Inoperative rear power windows.
• Service Stabilitrak message.
• No Audio or inoperative touch screen.

Most Likely Causes

1. Pinched Wire Harness in Left Instrument Panel 🔴 High Probability This is a known issue documented by GM in Technical Service Bulletin #PIT5288B. The harness routing can cause it to be pinched by a metal dash support bracket during assembly or subsequent repairs.
   How to confirm: Remove the driver's side dash end cap/fuse panel cover. Visually inspect the large wire harness located behind the cover, near the parking brake assembly, for signs of being pinched, chafed, or damaged by the metal I/P mounting bracket. The harness should be able to move freely.
   Typical fix: Loosen the left I/P dash mounting bracket bolts to free the trapped harness. Open the loom, and repair any damaged wires by soldering and using heat-shrink tubing. Reroute the harness to prevent it from being pinched again.
   Est. part cost: $5-$25
2. Water Intrusion or Corrosion in Body Harness Connector X901 or X401 🔴 High Probability As documented in TSB #PIT5422, the X901 body harness connector can be susceptible to moisture, leading to corrosion. Another TSB, #PI0703A, points to water intrusion in connector X401 behind the passenger-side D-pillar trim as a cause for similar communication issues. Water leaks from liftgate hinges are a possible source.
   How to confirm: Locate and disconnect the X901 and/or X401 body harness connectors. For X401, pull back the passenger-side D-pillar trim to gain access. Inspect the pins and terminals for any green or white corrosion, or signs of water entry.

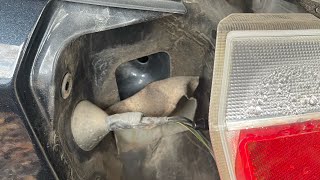

   Typical fix: Clean the connector terminals with electrical contact cleaner. If corrosion is severe, the connector and affected terminals may need to be replaced. Address the source of the water leak, 🎬 See how to fix water leaks in the liftgate area such as re-torquing liftgate hinge fasteners.
   Est. part cost: $10-$50
3. Faulty Sensing and Diagnostic Module (SDM) ⚪ Low Probability While less common than wiring issues, the module itself can fail internally due to component fatigue or moisture. A software glitch can also cause it to become unresponsive, sometimes referred to as 'logic lock'.
   How to confirm: This is diagnosed by exclusion. If all wiring, connectors, power, and grounds to the SDM are confirmed to be good using a multimeter, the module itself is the likely culprit. A professional scan tool will fail to communicate with it. A preliminary step can be to attempt a 'hard reset' by removing the SDM fuse for 30+ seconds to see if communication is restored.
   Typical fix: Replace the SDM. The new module must be programmed to the vehicle's VIN, which requires specialized tools. In some cases, the original module can be sent to a third-party service for repair and reset.
   Est. part cost: $200-$500
4. Poor Power or Ground Connection ⚪ Low Probability Loose or corroded ground connections, particularly the BCM ground G218, can cause a wide range of electrical issues, including communication codes. Modules are sensitive to voltage drops.
   How to confirm: Check that the battery voltage is stable and above 12.4V. Use a multimeter to perform a voltage drop test on the SDM's power and ground circuits to identify high resistance. Visually inspect known ground points for corrosion or looseness.
   Typical fix: Clean and tighten any loose or corroded ground points. Replace faulty battery cables if they show high resistance.
   Est. part cost: $1-$20

Rare But Worth Checking

• EBCM Software Glitch:

Diagnosis Steps

1. Perform a full vehicle scan with an OBD-II scanner capable of reading manufacturer-specific codes to identify all present DTCs.
2. Check battery voltage to ensure it is stable and above 12.4 volts. Low voltage can cause communication errors.
3. Attempt a 'hard reset' of the SDM. Locate the SDM fuse in the instrument panel fuse block, remove it for at least 30 seconds, then reinstall it. Clear codes and see if U0151 returns.
4. Following TSB #PIT5288B, remove the driver's side dash end cap and inspect the wire harness near the metal dash support for any signs of being pinched or damaged.
5. Following TSB #PIT5422 and PI0703A, locate and inspect body harness connectors X901 and X401 (behind passenger D-pillar trim) for any signs of water intrusion, pin damage, or corrosion.
6. If the wiring and connectors appear intact, use a multimeter to test for proper power and ground at the Sensing and Diagnostic Module (SDM) connector. The SDM is typically located under the center console or front seats.
7. Test the CAN bus communication wires for continuity and resistance between the SDM and the data link connector (OBD-II port). Resistance between CAN High and CAN Low should be approximately 60 ohms with the battery disconnected.
8. If all wiring, power, and grounds are confirmed to be good, and the SDM still won't communicate, the module itself is the most likely point of failure.

Parts You'll Likely Need

• Wiring Repair Supplies — Needed to repair the pinched or corroded wires that are the most common cause of this code.
  Trusted brands: 3M
  OEM price range: $10-$30
  Aftermarket price range: $5-$20
• Sensing and Diagnostic Module (SDM) (OEM #13589722, 13509283 (Part numbers vary by year and options, always verify with VIN)) — This is the airbag control module itself. It is replaced only after all wiring and connection issues have been ruled out.
  Trusted brands: ACDelco (GM Genuine)
  OEM price range: $300-$500
  Aftermarket price range: $200-$400

Related Codes That Often Appear With This One

• U0077, U0028, U0029, U0126, U0415, B3101, B144C, C0710, C0544, U1548, U1549, U154A — These codes are listed with U0151 in TSB #PIT5288B and point to the common cause of a pinched wire harness affecting multiple systems.
• U0078, U0140, U0155, U0164, U0198, U0230 — These codes are listed with U0151 in TSB #PIT5422, indicating a shared problem with the X901 body harness connector.

Technical Service Bulletins (TSBs) & Recalls

• PIT5288B: Addresses multiple DTCs, including U0151, caused by a pinched wire harness in the left instrument panel.
• PIT5422: Points to water intrusion in body harness connector X901 as a cause for several communication DTCs, including U0151.
• PI0703A: Details water intrusion in connector X401 behind the passenger D-pillar trim as a cause for intermittent communication issues.
• PIE0216A: An engineering information request from 2012 asking for data on vehicles with U0151 where communication with the SDM cannot be established, confirming this was an issue GM was actively investigating on the Terrain/Equinox platform.

Platform-Specific Known Issues

• TSB #PIT5288B documents that a pinched wire harness on the left side of the instrument panel can cause U0151 along with a variety of other electrical faults and communication codes.
• TSB #PIT5422 identifies that water intrusion or corrosion in the body harness connector X901 is a known cause for U0151 and other communication failures, leading to symptoms like an inoperative liftgate.
• TSB #PI0703A points to water intrusion in connector X401, located behind the passenger-side D-pillar trim, as another potential source of communication codes due to water leaks from the liftgate hinge area.

Mechanic-Grade Diagnostic Values

• High-Speed CAN Bus Resistance — expected: Approximately 60 Ohms (Ω) when measured between Pin 6 (CAN-High) and Pin 14 (CAN-Low) of the OBD-II port with the battery disconnected.. Failure: A reading of 120 Ohms indicates an open circuit or one of the two terminating resistors is offline. A reading near 0 Ohms indicates the CAN High and Low wires are shorted together.
• Power and Ground at SDM Connector — expected: Battery voltage (approx. 12.4V+) at the power supply pin and less than 0.5 Ohms of resistance on the ground pin to a clean chassis ground.. Failure: No or low voltage, or high resistance on the ground circuit, will prevent the module from powering on and communicating.

Hidden / Shadow Codes Worth Checking

• U0151 71: Invalid Serial Data Received. This symptom code indicates the SDM is online and trying to communicate, but the data it's sending is corrupt. This often points to an internal module fault or severe electrical interference. (see via GM GDS2 or a professional-grade scan tool capable of reading manufacturer-specific symptom bytes.)

Scan Tool Commands That Help

• GDS2 (GM Global Diagnostic System 2): SDM Setup / Configure New Module — This function is mandatory after replacing the Sensing and Diagnostic Module (SDM). It programs the vehicle's VIN into the new module and configures it for the specific options on the vehicle (e.g., number of airbags). The system will not operate correctly until this is performed.
• GDS2 (GM Global Diagnostic System 2): Setup SDM Part Number in BCM — This procedure is part of the new module setup. It 'marries' the new SDM to the Body Control Module (BCM) by establishing a primary security key, allowing them to communicate securely.

Wiring & Ground Locations

• Sensing and Diagnostic Module (SDM) — Under the center console, bolted to the vehicle floor. Access requires removing side trim panels from the console.. This is the airbag control module itself. All power, ground, and communication wires terminate here. Its location makes it potentially susceptible to moisture if drinks are spilled in the console.
• Ground G218 — On the left side of the dash, on a stud near the A-pillar. It serves as a primary ground point for the Body Control Module (BCM).. A poor connection at G218 is a known cause of widespread communication issues on this platform. Although not the direct ground for the SDM, a faulty BCM ground can disrupt the entire CAN bus network, leading to the U0151 code.
• Connector X901 — A large, multi-wire body harness connector located in the driver's side footwell area, near or behind the kick panel.. TSB #PIT5422 specifically calls out this connector for potential water intrusion and corrosion, which can interrupt CAN bus signals to and from the SDM.
• Connector X401 — Located behind the passenger-side D-pillar trim panel (the rearmost interior panel in the cargo area).. TSB #PI0703A identifies this connector as a common spot for corrosion due to water leaks from the liftgate hinges or sunroof drains, causing various communication codes including U0151.

Real Owner Repair Stories

• terrainforum.net & equinoxforum.com user reports (Multiple 2010-2017 GMC Terrain & Chevrolet Equinox) — Airbag light on, "Service Restraint System" message, code U0151 stored.
  ❌ Tried (didn't work) Clearing the code, which would return immediately., Replacing the SDM module without checking wiring first.
  ✅ What actually fixed it In many documented cases, the fix was locating and repairing chafed or pinched wires in the main harness behind the driver's side dash end cap, exactly as described in TSB #PIT5288B. The wires were often damaged by a metal dash bracket.
• equinoxforum.com user report (2011 Chevrolet Equinox) — Airbag light, U0151, and other seemingly unrelated electrical issues like inoperative rear liftgate.
  ❌ Tried (didn't work) Checking fuses., Inspecting wiring under the dash.
  ✅ What actually fixed it The owner found green corrosion inside connector X401, located behind the passenger side D-pillar trim in the cargo area. The water intrusion was traced to a clogged sunroof drain tube. Cleaning the connector terminals and clearing the drain tube resolved the code.

When the Usual Fixes Don't Work

• While the most common causes are the wiring issues detailed in GM's TSBs, there are confirmed owner reports where these areas were inspected and found to be in perfect condition. In one such case, the U0151 code was ultimately traced to a broken CAN bus wire located under the driver's side door sill trim plate. This highlights the need for comprehensive circuit testing if the common, well-documented fixes do not resolve the issue.

OEM Part Supersession History

• 13509283 → 13589722 — Module revision and update.
• 13589722 → 13594227 — Module revision and software update.
  Heads up: Always verify the correct part number with the vehicle's VIN before ordering, as multiple revisions exist. Using the wrong part, even if it fits, will result in a no-start or failure to program.

Model Year Variations Within This Range

• 2010-2017: The GMC Terrain received a facelift for the 2016 model year. While this changed the exterior and some interior styling, the underlying electrical architecture and the locations of the common failure points for code U0151 (pinched dash harness, connectors X401/X901, ground G218) remained consistent through 2017. The primary variation is the specific SDM part number used, which changed several times during the production run.
