U0151 on 2015-2020 Cadillac Escalade ESV: Airbag Light and Communication Loss Fixes

What's Unique About the 2015-2020 Cadillac ESCALADE ESV

The 2015-2020 Escalade and its K2XX platform mates (Chevy Tahoe/Suburban, GMC Yukon/Yukon XL) have a well-documented vulnerability where a large wiring harness can get pinched between a metal mounting bracket and the body, deep behind the driver's side of the dashboard. This specific issue is outlined in Technical Service Bulletin (TSB) #PIT5288H and can cause U0151 along with a host of other seemingly unrelated electrical problems. This makes a physical harness inspection the most critical first step, distinguishing it from vehicles where the cause is more likely to be a failed module or a different wiring issue.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Airbag warning light illuminated on the instrument cluster.
• "Service Restraint System" or "Service Air Bag" message in the Driver Information Center (DIC).
• In some cases, other electrical issues like non-working controls (radio, steering wheel, windows), "Service Stabilitrak" message, or even a dead battery may be present if the cause is the common pinched harness.

Most Likely Causes

1. Pinched Dash Wiring Harness (per TSB PIT5288H) 🔴 High Probability A specific factory routing issue can cause the main dash harness to be crushed by the left-hand instrument panel mounting bracket, damaging the communication wires for the SDM and other modules. The TSB notes this can be hard to see, and a key check is to feel if the harness can move freely away from the bracket.
   How to confirm: With the battery disconnected, visually and physically inspect the wiring harness located under the driver's side dashboard, near the parking brake pedal assembly. Look for signs of it being pinched against the metal IP bracket. The TSB shows photos of both upper and lower pinch points. If the harness feels stuck or shows visible chafing, this is the likely cause.
   Typical fix: Loosen the IP mounting bracket bolts, free the harness, open the loom to inspect for and repair any broken or chafed wires (solder and heat shrink recommended), and then re-route the harness to prevent future damage.
   Est. part cost: $0-$25 (for wire repair supplies)
2. Loss of Power or Ground to the SDM 🟡 Medium Probability Ground points on truck frames are susceptible to corrosion. On K2XX trucks, grounds under the A-pillar trim and on body mounts are also known failure points.
   How to confirm: Check the fuse for the SDM. On the 2018 Escalade, this is fuse F25 (labeled 'Instrument cluster/ Ignition sensing diagnostic module ignition') in the left (driver's side) instrument panel fuse block. If the fuse is good, use a multimeter to verify that the SDM connector is receiving 12V power (± 0.5V) and has a solid ground connection (less than 0.1 ohms of resistance to the chassis).
   Typical fix: Replace a blown fuse. If the fuse is good, trace and repair the open or shorted power/ground wire or clean the ground connection point. A GM recall bulletin suggests that for a temporary glitch, pulling the SDM fuse for 30 seconds can sometimes restore communication.
   Est. part cost: $1-$20
3. Faulty Sensing and Diagnostic Module (SDM) ⚪ Low Probability
   How to confirm: This is a diagnosis of exclusion. If the wiring (especially the TSB-identified pinch point), connectors, power, and ground to the SDM are all confirmed to be good, but communication cannot be established with a professional scan tool (like a GM GDS2), the module itself is likely faulty.
   Typical fix: Replace the SDM. The SDM is located under the center console. The new module must be programmed to the vehicle's VIN and configuration, which requires a dealer or specialized shop with the correct software (GDS2).
   Est. part cost: $300-$600

Rare But Worth Checking

• Corroded or Loose SDM Connector: Water intrusion or vibrations can cause poor pin contact at the module itself. The SDM is located under the center console. Always inspect the connector for corrosion or damage when accessing the SDM.
• Faulty CAN Bus Termination Resistor: The High-Speed GMLAN bus has two 120-ohm terminating resistors. If one fails, the total resistance between CAN High and CAN Low at the DLC will not be ~60 ohms, causing communication failures across multiple modules. This is a more advanced diagnosis.

Diagnosis Steps

1. Read all stored DTCs from all vehicle modules with a professional-grade scan tool. Note all communication codes.
2. Check for the presence of the many related codes listed in TSB #PIT5288H. The presence of multiple codes from this list strongly suggests the pinched harness issue.
3. Perform a thorough visual and physical inspection of the dash wiring harness under the driver's side dashboard, specifically around the left IP mounting bracket near the parking brake pedal, looking for pinched or damaged wires.
4. If no harness damage is found, check fuse F25 in the driver's side instrument panel fuse box.
5. If the fuse is good, gain access to the SDM under the center console and inspect its electrical connector for corrosion, moisture, or loose pins.
6. With a multimeter, test for proper 12V power and ground at the SDM connector.
7. If power and ground are good, test the continuity and resistance of the CAN bus wires. With the battery disconnected, measure resistance between Pin 6 (CAN High) and Pin 14 (CAN Low) of the Data Link Connector (DLC). The reading should be approximately 60 ohms.
8. If all wiring and power sources test good, the SDM is the likely culprit and may require replacement and programming.

Parts You'll Likely Need

• Sensing and Diagnostic Module (SDM) (OEM #13518050) — This part is only needed if it is confirmed to have failed internally after all wiring and power issues have been ruled out. Part number may vary by specific year and options; 13518050 is for 2015-2016 models.
  Trusted brands: ACDelco (GM Genuine)
  OEM price range: $400-$600
  Aftermarket price range: $300-$500
• Wiring Repair Supplies — Often, the fix is repairing the damaged wires in the pinched harness, not replacing a major component.
  Trusted brands: 3M
  OEM price range: $10-$30
  Aftermarket price range: $5-$20

Related Codes That Often Appear With This One

• U0028, U0029, U0077, U0126, U0415 — These are other network communication codes that are frequently stored alongside U0151 when the dash wiring harness is pinched, as multiple module communication lines run through that harness.
• B3101, B144C, C0710, C0544 — These are Body and Chassis codes also listed in TSB PIT5288H, pointing to the widespread electrical disruption caused by the pinched harness affecting systems like RKE, Stabilitrak, and power windows.

Technical Service Bulletins (TSBs) & Recalls

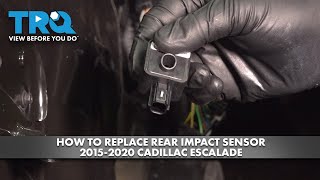

• Bulletin #PIT5288H: The definitive document for this issue. It lists U0151 and over a dozen other codes, provides photos of the pinched harness location, and gives the exact repair procedure. It applies to all 2015-2020 Escalade, Tahoe, Suburban, 🎬 Watch: How to replace a rear impact sensor on this platform. and Yukon models.

Platform-Specific Known Issues

• A GM Technical Service Bulletin (PIT5288H) directly addresses U0151 on 2015-2020 Escalades. It points to the dash harness being pinched by the left instrument panel mounting bracket, causing a variety of communication codes and electrical failures.
• Owner experiences on forums for platform-mate vehicles like the Chevrolet Tahoe and Suburban confirm that this pinched harness is a common, real-world problem that dealers and independent shops are familiar with.

Mechanic-Grade Diagnostic Values

• High-Speed CAN Bus Resistance — expected: 60 Ohms (± 5 Ohms). Failure: A reading of ~120 Ohms indicates an open circuit or one missing termination resistor. A reading significantly less than 60 Ohms indicates a short between the CAN High and Low wires.
• CAN Bus Voltage (Key On, Engine Off) — expected: CAN High (Pin 6 to ground) ≈ 2.5V; CAN Low (Pin 14 to ground) ≈ 2.5V. This is the 'recessive' or idle state.. Failure: Voltages stuck at 0V, battery voltage, or not mirroring each other indicate a short to ground, short to power, or an open wire.
• SDM Power Supply — expected: 12.0V (± 0.5V). Failure: Low or no voltage indicates a blown fuse, or an open/short in the power feed wire.
• SDM Ground Circuit Resistance — expected: < 0.1 Ohms. Failure: High resistance (anything over 1 Ohm is suspect) indicates a corroded or loose ground connection.

Scan Tool Commands That Help

• GM GDS2 (Global Diagnostic System 2): Setup SDM Part Number in BCM — This function must be run after installing a new SDM to make the Body Control Module (BCM) recognize the new airbag module.
• GM GDS2 (Global Diagnostic System 2): Configure New Module — This is the main setup procedure run after 'Setup SDM Part Number in BCM' to program the new SDM with the vehicle's specific configuration and options.
• GM GDS2 (Global Diagnostic System 2): Enable Deployment Loops — This is a final step in the SDM setup process that arms the airbag and pretensioner circuits. If this step fails, it often indicates other faults are still present in the SRS system.

Wiring & Ground Locations

• TSB Pinch Point — Deep behind the driver's side dashboard, where the main harness passes the left-hand instrument panel (IP) mounting bracket near the parking brake assembly.. This is the most probable cause of U0151 and other communication codes on this vehicle, as documented in TSB PIT5288H.
• G2xx Grounds (Dash Area) — GM designates grounds in the instrument panel/front cabin area with 'G2xx' numbers. A key ground is often located under the A-pillar trim.. A poor dash ground can cause intermittent communication issues for multiple modules in the cabin, including the SDM. These are known to fail on GM trucks.
• G3xx Grounds (Body/Frame) — Grounds designated 'G3xx' are typically in the rear passenger area, often on body mounts under the vehicle near the B-pillars.. Frame and body grounds are exposed to the elements and are common points of corrosion that can lead to high resistance and electrical problems.

When the Usual Fixes Don't Work

• While TSB #PIT5288H pointing to the pinched dash harness is the most prevalent cause for U0151 on this platform, it is not the only possibility. If a thorough inspection of the harness reveals no damage, the diagnostic path must expand. Another documented, albeit rarer, cause for widespread electrical issues on these trucks is the main B+ battery cable shorting against the starter motor's heat shield, as described in TSB #PIT5405B. This can create voltage fluctuations that disrupt communication across the network. Therefore, if the primary TSB is a dead end, inspecting the starter wiring and verifying all major chassis grounds should be the next step before condemning the SDM.

OEM Part Supersession History

• 13512419, 13590221, 13592891, 13594413 → 13518050 — Standard part evolution for improved reliability or manufacturing changes.
  Heads up: This part requires programming with GDS2 software after installation. Using the wrong part number for the model year will result in a programming failure.

Model Year Variations Within This Range

• 2015-2016: These model years primarily use the SDM part number 13518050 (or its predecessors).
• 2017-2020: Later model years in this generation use different SDM part numbers (e.g., 84387139, 84532322). While the TSB for the pinched harness applies to all years, the replacement module itself is year-specific and must be sourced correctly.
