U0101 on 2012-2016 Ford Focus Electric: Lost TCM Communication Causes and Fixes

What's Unique About the 2012-2016 Ford FOCUS ELECTRIC

It is critical to distinguish the Focus Electric from its gasoline-powered counterpart. The gasoline-powered 2012-2016 Ford Focus is infamous for issues with its DPS6 automatic transmission, specifically a Transmission Control Module (TCM) with a very high failure rate. This problem was so prevalent that Ford issued multiple Technical Service Bulletins and a major Customer Satisfaction Program (14M02) extending the TCM warranty. However, the Ford Focus Electric does NOT use the DPS6 transmission and is NOT affected by this specific, widespread TCM defect. Therefore, a U0101 code on a Focus Electric is not indicative of this famous issue and is more likely caused by general electrical problems such as wiring, connector, or grounding faults.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Transmission warning light is on
• Check Engine Light is on
• PRNDL/S gear indicator on the dashboard flashes or goes blank
• Vehicle will not start or has an intermittent no-start condition
• Complete loss of transmission engagement or power
• Harsh, erratic, or delayed engagement
• Vehicle gets stuck or will not shift out of Park
• "Hill Start Assist Not Available" message on dash
• "Parking Aid Malfunction/Service Required" message on dash

Most Likely Causes

1. Wiring or Connector Issues 🔴 High Probability Wiring harnesses can be subject to chafing, corrosion, or loose pin connections, which can interrupt communication on the CAN bus. Given the lack of a widespread module failure on the Electric model, wiring becomes a more probable cause.
   How to confirm: Visually inspect the wiring harness and connector at the TCM for damage. Use a multimeter to check for continuity on the CAN bus wires (should be around 60 ohms of resistance across CAN High and CAN Low with the battery disconnected) and verify stable power and ground at the TCM connector.
   Typical fix: Repair the damaged section of the wiring harness or clean/tighten the connector pins. Ensure the harness is properly secured.
   Est. part cost: $10-$150
2. Poor Ground Connection 🔴 High Probability Ford platforms of this era are known for poor chassis ground connections from the factory, where paint on the body interferes with the connection. This can lead to intermittent electrical faults. A common problem area is the set of grounds located under the airbox. 🎬 Watch: How to clean the main battery ground connection.
   How to confirm: Locate the main ground points for the powertrain. A YouTube video by user Mike Potts specifically shows cleaning the main ground points under the airbox on a 2012 Focus to resolve electrical issues. Measure the resistance between the ground pin at the TCM connector and the negative battery terminal; it should be less than 0.5 ohms.
   Typical fix: Remove the ground connection(s), thoroughly clean the contact surfaces of all paint and corrosion down to bare metal, and re-secure the connection tightly. Applying a dielectric grease or protective spray can prevent future corrosion.
   Est. part cost: $0-$20
3. Low Battery Voltage 🟡 Medium Probability
   How to confirm: Test the 12V battery with a multimeter or load tester. Voltage should be above 12.4V with the vehicle off. Low or unstable voltage can cause unpredictable communication errors between modules.
   Typical fix: Charge or replace the 12V battery.
   Est. part cost: $150-$250
4. Failed Transmission Control Module (TCM) ⚪ Low Probability Unlike the gasoline Focus, the Electric model's TCM is not known for a high failure rate. While any electronic module can fail, it should not be the first assumption. This is a 'last resort' diagnosis after all other possibilities are eliminated.
   How to confirm: This is a process of elimination. If the 12V battery is healthy, and power, ground, and CAN bus wiring to the module are all verified to be intact and showing correct signals with an oscilloscope, the TCM itself is the presumed cause.
   Typical fix: Replace the Transmission Control Module. The new module must be programmed to the vehicle by a dealer or a qualified shop with Ford-specific software.
   Est. part cost: $400-$1000

Diagnosis Steps

1. Check the 12V battery first. Ensure it is fully charged and passes a load test. Low voltage is a common cause of communication codes.
2. Scan for all diagnostic trouble codes (DTCs) from all vehicle modules. Note which modules are not communicating. If only the TCM is offline, the fault is isolated to that circuit.
3. Inspect and clean the main chassis ground connections, especially the ones located under the air filter box, as they are a known weak point due to paint overspray from the factory.
4. Visually inspect the wiring harness and connectors leading to the TCM for any signs of physical damage, chafing, or corrosion.
5. Using a wiring diagram and a multimeter, verify that the TCM is receiving proper battery voltage and has a solid ground connection at the connector pins.

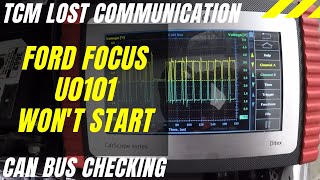

6. If possible, use an oscilloscope to check for proper CAN bus signal at the TCM connector. This confirms the network wiring to the module is intact.
7. If power, ground, and CAN network wiring are all confirmed to be good, the Transmission Control Module (TCM) is the most likely defective component and requires replacement and programming.

Parts You'll Likely Need

• Transmission Control Module (TCM) (OEM #AE8Z-7Z369-F (Note: This is for the GASOLINE model with DPS6, NOT the Focus Electric. Part number for Electric model TCM may differ.)) — While not a common failure on the Electric, if all wiring and grounds are good, the module itself is the point of failure. The listed part number is for the widely discussed gasoline model and serves as a reference; confirm the correct part for the Electric model via VIN.
  Trusted brands: Motorcraft
  OEM price range: $600-$1015
  Aftermarket price range: $350-$550

Related Codes That Often Appear With This One

• U0100 — This code for 'Lost Communication with ECM/PCM' often appears with U0101 as a failing TCM or network wiring issue can destabilize the entire communication bus.
• U1013 — This code for 'Invalid Internal Control Module Monitoring Data Received' can indicate the TCM is beginning to fail and sending corrupt data before it fails completely. It is specifically mentioned in TSBs for the gasoline model's failure.
• P0606 — This code for 'PCM Processor Fault' can be triggered when the PCM receives nonsensical data from a failing module on the network, leading the PCM to flag an internal error.
• U0155 — This code for 'Lost Communication With Instrument Panel Cluster' can appear if the network fault is widespread, affecting communication between multiple modules.

Technical Service Bulletins (TSBs) & Recalls

• TSB 16-0129: Addresses no-start, loss of power, and flashing PRNDL with DTCs U0100, U0101, U1013, and/or P0606. NOTE: This TSB applies to gasoline models with the DPS6 transmission, not the Focus Electric.
• TSB 16-0044: A similar, superseded bulletin that also covers intermittent loss of engagement and other symptoms on DPS6-equipped models. NOTE: Does not apply to Focus Electric.

Platform-Specific Known Issues

• CRITICAL DISTINCTION: Gasoline vs. Electric Models: The vast majority of online information, TSBs (like 16-0129), and warranty extensions (14M02) for code U0101 on a Ford Focus refer specifically to the gasoline model's faulty DPS6 transmission TCM. The Focus Electric has a different powertrain and is not covered by these programs. Diagnosing a U0101 on an Electric model should focus on general electrical integrity (grounds, wiring, battery) before suspecting the TCM itself.
• Poor Factory Grounding Points: A well-documented issue on the Focus platform is inadequate grounding from the factory due to paint on the chassis contact points. The primary ground points under the airbox are a frequent cause of intermittent and difficult-to-diagnose electrical problems, including communication codes like U0101. Cleaning these grounds to bare metal is a common and effective fix.
