OBD-II Code P2562: Turbocharger Boost Control Position Sensor 'A' Circuit

What Does P2562 Mean?

P2562 indicates your car's Powertrain Control Module (PCM) detects an electrical fault in the turbocharger boost control position sensor circuit. This sensor reports the exact position of the wastegate or variable vanes controlling turbo pressure. When the signal falls outside expected voltage ranges, the PCM cannot manage boost, triggering limp mode.

Technical definition: The SAE/ISO definition is 'Turbocharger Boost Control Position Sensor A Circuit.' The PCM sets this code when the sensor's feedback voltage drops below 0.5V, exceeds 4.5V, or fails to match the expected value for the commanded actuator position.

Can I Drive With P2562?

Yes, But With Caution. You can drive short distances, but we strongly advise against it. Your vehicle will suffer reduced power, a 15-20% drop in fuel economy, and enter a protective 'limp mode'. Forcing the engine to run with improper boost control destroys turbocharger bearings (a $1,500-$3,000 repair) or permanently clogs the Diesel Particulate Filter (DPF) on diesel vehicles.

Common Causes

• Damaged or shorted wiring harness (Very Common) — High heat and vibration near the turbo melt or crack the sensor's wiring insulation, causing open or short circuits. This is the number one cause of P2562.
• Corroded electrical connectors (Common) — Moisture and oil contaminate the sensor or PCM connectors. Bent or pushed-out pins create high resistance, skewing the voltage signal.
• Faulty Turbocharger Boost Control Position Sensor (Common) — The sensor fails internally from extreme heat cycles. Degraded coils send erratic or dead voltage signals to the PCM.
• Actuator rod out of adjustment (Less Common) — The retaining clip holding the actuator rod breaks, or the rod length falls out of factory spec. This skews the baseline voltage, a notorious issue on 2011-2019 Hyundai/Kia 2.0T engines.
• Sticking turbocharger actuator or wastegate (Less Common) — Carbon buildup binds the wastegate arm or variable turbo vanes. The mechanical jam creates a mismatch between the commanded and actual position.
• Vacuum system failures (Less Common) — On vacuum-actuated turbos, cracked vacuum lines or a clogged control solenoid prevent the actuator from moving, triggering the position fault.
• Faulty Powertrain Control Module (PCM) (Rare) — The engine computer suffers an internal circuit failure and cannot read the sensor signal.

Symptoms

• Check Engine Light illuminated — The Malfunction Indicator Lamp (MIL) turns on immediately when the PCM detects the circuit fault.
• Limp mode and severe power loss — The vehicle feels sluggish, hesitates, and refuses to accelerate hard as the PCM cuts boost to protect the engine.
• Poor fuel economy — MPG drops by 15-20% due to inefficient combustion and the engine working harder without turbo assistance.
• Unusual turbo noises — Loud whining, hissing, or rattling from the engine bay indicates a stuck wastegate or boost leak.
• Black exhaust smoke — Diesel engines emit heavy black smoke under acceleration due to a rich air-fuel mixture from lack of boost.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Repairing or replacing the wiring harness section — Parts: $10-$50, Labor: $150-$350, ~1.5 hr book time (Intermediate)
• Replacing the Turbocharger Boost Control Position Sensor — Parts: $150-$300, Labor: $80-$150, ~1 hr book time (DIY)
  GM Duramax (LLY/LBZ/LMM/LML): OEM 12643471, 12635324 (Alt: Garrett 763527-0712)
• Adjusting the actuator rod (Hyundai/Kia) — Parts: $0, Labor: $100-$200, ~1 hr book time (Intermediate)
• Replacing the Turbocharger Actuator Assembly — Parts: $200-$500, Labor: $150-$300, ~2 hr book time (Intermediate)
  Hyundai/Kia (2.0T): OEM 39400-2G700, 39400-2GTA0 (Alt: Dorman 667-245)
  Ford F-150 EcoBoost (Gen 1): OEM Contact dealer with VIN (Alt: Turbosmart TS-0622-4052)
• Replacing the Turbocharger Assembly — Parts: $1,500-$3,000, Labor: $500-$800, ~5.5 hr book time (Professional)

DIY vs Professional

• Repairing wiring harness — Beginner:
  Tools: Multimeter, wire strippers, soldering iron, heat shrink tubing.
• Replacing actuator/sensor — Beginner:
  Tools: Basic hand tools, penetrating oil, retaining clip tool, torque wrench.
• Adjusting actuator rod — Beginner:
  Tools: 10mm wrench, multimeter with back-probe pins, needle-nose pliers.
• Replacing entire turbocharger — Beginner:
  Tools: Professional lift, specialized automotive tools, torque wrenches, fluid drain pans.

Used vs. New Parts: Buying Guide

When a used part is worth it: A used OEM actuator from a low-mileage donor vehicle is a cost-effective option for older cars where a new $500 part is cost-prohibitive.

Donor-vehicle mileage cap: roughly under 75000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the donor vehicle's mileage and reason for being scrapped.
• Match the part number exactly; electronic components do not interchange between model years.
• Reject parts with signs of corrosion, heat damage, or physical tampering.

Decision logic:

• If Vehicle is under 100K miles and retains significant value → Buy a new OEM or high-quality aftermarket part to ensure longevity.
• If The part is a known high-failure item with internal plastic gears → Strongly favor a new part, as a used one has limited remaining life.
• If Budget is the primary concern on an older vehicle → A used part is acceptable, but carries the risk of premature failure and repeated labor costs.

Warranty tradeoff: Salvage yard parts carry a 30-90 day warranty covering only the part. New aftermarket parts offer 1-year warranties. New OEM parts offer the best warranty but at the highest cost.

Worst-case if a used part fails: $300-$600 if a used actuator fails shortly after installation, primarily due to repeated diagnostic and labor fees.

What Happens If You Wait — Timeline

1. 0-4 weeks: Check Engine Light illuminates. The vehicle experiences intermittent hesitation, or the code toggles on and off without severe symptoms. (MPG impact: 0-5%% · Added cost: $0)
2. 1-3 months: The vehicle consistently enters limp mode with severe power loss. The PCM defaults to a safe, low-boost state, drastically reducing efficiency. (MPG impact: 10-20%% · Added cost: $50-$150 in wasted fuel)
3. 3-6 months: On diesel engines, inefficient combustion creates excessive soot. This clogs the Diesel Particulate Filter (DPF), preventing successful regeneration cycles. (MPG impact: 15-25%% · Added cost: $300-$2,500 (Professional DPF cleaning or forced regeneration))
4. 6+ months: Catastrophic failure. The DPF requires full replacement, or running with a stuck wastegate destroys the turbocharger bearings due to over-speeding. (MPG impact: 25-40%% · Added cost: $2,000-$7,000 (DPF and/or complete turbocharger replacement))

Cost of Not Fixing It

• 0-1 month: Noticeable drop in fuel economy (15-20%), sluggish performance, and automatic emissions test failure. (Added cost: $50-$150 in wasted fuel)
• 1-6 months: Continued operation with incorrect boost causes excessive soot buildup, clogging the Diesel Particulate Filter (DPF) on diesel vehicles. (Added cost: $1500-$4000 for DPF cleaning or replacement)
• 6+ months: Catastrophic turbocharger failure. Uncontrolled boost destroys turbo bearings, requiring a full turbo replacement. (Added cost: $2000-$4000)

Diagnosis Steps

1. Read Codes and Freeze Frame Data
   Use an OBD-II scanner to confirm P2562 and check for paired codes. Analyze the 'Freeze Frame' data to see the exact conditions when the fault occurred. Compare the 'Commanded' actuator position to the 'Actual' position; a discrepancy points to a mechanical issue, while a fixed 0V or 5V value proves an electrical fault.
   Tools: Advanced OBD-II Scanner (Beginner)
2. Inspect Wiring and Connectors
   Locate the turbocharger actuator. Inspect the wiring harness for melted insulation or frayed wires. Unplug the sensor and check the pins for corrosion, moisture, or push-back. Clean with contact cleaner and apply dielectric grease.
   Tools: Flashlight, Electrical Contact Cleaner, Dielectric Grease (Beginner)
3. Test Sensor Circuit Voltages
   With the ignition on (engine off), back-probe the sensor connector. Verify a 5-volt reference and a solid ground. The signal wire voltage must sweep smoothly between 0.5V and 4.5V as the actuator moves. 🎬 Watch this walkthrough on testing and replacing the vane position sensor. On Hyundai/Kia models, verify the closed-position voltage is exactly 4.0V-4.2V.
   Tools: Digital Multimeter, Back-probe Kit (Intermediate)
4. PRO TIP: The Wiggle Test
   While monitoring the sensor's live voltage with a multimeter or scanner, aggressively wiggle the wiring harness between the sensor and the PCM. If the voltage flickers or drops out, you have pinpointed an intermittent break in the wire.
   Tools: OBD-II Scanner (Live Data) or Multimeter (Intermediate)
5. Test Actuator Mechanical Function
   Manually move the wastegate actuator rod to ensure it moves freely without binding. For electronic actuators, use a bi-directional scan tool to command a 0% to 100% sweep while observing the physical movement and live voltage.
   Tools: Hand tools, Bi-directional Scan Tool (Advanced)
6. Check Wiring Continuity
   Disconnect the battery, sensor, and ECU connectors. Measure resistance (Ohms) between the sensor connector and the ECU pins. An 'OL' reading confirms a broken wire. Test each wire against the chassis to rule out a short to ground.
   Tools: Digital Multimeter, Vehicle-Specific Wiring Diagram (Advanced)
7. PRO TIP: Analyze Signal with an Oscilloscope
   For hidden intermittent faults, graph the sensor's signal voltage in real-time using an oscilloscope. A failing sensor or poor connection shows up as sharp dropouts or 'hash' on the waveform as the actuator moves.
   Tools: Digital Storage Oscilloscope (DSO) (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• Engine Coolant Temp: 180-210°F (Fully warmed up)
• RPM: 1500-2500 (Cruise or steady throttle under load)
• Engine Load: 30-60% (Moderate acceleration or climbing a grade)
• Vehicle Speed: 40-65 mph (Highway or expressway driving)

Related Codes

• P2563 — P2562 is an electrical circuit fault; P2563 is a performance fault. If P2563 appears under load, it indicates a mechanical issue like a sticking actuator. They frequently appear together.
• P2564 — Indicates the sensor circuit voltage is too low. This points directly to a short to ground in the signal wire, a broken 5V reference wire, or a dead sensor.
• P2565 — Indicates the sensor circuit voltage is too high. This proves a short to voltage in the signal wire or an open ground circuit. It frequently pairs with P2562 on Hyundai/Kia vehicles needing rod adjustment.
• P0045 — Refers to an open circuit in the boost control solenoid. If the solenoid fails, the actuator cannot move, causing the PCM to flag the position sensor circuit due to static readings.
• P0299 — Means 'Turbocharger Underboost Condition.' When the position sensor fails, the ECU opens the wastegate to prevent damage, resulting in a total loss of boost pressure.

Climate & Environmental Factors

• Hot & Dusty Climates: High ambient heat accelerates electronic actuator failure, while dust and soot buildup causes mechanical variable nozzle turbo (VNT) mechanisms to stick.
• Cold Weather: Metal contraction and freezing moisture in connectors or vacuum lines exacerbate marginal faults, causing limp mode to trigger primarily on cold mornings.
• High Humidity / Road Salt: Salt and moisture accelerate corrosion on electrical connector pins, increasing circuit resistance and skewing the sensor's voltage signal.

How to Talk to a Mechanic About This Code

Say this: "I have a P2562 code and reduced power. I need a diagnostic to test the turbocharger boost control position sensor circuit. Please start with a visual inspection of the wiring harness near the turbo and check the sensor's voltage readings before recommending parts."

This proves you understand the common causes are electrical, not a failed turbo. It directs the technician to perform low-cost diagnostic steps first, preventing an immediate quote for an expensive turbo replacement.

Avoid saying:

• 'My check engine light is on.'
• 'My car is in limp mode, just fix it.'
• 'I think I need a new turbo.'

Questions to ask before authorizing the repair:

• Did you perform a visual inspection of the wiring and connector? Was there heat damage?
• What was the sensor's voltage reading at rest and when actuated? Did it sweep smoothly?
• Can you show me the freeze frame data from the original code?
• If a part needs replacement, is it the sensor, the actuator, or the full assembly?

Where to Take It: Dealer vs Independent vs Chain

• Dealer:
  Best for: Vehicles under powertrain or emissions warranty., Known manufacturer-specific issues covered by a TSB, like the Hyundai/Kia actuator adjustment., Complex European brands requiring proprietary software.
  Downsides: Highest labor rates., Dealers frequently replace entire assemblies rather than cheaper individual sensors. (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit for most cases. An experienced independent technician easily diagnoses and repairs the common causes of P2562 without the dealer price tag.
  Best for: Out-of-warranty vehicles where cost is a primary concern., Diagnosing common electrical faults and performing wiring repairs., Second opinions after receiving a high quote from a dealer.
  Downsides: Quality varies. Look for ASE-certified shops with strong diagnostic reviews., May lack access to the latest manufacturer TSBs. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID for diagnosis and repair. This code requires specific voltage checks and live data analysis beyond the scope of a typical chain shop.
  Best for: Reading the initial code for free., Simple, unrelated maintenance like oil changes.
  Downsides: Technicians often lack specialized diagnostic training., High pressure to sell parts leads to unnecessary replacements without proper voltage testing. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the total estimated repair cost for the P2562 fault exceeds 40-50% of your car's current private-party value, seriously consider alternatives to fixing it.

• Car worth $4000, fix is $2000: Walk away. A $2,000 turbo replacement on a $4,000 car is a poor investment.
• Car worth $12000, fix is $450: Fix it. A $450 repair for a new actuator restores full functionality and protects the vehicle's value.
• Car worth $2500, fix is $350: Borderline, but likely fix it. If the fix is a simple wiring repair or sensor, it is worth the cost to keep the car running.

What Scan Tool You Need for This Code

Minimum: A scanner that reads codes and displays live data for the Turbocharger Boost Control Position Sensor.

A basic $20 code reader only shows the P2562 code. It cannot display the live voltage from the sensor, which is mandatory to determine if the part is dead, erratic, or just out of adjustment.

Budget: BlueDriver Pro (~$99) — Connects to your smartphone and displays live data, including the commanded vs. actual position of the actuator. This proves if the sensor is responding.

Mid-range: Innova 5610 or Foxwell NT604 Elite (~$150) — Offers bi-directional control. This allows you to command the actuator to move through its full range while watching the sensor's voltage, definitively proving which component failed.

Professional: Autel MaxiCOM MK808 (~$500) — Provides OEM-level diagnostics, bi-directional control, advanced graphing, and performs the 're-learn' adaptation procedure required after replacing an actuator.

Rent vs buy: Buying a budget scanner with live data is a smart investment. If your issue requires bi-directional control, buying a mid-range scanner costs less than a single diagnostic fee at a shop.

How to Clear the Code After You Fix It

1. Reconnect battery (if disconnected for repair)
2. Use an OBD-II scan tool to clear all diagnostic trouble codes.
3. Perform a complete drive cycle to allow readiness monitors to run.

Drive cycle (~30 minutes): Start with a cold engine. Idle for 3 minutes with electrical loads on. Drive for 15 minutes at a steady 55 mph. Perform 15 minutes of mixed stop-and-go city driving. Allow the vehicle to cool completely.

Readiness monitors affected: Catalyst Monitor, Evaporative System Monitor, Oxygen Sensor Monitor

Before emissions retest: drive at least 100 miles to fully set monitors.

Watch out for:

• Clearing the code without fixing the underlying electrical fault guarantees the code will return immediately.
• Failing to perform a full drive cycle leaves OBD-II readiness monitors 'Not Ready', causing an automatic emissions test failure.
• Skipping the initial cold start prevents specific monitors from running.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An active P2562 code causes an automatic smog check failure. All OBD-II readiness monitors must be 'Ready', requiring a complete drive cycle post-repair.
• New York: The NYS inspection includes an OBD-II scan. A check engine light with code P2562 results in immediate failure.
• Texas: In the 17 counties requiring emissions testing, a vehicle with P2562 fails the OBD-II portion of the inspection.

Most Commonly Affected Vehicles

• Hyundai Sonata, Santa Fe, Tucson, Veloster (2011-2018) — Extremely common on 2.0L and 1.6L Turbo engines due to Electronic Wastegate Actuator (EWGA) rod adjustment issues. The fix is usually a rod adjustment or replacing the $250 actuator assembly.
• Kia Optima, Sportage, Forte (2011-2019) — Shares engines with Hyundai and suffers identical EWGA issues. TSBs require an ECU reflash and actuator rod adjustment to set the closed-position voltage to 4.0V-4.2V.
• Ford Ranger, F-Series PowerStroke, EcoBoost models (2011-2020) — On diesel models, carbon buildup causes VGT vanes to stick. On EcoBoost engines, wiring and electronic actuator failures are the primary culprits.
• Chevrolet / GMC Silverado / Sierra Duramax, Cruze (2011-2016) — On LML Duramax diesels, the turbo vane position sensor is a known high-failure item. On the 1.4L Cruze, wiring harness melting near the hot turbocharger is frequent.
• Toyota HiLux, Prado, Fortuner (2005-2023) — On 1KD and 1GD diesel engines, the electronic actuator for the variable nozzle turbo (VNT) fails frequently due to heat and vibration.
• Volkswagen Jetta, Golf, Amarok (TDI) (2009-2015) — TSB 21-15-06 points to specific issues like a broken turbo mounting stud, kinked vacuum lines, or a leaking actuator vacuum diaphragm.

Manufacturer-Specific Notes

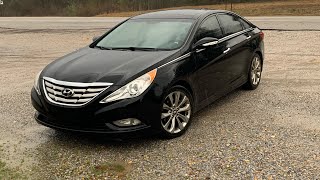

• Hyundai / Kia: On 2.0L and 1.6L turbos, the Electronic Wastegate Actuator (EWGA) rod length falls out of adjustment. TSBs require loosening the locknut and adjusting the rod to achieve a 4.0V-4.2V closed-position voltage.
• Ford / GM / Ram (Diesel Trucks): On Variable Geometry Turbos (VGT), carbon buildup prevents internal vanes from moving freely. This causes the actuator to report a performance error, triggering P2563 alongside P2562.
• Citroen / Peugeot: On HDI diesels, cracked vacuum lines or a clogged foam filter on the control solenoid prevent the actuator from functioning, triggering the electrical code.
• Volkswagen: On 2.0L TDI engines, a broken mounting stud allows the turbo housing to rotate slightly. This puts the actuator's travel out of tolerance, triggering the code per TSB 21-15-06.
• GM Duramax (LLY): Replacing the turbo vane position sensor on 2004.5-2005 LLY engines requires a separate wire harness adapter to connect the updated sensor to the old engine harness.

Real Owner Stories

2012 Hyundai Sonata 2.0T at 86k miles with intermittent limp mode

The car intermittently lost power and entered limp mode on cold mornings. The P2562 code appeared but occasionally cleared itself after a restart.

What they tried:

1. Cleared the code and reset the ECU by disconnecting the battery, but the code returned within days.

Outcome: A mechanic checked the sensor voltage and found it reading 4.4V. They adjusted the electronic wastegate actuator (EWGA) rod to achieve the factory-spec 4.1V. The repair cost $150 in labor and permanently resolved the issue.

Lesson: For Hyundai/Kia turbo models, P2562 is usually an adjustment issue, not a failed part. Checking the baseline voltage saves hundreds of dollars in unnecessary parts.

2014 Chevy Cruze 1.4T with sudden power loss

The car suddenly lost all boost while driving. The check engine light illuminated with code P2562.

What they tried:

1. Took it to a chain shop, which quoted $1,800 for a full turbocharger replacement based solely on the code.

Outcome: A second opinion at an independent shop revealed the wiring harness for the position sensor had melted against the hot turbo housing. The mechanic repaired the wires and added heat shielding for $180.

Lesson: Never replace a turbocharger for a P2562 code without physically inspecting the wiring harness first. Heat damage is incredibly common and cheap to fix.

2010 VW Golf TDI with P2562 and P0299 (Underboost)

The car experienced power loss at low RPMs and triggered both P2562 and P0299 codes.

What they tried:

1. Suspected a failed electronic actuator and priced out a $300 replacement part.

Outcome: Diagnosis revealed a cracked vacuum hose connected to the brake booster circuit. The vacuum leak prevented the turbo actuator from moving, triggering both the position fault and the underboost condition. A $5 hose fixed both codes.

Lesson: When P2562 pairs with an underboost code on a vacuum-actuated system, always test for vacuum leaks before replacing electronic components.

How to Prevent This Code From Triggering

• Install heat shielding on sensor wiring (Once) — Installing a high-temperature fiberglass split loom provides a physical barrier against turbo heat, preventing wires from melting or cracking.
• Perform an 'Italian Tune-Up' (Once a month) — For diesel VGT turbos, 20-30 minutes of sustained highway driving under load increases exhaust temperatures, burning off carbon deposits that cause vanes to stick.
• Use the exhaust brake regularly (Daily, during deceleration (diesel trucks)) — Activating the exhaust brake forces the VGT actuator through its full range of motion, exercising the mechanism and preventing soot buildup.
• Allow for engine warm-up and cool-down (Every drive) — Idling for 30-60 seconds before shutdown allows the turbo to cool, preventing oil coking in the bearings that leads to mechanical failure.

Frequently Asked Questions

Can I fix P2562 myself?

Yes, if the issue is a damaged wire, a bad connector, or a simple bolt-on sensor. However, if the repair requires adjusting an actuator rod to a specific voltage or performing a scan tool re-learn, take it to a professional.

What is the most common mistake when fixing P2562?

The biggest mistake is replacing the turbocharger or actuator without testing the wiring first. Damaged wiring causes over half of these codes, meaning you could waste hundreds of dollars replacing perfectly good parts.

My mechanic says I need a whole new turbo. Is that right?

It is highly unlikely for a P2562 code alone. The fault usually lies in the sensor, actuator, or wiring, which are replaceable separately on most vehicles. Always get a second opinion before authorizing a $2,000 turbo replacement.

What's the difference between a 'circuit' code and a 'performance' code?

A circuit code (P2562) means there is an electrical problem like a broken wire or dead sensor. A performance code (P2563) means the electrical circuit works, but the mechanical part is sticking or out of adjustment.

Will clearing the code make it go away?

No. Clearing the code turns off the light temporarily, but it returns immediately once the ECU runs its self-test and detects the persistent electrical fault.

What does 'limp mode' mean with a P2562 code?

Limp mode is a self-preservation function where the computer intentionally cuts engine power and limits RPMs. It does this to protect the engine and turbocharger from catastrophic damage caused by uncontrolled boost.

What does 'actuator adaptation' or 're-learn' mean?

After replacing an electronic actuator, the PCM must learn the new physical end-points of its travel. This adaptation process uses a scan tool to store the minimum and maximum voltage values so the computer knows the precise range of motion.

Can a bad battery or alternator cause P2562?

While rare, a failing alternator causes unstable system voltage that sensitive electronic modules misinterpret as circuit faults. Test your charging system if you experience multiple unrelated electrical codes simultaneously.

How do you test a turbo position sensor?

Verify a 5V reference and solid ground at the connector. Monitor the signal wire voltage with a multimeter while moving the actuator. The voltage must sweep smoothly between 0.5V and 4.5V without dropouts or spikes.

Key Takeaways

• Code P2562 indicates an electrical fault in the turbo boost control position sensor circuit, meaning you likely need a $150 sensor or wiring repair, not a $2,000 turbocharger replacement.
• Heat-damaged wiring near the turbocharger causes over 50% of P2562 codes, making a 5-minute visual inspection of the harness your mandatory first diagnostic step.
• Driving with an active P2562 code drops fuel economy by up to 20% and forces the engine into limp mode, which can permanently clog a diesel particulate filter (DPF) within 3 to 6 months.
• For 2011-2019 Hyundai and Kia 2.0T models, fixing P2562 often requires a simple 1-hour wastegate actuator rod adjustment to hit a target 4.0V-4.2V closed-position voltage.
