OBD-II Code P2495: EGR Cooler Bypass Position Sensor Circuit High

What Does P2495 Mean?

The Powertrain Control Module (PCM) detects the voltage signal from the EGR cooler bypass valve sensor is stuck too high (typically near 5V or 12V). This indicates a short circuit, preventing the computer from controlling exhaust gas flow to the EGR cooler.

Technical definition: EGR Cooler Bypass Position Sensor Circuit High (Bank 1). The PCM registers a voltage from the Bank 1 EGR cooler bypass position sensor that exceeds the maximum expected threshold (e.g., >4.87V for 5 seconds) due to a short to power or internal sensor failure.

Can I Drive With P2495?

Yes, But With Caution. You can drive temporarily, but the engine often enters a reduced power 'limp mode.' Ignoring P2495 halts DPF regeneration cycles, clogging the particulate filter and causing a $1,000-$3,000+ repair within weeks.

Common Causes

• Damaged Wiring Harness or Corroded Connector (Very Common) — Engine heat and vibration crack wire insulation, causing the sensor's signal wire to short directly to a 5V or 12V power source. Corroded connector pins or a broken ground wire also force the signal voltage to float high.
• Faulty EGR Cooler Bypass Position Sensor (Common) — The sensor fails internally, creating a short circuit that sends a continuous maximum voltage signal (typically 5 volts) back to the PCM.
• Stuck or Seized EGR Cooler Bypass Valve (Common) — Heavy carbon and soot buildup jams the bypass valve in one position. The sensor reports a physical position that the PCM deems electrically implausible, triggering the circuit code.
• PCM Software or Calibration Error (Less Common) — The vehicle's computer software contains a bug with overly sensitive voltage thresholds. Manufacturers often release Technical Service Bulletins (TSBs) with software updates to recalibrate these limits.
• Aftermarket Part Incompatibility (Uncommon) — Non-OEM EGR valves or sensors fail to meet the exact electrical resistance specifications required by the PCM, triggering false high-voltage readings.
• Faulty Powertrain Control Module (PCM) (Rare) — The internal PCM circuit that reads the sensor's voltage fails. This is the absolute last resort after ruling out all wiring, sensor, and mechanical faults.

Symptoms

• Check Engine Light is On — A persistent malfunction indicator lamp that will not clear on its own.
• Reduced Engine Power (Limp Mode) — The PCM limits acceleration and top speed to protect emissions components from overheating.
• Lower Fuel Economy — Inefficient EGR operation drops fuel efficiency by 5-10%.
• Rough Idle or Hesitation — The engine stumbles or hesitates during low-speed acceleration.
• Engine Knocking or Pinging — Higher combustion temperatures cause detonation, resulting in an audible knocking sound under load.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Repairing Damaged Wiring or Connector — Parts: $10-$50, Labor: $150-$300, ~1.5 hr book time (Intermediate)
• Replacing the EGR Cooler Bypass Valve Assembly — Parts: $250-$600, Labor: $200-$450, ~3 hr book time (Intermediate)
  Chevrolet/GMC Duramax LML (2011-2016): OEM GM 12639421 (Alt: ACDelco 214-2306)
  Ford 6.7L Power Stroke (2011-2016): OEM Ford BC3Z-9U465-A (Alt: Standard Motor Products (SMP))
  Ram 6.7L Cummins (2013-2018): OEM Mopar 68399240AA
• Replacing the EGR Cooler Bypass Position Sensor — Parts: $50-$150, Labor: $75-$150, ~1 hr book time (DIY)
• Cleaning Carbon from the EGR Cooler Bypass Valve — Parts: $20-$50, Labor: $150-$400, ~2.5 hr book time (Intermediate)
• Updating or Reprogramming the PCM — Parts: $0, Labor: $100-$200, ~1.5 hr book time (Professional)

Used vs. New Parts: Buying Guide

When a used part is worth it: A used OEM part from a reputable salvage yard is viable only for simple mechanical parts on high-mileage vehicles where budget is the primary concern.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Match the part number exactly; EGR systems are highly vehicle-specific.
• Visually inspect for heavy carbon buildup, corrosion, or physical damage.
• Verify the donor vehicle was not scrapped for emissions-related failures.

Decision logic:

• If The part is an integrated electronic/mechanical assembly (common for P2495) → Buy a new OEM or high-quality aftermarket part to avoid inheriting a hidden electrical fault.
• If Vehicle is older (>150K miles) and the new part cost is prohibitive → A used part is a reasonable gamble, but expect a shorter lifespan.
• If The vehicle is under an emissions warranty or recall for the part → Always use a new OEM part installed by a dealer to ensure coverage.

Warranty tradeoff: Used parts offer a 30-90 day warranty covering only the part. New aftermarket parts offer 1-year to limited lifetime warranties. New OEM parts carry the manufacturer's warranty.

Worst-case if a used part fails: $250-$550 if a used part fails after installation, representing repeat labor plus another replacement part.

What Happens If You Wait — Timeline

1. 0-1 month: Code P2495 sets and the Check Engine Light illuminates. The EGR system operates incorrectly, but there are no severe drivability symptoms. (MPG impact: 0-5%% · Added cost: $0-$50 in wasted fuel)
2. 1-4 months: Vehicle enters 'limp mode' intermittently. Faulty EGR operation prevents the DPF from regenerating effectively, causing rapid soot accumulation. (MPG impact: 5-10%% · Added cost: $50-$200 in wasted fuel)
3. 4-9 months: The DPF becomes significantly clogged. The DPF warning light illuminates, and the vehicle remains permanently in limp mode. Professional forced regeneration is required. (MPG impact: 10-15%% · Added cost: $300-$1,000 for DPF cleaning/forced regen)
4. 9+ months: The DPF completely blocks with hardened soot and ash, creating excessive exhaust backpressure that damages turbocharger seals. Full DPF replacement is mandatory. (MPG impact: 15-25%% · Added cost: $2,000-$5,000+ for DPF replacement and turbo repair)

Cost of Not Fixing It

• 0-3 months: Failed emissions test, persistent Check Engine Light, limp mode, and a 5-10% drop in fuel economy. (Added cost: $0-$50 in wasted fuel.)
• 3-9 months: The malfunctioning EGR system disrupts DPF regeneration, leading to a progressively clogged Diesel Particulate Filter (DPF) and severe performance loss. (Added cost: $300-$1,000 for a forced DPF regeneration or professional cleaning.)
• 9+ months: Catastrophic failure of the DPF requiring full replacement. Soot buildup seizes the EGR cooler, leading to a cascade of expensive repairs. (Added cost: $2,500-$8,000+ for DPF replacement and a new EGR cooler assembly.)

Diagnosis Steps

1. Read Codes and Freeze Frame Data
   Use an OBD-II scanner to confirm P2495. Record the freeze-frame data to see engine conditions (temp, RPM, load) when the fault occurred. Note any accompanying codes like P0401 or P249D.
   Tools: OBD-II Scanner (Beginner)
2. Visual Inspection & Wiggle Test
   Inspect the EGR cooler bypass sensor wiring harness for burnt or chafed wires. Unplug the connector and check for corrosion. While watching live sensor voltage on a scanner, gently wiggle the harness; if voltage jumps, you have an intermittent short.
   Tools: Flashlight, OBD-II Scanner with Live Data (Beginner)
3. Isolate the Fault: Sensor vs. Wiring
   Unplug the sensor connector. With the key on, engine off (KOEO), check the signal wire voltage on the harness side. If high voltage (5V or 12V) remains, the wiring harness is shorted to power. If voltage drops to 0V, the sensor is internally shorted.
   Tools: Multimeter (Intermediate)
4. Test the Sensor Circuit
   With KOEO, backprobe the connected sensor. Verify the Reference Voltage (steady ~5.0V), Ground (near 0Ω resistance to chassis), and Signal. A 'Circuit High' code is confirmed if the signal wire is stuck near 5.0V or battery voltage.
   Tools: Multimeter, Backprobe Kit (Intermediate)
5. Command the Valve with a Scan Tool
   Use a bi-directional scan tool to command the EGR cooler bypass valve open and closed. If the command sends but the live data position reading doesn't change, the valve is seized or the sensor has failed.
   Tools: Advanced Bi-Directional Scan Tool (Advanced)
6. Check for Mechanical Seizure
   If the valve fails to move when commanded, remove it. Inspect for heavy carbon buildup jamming the mechanism. The valve must move smoothly by hand without binding.
   Tools: Basic Hand Tools, Socket Set (Intermediate)
7. Verify PCM Integrity
   If wiring, sensor, and valve are perfect, test the PCM connection and internal circuit. Stop DIY here and take the vehicle to a diesel specialist if you lack manufacturer-specific pinout diagrams.
   Tools: Multimeter, Vehicle-Specific Wiring Diagrams (Professional)

When This Code Triggers (Freeze-Frame Conditions)

• Engine Coolant Temp: 180-200°F (82-93°C) (The fault sets when the engine is fully warmed up and attempting to route gas through the cooler.)
• Engine RPM: 1500-2500 RPM (Occurs during steady-state cruise or light acceleration when the PCM actively controls the bypass valve.)
• Engine Load: 30-60% (Common under moderate engine load, rarely at idle or full throttle.)
• Vehicle Speed: 45-65 mph (Highway or steady arterial driving conditions are present when the fault logs.)

Related Codes

• P2494 — The direct opposite code ('Circuit Low'). P2495 indicates a short to power (high voltage), while P2494 indicates a short to ground or an open circuit (low voltage). Both require inspecting the exact same wiring harness.
• P0401 — P0401 ('EGR Flow Insufficient') is a performance code. A stuck valve causing P2495 prevents correct gas flow, triggering P0401. Always fix the P2495 electrical circuit fault first.
• P245A — P245A ('EGR Cooler Bypass Control Circuit Open') indicates a complete loss of signal due to a broken wire. Diagnosis involves checking the same harness, but looking for an open circuit rather than a short to power.
• P249D — P249D ('Reductant Injection Control At Limit') affects the DEF/SCR system. A P2495 EGR fault disrupts exhaust temperatures, forcing the SCR system to overwork and trigger P249D. Fix P2495 first.

Climate & Environmental Factors

• Cold Climates: Diesel engines take longer to reach optimal operating temperature in cold weather, leading to incomplete combustion. This accelerates carbon buildup, causing the bypass valve to stick and trigger P2495.
• High Humidity / Moisture: Humid conditions introduce moisture into electrical connectors and actuator housings. Condensation corrodes pins and circuit boards, shorting the sensor signal to power.
• Short-Trip Driving: Frequent short trips prevent the exhaust system from getting hot enough to burn off carbon deposits. This directly causes accelerated clogging and sticking of EGR components.

How to Talk to a Mechanic About This Code

Say this: "I have an OBD-II code P2495, which is 'EGR Cooler Bypass Position Sensor Circuit High'. I need a diagnostic to confirm the cause. Please test the sensor's electrical circuit for a short to power before recommending a part replacement."

This signals that you understand the code points to a specific electrical fault. It directs the technician to perform a proper diagnosis rather than immediately replacing the most expensive component.

Avoid saying:

• 'My check engine light is on, can you just fix it?'
• 'I think I need a new EGR valve.'
• 'Just do whatever you think is best.'

Questions to ask before authorizing the repair:

• Did you test the circuit with the sensor unplugged to isolate the fault between the wiring and the sensor itself?
• What was the voltage on the signal wire when you tested it?
• Did you use a scan tool to command the bypass valve to move, and did it respond?
• If the valve needs replacement, is it mechanically seized or did the sensor fail?
• Will you provide a written estimate with a clear breakdown of parts and labor costs?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Recommended if a warranty or recall applies. They have the exact diagnostic procedures and software needed for an accurate fix.
  Best for: Vehicles under a powertrain or emissions warranty (e.g., the Ram/Cummins extended warranty)., Complex manufacturer-specific issues or required software updates (TSBs)., Owners who prioritize a guaranteed OEM part and repair.
  Downsides: Highest labor rates., May default to replacing an entire expensive assembly rather than repairing a simple wire. (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit for most out-of-warranty situations. A good independent diesel specialist will be adept at the necessary electrical and mechanical troubleshooting.
  Best for: Out-of-warranty diesel trucks., Owners looking for a balance of expertise and fair cost., Situations where a wiring repair is more likely and cost-effective than a full component replacement.
  Downsides: Quality and experience vary greatly. Look for shops specializing in diesel repair with ASE-certified technicians. (Typical cost: +0% vs. baseline)
• Chain Shop: Not recommended. The diagnostic process for P2495 is too nuanced and beyond the scope of most chain repair shops.
  Best for: Simple, routine maintenance like oil changes, tires, and brakes.
  Downsides: Technicians lack the specialized diesel and electrical diagnostic experience for this code., High pressure to sell parts leads to misdiagnosis and unnecessary replacement of components. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 40-50% of the vehicle's private-party market value, sell or trade it in rather than repairing it.

• Car worth $18000, fix is $1200: Fix it. The repair cost is well under the threshold and makes economic sense.
• Car worth $9000, fix is $4000: Borderline. The repair cost is approaching 50% of the vehicle's value. Get a second opinion before proceeding.
• Car worth $5000, fix is $3500: Walk away. The repair cost is a significant percentage of the truck's value. Put that money toward a replacement vehicle.

What Scan Tool You Need for This Code

Minimum: A scanner that reads live data streams (PIDs) for the EGR system.

A basic $20 code reader only shows the P2495 code. It cannot show the live voltage from the sensor, which is essential for determining if the fault is in the wiring or the sensor itself.

Budget: BlueDriver Pro or KINGBOLEN Ediag Elite (~$100) — These Bluetooth scanners display live data streams. This allows you to watch the EGR bypass sensor voltage in real-time while performing a 'wiggle test' on the wiring harness.

Mid-range: Foxwell NT510 Elite or Launch CRP129HD (~$150) — Offers bidirectional control. You can send commands directly from the scanner to open and close the EGR bypass valve. If the live data voltage doesn't change, it strongly points to a seized valve or failed sensor.

Professional: Autel MaxiCOM MK808 / ANCEL X7HD / XTOOL D9 (~$500-800) — Professional-grade tools offer full bidirectional control, advanced graphing of live data, and access to manufacturer-specific codes. They are the most powerful tools for definitively diagnosing complex electrical faults.

Rent vs buy: AutoZone's Loan-A-Tool program allows you to borrow a basic scanner for free. However, these rental scanners lack the live data and bidirectional functions needed for a proper P2495 diagnosis. You must buy a scanner with live data capability to diagnose this yourself.

How to Clear the Code After You Fix It

1. Use an OBD-II scan tool to clear the diagnostic trouble code (DTC).
2. Do not disconnect the battery, as this resets all readiness monitors unnecessarily.
3. Perform a complete drive cycle to allow the vehicle's readiness monitors to run.

Drive cycle (~30 minutes): A generic drive cycle includes a cold start (engine off for 8+ hours), a 2-3 minute idle, followed by mixed city/highway driving including steady speeds (e.g., 55 mph for 3-5 minutes) and gentle acceleration/deceleration.

Readiness monitors affected: EGR System, Catalyst (CAT), Oxygen (O2) Sensor, Comprehensive Component

Before emissions retest: drive at least 100 miles to fully set monitors.

Watch out for:

• Clearing the code with a scanner resets all emissions readiness monitors to 'incomplete'.
• The code returns immediately if the underlying electrical short or mechanical seizure is not repaired.
• Driving at a constant highway speed for a long distance fails to complete all necessary monitor checks.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An active P2495 code is an automatic failure. After repair, all readiness monitors must be set to 'Ready'. Driving 100+ miles with varied conditions is required before a retest.
• New York: The NYS DMV inspection includes an OBD-II scan. The presence of this code results in an immediate test failure.
• Texas: In the 17 counties requiring emissions testing, a vehicle with an illuminated Check Engine Light and this active code fails the OBD portion of the inspection.

Most Commonly Affected Vehicles

• Chevrolet/GMC Silverado/Sierra with Duramax LML (2011-2016) — GM released bulletin PI1449 for 2015 models, recommending replacement of the entire EGR cooler bypass valve assembly if P2495 appears alongside codes P24C4, P2493, and P06A3.
• Chevrolet/GMC Silverado/Sierra with Duramax L5P (2017-2024) — The L5P suffers from stuck EGR cooler bypass valves that disrupt DPF regeneration cycles, frequently triggering related downstream codes like P249D.
• Ford F-Series Super Duty with Power Stroke (2011-2024) — The 6.7L Power Stroke EGR system is highly susceptible to extreme heat and carbon buildup. Ford issued warranty extension 21M04 for related clogged EGR coolers on 2011-2014 models.
• Ram 2500/3500 with Cummins (2013-2024) — Many 2013-2018 models are covered by Emissions Recall 67A, providing a special extended warranty for the EGR Cooler Bypass Valve and Actuator.
• Volkswagen Jetta, Golf, Passat with TDI (2009-2015) — VW TDI models are susceptible to EGR valve and cooler problems due to carbon buildup, leading to sensor circuit faults.
• BMW X5, 335d, 535d with Diesel Engines (2009-2018) — Modern BMW diesels experience premature EGR valve failures from soot buildup, causing the valve to stick and trigger position sensor codes.
• Mazda CX-5, Mazda6 with SKYACTIV-D (2012-2018) — Mazda defines this fault strictly as a voltage over 4.87V for 5 seconds. Diagnostics focus heavily on identifying shorts in the wiring harness.
• Subaru Forester, Outback with Diesel Engines (2008-2020) — Subaru's diesel engines have a known history of EGR valve issues that cause a range of diagnostic trouble codes, including sensor circuit faults.

Manufacturer-Specific Notes

• General Motors (Duramax): GM bulletin PI1449 dictates that if P2495 is present with P24C4, P2493, and P06A3 on LML engines, you must replace the entire EGR cooler bypass valve assembly (GM Part #12639421).
• Ram (Cummins): Emissions Recall 67A provides a Special Extended Warranty for 2013-2018 Ram 2500/3500 trucks, explicitly covering the EGR Cooler Bypass Valve and Actuator for 10 years/120,000 miles.
• Mazda: Mazda's SKYACTIV-D service information specifies a precise voltage threshold (4.87V) and time duration (5 seconds) for setting the code, requiring highly specific pin-to-pin harness testing.
• Ford (Power Stroke): On 6.7L engines, intake passages for EGR flow completely block with carbon. Technicians often misdiagnose a bad EGR cooler or valve when the root cause is a restricted intake manifold.
• Ram (Cummins): The position sensor is part of the actuator motor, not the valve. The motor can retract and report a 'closed' position to the PCM even if the valve is mechanically stuck open, making physical inspection mandatory.

Real Owner Stories

2015 GMC Sierra 2500HD LML Duramax at 115K miles

Check Engine Light came on with P2495 and P249D (Reductant Control at Limit). Truck occasionally went into limp mode.

What they tried:

1. A local shop cleared the codes, which returned within 50 miles.
2. The shop suggested a DEF system repair, quoting over $1,000.

Outcome: The owner found GM bulletin PI1449 and took it to a dealer. The dealer diagnosed a sticking EGR cooler bypass valve and replaced the entire assembly. This resolved both codes.

Lesson: Downstream emissions codes (like P249D) are caused by upstream EGR faults. Always fix EGR circuit codes first and check for relevant TSBs.

2013 Ram 3500 Cummins at 98K miles

P2495 code appeared intermittently, especially in wet weather.

What they tried:

1. Replaced the EGR bypass position sensor, but the code returned a week later during a rainstorm.

Outcome: A visual inspection revealed the wiring harness rubbed against a firewall bracket. The signal wire insulation wore through, shorting to ground when wet. The mechanic repaired the wire and secured the harness, permanently fixing the issue.

Lesson: A 'Circuit High' code is frequently a wiring issue. Perform a detailed visual and electrical inspection before replacing expensive components.

2012 Ford F-250 6.7L Power Stroke at 150K miles

CEL with P2495 was on. The owner noticed a gradual loss of power and MPG.

What they tried:

1. The owner attempted to clean the EGR valve, but the code remained.
2. A shop tested the sensor and wiring and found both functional.

Outcome: Using an advanced scan tool, the shop commanded the bypass valve open. A borescope inspection revealed the valve barely moved due to extreme carbon buildup. The entire EGR cooler and bypass valve assembly required professional cleaning.

Lesson: If electrical tests pass, verify the mechanical integrity and movement of the valve itself. A sensor cannot report a mechanical restriction.

How to Prevent This Code From Triggering

• Avoid frequent short trips and excessive idling (Daily habit) — Short trips prevent the exhaust from reaching temperatures high enough to burn off soot, accelerating carbon buildup in the EGR system.
• Perform regular highway driving (Weekly or bi-weekly) — Driving at sustained highway speeds for 20-30 minutes initiates a DPF regeneration cycle and burns away soft carbon deposits in the EGR system.
• Use high-quality diesel fuel with detergents (Every fill-up) — Quality fuel with cleaning additives results in complete combustion, producing less soot to clog the EGR valve, cooler, and DPF.
• Use the correct specification low-ash (Low-SAPS) engine oil (Every oil change) — Incorrect oil creates ash when burned, which cannot be removed by DPF regeneration. This ash clogs emissions components permanently.
• Consider a preventative EGR system cleaning (Every 40,000-60,000 miles) — For vehicles used heavily for towing or city driving, professional cleaning removes carbon deposits before they cause mechanical seizure.

Frequently Asked Questions

What is an EGR cooler bypass valve?

It is a flap that directs exhaust gases around the EGR cooler when the engine is cold to speed up warmup. Once warm, it closes to force exhaust through the cooler, lowering combustion temperatures. This reduces NOx emissions.

Can I just clean the EGR parts instead of replacing them?

Yes, if the valve is mechanically stuck with carbon, cleaning it with approved solvents restores function. However, if the sensor fails electrically or is integrated into a sealed assembly, you must replace the entire unit.

What are common misdiagnosis mistakes for P2495?

The biggest mistake is replacing the sensor without testing the wiring harness for a short to power. Mechanics also frequently confuse the bypass sensor with the main EGR valve position sensor. Always verify the exact component location using a service manual.

Can a bad battery cause a P2495 code?

No. A bad battery causes system-wide low voltage issues, whereas P2495 specifically indicates excessively high voltage on a single circuit. This requires a localized short to a power source.

Is this a serious problem?

Yes. While it will not stall the engine immediately, it forces the vehicle into limp mode and disables DPF regeneration. Ignoring it guarantees a clogged DPF and thousands of dollars in downstream emissions repairs.

Why does the code say 'Bank 1'?

'Bank 1' identifies the side of the engine containing cylinder #1. On inline engines (like the Cummins 6.7L), there is only one bank, making this a standard OBD-II naming convention. It simply points to the primary EGR cooler bypass sensor.

Will a fuel additive or 'mechanic in a can' fix this code?

No. Fuel additives cannot fix an electrical short or a heavily seized mechanical valve. You must physically diagnose and repair the specific wiring fault or replace the failed component.

Key Takeaways

• P2495 triggers when the EGR cooler bypass valve sensor sends a continuous signal above 4.5V, indicating a short to power.
• Test the sensor circuit with a multimeter before buying parts; a 5V or 12V reading on the signal wire with the sensor unplugged confirms a wiring harness short.
• Driving with this code for more than a few weeks prevents DPF regeneration, leading to a clogged particulate filter and a $2,000+ replacement bill.

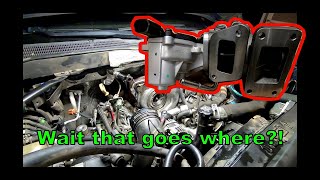

• On 2011-2016 GM Duramax and 2013-2018 Ram Cummins trucks, the sensor is integrated into the bypass valve assembly, requiring a $400-$800 full unit replacement.
