OBD-II Code P2459: Diesel Particulate Filter Regeneration Frequency

What Does P2459 Mean?

Code P2459 means your diesel vehicle's powertrain control module (PCM) detects the Diesel Particulate Filter (DPF) is regenerating (cleaning itself) too often. Normally, this occurs every 300-500 miles. P2459 indicates it is happening under 150 miles. This points to a DPF filling with soot too quickly or a faulty sensor tricking the computer into thinking the filter is full.

Technical definition: The SAE/OBD-II definition is "Diesel Particulate Filter Regeneration Frequency." The PCM monitors soot load using DPF pressure and temperature sensors, triggering this code when self-cleaning cycles initiate closer together than the pre-programmed threshold allows.

Can I Drive With P2459?

Yes, But With Caution. Yes, but only for a short time. Ignoring this code leads to reduced engine power, poor fuel economy, and a clogged diesel particulate filter. While P2459 doesn't immediately force a power derate, a plugged DPF eventually triggers 'limp mode' to prevent engine damage. Driving more than 100-200 miles causes complete DPF blockage, risking a $2,000 to $4,000+ repair bill and turbocharger damage from excessive exhaust backpressure.

Common Causes

• Short-distance driving or excessive idling (Very Common) — Frequent short trips or long idle times prevent the exhaust from reaching the 600°F+ needed to passively clean the DPF. This forces the engine to trigger active cleaning cycles constantly.
• Faulty DPF pressure sensor or hoses (Very Common) — The DPF pressure sensor calculates soot load. A biased sensor or cracked/clogged rubber hoses feed false data to the PCM, triggering unnecessary regenerations.
🎬 See how to test your DPF differential pressure sensor.
• Outdated PCM software (Very Common) — Factory software on Ford and Ram trucks often features overly sensitive regeneration parameters. A dealer software update adjusts this logic and permanently resolves the code.

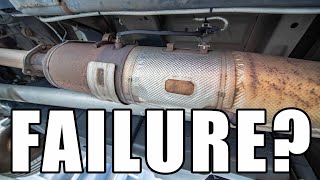

🎬 Watch: Diagnosing P2459 on a 6.7 Powerstroke engine.
• Clogged EGR valve (Common) — A stuck-open EGR valve produces excessive black soot, filling the DPF rapidly and forcing back-to-back regenerations.
• Exhaust system leaks (Common) — Exhaust leaks before the DPF skew pressure sensor readings, tricking the computer into initiating a cleaning cycle.
• Failing turbocharger or fuel injectors (Less Common) — Poor boost or leaking injectors create a rich air/fuel mixture, producing excess soot that overloads the DPF.
🎬 Watch: Troubleshooting P2459 and turbo issues on a Cummins.
• Incorrect engine oil (Less Common) — Using oil that lacks the low-ash specification (e.g., CJ-4, CK-4) accumulates non-burnable ash in the DPF, permanently reducing its capacity.

Symptoms

• Decreased fuel economy — Active regenerations inject raw fuel into the exhaust to raise temperatures, dropping fuel efficiency by 10-15%.
• Reduced engine power ('limp mode') — The computer limits acceleration to prevent turbocharger damage from excessive exhaust backpressure.
• Check Engine Light is on (also visible on scanner) — The primary indicator that the PCM has logged a regeneration frequency fault.
• Frequent DPF regeneration messages (also visible on scanner) — Dashboard alerts indicating the exhaust filter is cleaning itself every 80-150 miles instead of the normal 300-500 miles.
• High exhaust gas temperatures (also visible on scanner) — Constant regeneration attempts keep the exhaust system unusually hot, often noticeable after parking.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Change Driving Habits / Perform Highway Drive — Parts: $0, Labor: $0, ~0.5 hr book time (DIY)
• Update PCM Software — Parts: $0, Labor: $100-$250, ~1.0 hr book time (Professional)
• Replace DPF Pressure Sensor and Hoses — Parts: $50-$120, Labor: $80-$150, ~1.0 hr book time (DIY)
  Ford F-Series Super Duty (2017-2020): OEM Motorcraft DPFE73 (HC3Z-9J460-F) (Alt: Standard Motor Products)
  Ram 2500/3500 (2019-2024): OEM Mopar 68312096AB (Alt: Walker)
• Clean or Replace EGR Valve — Parts: $150-$450, Labor: $200-$600, ~2.5 hr book time (Intermediate)
  Ford F-Series Super Duty (2017-2023): OEM Motorcraft HC3Z-9D475-C (Alt: Dorman)
• Professional DPF Cleaning — Parts: $0, Labor: $300-$800, ~3.0 hr book time (Professional)
• Replace Diesel Particulate Filter (DPF) — Parts: $1,500-$3,500, Labor: $200-$500, ~2.5 hr book time (Professional)
  Ram 2500/3500 (2019-2023): OEM Mopar 68296341AE (Alt: TamerX (Reman))

DIY vs Professional

• Replace DPF Pressure Sensor and Hoses — Beginner: Yes
  Tools: Socket set (8mm/10mm), pliers, flashlight.
• Update PCM Software — Beginner: No
  Tools: Dealership-level diagnostic tool with programming capabilities.
• Clean or Replace EGR Valve — Beginner: No
  Tools: Extensive socket set, torque wrench, gasket scraper, EGR cleaner.
• Replace Diesel Particulate Filter (DPF) — Beginner: No
  Tools: Vehicle lift, heavy-duty sockets, torque wrench, advanced scan tool.

Used vs. New Parts: Buying Guide

When a used part is worth it: Never. The risk of receiving a failing sensor outweighs the minimal $30 cost savings.

Donor quality checklist:

• Avoid used sensors entirely.
• Ensure new part numbers match exactly, as sensors are calibrated for specific software.

Decision logic:

• If The new OEM sensor costs less than $150 → Always buy new. The warranty and peace of mind are mandatory for emissions sensors.

Warranty tradeoff: Used parts offer 30-day warranties that exclude labor. New OEM parts offer 1-year to 2-year warranties.

Worst-case if a used part fails: $200. A failed used sensor requires paying labor charges twice.

What Happens If You Wait — Timeline

1. 0-2 weeks: Check Engine Light illuminates. The engine enters regeneration cycles every 100-150 miles. (MPG impact: 5%% · Added cost: $50 in wasted fuel.)
2. 2 weeks - 3 months: Fuel economy drops noticeably. The vehicle feels sluggish as exhaust backpressure builds. (MPG impact: 15%% · Added cost: $200 in wasted fuel.)
3. 3-6 months: The vehicle enters 'limp mode'. High backpressure strains turbocharger seals and bearings. (MPG impact: 20%% · Added cost: $2,500 for turbocharger replacement.)
4. 6+ months: Catastrophic DPF failure. The filter blocks completely with hardened soot and ash. (MPG impact: 25%% · Added cost: $4,000+ for a new DPF and engine repairs.)

Cost of Not Fixing It

• 0-1 month: Fuel economy drops by 10-15% as the engine wastes fuel on constant regenerations. (Added cost: $50-$150 in wasted fuel.)
• 1-6 months: Increased exhaust backpressure strains the turbocharger, accelerating bearing wear. The vehicle enters 'limp mode'. (Added cost: $2,500-$5,000 for turbocharger replacement.)
• 6+ months: Catastrophic DPF failure. The filter blocks completely with soot and ash, requiring full replacement. (Added cost: $3,000-$7,000+ for DPF replacement and engine repairs.)

Diagnosis Steps

1. Check for PCM Software Updates (TSBs)
   Search for Technical Service Bulletins (TSBs) matching your VIN. Ford and Ram frequently resolve this code with a PCM reflash. Do this before replacing any parts.
   Tools: Smartphone or Computer (Beginner)
2. Review Driving Habits & Scan for Codes
   Evaluate if the vehicle idles excessively or only takes short trips. Use a scanner to check for companion codes (like P2463 or P2002). Record freeze frame data.
   Tools: OBD-II Scanner (Beginner)
3. Inspect DPF Sensor Wiring and Hoses
   Examine the DPF pressure sensor's rubber hoses for cracks, clogs, or loose fittings. These hoses melt or crack frequently, causing false pressure readings.
   Tools: Flashlight, Pliers (Beginner)
4. Inspect for Pre-DPF Exhaust Leaks
   With the engine running, check the exhaust manifolds and pipes before the DPF for black soot stains or audible ticking, which indicate pressure-skewing leaks.
   Tools: Flashlight (Intermediate)
5. [PRO TIP] Test DPF Pressure Sensor Voltage
   Check the DPF pressure sensor voltage. With Key On, Engine Off (KOEO), it must read ~0.5V. At idle, it stays low (0.5V-0.7V). If it reads high (e.g., 4.5V) at KOEO, the sensor is biased and requires replacement.
   Tools: Advanced Scan Tool or Multimeter (Advanced)
6. [PRO TIP] Monitor DPF Soot Load PID
   Watch the 'DPF Soot Load' PID during a drive. If regenerations trigger at a low soot load (under 20 grams), the sensor is lying. If the value doesn't drop below 15 grams after a full regen, the DPF is clogged with ash.
   Tools: Advanced Scan Tool (Advanced)
7. Inspect the EGR System
   Remove the EGR valve and check for heavy carbon buildup. A stuck EGR valve produces massive amounts of soot, overloading the DPF.
   Tools: Wrenches, Sockets, Gasket Scraper (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• Engine Coolant Temp: 180-205°F (82-96°C) (Set when the engine is fully warmed up and operating in closed-loop fuel control.)
• RPM: 1500-2500 RPM (Logged during steady-state cruise conditions, not during idle or heavy acceleration.)
• Engine Load: 30-60% (A moderate, consistent engine load is present when the PCM evaluates regeneration frequency.)
• Vehicle Speed: 40-65 mph (Set while driving at a constant highway speed, when the PCM expects passive regeneration.)

Related Codes

• P2463 — DPF Restriction - Soot Accumulation. P2459 is the cause (too many regens attempted), while P2463 is the effect (the filter is now clogged).
• P2002 — DPF Efficiency Below Threshold. Indicates regenerations are failing to clean the filter, suggesting internal DPF damage or heavy ash loading.
• P242F — DPF Restriction - Ash Accumulation. Indicates the filter is filled with non-burnable ash and requires professional cleaning or replacement.
• P246C — DPF Restriction - Forced Limited Power. A severe version of P2463 indicating the PCM has activated 'limp mode' to prevent engine damage.

Climate & Environmental Factors

• Cold Weather: Freezing temperatures prevent the exhaust from reaching the 660°F needed for passive regeneration during short trips, forcing the PCM to initiate frequent active regenerations.
• High Altitude: Lower oxygen levels at high altitudes cause richer air/fuel mixtures, increasing soot production and loading the DPF faster.

How to Talk to a Mechanic About This Code

Say this: "I have a P2459 code. Please check for TSBs related to PCM software updates first. If none apply, diagnose the DPF pressure sensor and its hoses, and check for exhaust leaks. Call me before recommending an EGR or DPF replacement."

This directs the technician to the cheapest, most common causes first and prevents them from immediately quoting a $3,000 DPF replacement.

Avoid saying:

• My check engine light is on, can you fix it?
• I think my DPF is bad.
• Just do whatever it takes to get the light off.

Questions to ask before authorizing the repair:

• Did you check for applicable TSBs for a software update?
• What was the DPF pressure sensor voltage with the key on, engine off?
• Are the sensor's rubber hoses cracked or blocked?
• Is this repair covered under the 8-year/80,000-mile federal emissions warranty?

Where to Take It: Dealer vs Independent vs Chain

• Dealer:
  Best for: Vehicles under the 8-year/80,000-mile federal emissions warranty., Ford and Ram trucks requiring a PCM software update.
  Downsides: Highest labor rates., Defaults to replacing entire assemblies rather than cleaning them. (Typical cost: +40% vs. baseline)
• Independent Shop: Excellent choice if they specialize in diesel emissions. Ask if they can apply manufacturer TSBs; if not, visit the dealer.
  Best for: Out-of-warranty vehicles requiring sensor replacement, EGR cleaning, or exhaust leak repair., Must be a dedicated diesel specialist.
  Downsides: May lack the manufacturer-specific tools to perform PCM updates. (Typical cost: +0% vs. baseline)
• Chain Shop: Avoid entirely. They lack the diagnostic tools and training for complex diesel emissions faults.
  Best for: Not recommended.
  Downsides: Technicians lack specialized diesel emissions training., High risk of misdiagnosis and unnecessary DPF replacement. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost for a DPF and turbocharger replacement exceeds 50% of the truck's private-party market value, evaluate your options.

• Car worth $30000, fix is $4500: Fix it. The repair is 15% of the vehicle's value.
• Car worth $12000, fix is $5000: Borderline. Get a second opinion to confirm the DPF cannot be fixed with a cheaper sensor or software update.
• Car worth $8000, fix is $4500: Walk away. The repair exceeds 55% of the truck's value.

What Scan Tool You Need for This Code

Minimum: A tool that reads live data PIDs for 'DPF Soot Load', DPF pressure, and exhaust gas temperatures.

A $20 code reader only shows 'P2459'. You need live sensor data to determine if a sensor is lying or if the filter is actually clogged.

Budget: BlueDriver Pro Scan Tool (~$100) — Displays and graphs essential live data PIDs (soot load, pressure, temps) via a smartphone app.

Mid-range: Foxwell NT510 Elite (~$180) — Reads live data and initiates a 'forced regeneration' to burn out a moderately clogged filter.

Professional: Autel MaxiCOM MK808S (~$450) — Performs forced DPF regenerations, DPF resets after replacement, and handles injector coding.

Rent vs buy: Buy. Auto parts store rental tools lack the live data and forced regeneration capabilities required to diagnose and fix modern diesel emissions systems.

How to Clear the Code After You Fix It

1. Use an OBD-II scan tool to clear P2459 and related fault codes.
2. Perform the vehicle-specific drive cycle to run readiness monitors.
3. Verify the 'DPF Soot Load' PID drops to normal levels during the drive.

Drive cycle (~30 minutes): Start cold, idle for 3 minutes, drive steadily at 55-65 mph for 20 minutes, coast down to 20 mph without braking, and finish with 5 minutes of stop-and-go city driving.

Readiness monitors affected: DPF Monitor, NMHC Catalyst Monitor, Catalyst Monitor

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Never disconnect the battery to clear this code; it erases readiness monitors and guarantees an emissions test failure.
• Clearing the code without fixing the root cause results in the code returning within 50 miles.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An illuminated Check Engine Light is an automatic failure. As of October 2025, regulations require all monitors to be set, making the post-repair drive cycle critical.
• New York: An active P2459 code causes an automatic failure of the NYVIP3 inspection. Vehicles 2001 and newer are allowed only one unset readiness monitor.
• Texas: In emissions counties, the Check Engine Light is an automatic failure. You must complete a drive cycle after clearing the code to set readiness monitors.

Most Commonly Affected Vehicles

• Ford F-Series Super Duty (6.7L) (2011-2021) — Frequently caused by outdated PCM software. TSB 21-2052 (2017-2021) and TSB 17-2234 (2015-2016) resolve this with a dealer software update.
• Ram 2500/3500 (6.7L Cummins) (2013-2023) — Prone to faulty DPF pressure sensors and cracked hoses. On 2019+ models, non-OEM air filters alter airflow calculations and trigger this code.
• Chevrolet/GMC Silverado/Sierra (Duramax) (2013-2018) — Highly sensitive to extended idling, which clogs the EGR cooler and rapidly fills the DPF with soot.
• Mercedes-Benz Sprinter Vans (2010-2018) — Interrupting a regeneration cycle sets this code and disables future regens until cleared with an advanced scan tool.
• Volkswagen Passat/Jetta/Golf TDI (2012-2016) — Triggered by faulty DPF pressure sensors and city driving habits that prevent passive regeneration.

Manufacturer-Specific Notes

• Ford: Outdated PCM software is the primary culprit for 6.7L engines. Multiple TSBs advise a dealer PCM update, which sometimes enables an 'Operator Commanded Regeneration' (OCR) feature for high-idle vehicles.
• Ram (Cummins): Installing a non-OEM air filter on 2019+ trucks disrupts airflow calculations and triggers P2459. TSB 18-042-20 suggests a PCM reflash if no physical defect exists.
• General Motors (Duramax): The EGR cooler is a known weak point. It clogs easily during extended idling, leading to excess soot production that overloads the DPF.
• Mercedes-Benz: Shutting off the engine mid-regeneration sets P2459 and permanently disables automatic regenerations until a shop clears the code and forces a manual regen.

Real Owner Stories

2018 Ford F-550 with 6.7L Power Stroke

Truck used for low-speed work showed 'Drive to Clean' messages and a constant P2459 code.

What they tried:

1. Dealer cleared the code, but it returned.
2. Owner attempted multiple highway drives with no lasting success.

Outcome: Resolved by a dealer PCM software update per Ford TSB 21-2367, correcting the regeneration logic.

Lesson: A PCM software update is the most crucial diagnostic step for Ford trucks with high idle time. Always check TSBs before replacing hardware.

2021 Ram 2500 with 6.7L Cummins

P2459 appeared despite daily 75-mile highway drives. The DPF gauge never showed more than 20% full.

What they tried:

1. Added a high-quality DPF cleaner additive to the fuel tank.

Outcome: The Check Engine Light turned off within 50 miles, and fuel mileage improved immediately.

Lesson: A borderline sensor or minor soot buildup triggers P2459. A DPF fuel additive is a cheap, effective first step before seeking professional repair.

2022 Ram 3500 HO

Parts store read code P2459 and recommended a $1,000 EGR valve replacement.

What they tried:

1. Researched federal emissions warranty coverage.

Outcome: The dealership replaced the faulty components under the 8-year/80,000-mile federal emissions warranty at no cost.

Lesson: Never pay out-of-pocket without verifying your 8-year/80,000-mile federal emissions warranty coverage.

How to Prevent This Code From Triggering

• Perform a weekly highway drive (Once per week) — Driving 30 minutes at 55+ mph allows the exhaust to reach 660°F, burning off soot naturally via passive regeneration.
• Use low-ash engine oil (Every oil change) — API CJ-4/CK-4 oils prevent non-combustible ash from permanently clogging the DPF.
• Avoid excessive idling (Daily habit) — Idling cools the exhaust and rapidly accumulates soot, forcing constant active regenerations.
• Clean the EGR valve (Every 50,000 miles) — A clean EGR valve prevents excessive soot production that overloads the DPF.

Frequently Asked Questions

Can I fix P2459 myself?

Yes. Taking a 30-minute highway drive or replacing a DPF pressure sensor are manageable DIY tasks. Stop and visit a professional if the vehicle requires PCM updates, EGR cleaning, or DPF replacement.

Will P2459 clear itself?

No. Even if a regeneration cycle completes, the underlying issue remains. You must fix the root cause and clear the code with an OBD-II scanner.

How much does it cost to fix code P2459?

Costs range from $0 for a highway drive to $150-$300 for a new pressure sensor. EGR repairs cost $350-$1,200, while professional DPF cleaning runs $300-$800. A full DPF replacement exceeds $2,500.

Does P2459 always mean my DPF is bad?

Rarely. P2459 means the DPF is regenerating too frequently, which is a symptom of an upstream problem. Faulty sensors, exhaust leaks, or outdated software are the usual culprits.

What are common mistakes when diagnosing P2459?

The biggest mistake is replacing the $3,000 DPF without diagnosing the root cause. Another is replacing the pressure sensor but ignoring cracked rubber hoses. Always check for manufacturer software updates (TSBs) before buying parts.

What is the difference between soot and ash in the DPF?

Soot is black carbon from incomplete combustion that burns off during regeneration. Ash is non-combustible residue from oil and fuel additives that permanently accumulates. Once ash fills the DPF, it requires professional off-vehicle cleaning or replacement.

How can I prevent code P2459?

Drive at sustained highway speeds for 30 minutes weekly to enable passive regeneration. Use high-quality diesel fuel and the manufacturer-specified low-ash engine oil (e.g., CK-4). Avoid excessive idling, which rapidly loads the filter with soot.

What is the difference between active and passive regeneration?

Passive regeneration occurs automatically during highway driving when exhaust temperatures exceed 660°F (350°C). Active regeneration is commanded by the PCM, injecting extra fuel to force temperatures over 1,100°F (600°C). P2459 triggers when active regenerations happen too often.

Key Takeaways

• Code P2459 indicates your diesel particulate filter is regenerating more frequently than the normal 300-500 mile interval, signaling an upstream sensor or soot issue.
• Check for manufacturer Technical Service Bulletins (TSBs) first, as Ford and Ram frequently resolve this code with a 1-hour dealer PCM software update.
• Inspect the DPF pressure sensor and its two rubber hoses for cracks or blockages, as these fail frequently and cost under $150 to replace yourself.
• Drive your vehicle at a steady 55+ mph for 30 minutes to force a complete passive regeneration before spending money on diagnostic fees or parts.
