OBD-II Code P2337: Cylinder 2 Above Knock Threshold

What Does P2337 Mean?

P2337 means your car's Powertrain Control Module (PCM) detected excessive vibration or 'knock' from cylinder #2. The knock sensor for that cylinder acts like a microphone and reports a voltage signal higher than the manufacturer's limit, indicating a combustion problem. The PCM logs this code, illuminates the Check Engine Light, and retards ignition timing to protect the engine.

Technical definition: The official SAE/OBD-II definition for P2337 is "Cylinder 2 Above Knock Threshold". This indicates the Powertrain Control Module (PCM) registered a voltage variation from the cylinder 2 knock sensor circuit deviating from normal parameters by 10% or more. This signifies either a harmful detonation event or a sensor circuit fault.

Can I Drive With P2337?

No — Do Not Drive. Driving is not recommended. Persistent engine knock causes severe internal engine damage, including to pistons, connecting rods, and cylinder walls, leading to complete engine failure. Continuing to drive turns a sensor or fuel issue into a catastrophic engine rebuild costing $2,500-$4,500+. It also damages the catalytic converter, adding $800-$2,500 to the repair bill.

Common Causes

• Faulty Knock Sensor (Very Common) — The knock sensor is a frequent culprit. It is a piezoelectric sensor that fails from prolonged heat exposure, internal circuit problems, or physical damage, causing it to send incorrect high-voltage signals to the PCM.
🎬 Watch: How to identify symptoms and test for a bad knock sensor.
• Use of Incorrect or Low-Octane Fuel (Common) — Using gasoline with an octane rating lower than the manufacturer requires causes the air-fuel mixture to detonate prematurely under compression. This is a true knock event that the sensor accurately detects.
• Incorrect Fuel Injector Calibration or Failure (Common) — On modern diesel vehicles (especially Ford, Jaguar, Peugeot, Citroen), fuel injectors have a unique calibration code programmed into the PCM. If this code is wrong, missing after a replacement, or the injector fails and causes a lean condition, it creates real engine knock.
• Wiring or Connector Issues (Common) — The wiring harness and connectors for the knock sensor become damaged, corroded, loose, or contaminated by leaking oil. This creates a short or an open circuit, leading to an abnormal voltage reading.
• Excessive Carbon Buildup (Common) — Carbon deposits on piston crowns and in the combustion chamber increase the compression ratio and create hot spots. These conditions lead to pre-ignition or detonation, causing genuine engine knock.
• Lean Air-Fuel Mixture (Less Common) — A vacuum leak from a cracked hose or bad intake gasket allows unmetered air into the engine. This creates a lean mixture, which burns hotter and leads to detonation. A failing fuel pump or clogged filter also causes this.
• Faulty or Clogged EGR Valve (Uncommon) — An EGR valve stuck closed fails to recirculate exhaust gases into the combustion chamber. This leads to higher combustion temperatures, significantly increasing the formation of NOx and the likelihood of engine knock.
• Mechanical Engine Issues (Rare) — Worn internal components like piston rings, bearings, or lifters create noise that the knock sensor misinterprets as detonation. Loose components, like engine mounts or brackets, also create vibrations that fool the sensor.
• Powertrain Control Module (PCM) Error (Rare) — The PCM occasionally experiences internal processing errors or outdated software that incorrectly interprets the knock sensor signal. A software re-flash updates the knock threshold algorithms.

Symptoms

• Check Engine Light is On — The most common symptom is the illumination of the Malfunction Indicator Lamp (MIL), also known as the Check Engine Light.
• Audible Engine Knocking or Pinging — You will hear a metallic pinging, tapping, or knocking sound coming from the engine, especially during acceleration or under load.
• Reduced Engine Power and Acceleration — The vehicle feels sluggish and hesitates when you press the gas pedal because the PCM retards ignition timing to prevent damage.
• Engine Runs Rough or Stumbles — The engine idles erratically, vibrates excessively, or feels like it is stumbling, particularly when warm.
• Decreased Fuel Economy — When the engine runs inefficiently due to the combustion issue or retarded timing, your gas mileage drops noticeably.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replace Knock Sensor — Parts: $50-$150, Labor: $150-$350, ~1.5 hr book time (Intermediate)
  Ford Mondeo TDCi (2007-2015): OEM 1358032, 1S7A12A699BB (Alt: Bosch 0261231176, Febi Bilstein 103207)
  Jaguar X-Type Diesel (2003-2010): OEM JD61212, AJ85676 (Alt: Eurospare ND814WR, Standard Motor Products KS306)
  VW/Audi 2.0T (2013-2019): OEM 06K905377A, 06F905377 (Alt: Bosch 0261231215, Denso 197-6031)
• Recode or Replace Fuel Injector — Parts: $200-$500, Labor: $150-$400, ~2 hr book time (Professional)
  Ford Mondeo 2.0 TDCi (2007-2015): OEM A2C59511601 (Siemens/VDO), 9657144580 (Alt: Remanufactured units from Bosch, Delphi, Meat & Doria)
• Repair Wiring or Connectors — Parts: $10-$50, Labor: $100-$250, ~1.5 hr book time (Intermediate)
• Replace Spark Plugs — Parts: $20-$100, Labor: $80-$200, ~1 hr book time (Beginner)
• Engine Carbon Cleaning Service — Parts: $20-$100, Labor: $150-$500, ~3 hr book time (Professional)
• Reprogram or Replace PCM — Parts: $200-$1200, Labor: $150-$250, ~1.5 hr book time (Professional)

Used vs. New Parts: Buying Guide

When a used part is worth it: For a simple electronic part like a knock sensor, a used OEM part from a reputable salvage yard is a cost-effective choice for older, high-mileage vehicles where the cost of a new OEM part is prohibitive.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the donor vehicle was not scrapped due to engine failure or fire.
• Ensure the part number matches exactly, as similar-looking sensors have different voltage outputs.
• Inspect the connector for corrosion or damage before purchasing.

Decision logic:

• If The vehicle is less than 10 years old and the new part costs under $100 → Buy a new OEM or high-quality aftermarket part for reliability and warranty coverage.
• If The vehicle is over 15 years old or has high mileage, and the budget is tight → A used OEM sensor is an acceptable risk, provided it comes with a short functional warranty (e.g., 30-90 days).
• If The sensor is difficult to access (e.g., requires removing the intake manifold) → Favor a new part to avoid paying for extensive labor a second time if the used part fails prematurely.

Warranty tradeoff: Used parts typically offer a 30-90 day warranty for part replacement only, not labor. New aftermarket parts usually come with a 1-year to limited lifetime warranty. New OEM parts offer a 1-2 year warranty.

Worst-case if a used part fails: $300-$600 if a used sensor fails after installation, primarily due to repeated labor costs.

What Happens If You Wait — Timeline

1. 0-1 month: Code P2337 is set, and the Check Engine Light is on. The PCM retards ignition timing to protect the engine. The driver notices a slight drop in power and hears faint pinging under acceleration. (MPG impact: 3-8%% · Added cost: $0-$50 in wasted fuel.)
2. 1-4 months: Audible knock becomes more frequent and louder. The reduced engine efficiency is noticeable, with a consistent drop in MPG. The constant high temperatures from detonation stress the catalytic converter and spark plug electrodes. (MPG impact: 8-15%% · Added cost: $100-$200 in wasted fuel and potential spark plug replacement.)
3. 4-8 months: Persistent, severe detonation causes physical damage. The extreme pressure cracks the ceramic insulator on the spark plug and erodes the top of the piston. The catalytic converter becomes superheated, leading to substrate meltdown and clogging. (MPG impact: 15-25%% · Added cost: $1,200-$3,000 for a new catalytic converter and O2 sensors.)
4. 8+ months: Catastrophic engine failure. The relentless pressure spikes crack the piston ring lands, score the cylinder walls, and hammer the connecting rod bearings. This leads to a total loss of compression, excessive oil burning, and a seized engine requiring a full rebuild. (MPG impact: N/A (vehicle likely undrivable)% · Added cost: $4,000 - $8,000+ for a complete engine rebuild or replacement.)

Cost of Not Fixing It

• 0-1 month: Reduced fuel economy (5-15% drop), poor acceleration, and audible engine pinging. The check engine light remains on. (Added cost: Negligible, other than increased fuel costs.)
• 1-6 months: Persistent knock overheats the catalytic converter as unburnt fuel ignites within it, causing it to melt or clog. This also damages oxygen sensors. (Added cost: $1200-$2800 for catalytic converter and O2 sensor replacement.)
• 6+ months: Catastrophic internal engine damage. Extreme pressures from detonation crack piston rings, damage piston crowns, score cylinder walls, and lead to connecting rod bearing failure. (Added cost: $4,000-$8,000+ for engine replacement or rebuild.)

Diagnosis Steps

1. Scan for Codes & Review Freeze Frame Data
   Use an OBD-II scanner to confirm P2337 is present and check for related codes (e.g., misfire, lean condition, EGR codes). Note the freeze frame data showing the engine's condition (RPM, load, temp) when the code set. Clear the codes and test drive the vehicle under similar conditions to see if the code returns.
   Tools: OBD-II Scanner (Beginner)
2. Check Fuel and Oil Quality
   Ensure you are using the correct octane fuel for your vehicle, as low-octane gas is a primary cause of real engine knock. Check that the engine oil is at the proper level and clean; low or degraded oil causes engine noise misinterpreted by the knock sensor.
   Tools: None (Beginner)
3. Perform a Thorough Visual Inspection
   Visually inspect the area around cylinder #2. Look for damaged, burnt, or corroded wiring and connectors for the knock sensor and fuel injector. Check for fluid leaks (oil, coolant) damaging the wiring harness. Inspect for cracked or disconnected vacuum hoses.
   Tools: Flashlight, Inspection Mirror (Beginner)
4. Swap Components to Isolate the Fault
   Swap the spark plug and ignition coil from cylinder #2 with another cylinder (e.g., cylinder #1). Clear the codes and drive the vehicle. If the code changes to P2336 (Cylinder 1 Above Knock Threshold), you identified the faulty part. If the code remains P2337, the problem lies elsewhere.
   Tools: Spark plug socket, Ratchet, Basic hand tools (Intermediate)
5. Verify Fuel Injector Calibration (Diesel Models)
   For diesel models like the Ford TDCi, use an advanced scan tool to read the currently programmed injector codes from the PCM. Compare the code for cylinder #2 with the 16-digit code physically printed on the injector itself. If they do not match, the injector must be re-coded.
   Tools: Advanced OBD-II Scan Tool (Professional)
6. Test the Knock Sensor Circuit with a Multimeter
   Disconnect the knock sensor and PCM. Use a digital multimeter to check for continuity on the signal wire between the sensor connector and the PCM connector. Check for a short to ground or voltage on the signal wire. A typical knock sensor shows high resistance between its terminals and no continuity to ground.
   Tools: Digital Multimeter, Vehicle-specific wiring diagram (Intermediate)
7. [PRO TIP] Test Knock Sensor with AC Voltage Tap Test
   Set your multimeter to a low AC voltage scale (e.g., 200mV). Reconnect the sensor and back-probe the signal wire. With the engine idling, lightly tap the engine block near the sensor with a small wrench. You will see a small AC voltage reading on the multimeter each time you tap, confirming the sensor generates a signal. No signal indicates a dead sensor.
   Tools: Digital Multimeter, Small wrench or ratchet, Back-probe kit (Advanced)
8. [ADVANCED] Test Knock Sensor Resistance
   Disconnect the sensor harness. Set a multimeter to Ohms (Ω). For GM sensors, measure between the sensor's terminal and the engine block (ground); a good sensor reads 93,000-110,000 Ω. For Ford/Bosch piezoelectric sensors, measure across the two pins; resistance is in the mega-ohm (MΩ) range. An open reading on a GM sensor or low resistance on a piezoelectric type indicates a failed sensor.
   Tools: Digital Multimeter (DVOM) (Advanced)
9. [ADVANCED] Check Fuel Pressure
   A lean condition causes knock. Connect a fuel pressure gauge to the fuel rail's Schrader valve. Compare the reading at idle and under load to the manufacturer's specifications. A significant drop indicates a fuel delivery problem (pump, filter, regulator) causing a lean condition and real knock.
   Tools: Fuel Pressure Gauge Kit (Advanced)
10. [PRO TIP] Analyze the Knock Sensor with an Oscilloscope
    Connect an oscilloscope to the knock sensor's signal wire. A good sensor produces a clean waveform that increases in amplitude with engine RPM. When you tap the block, you see a sharp voltage spike followed by a ringing pattern. A faulty sensor shows no signal, a noisy signal, or a flat line.
    Tools: Oscilloscope, Back-probe connectors (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• Engine Coolant Temp: 180-210°F (Fully warmed up)
• RPM: 1500-3000 (Light acceleration or steady cruise)
• Engine Load: 30-70% (Under moderate load, such as climbing a slight incline or accelerating to merge)
• Vehicle Speed: 30-60 mph (City or highway driving under load)

Related Codes

• P0302 — This code means 'Cylinder 2 Misfire Detected'. A severe knock (P2337) causes a misfire, or a severe misfire vibrates the engine enough to trigger a P2337. Diagnose the misfire first by checking the spark plug, coil, and injector.
• P0327 — This code indicates 'Knock Sensor 1 Circuit Low Input'. It points to a problem in the same circuit as P2337 but indicates a low voltage signal instead of a high one. P2337 means the signal is too high; P0327 means the signal is too low or absent.
• P0202 — This code means 'Injector Circuit/Open - Cylinder 2'. It points to an electrical fault in the fuel injector circuit for cylinder 2. This fault causes a lean condition, leading to detonation and triggering P2337. Diagnose P0202 first.
• P0171 — This code means 'System Too Lean (Bank 1)'. A lean condition affecting the entire engine bank causes temperatures to rise in all cylinders, making knock more likely. Cylinder 2 is simply the first to cross the knock threshold.
• P2336, P2338, P2339 — These are identical codes for other cylinders (Cylinder 1, 3, and 4). Seeing them together with P2337 points towards a widespread engine problem like bad fuel, a timing issue, or a major vacuum leak, rather than an isolated component failure.

Climate & Environmental Factors

• High Humidity / Water Exposure: High humidity and direct water exposure lead to corrosion on the knock sensor's connector pins or the sensor body itself. On GM V8 engines, water pooling in the engine valley is a known cause of knock sensor failure.
• High Altitude: Engine knock becomes more pronounced when moving from high to low altitude. At high altitudes, the air is less dense, reducing cylinder pressure and the likelihood of knock. Descending to sea level introduces denser air, causing knock until the PCM fully re-adapts.
• Extreme Cold: Very cold temperatures make wiring and plastic connectors brittle and more prone to cracking or breaking if disturbed during maintenance, creating an electrical fault in the knock sensor circuit.

How to Talk to a Mechanic About This Code

Say this: "I have a P2337 code for 'Cylinder 2 Above Knock Threshold'. I want to book a diagnostic appointment. It's a [Your Vehicle: e.g., Ford TDCi diesel / VW gasoline GDI]. I'd like you to first confirm if it's a real knock or a sensor circuit fault. If it's the diesel, please check the injector calibration codes before we replace any parts."

This signals you understand the code's complexity. It directs the technician to perform a logical diagnosis (real knock vs. sensor fault) rather than just replacing the most obvious part. Mentioning injector coding for relevant vehicles shows you know about manufacturer-specific quirks, preventing unnecessary work.

Avoid saying:

• 'My check engine light is on, can you just fix it?'
• 'My car is making a knocking noise, just replace the knock sensor.'
• 'I'm pretty sure it's [X part], can you just give me a price to replace it?'

Questions to ask before authorizing the repair:

• How did you determine the knock sensor was bad? Did you test the circuit and perform a tap test?
• If you're recommending a new fuel injector, is the price for coding it to the computer included in the estimate?
• If you're recommending carbon cleaning, what method do you use (e.g., walnut blasting, chemical soak)?
• Can you provide me with the freeze-frame data that was stored with the P2337 code?
• What is the warranty on both the parts and labor for this specific repair?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Recommended for Ford/PSA diesels due to injector coding needs and for newer VW/Audi models where carbon buildup is a known issue they are familiar with.
  Best for: Vehicles under warranty., Complex, manufacturer-specific issues like injector coding on Ford/PSA diesels or PCM software updates., Recalls or Technical Service Bulletin (TSB) related repairs.
  Downsides: Typically the highest labor rates (30-50% more than independent shops)., May recommend replacing larger assemblies instead of pinpointing a smaller component failure. (Typical cost: +40% vs. baseline)
• Independent Shop: Excellent choice if they are a specialist for your brand (e.g., Euro car shop for a VW) or if the vehicle is a common domestic model where the cause is less likely to be software-related. Ensure they have advanced, bi-directional scan tools.
  Best for: Out-of-warranty vehicles where cost is a factor., Diagnosing common causes like bad sensors, wiring, or fuel/ignition issues on non-specialty vehicles., Shops that specialize in your vehicle's brand (e.g., a European auto specialist).
  Downsides: Quality and diagnostic capabilities vary widely; vetting is crucial., A general shop lacks the specific tools for injector coding or advanced software diagnostics. (Typical cost: +0% vs. baseline)
• Chain Shop: Not Recommended. The risk of misdiagnosis is high. This code requires a diagnostic process, not just parts replacement, which is beyond the scope of most chain shops.
  Best for: Simple, routine maintenance like oil changes, tires, and brake pads.
  Downsides: Technician skill and diagnostic equipment are highly variable., Often lack the in-depth tools and training for complex codes like P2337., Business model pressures technicians to upsell or replace parts without a thorough diagnosis. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 50% of the car's private-party value (check KBB or Edmunds), you should strongly consider not fixing it. For older, high-mileage cars, this threshold is lower, around 40%.

• Car worth $5000, fix is $2800: Walk away. The repair cost is 56% of the car's value. That money is better put toward a replacement vehicle.
• Car worth $15000, fix is $1500: Fix it. The repair is only 10% of the car's value and is a worthwhile investment to keep a more valuable car running.
• Car worth $3000, fix is $1800: Walk away. At 60% of the vehicle's value, this is a poor investment. The risk of another major repair soon is too high.

What Scan Tool You Need for This Code

Minimum: A basic code reader is NOT enough. For this code, you need a scanner that reads and clears codes, views live data, and sees freeze-frame data. For affected diesel engines (Ford, PSA), a tool with bi-directional control for injector coding is essential for a DIY repair.

A $20 reader only shows 'P2337'. It cannot help you diagnose if the cause is a bad sensor, a wiring fault, or an injector calibration error. On many diesel models, you physically cannot complete the repair without a scanner capable of coding the new injector to the ECU.

Budget: BlueDriver Pro / FORScan with Adapter (~$100) — For gasoline engines, BlueDriver provides live data graphing and freeze frame data to aid diagnosis. For Ford diesel owners, a FORScan license with a Vgate vLinker FS adapter is the best budget choice, as it allows you to perform the critical injector coding procedure.

Mid-range: Foxwell NT510 Elite / Innova 5610 (~$180) — These scanners offer bi-directional controls. This allows you to perform advanced diagnostics and, depending on the vehicle, special functions like injector coding, ABS bleeding, and other system tests beyond just reading codes.

Professional: Autel MaxiCOM MK808S / Launch X431 (~$450-900) — Provides full bi-directional control and advanced service functions, including injector coding for a wide variety of makes like Ford, BMW, VW, and more. This is the level of tool a professional independent shop uses.

How to Clear the Code After You Fix It

1. Use an OBD-II scan tool to clear the P2337 code.
2. Ensure the fuel tank is between 30% and 70% full.
3. Perform a complete drive cycle to allow readiness monitors to run.

Drive cycle (~30 minutes): From a cold start (engine off for 8+ hours), idle for 2-3 minutes. Drive for 15-20 minutes with mixed city/highway conditions, including several minutes of steady-state cruising at 55-60 mph. Allow the vehicle to coast down to 20 mph without braking. Perform several slow, full stops. Let the engine cool down completely.

Readiness monitors affected: Catalyst Monitor, EGR System Monitor, Oxygen (O2) Sensor Monitor

Before emissions retest: drive at least 100 miles to fully set monitors.

Watch out for:

• Disconnecting the battery clears the code but resets all readiness monitors to 'Not Ready', causing an automatic emissions test failure.
• The code returns immediately if the underlying mechanical or electrical fault is not properly repaired.
• Failing to complete the full, specific drive cycle for your vehicle's make leaves some monitors 'Not Ready'.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An active P2337 code is an automatic failure. After repair, all readiness monitors must be set to 'Ready' before a retest is possible. This requires driving 50-100 miles over several drive cycles.
• New York: A vehicle fails the NYVIP3 OBD-II inspection if the check engine light is on. For model year 2001 and newer vehicles, having more than one readiness monitor 'Not Ready' results in failure.
• Texas: In counties requiring emissions testing, an illuminated check engine light is an automatic failure. After clearing codes, you can only have one monitor 'Not Ready' (two for 1996-2000 models) to pass.

Most Commonly Affected Vehicles

• Ford Mondeo, Transit, Focus (TDCi Diesel) (2000-2012) — Very commonly caused by fuel injector calibration issues. Recoding the injectors with a capable scan tool often resolves the code without replacing parts. A pilot learn procedure is required after coding.
• Jaguar X-Type (Diesel) (2005-2009) — Shares the same Ford Duratorq diesel engine platform. Prone to this code from a leaking/faulty fuel injector or a failing knock sensor and its wiring. Diagnosis is identical to the Ford TDCi models.
• Volkswagen / Audi Passat, Jetta, Golf, A4 (1.8T/2.0T) (2013-2019) — On these direct-injection engines, the code often appears with others (P2336, P2338) and is frequently linked to carbon buildup on intake valves and pistons. It is also caused by high-pressure fuel pump issues or failing injectors.
• Peugeot 207, 307, 308 (HDi Diesel) (2004-2014) — Uses engines (DV6/DW10) co-developed with Ford. Susceptible to P2337 due to injector coding errors, injector failure, or wiring harness faults.
• Citroën C3, C4, Berlingo (HDi Diesel) (2004-2015) — Utilizes the Ford/PSA HDi engine family. The causes and diagnostic procedures are identical to those for Peugeot and Ford TDCi models, focusing on injector calibration and electrical integrity.
• Mercedes-Benz Various (Especially Kompressor/Turbo models) (2003-2015) — Appears alongside other knock codes (P2336, P2338) suggesting a wider issue. Potential causes include incorrect turbo boost pressure, timing chain stretch, or problems within the variable valve timing system.
• Volvo S40, V50, C30 (1.6D/2.0D) (2004-2012) — These models used the same Ford/PSA diesel engines and share the same common causes for P2337, primarily related to fuel injector performance and calibration.
• Chevrolet / GMC Silverado, Sierra, Suburban (V8 Engines) (1999-2007) — Water intrusion in the engine valley corrodes the knock sensors and harnesses located under the intake manifold. This causes erratic signals, including spikes that trigger a P233x code (See GM TSB 02-06-04-023A).

Manufacturer-Specific Notes

• Ford / PSA (Peugeot, Citroën): On TDCi/HDi diesel engines, this code is overwhelmingly linked to fuel injector calibration. After replacing an injector, it must be electronically coded to the PCM. Failure to do so triggers this code. Simply re-entering the existing codes often resolves the issue.

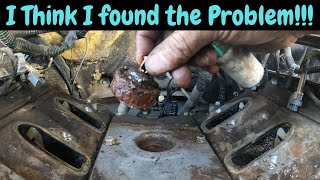

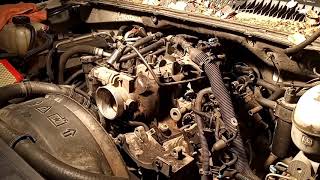

• General Motors (GM): On V8 engines (4.8L, 5.3L, 6.0L), water pools in the engine valley under the intake manifold, corroding the knock sensors and harness. TSB 02-06-04-023A advises building a silicone (RTV) dam around the sensors to prevent future water intrusion after replacement.
• Ford: After coding new injectors on some 1.6 TDCi engines, the engine runs very rough, smokes, and knocks loudly. This is due to the 'pilot learn' values resetting to zero. A specific driving or revving procedure is required to allow the PCM to relearn these values.
• Volkswagen / Audi: For TFSI/TSI engines, P2337 is often a secondary code resulting from excessive carbon buildup on the intake valves and pistons. A manual carbon cleaning (walnut blasting) is required before further diagnosis.

Real Owner Stories

2011 Ford Transit 2.2 TDCi with 150K miles

Check engine light on with P2337, engine running loud with a noticeable rattle. Heavy grey smoke is visible from the exhaust at night.

What they tried:

1. Replaced all 4 fuel injectors with reconditioned units.
2. Replaced Pressure Relief Valve, High Pressure Regulator Sensor, and Fuel Pump Suction Control Valve.
3. Performed multiple leak-off tests which showed injectors were balanced.

Outcome: The issue was an injector programming failure. The mechanic's diagnostic tool was unable to complete the 'pilot learn' procedure. The root cause was either the reconditioned injectors being incompatible or a fault in the PCM preventing the new calibration codes from saving correctly.

Lesson: On Ford TDCi engines, P2337 is very often a programming issue, not a hardware failure. Using non-OEM or improperly reconditioned injectors prevents the PCM from learning their characteristics, even if the part is mechanically sound.

2007 Ford Mondeo 2.0 TDCi, mileage unknown

P2337 code present. Owner tried replacing glow plug and the #2 injector, and recoding all injectors, but the code persisted.

What they tried:

1. New glow plug in cylinder 2.
2. New fuel injector in cylinder 2.
3. Recoding all injectors.
4. Blocking EGR valve.

Outcome: A Ford dealer was unable to change injector codes or clear the P2337 code, leading to the conclusion that the PCM was broken. The installed PCM was for an automatic transmission vehicle, while the van was a manual, suggesting a previous incorrect repair caused the issue.

Lesson: If a code cannot be cleared or components cannot be programmed with professional tools, suspect a faulty or incorrect PCM. Always verify the part number of the PCM is correct for the vehicle's specific configuration.

2004 GMC Sierra 5.3L V8 with 180K miles

Intermittent Check Engine Light, eventually setting a P0332 (Knock Sensor 2 Circuit Low Input, Bank 2), but the symptoms are identical to those that cause P2337.

What they tried:

1. Initially ignored and cleared the code daily.
2. Researched the common issues for this specific engine.

Outcome: The problem was identified as water intrusion into the knock sensor valley under the intake manifold, a known GM issue covered by TSB 02-06-04-023A. The fix required removing the intake manifold, replacing the corroded rear knock sensor and harness, and creating a dam with RTV silicone to prevent future water pooling.

Lesson: Always check for Technical Service Bulletins (TSBs) related to your specific vehicle and code. What seems like a random sensor failure is often a known design flaw with a specific, documented repair procedure.

How to Prevent This Code From Triggering

• Use Top-Tier certified gasoline at every fill-up. (Every fill-up) — Top Tier gas contains significantly higher concentrations of detergent additives than the EPA minimum. These detergents prevent and clean existing carbon deposits on fuel injectors and intake valves, preventing lean conditions and hot spots that cause real engine knock.
• Perform regular oil changes with high-quality, manufacturer-specified oil. (Every 4,000-5,000 miles) — Quality engine oil contains its own detergents and provides proper lubrication. Low or degraded oil leads to increased engine noise and wear, which is misinterpreted by the knock sensor as detonation.
• Periodically use a PEA-based (polyetheramine) fuel system cleaner. (Every 3,000-5,000 miles) — Polyetheramine is a potent chemical effective at removing tough carbon deposits from the entire fuel system, especially in GDI engines where fuel does not wash over the intake valves. This ensures a proper fuel spray pattern and prevents lean conditions.
• For GDI engines, schedule a professional intake valve cleaning. (Every 60,000-80,000 miles) — Since fuel is injected directly into the cylinder, it never cleans the intake valves. Carbon builds up, restricts airflow, and breaks off, increasing compression and causing knock. A professional service like walnut blasting is the only effective way to remove this buildup.
• Avoid prolonged engine idling and perform regular highway driving. (Weekly) — Most carbon deposits form during low-load driving. Regularly driving the vehicle at highway speeds for extended periods allows the engine to reach and maintain optimal operating temperatures, burning off light carbon deposits.

Frequently Asked Questions

What is the most common misdiagnosis for a P2337 code?

The most common mistake is immediately replacing the knock sensor without verifying if it is reporting a real engine knock. The sensor's job is to report knock; if it works correctly, the root cause is a combustion problem like lean fuel or carbon buildup. Always diagnose other codes first and rule out mechanical issues before condemning the sensor.

Can I just replace the knock sensor to fix P2337?

Replacing the knock sensor is a common fix, but it is not a guarantee. The code is often caused by wiring issues, a faulty fuel injector, or a software problem in the PCM. Diagnose the problem correctly before replacing parts.

Can I swap parts between cylinders to diagnose P2337?

Yes, swapping the spark plug and ignition coil from cylinder #2 with another cylinder is an excellent diagnostic strategy. If the fault code moves to the new cylinder (e.g., P2336), you found the bad component. If the code stays on cylinder #2, the issue is the fuel injector, wiring, or the knock sensor circuit.

Is P2337 a serious problem?

Yes, it is an urgent and critical issue. Continuous, severe engine knocking causes significant damage to pistons, cylinder walls, and bearings, leading to catastrophic engine failure.

What does 'Above Knock Threshold' mean?

It means the vibration level detected by the knock sensor on cylinder 2 exceeds the pre-programmed maximum limit stored in the engine's computer.

Can bad gas cause a P2337 code?

Yes, using gasoline with an octane rating lower than the manufacturer's requirement causes the fuel to detonate improperly, leading to engine knock and triggering this code.

How much does it cost to diagnose a P2337 code?

A professional diagnostic check for a Check Engine Light typically costs between $150 and $165. This fee includes reading the codes, a visual inspection, and initial troubleshooting to recommend a repair.

What does a knock sensor sound like when it's bad?

A bad knock sensor itself does not make a sound; it reports sounds. If the sensor works correctly and reports a real problem, you will hear a metallic pinging or knocking sound from the engine that worsens with acceleration. If the sensor is faulty and sending bad data, you will not hear anything unusual.

Key Takeaways

• Code P2337 means the engine computer detected harmful detonation in cylinder #2, requiring immediate diagnosis to prevent internal damage.
• Stop driving immediately; ignoring severe engine knock turns a $150 sensor replacement into a $4,000+ complete engine rebuild.
• For Ford and European diesel engines, verify the 16-digit fuel injector calibration code in the PCM before attempting mechanical repairs.
• Always test the knock sensor circuit with a multimeter before replacing parts, as wiring faults cause a significant percentage of these codes.
