P2159 on 2010-2014 Audi S4: Vehicle Speed Sensor 'B' Causes and Fixes

What's Unique About the 2010-2014 Audi S4

While a faulty wheel speed sensor is a common cause on any car, the B8/B8.5 S4 platform has a specific, well-documented nuance involving its 7-speed S-Tronic (DL501) transmission. A known issue, detailed in Audi Technical Service Bulletin #A351619 (also listed as 2032211), is that an internal mechatronics unit failure can trigger P2159. This usually happens alongside codes P0501 ('Vehicle Speed Sensor A') and P2765 ('Input/Turbine Speed Sensor 'B' Circuit'), accompanied by a 'Gearbox Malfunction' warning on the dash. This makes it critical to perform a full system scan to determine if the fault lies with an inexpensive external wheel sensor or the more complex and costly internal transmission sensors.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This range covers the B8 (2010-2012) and the facelifted B8.5 (2013-2014) generations. Both use the 3.0L TFSI engine and the DL501 S-Tronic transmission, and the diagnosis for P2159 is identical across both. The mechatronic failure is noted to be more common in the earlier models (pre-2013) due to the circuit board having less protection from hot transmission fluid.

Symptoms You May Notice

• ABS and Electronic Stability Control (ESC/ESP) warning lights illuminated on the dashboard.
• "Gearbox Malfunction: You can continue driving" message on the instrument cluster.
• Check Engine Light is on.
• Harsh, erratic, or delayed gear shifts from the S-Tronic transmission, sometimes described as a 'clunk' or 'jolt', especially at low speeds or when coming to a stop.
• Speedometer may behave erratically or read zero while moving.
• Cruise control is disabled.

Most Likely Causes

1. Faulty ABS Wheel Speed Sensor 🔴 High Probability These sensors are exposed to the elements at the wheel hub and can fail from moisture, road debris, or age. They are a common failure item on many vehicles, including the S4.
   How to confirm: Use a scan tool capable of reading live data from the ABS module (e.g., VCDS). Monitor the output from all four wheel speed sensors while driving. The faulty sensor will show an erratic, lagging, or zero-speed reading compared to the others.
   Typical fix: Replace the faulty wheel speed sensor. They are held in by a single bolt at the wheel hub, making it a feasible DIY job. 🎬 Watch: Step-by-step guide to replacing the wheel speed sensor.
   Est. part cost: $40-$150
2. Internal Transmission Speed Sensor / Mechatronic Circuit Board Failure 🟡 Medium Probability The DL501 S-Tronic transmission's mechatronic unit has internal printed circuit boards (PCBs) and sensors that are known to fail, particularly on 2010-2013 models. Hot transmission fluid and additives can cause the circuit boards to delaminate or develop poor internal contacts over time. This is the specific issue addressed in TSB #A351619 when P2159 is paired with P0501 and gearbox warnings.
   How to confirm: If a live data scan confirms all four external ABS wheel speed sensors are working correctly, and transmission-related codes (like P0501, P2765, P179E, etc.) are present, the fault is almost certainly internal to the transmission. The TSB requires the specific combination of fault codes and their associated DFCC numbers to apply.
   Typical fix: The transmission must be partially disassembled to install a mechatronics repair kit. This kit typically includes new circuit boards (PCBs), wiring, and sometimes solenoids. This is a complex job for a specialist or experienced DIYer and requires subsequent adaptation with a proper scan tool like VCDS. 🎬 See this walkthrough for a complete mechatronic unit service.
   Est. part cost: $300-$600
3. Damaged Wiring or Connector ⚪ Low Probability Wiring to the wheel speed sensors is susceptible to damage from road debris, improper repairs, corrosion, or chafing against the chassis.
   How to confirm: Visually inspect the wiring harness leading to the suspect wheel speed sensor. Check for breaks, chafing, or corrosion in the connector pins. Use a multimeter to check for continuity and proper voltage at the sensor connector according to the repair manual.
   Typical fix: Repair the damaged section of wire or replace the connector pigtail.
   Est. part cost: $10-$50

Rare But Worth Checking

• Damaged ABS Tone Ring: The notched ring (reluctor ring) that the ABS sensor reads can become cracked, rusted, or clogged with debris, causing an incorrect signal. This should be inspected when the sensor is replaced.
• Failing Wheel Bearing: A worn or failing wheel bearing can introduce excessive play ('wobble') in the hub, causing the distance between the ABS sensor and the tone ring to vary, which can trigger a range/performance code. This is usually accompanied by a grinding or humming noise that changes with speed and when turning. The magnetic strip for the sensor on the bearing can also go bad.

Diagnosis Steps

1. Perform a full system scan with an advanced tool (like VCDS by Ross-Tech) to check for codes in the Engine (01), Transmission (02), and ABS (03) modules.
2. Record all codes and any associated DFCC (Diagnostic Fault Code Companion) numbers. Pay close attention if P0501, P2765, or other transmission codes are present alongside P2159, as this points to the TSB scenario.
3. Access live data for the ABS module (Address 03) and monitor the output of all four wheel speed sensors while driving slowly (under 10 mph).
4. Identify if one sensor reads differently, drops to zero, or is erratic. This sensor is the primary suspect for an isolated P2159 fault.
5. If a sensor is suspect, visually inspect its wiring and connector for any visible damage, corrosion, or looseness.
6. If wiring looks good, replace the suspect wheel speed sensor. Clear codes and test drive.
7. If all four wheel speed sensors read perfectly and codes P2159/P0501 persist with gearbox warnings, the issue is internal to the transmission. The vehicle should be taken to a qualified Audi or transmission specialist for mechatronics repair per TSB #A351619.

Parts You'll Likely Need

• ABS Wheel Speed Sensor (OEM #4E0-927-803-F (Check specific location as part numbers vary)) — This is the most common failure point for an isolated P2159 code. It's a sensor located at one of the four wheel hubs. Part numbers can vary by location (front/rear).
  Trusted brands: Bosch, Genuine Audi, Delphi, Vemo
  OEM price range: $140-$210
  Aftermarket price range: $40-$90
• S-Tronic (DL501) Mechatronic Repair Kit (OEM #0B5398048D (supercedes 0B5398048C)) — This kit is required when the fault is internal to the transmission, typically when P2159 is paired with P0501 and gearbox warnings. It contains the necessary circuit boards, wiring, and sometimes solenoids 🎬 Watch: How to install the mechatronic circuit board repair kit. to repair the sensor module.
  Trusted brands: Genuine Audi / Borgwarner
  OEM price range: $400-$600
  Aftermarket price range: $250-$400

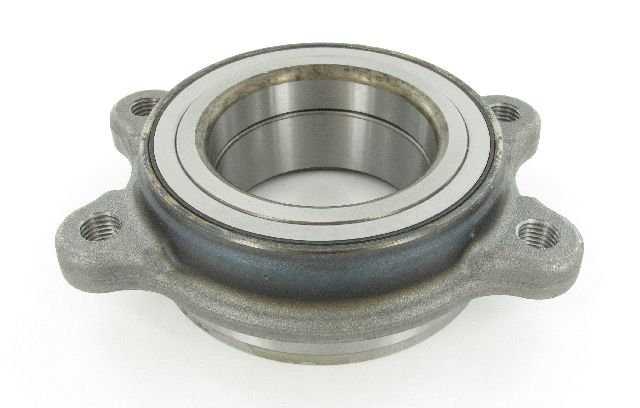

• Wheel Bearing Kit (OEM #4H0498625F) — In the rare case a failing wheel bearing is causing the code, the bearing must be replaced. Kits often include the bearing and necessary one-time-use bolts.
  Trusted brands: FAG, SKF, Schaeffler, NTN
  OEM price range: $100-$150
  Aftermarket price range: $60-$100

Related Codes That Often Appear With This One

• P0501 — Stands for 'Vehicle Speed Sensor A Range/Performance'. When seen with P2159, it strongly points towards the internal transmission mechatronics issue, as documented in TSB #A351619.
• P2765 — Stands for 'Input/Turbine Speed Sensor 'B' Circuit'. This is another transmission-specific code that, when present with P2159, confirms the fault is within the S-Tronic gearbox, per TSB #A351619.
• P179E / P179F — These codes for 'Drive Position Sensor' errors are also related to the mechatronic unit's internal sensor module (G676) and are often logged during the same failure event.
• C-series codes — Various chassis codes related to ABS and stability control will likely be present, as the faulty speed signal directly impacts these systems.

Technical Service Bulletins (TSBs) & Recalls

• A351619 / 2032211: This is the key document. It has been revised multiple times (latest version is 2032211/5 or higher). It explicitly links DTC P2159 with P0501, P2765, and others, indicating a fault that requires replacing the G676 sensor module and circuit board inside the transmission. It specifies that the fault codes and their corresponding DFCC codes must match exactly for the TSB to apply.

Platform-Specific Known Issues

• The 7-speed S-Tronic (DL501) transmission in the B8/B8.5 S4 is known for mechatronic unit failures, which can manifest as various speed sensor and gear position sensor fault codes. TSB #A351619 directly addresses this scenario where P2159 is one of the resulting codes. The failure is often traced to the internal circuit board (PCB) which can be damaged by heat and contaminated fluid over time, an issue more prevalent on pre-2013 models.

Mechanic-Grade Diagnostic Values

• ABS Wheel Speed Sensor (Passive Type) Resistance — expected: Generally around 1000-2350 Ohms, but comparing a suspect sensor to a known-good one on the same car is the best method.. Failure: An open circuit (infinite resistance) or a reading significantly different from the other sensors on the vehicle.
• ABS Wheel Speed Sensor (Passive Type) AC Voltage Output — expected: At least 0.1V to 0.2V (100-200mV) AC when spinning the wheel at approximately one revolution per second.. Failure: No voltage or very low voltage indicates a dead sensor or a problem with the tone ring/bearing.
• DL501 Mechatronic Solenoid Resistance (Shift Forks) — expected: ~13.1 Ohms. Failure: A reading that deviates significantly from the expected value or from other identical solenoids in the unit.
• DL501 Mechatronic Solenoid Resistance (Large Pressure Control) — expected: ~4.7 Ohms. Failure: A reading that deviates significantly from the expected value.

Hidden / Shadow Codes Worth Checking

• DFCC 8099: This is the Diagnostic Fault Code Companion number that Audi's TSB #A351619 specifically links to the P2159 fault when it's caused by the internal mechatronic failure. The presence of this exact DFCC is required for the TSB to apply. (see via Advanced scan tools like VCDS (Ross-Tech) or ODIS (dealer software) will display the DFCC alongside the primary P-code.)

Scan Tool Commands That Help

• VCDS (Ross-Tech): Erase counter for start and stop process — This is one of the first steps in the adaptation procedure after a mechatronic repair or replacement. It clears learned values.
• VCDS (Ross-Tech): Distance sensor calibration — Performed with the engine on, this calibrates the gear position sensors within the mechatronic unit. The transmission will make audible noises during this process.
• VCDS (Ross-Tech): Clutch engagement point adaptation — This is a final, critical step after a mechatronic repair. The tool commands the TCU to find the 'kiss point' for both clutches to ensure smooth takeoffs.
• VCDS (Ross-Tech): Main pressure valve calibration — This procedure calibrates the main hydraulic pressure supply valve in the mechatronic unit, ensuring accurate pressure delivery for all functions.

Wiring & Ground Locations

• ABS Module Connector — The ABS control module is typically located in the engine bay, attached to the hydraulic block.. This is the termination point for all wheel speed sensor wiring. A continuity test from the wheel sensor connector to the pins at this module connector can confirm if the wiring harness is intact.
• Chassis Ground Points — On a B8 platform, a relevant ground point is located in the driver-side footwell/kick panel area. Another is in the trunk, near the battery.. A poor ground for the ABS module can cause a variety of difficult-to-diagnose electrical faults and error codes, including range/performance issues.
• Wheel Speed Sensor Connector Pins — At the wheel hub, connecting the sensor to the main chassis harness.. A user on AudiWorld confirmed that for their vehicle, the rear right sensor wires (brown and black) routed to pins 31 and 12 respectively at the main ABS module connector, which is crucial information for targeted continuity testing.

Real Owner Repair Stories

• Reddit user u/nMe-CA (2011 Audi S4, 64k miles) — "Same symptoms and codes as everyone," implying the 'Gearbox Malfunction' warning and associated transmission fault codes.
  ❌ Tried (didn't work) Initial quotes from two independent shops were for a full transmission replacement at $7,500.
  ✅ What actually fixed it Found a local shop that was willing to disassemble the mechatronic unit and replace the necessary internal parts (likely the repair kit). The final cost was $2,500, and the car ran 'amazing' afterward.
• YouTube channel 'Vancity Audi' (2012 Audi S4) — Harsh shifting, grinding gears, especially at low speeds. The previous owner had replaced the circuit board, but the issue was not fully resolved.
  ❌ Tried (didn't work) The initial circuit board replacement did not fully fix the drivability issues.
  ✅ What actually fixed it The owner discovered that a specific, careful driving style over a month (manually shifting to avoid problem areas) seemed to help the transmission 're-adapt' and significantly improved the shifting behavior. While not a guaranteed fix, it suggests the adaptation process is critical and can sometimes be influenced by driving habits after a repair.

OEM Part Supersession History

• 0B5398048C → 0B5398048D — The 'D' revision is an updated version of the DL501 mechatronic repair kit, likely with improvements to the circuit boards or sensor components to increase longevity.
  Heads up: The Audi Factory Service Manual reportedly states that once a circuit board from a kit is plugged in, it should not be unplugged and reused in another transmission, possibly due to concerns about weakening the pin contacts.

Model Year Variations Within This Range

• 2010-2012 (B8): The mechatronic units in earlier B8 models are considered more susceptible to failure. Improvements were made from 2012 onward to enhance reliability, though failures can still occur on later B8.5 models.
• 2013-2014 (B8.5): These models received revised mechatronic units that are generally more reliable than the launch versions. However, they are still subject to the same failure modes, and the TSB #A351619 was updated to include these model years, indicating the problem was not entirely eliminated.
