OBD-II Code P2149: Fuel Injector Group 'B' Supply Voltage Circuit/Open

What Does P2149 Mean?

Your car's Powertrain Control Module (PCM) detected a severe electrical fault in the 'Group B' fuel injectors. To prevent engine damage, the PCM immediately cuts power to this entire group. This shuts down half your engine's cylinders, causing immediate and severe performance loss.

Technical definition: The SAE/ISO definition for P2149 is "Fuel Injector Group 'B' Supply Voltage Circuit/Open". The PCM detects an open or short in the high-side voltage supply circuit for the 'B' bank of injectors and disables the group as a protective measure.

Can I Drive With P2149?

No — Do Not Drive. Driving is not recommended. The engine runs poorly, stalls, and lacks power, creating a traffic hazard. Continuing to drive forces raw, unburnt fuel into the exhaust, which destroys the catalytic converter within 50 miles—a repair costing upwards of $1,500.

Common Causes

• Damaged or Chafed Wiring Harness (Very Common) — The injector wiring harness rubs against engine brackets or valve covers, wearing through the insulation and causing a short. This is the leading cause of P2149 on GM and diesel truck engines.
• Failed Fuel Injector (Common) — An internal coil inside a single Group B injector shorts out or breaks. This creates an open circuit that forces the PCM to shut down the entire group to protect the driver circuit.
• Loose or Corroded Electrical Connectors (Common) — Electrical connectors at the injectors or main engine harness loosen or corrode. Diesel engines, particularly the GM Duramax, frequently suffer from weakened pin tension that breaks the circuit.
• Valve Cover Gasket Pass-Through Connector Failure (Common) — On Cummins diesels, the main injector harness passes through the valve cover gasket. This integrated connector degrades from heat and oil, creating an open circuit for the entire bank.
• Blown Fuse or Faulty Relay (Less Common) — A blown fuse or failing relay cuts power to the Group B injector circuit. A blown fuse usually indicates an underlying short circuit that must be repaired first.
• PCM or FICM Failure (Rare) — The internal driver circuit within the PCM or Fuel Injection Control Module (FICM) fails. Consider this only after ruling out wiring damage and testing injector resistance.
🎬 See how to test fuel injector resistance with a multimeter

Symptoms

• Check Engine Light is On — The Malfunction Indicator Lamp (MIL) illuminates immediately when the fault occurs.
• Rough, Shaking Engine — The engine runs violently rough and vibrates excessively because half the cylinders are dead.
• Severe Power Loss — The vehicle loses significant acceleration, making it difficult to reach highway speeds or climb hills.
• Engine Stalling — The engine stalls unexpectedly at idle or when coming to a complete stop.
• Raw Fuel Smell from Exhaust — Strong odors of unburned fuel or excessive smoke exit the tailpipe.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Repair Fuel Injector Wiring Harness — Parts: $10-$50, Labor: $150-$400, ~2.0 hr book time (Intermediate)
• Replace Failed Fuel Injector — Parts: $150-$450 (per injector), Labor: $200-$600, ~3.0 hr book time (Intermediate)
• Clean or Reseat Electrical Connectors — Parts: $10, Labor: $50-$150, ~0.5 hr book time (DIY)
• Replace Blown Fuse or Relay — Parts: $5-$25, Labor: $0-$50, ~0.1 hr book time (DIY)
• Replace PCM or FICM — Parts: $500-$1500, Labor: $150-$300, ~1.5 hr book time (Professional)

Used vs. New Parts: Buying Guide

When a used part is worth it: Buying used is not recommended for wiring harnesses or fuel injectors. A quality remanufactured injector from a reputable supplier is the best cost-saving alternative to new.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the rebuilder uses OEM components and provides a warranty.
• Avoid 'refurbished' injectors, which are often just cleaned used parts.
• Only consider a used harness if it's from a low-mileage vehicle with no front-end damage.

Decision logic:

• If The part is a fuel injector and budget is a concern → Buy a high-quality remanufactured unit with a warranty.
• If The part is a wiring harness → Professional repair of the existing harness is more reliable than installing a used one.
• If Reliability is paramount → Buy new OEM or top-tier aftermarket parts.

Warranty tradeoff: Used parts have a 30-90 day warranty. Remanufactured parts offer 1-year warranties. New OEM parts carry the manufacturer's warranty.

Worst-case if a used part fails: $500-1200 if a poorly remanufactured injector fails, requiring repeat labor.

What Happens If You Wait — Timeline

1. Immediately: Check Engine Light illuminates. Engine runs rough, shakes, and loses power as the PCM shuts down half the cylinders. (MPG impact: 30-50%% · Added cost: $0)
2. 1-50 miles of driving: Unburnt fuel dumps into the exhaust, overheating the catalytic converter. Extreme vibration stresses motor mounts. (MPG impact: 30-50%% · Added cost: $50-100 in wasted fuel)
3. 50-200 miles of driving: The catalytic converter substrate melts and clogs, creating a major exhaust restriction. (MPG impact: 50%+% · Added cost: $1200-$2800 (catalytic converter replacement required))
4. 200+ miles of driving: Complete catalytic converter failure. Raw fuel washes oil off cylinder walls, accelerating piston wear. (MPG impact: 50%+% · Added cost: $3000+)

Cost of Not Fixing It

• Immediately: Severe drivability issues, rough idle, stalling, and lack of power. Vehicle is unsafe to drive. (Added cost: Negligible)
• Weeks to Months: Raw fuel washes oil from cylinder walls, causing premature piston wear. Unburnt fuel melts the catalytic converter. (Added cost: $1200-$2800)
• 6+ Months: Complete catalytic converter failure. Potential engine damage from cylinder washdown and excessive vibration. (Added cost: $3000+)

Diagnosis Steps

1. Scan for All Trouble Codes & Freeze Frame Data
   Use an OBD-II scanner to confirm P2149. Look for specific injector codes (P0201-P0208). A specific P020x code pinpoints the exact injector or circuit that initiated the group shutdown.
   Tools: OBD-II Scanner (Beginner)
2. Visually Inspect the Wiring Harness
   Inspect the entire Group B fuel injector wiring harness. Look for chafing, melting, or broken wires where the harness touches engine brackets or valve covers.
   Tools: Flashlight (Beginner)
3. Perform a Harness Wiggle Test
   With the engine idling, carefully wiggle the injector wiring harness near connectors and chafe points. If the engine's idle stumbles or smooths out, you have found an intermittent open or short.
   Tools: Gloves, OBD-II Scanner (Live Data) (Intermediate)
4. Test Fuel Injector Resistance
   Disconnect each Group B injector and measure resistance across its pins. Gas injectors are typically 11-14 ohms; diesel injectors are 0.3-1.0 ohms. An injector reading zero or infinity (OL) is faulty.
   Tools: Multimeter, Vehicle-Specific Repair Manual (Intermediate)
5. Test for Voltage at the Injectors
   With the key on (engine off), check for battery voltage at the power supply wire of a Group B injector connector. A reading below 11.5V indicates a power supply circuit problem.
   Tools: Multimeter (Intermediate)
6. Check Fuses and Relays
   Locate the fuse box and inspect the fuel injector fuses. If a fuse is blown, replace it. If it blows again immediately, trace the circuit for a dead short.
   Tools: Fuse Puller, Multimeter (Beginner)
7. Perform an Injector Swap Test
   If you have a P020x code and borderline resistance, swap the suspect injector with a known good one from Group A. If the P020x code follows the injector to the new cylinder, the injector is bad.
   Tools: Basic Hand Tools (Intermediate)
8. Perform a Circuit Continuity Test
   Check the continuity of the wiring between the PCM connector and the injector connectors. A reading greater than 0.2 ohms indicates high resistance or a break in the wire.
   Tools: Multimeter, Wiring Diagrams (Advanced)
9. Check FICM Voltage (Ford Power Stroke Only)
   For 6.0L Power Stroke engines, check the Fuel Injection Control Module (FICM) output voltage with the key on. It must be a stable 48 volts. Drops below 45V indicate a failing FICM.
   Tools: Multimeter or Scan Tool (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• Engine Coolant Temp: 180-205°F (Engine at full operating temperature.)
• Engine RPM: 1200-2500 RPM (During steady cruise or light acceleration.)
• Engine Load: 25-50% (Vehicle is under a moderate load, not idling or at full throttle.)
• Vehicle Speed: 30-60 mph (Sustained driving at city or highway speeds.)

Related Codes

• P2146 — Identical code for Fuel Injector 'Group A'. Seeing both suggests a global issue like a main power relay failure or major harness damage.
• P0201 - P0208 — Indicates a circuit malfunction for a specific injector. The specific P020x code identifies which injector triggered the Group B shutdown.
• P0300 — Random Misfire Detected. P2149 guarantees misfires by shutting down cylinders. Ignore P0300 and fix P2149 first.
• P062D — Fuel Injector Driver Circuit Performance. Points to a control-side problem, often seen with P2149 on failing Ford FICMs.

How to Talk to a Mechanic About This Code

Say this: "I have code P2149 for the 'Fuel Injector Group B Supply Voltage'. The engine runs rough. Please start by inspecting the wiring harness and connectors for chafing or shorts before recommending injector replacement."

Directs the shop to start with the most common and least expensive cause (wiring inspection). It prevents them from immediately suggesting costly injector replacements.

Avoid saying:

• 'My check engine light is on, can you just fix it?'
• 'The truck is shaking, I think it needs new injectors.'
• 'Just do whatever it takes to get it running right.'

Questions to ask before authorizing the repair:

• Did you perform a continuity and voltage test on the injector harness?
• Did you find a specific chafe point or damaged connector?
• What was the resistance reading of the failed injector compared to the others?
• Is there a Technical Service Bulletin (TSB) for this issue on my vehicle?

Where to Take It: Dealer vs Independent vs Chain

• Dealer:
  Best for: Vehicles under warranty., Repairs covered by a known manufacturer TSB., When the diagnosis points to a failed PCM requiring manufacturer programming.
  Downsides: Significantly higher labor rates., May recommend replacing an entire wiring harness rather than performing a cost-effective wire repair. (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit. An experienced independent technician effectively diagnoses and repairs common wiring and injector faults at a lower cost.
  Best for: Out-of-warranty vehicles., Diagnosing and repairing common wiring harness chafing issues., Shops specializing in your vehicle's make (e.g., a diesel specialist).
  Downsides: Quality varies; vet the shop through reviews and ASE certifications., May lack proprietary programming software for a PCM replacement. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID. This code requires methodical electrical diagnosis, which is not a strength of chain repair shops.
  Best for: Simple maintenance like oil changes.
  Downsides: Technician skill varies dramatically., High pressure to sell parts leads to misdiagnosis and unnecessary injector replacements. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the total estimated repair cost exceeds 50% of your car's private-party value, pause and evaluate your options.

• Car worth $5000, fix is $2800: Walk away. The repair cost is over 50% of the vehicle's value.
• Car worth $15000, fix is $1500: Fix it. The repair cost is 10% of the car's value.
• Car worth $8000, fix is $3500: Borderline. Get a second opinion on the diagnosis and repair estimate.

What Scan Tool You Need for This Code

Minimum: A code reader that displays live data and freeze frame data.

A basic scanner won't show freeze-frame data or live voltage data, which are crucial for diagnosing intermittent electrical faults.

Budget: Ancel BD310 (~$80) — Reads codes, shows freeze-frame data, and graphs live data streams. Essential for performing a wiggle test.

Mid-range: KINGBOLEN K7 (~$350) — Offers bidirectional control to command specific components, useful for testing injector driver circuits.

Professional: Autel MaxiCOM MK808 (~$500-1000) — Provides full bidirectional control, extensive live data graphing, and access to manufacturer-specific diagnostic procedures.

Rent vs buy: Buy. Since P2149 is an electrical fault requiring live data monitoring, an affordable scanner is a worthwhile investment.

How to Clear the Code After You Fix It

1. Ensure all connectors are securely fastened.
2. Reconnect the battery if it was disconnected.
3. Use a quality OBD-II scan tool to clear the diagnostic trouble codes.

Drive cycle (~20 minutes): Perform a cold start, idle for 3 minutes, drive in city traffic for 10 minutes, and maintain a steady 55-60 mph on the highway for 10 minutes.

Readiness monitors affected: Comprehensive Component Monitor, Misfire Monitor, Fuel System Monitor, Catalyst Monitor

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Disconnecting the battery does not clear the code from permanent memory.
• The code returns immediately if the underlying electrical fault is not repaired.
• Failing to complete a full drive cycle leaves readiness monitors incomplete.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An illuminated Check Engine Light results in an automatic failure. All readiness monitors must be 'Ready'.
• New York: A Check Engine Light is an automatic failure. A drive cycle must be completed post-repair to set readiness monitors.
• Texas: In emissions-testing counties, an illuminated Check Engine Light causes an automatic failure.

Most Commonly Affected Vehicles

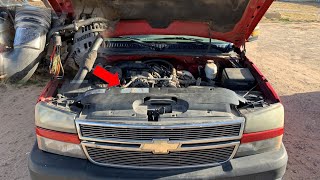

• Chevrolet Silverado (Duramax LLY) (2004-2005) — Injector connectors for cylinders #2 and #7 break from engine vibration. Addressed in GM TSB #05-06-04-047B.
• GMC Sierra (Duramax LLY) (2004-2005) — Shares the exact same unsupported injector connector issue as the Silverado (GM TSB #05-06-04-047B).
• Chevrolet Equinox (2010-2014) — The fuel injector wiring harness chafes against the sharp edges of the ECM/TCM bracket (GM TSB #PIP4924D).
• Chevrolet Traverse (2009-2014) — Affected by the wiring harness chafing issue outlined in GM TSB #PIP4924D, usually over the front valve cover.
• Dodge Ram 2500/3500 (5.9L Cummins) (2003-2007) — Frequently caused by a faulty injector solenoid or a bad connection at the valve cover gasket pass-through connector.
• Volkswagen Jetta (TDI) (2009-2014) — Piezoelectric injectors short internally, causing the PCM to shut down the entire group to protect the driver circuit.
• Ford F-Series (6.0L Power Stroke) (2003-2007) — Triggered by a failing Fuel Injection Control Module (FICM). Voltage dropping below 45V is the primary suspect.

Manufacturer-Specific Notes

• General Motors (Chevrolet/GMC): On Duramax trucks and 3.6L V6 cars, this code is almost always caused by the wiring harness rubbing through its insulation. GM issued TSBs #PIP4924D and #05-06-04-047B to address these exact chafing points.
• Dodge/Ram (Cummins): P2149 is often traced to a single failed injector solenoid or a poor connection at the valve cover gasket pass-through. Testing individual injector resistance is mandatory before replacing the PCM.
• Ford (Power Stroke): On 6.0L engines, P2149 is a classic symptom of a failing FICM. Diagnosis must include testing the FICM output voltage (target 48V) before condemning injectors.
• Volkswagen (TDI): Piezoelectric fuel injectors are a common failure point. An internal short in a single injector forces the PCM to shut down the entire group.

Real Owner Stories

2004 Dodge Ram 5.9L Cummins with P2149

Truck lost power and ran on 3 cylinders. Code P2149 was present.

What they tried:

1. Visually inspected the wiring harness.
2. Tested injector harness continuity under the valve cover.
3. Ohm-tested each injector. Injector #4 tested at 0 ohms (dead short).

Outcome: Replaced the faulty #4 injector with a remanufactured Bosch unit. The truck ran smoothly and the code cleared.

Lesson: Test individual components. A multimeter test of injector resistance pinpoints a failed injector and prevents unnecessary harness replacement.

2010 Chevy Equinox with P2149

Vehicle ran rough with a flashing CEL. Code P2149 indicated a fault with injector group 'B'.

What they tried:

1. Researched online and found GM TSB #PIP4924D regarding harness chafing.
2. Visual inspection confirmed the harness rubbed through its insulation at the ECM bracket.

Outcome: Repaired the broken wires and protected the area with conduit. The code cleared and performance returned to normal.

Lesson: Always search for Technical Service Bulletins (TSBs). Manufacturers document common failure points, saving you from misdiagnosing the problem.

2005 GMC Sierra LLY Duramax with P2149 and P0202

Truck entered limp mode with P2149 and P0202, pointing to the #2 injector circuit.

What they tried:

1. Performed a wiggle test on the #2 injector connector, causing the idle to change.
2. Referenced GM TSB #05-06-04-047B regarding unsupported connectors.

Outcome: Replaced the faulty #2 injector pigtail with an updated GM part (P/N 98017958). The $30 repair resolved the issue.

Lesson: When P2149 pairs with a specific injector code (P020x), focus diagnosis on that cylinder's wiring first.

2006 Dodge Ram 5.9L Cummins with intermittent P2149

Truck intermittently ran rough and set P2149 only when the electrical grid heater cycled in cold weather.

What they tried:

1. Double-checked recent injector and valve cover gasket replacements.
2. Linked the problem to high electrical load, suggesting a voltage supply issue.

Outcome: Replaced a weak alternator. The new alternator maintained stable voltage under load, preventing the code.

Lesson: If the code sets under high electrical load, the root cause is likely a weak charging system, not the injector circuit.

How to Prevent This Code From Triggering

• Secure and Protect Wiring Harnesses (During any under-hood maintenance) — Prevents the leading cause of P2149. Add protective wire loom or zip ties to secure the harness away from sharp metal edges.
• Apply Dielectric Grease to Connectors (Anytime a connector is disconnected) — Seals out moisture and prevents corrosion on electrical pins, ensuring a solid connection.
• Maintain the Charging System (Annually) — Prevents low system voltage from stressing injector driver circuits and triggering voltage-related codes.
• Clean Engine and Chassis Grounds (Every 30,000 miles) — Prevents floating reference voltages that cause the PCM to misinterpret sensor readings.

Frequently Asked Questions

What does 'Group B' mean?

'Group B' refers to a specific bank of fuel injectors controlled as a single unit by the PCM. Consult your vehicle's service manual to identify exactly which cylinders belong to Group B.

What are the most common misdiagnoses for P2149?

The most common mistake is replacing expensive fuel injectors without testing the wiring harness first. Many owners replace injectors only to find the code returns because a $1 wire rubbed through its insulation. On diesels, replacing the PCM instead of checking the valve cover pass-through is another costly error.

Can a bad ground cause a P2149 code?

Yes. A corroded engine or PCM ground causes incorrect voltage readings. The PCM interprets this voltage drop as a fault in the injector supply circuit and triggers P2149.

I replaced the injector, but the code came back. What now?

The fault is in the wiring harness or connector leading to that injector group. Re-inspect the harness for chafing or loose connections. Check the connector pins to ensure they make a tight connection.

What is the 'ice pick trick' for diesel injectors?

This is a technician trick for Duramax engines where female pins in the injector connector loosen over time. You use a fine-pointed tool to slightly bend the internal metal tang, restoring tension and ensuring a tight fit.

How much does it cost to diagnose a P2149 code?

Shops charge a diagnostic fee equivalent to 1-1.5 hours of labor. Expect to pay between $100 and $200 for a professional diagnosis.

Is it safe to clear the code and see if it comes back?

You can clear it, but P2149 indicates a hard electrical fault and will return immediately upon starting the engine. Clearing the code does not fix the severe drivability issues.

Key Takeaways

• Code P2149 means the Powertrain Control Module (PCM) cut power to the 'Group B' fuel injectors due to an electrical short or open circuit.
• A chafed wiring harness rubbing against engine brackets causes over 60% of P2149 codes, followed closely by a single internally shorted fuel injector.
• Do not drive with this code; unburnt fuel entering the exhaust destroys a $1,500+ catalytic converter within 50 miles.
• Always test individual injector resistance (typically 11-14 ohms for gas, 0.3-1.0 ohms for diesel) before spending $500+ replacing parts.
