OBD-II Code P2076: Intake Manifold Tuning Valve Position Sensor/Switch Circuit Range/Performance

What Does P2076 Mean?

The P2076 code means the Powertrain Control Module (PCM) detected a problem with the Intake Manifold Tuning (IMT) valve or its position sensor on Bank 1. This valve (also called an IMRC or flapper) stays closed at low RPMs to increase air velocity for better torque, and opens at high RPMs to maximize airflow for horsepower. P2076 triggers when the PCM commands the valve to a specific position, but the position sensor reports the valve is elsewhere. This performance mismatch directly hurts power, torque, and fuel economy.

Technical definition: Intake Manifold Tuning (IMT) Valve Position Sensor/Switch Circuit Range/Performance (Bank 1). The PCM detected the actual position of the IMT valve does not match the commanded position. The electrical signal is intact, but the physical position is implausible for current operating conditions.

Can I Drive With P2076?

Yes, But With Caution. You can drive with a P2076 code, but you will experience reduced engine power, poor acceleration, rough idling, and increased fuel consumption. Do not drive for an extended period. The most severe risk is that brittle plastic parts from a failing IMT valve system break off and fall into the engine, causing catastrophic internal damage. Additionally, running with an inefficient air-fuel mixture damages the catalytic converter, a repair costing $1,000 to $4,000. Address the issue within 100 miles to prevent expensive secondary failures.

Common Causes

• Broken or disconnected IMT valve linkage arm (Very Common) — On Chevrolet Cruze and Sonic models with the 1.8L engine, a small plastic arm connecting the actuator motor to the valve flaps breaks or pops off due to a weak ball joint design or worn bushings. This is the definitive leading cause for this code on GM vehicles.
• Carbon buildup on the IMT valve flaps (Common) — Sticky carbon deposits build up on the valve flaps inside the intake manifold, causing them to stick, move slowly, or fail to close. This is a frequent issue on direct-injection engines from Volkswagen, BMW, and Audi.
• Faulty IMT Valve Actuator Motor (Common) — The motor moving the valve fails mechanically or electrically. Internal plastic gears strip, or the motor burns out, preventing it from moving the valve flaps.
• Faulty IMT Valve Position Sensor (Common) — The sensor reading the valve's position fails, sending incorrect but plausible voltage readings to the PCM. Because the sensor is integrated into the actuator assembly, the entire unit requires replacement.
• Damaged wiring or loose connectors (Less Common) — Wires routing to the IMT sensor and motor fray, corrode, or short due to engine bay heat and vibration. Loose connectors or corroded pins cause an intermittent or incorrect signal.
• Vacuum leaks (Rare) — If the IMT system uses vacuum control, a cracked or disconnected vacuum line prevents the diaphragm actuator from moving the valve, triggering the code.
• Faulty Barometric Pressure (BAP) or Mass Airflow (MAF) Sensor (Rare) — The PCM uses BAP and MAF sensor inputs to determine expected airflow. A faulty signal from either sensor leads the PCM to misinterpret the IMT valve's performance.
• Faulty Powertrain Control Module (PCM) (Very Rare) — PCM failure is extremely uncommon. Consider this only after thoroughly ruling out all wiring and mechanical faults.

Symptoms

• Decreased fuel economy — Because the engine runs inefficiently, fuel consumption increases by as much as 10-15%.
• Check Engine Light is on (also visible on scanner) — An illuminated Check Engine Light on the dashboard. Some vehicles display a 'Reduced Engine Power' message.
• Reduced engine power, hesitation, and surging (also visible on scanner) — The car feels sluggish, hesitates, surges, or has a noticeable 'flat spot' during acceleration, especially at highway speeds or when merging.
• Rough idle (also visible on scanner) — The engine runs unevenly, shakes, or has fluctuating RPMs while stopped at a light or in park.
• Engine stalling (also visible on scanner) — In severe cases, the engine stalls at low speeds, when coming to a stop, or struggles to start.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replace the IMT valve linkage arm — Parts: $20-$40, Labor: $0-$100, ~0.5 hr book time (DIY)
  : OEM 55570283 (Alt: Dorman 911-929, Hoypeyfiy 55570283)
• Replace the IMT Valve Actuator/Motor Assembly — Parts: $75-$250, Labor: $150-$450, ~2.5 hr book time (Intermediate)
  : OEM FR3Z9J559C (Alt: Standard Motor Products IMA120 / IMRC20)
  : OEM 28321-2EAA0 (Alt: Acaigel 283212EAA0)
• Clean the Intake Manifold and Valves (Carbon Cleaning) — Parts: $20-$50, Labor: $500-$1200, ~6 hr book time (Professional)
• Replace the entire Intake Manifold Assembly — Parts: $300-$900, Labor: $250-$600, ~3.5 hr book time (Professional)
  : OEM 06J133201BH (Alt: Supersedes 06J133201BD)
• Repair or Replace Damaged Wiring/Connectors — Parts: $5-$50, Labor: $100-$300, ~1.5 hr book time (Intermediate)

Used vs. New Parts: Buying Guide

When a used part is worth it: For a complete intake manifold assembly, a used part from a low-mileage vehicle is cost-effective. For the high-failure linkage arm on Chevy models, buying a new aftermarket part is mandatory.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the donor vehicle was not scrapped due to engine failure.
• Inspect plastic components and vacuum ports for brittleness or cracks.
• Match the part number exactly. Manifolds have minor revisions year-to-year.

Decision logic:

• If The failed part is a known weak-design component like the Chevy linkage arm → Buy a new, redesigned aftermarket part. A used part carries the same flaw.
• If The vehicle is over 150,000 miles and the goal is budget repair → A used manifold or actuator is an acceptable risk.
• If The failure is electronic (actuator motor/sensor) and labor is high → Buy a new OEM or high-quality aftermarket part to avoid paying labor twice.

Warranty tradeoff: Used parts from a salvage yard typically have a 30-90 day warranty for part replacement only. New aftermarket parts offer a 1-year to limited lifetime warranty. New OEM parts carry a 12-month/12,000-mile warranty.

Worst-case if a used part fails: $500 - $1000 if a used part fails shortly after installation, requiring repeat labor costs.

What Happens If You Wait — Timeline

1. 0-1 month: Check Engine Light illuminates. Code P2076 is stored. Driver notices a slight rough idle on a cold start. (MPG impact: 0-5%% · Added cost: $0-25 in wasted fuel)
2. 1-6 months: Performance degradation becomes noticeable. The car feels sluggish when merging. Fuel economy loss is measurable. Rough idle is present when warm. (MPG impact: 5-15%% · Added cost: $50-200 in wasted fuel)
3. 6-12 months: The engine consistently runs with a suboptimal air-fuel mixture, causing the catalytic converter to run hotter than designed and reducing its efficiency. (MPG impact: 10-20%% · Added cost: $1,000 - $3,000 (risk of catalytic converter damage))
4. 12+ months: Catastrophic failure risk peaks. A piece of brittle plastic linkage or a carbon-caked valve flap breaks off and is ingested by the engine, requiring engine replacement. (MPG impact: 15-25%% · Added cost: $4,000 - $10,000+ (risk of complete engine failure))

Cost of Not Fixing It

• 0-1 month: Noticeable drop in fuel economy (5-15%), poor acceleration, and rough idle. Failed emissions test. (Added cost: Negligible, besides extra fuel costs.)
• 1-6 months: Running with an incorrect air-fuel mixture causes the catalytic converter to overheat and degrade, leading to premature failure. (Added cost: $1,000 - $3,000)
• 6+ months: Worst-case scenario: a piece of the plastic linkage or flap breaks off and is ingested by the engine, causing catastrophic damage to pistons or valves. (Added cost: $4,000 - $10,000+ (engine replacement))

Diagnosis Steps

1. Read Codes and Freeze Frame Data
   Use an OBD-II scanner to confirm P2076 is active and check for related codes (e.g., P2004, P2008, P0101). Record freeze frame data to capture engine conditions (RPM, load, temp) when the fault occurred.
   Tools: OBD-II Scanner (Beginner)
2. Visually Inspect the Linkage Arm and Actuator
   Locate the IMT actuator on the intake manifold and inspect the plastic linkage arm. On Chevy 1.8L engines, this arm is frequently broken or disconnected. Watch the arm while a helper turns the ignition on (engine off) to see if the actuator motor cycles.
   Tools: Flashlight, Inspection Mirror (Beginner)
3. Manually Actuate the Valve
   If the linkage is intact, move the valve flaps by hand via the linkage. It must move smoothly with slight resistance. If it feels stuck, crunchy, or immovable, heavy carbon buildup is preventing the motor from moving it.
   Tools: None (or a small pry tool) (Intermediate)
4. Inspect the Wiring and Connector
   Examine the wiring harness leading to the IMT valve actuator and sensor. Look for cracked insulation, frayed wires, or corrosion. Unplug the connector and check for bent, loose, or corroded pins.
   Tools: Flashlight (Intermediate)
5. Test Actuator Function with a Bidirectional Scanner
   Command the IMT valve to open and close using a professional scan tool while watching the live data PID for the IMT position sensor. If the motor makes noise but the valve doesn't move, suspect stripped internal gears. If it makes no noise, suspect a bad motor or wiring issue.
   Tools: Bidirectional OBD-II Scanner (Advanced)
6. Test the Position Sensor Voltage
   Use a multimeter on the sensor's signal wire. Voltage should read ~0.5V when closed and sweep smoothly to ~4.5V when open. Manually move the linkage; voltage must track movement without dropouts. Erratic voltage or a constant 0V/5V indicates a failed sensor or wiring fault.
   Tools: Multimeter, T-pins (Advanced)
7. Check Power, Ground, and Signal Wire Continuity
   Verify the actuator motor and sensor have proper power (5V reference or 12V) and ground using a wiring diagram. With the connector unplugged, check signal wire continuity (resistance < 1 ohm). Check actuator motor resistance against the service manual specification.
   Tools: Multimeter, Wiring Diagram (Advanced)
8. Perform a Lab Scope Analysis
   For intermittent issues, connect a lab scope to the sensor's signal wire. Command the valve open/closed. The waveform must be a clean, smooth ramp. Sharp drops or spikes indicate a failing sensor or poor electrical connection.
   Tools: Automotive Oscilloscope (Lab Scope) (Professional)

When This Code Triggers (Freeze-Frame Conditions)

• Engine Coolant Temp: 180-210°F (The engine is fully warmed up. The code rarely sets on a cold engine.)
• RPM: 2000-4000 RPM (The fault occurs when the PCM commands the IMT valve to change state, crossing the 3000 RPM threshold.)
• Engine Load: 40-70% (During moderate acceleration, the PCM expects a specific airflow volume that isn't met due to the valve's incorrect position.)
• Vehicle Speed: 40-65 mph (Triggered during highway driving or merging when a transition from low-RPM (closed valve) to high-RPM (open valve) operation is commanded.)

Related Codes

• P2075, P2077, P2078, P2079 — These are circuit-related codes. P2075 (Malfunction), P2077 (Low), P2078 (High), and P2079 (Intermittent) point to a purely electrical fault like a broken wire or dead sensor. P2076 is a 'performance' code, suggesting a mechanical or partial electronic failure.
• P2004, P2005, P2006, P2007 — These indicate 'IMRC Stuck Open' (P2004/P2005) or 'IMRC Stuck Closed' (P2006/P2007). If present with P2076, the valve flaps are physically jammed by carbon or a broken linkage.
• P0101 — The IMT valve's incorrect position causes airflow that contradicts the PCM's expected model. The MAF sensor's readings conflict with other sensors, triggering P0101 as a secondary symptom.
• P0300-P0306 — Random or specific cylinder misfire codes. Severe carbon buildup or airflow disruption from a faulty IMT valve unbalances the air/fuel mixture, causing misfires under load.

Climate & Environmental Factors

• Extreme Cold: Plastic components, such as the linkage arm and bushings on Chevrolet models, become brittle in sub-freezing weather. This increases the likelihood of the part snapping during a cold start actuator cycle.
• High Altitude: High altitude affects Barometric Pressure (BAP) sensor readings. Because the PCM uses BAP data to calculate expected airflow, a borderline IMT fault triggers more easily at altitude.

How to Talk to a Mechanic About This Code

Say this: "I have a P2076 code on my [Your Car's Make/Model]. I'd like to book a diagnostic. Based on the car, the most likely causes are a broken linkage arm, a stuck valve from carbon, or a bad actuator. Can you confirm which it is before recommending a full intake manifold replacement?"

This signals you understand the specific failure points for this code. It directs the mechanic to perform a proper diagnosis to isolate the problem, rather than jumping to the most expensive conclusion (replacing the entire manifold).

Avoid saying:

• 'My check engine light is on, can you look at it?'
• 'The car feels sluggish, just fix it.'
• 'My friend said it's the intake manifold, how much to replace it?'

Questions to ask before authorizing the repair:

• Did you visually inspect the linkage arm for breaks or excessive play?
• Were you able to move the valve flaps by hand? Did they feel stuck or gritty?
• If recommending an actuator replacement, did you confirm it has power and ground and is not responding to scanner commands?
• If recommending a full manifold replacement, why isn't a targeted repair (replacing the linkage, actuator, or cleaning valves) possible?
• Is this part covered by a manufacturer's extended warranty? (Especially for VW/Audi owners)

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Recommended only for warranty claims (especially VW) or as a last resort for complex diagnostics. Be cautious of recommendations to replace the entire manifold without clear justification.
  Best for: VW or Audi vehicles, to check for extended warranty coverage on the intake manifold., Vehicles still under powertrain warranty., Complex electronic diagnostics on German brands where specialized software is key.
  Downsides: Highest labor rates., Highly likely to recommend a full intake manifold replacement for over $1,200 when a cheaper fix is available. (Typical cost: +50% vs. baseline)
• Independent Shop: Best overall fit for most P2076 repairs. An experienced independent mechanic is familiar with common, vehicle-specific causes and willing to perform targeted, cost-effective repairs.
  Best for: Most out-of-warranty vehicles., Known, common fixes like the Chevy linkage arm or a Ford actuator., Carbon cleaning services (walnut blasting), performed for much less than a dealer.
  Downsides: Quality and expertise vary widely; check reviews and look for ASE certifications., May lack access to the latest manufacturer-specific software or warranty information. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID for diagnosis and repair. They are unlikely to diagnose the root cause correctly and recommend unnecessary part replacements. Use only for a free initial code scan.
  Best for: Reading the initial code for free.
  Downsides: Technician skill varies dramatically., High pressure to upsell parts and services., Lack specialized knowledge for make-specific quirks of the P2076 code. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 50% of the car's private-party value, strongly consider selling or trading it in rather than fixing it.

• Car worth $4000, fix is $2200: Walk away. The repair cost is 55% of the car's value. It's not a sound investment.
• Car worth $12000, fix is $1500: Fix it. The repair is 12.5% of the car's value and is a worthwhile investment.
• Car worth $2500, fix is $40: Fix it. A simple linkage arm on a Chevy makes it an obvious fix, regardless of the car's low value.
• Car worth $3000, fix is $1800: Walk away. At 60% of the car's value, this repair is a classic money pit scenario.

What Scan Tool You Need for This Code

Minimum: OBD-II reader with Live Data streaming for sensor voltage.

A basic $20 code reader only shows the P2076 code. It cannot show live voltage from the position sensor or command the actuator to move, which are essential for determining if the problem is mechanical, electrical, or a faulty motor.

Budget: Ancel BD310 or BlueDriver Pro (~$60) — Connects to your smartphone to read/clear codes, view freeze frame data, and graph live data from the IMT position sensor to verify voltage response.

Mid-range: Foxwell NT604 Elite or Innova 5610 (~$140) — Offers robust live data graphing and accesses other vehicle modules. Some offer limited bidirectional controls to command the IMT valve to cycle, proving actuator functionality.

Professional: Autel MaxiCOM MK808 or Launch X431 series (~$500) — Provides full bidirectional control, allowing you to command the IMT valve open and closed to test the actuator motor, linkage, and flaps simultaneously.

How to Clear the Code After You Fix It

1. Use an OBD-II scan tool to clear the code.
2. Perform the specific drive cycle for your vehicle to set readiness monitors.
3. If no scan tool is available, disconnect the battery for 30 minutes. This clears the code but resets all vehicle electronics and readiness monitors.

Drive cycle (~20 minutes): A general OBD-II drive cycle: 1) Cold start and idle for 2-3 minutes. 2) Drive in stop-and-go traffic with several accelerations. 3) Drive at a steady highway speed (55-60 mph) for 10-15 minutes. 4) Let the vehicle cool down completely.

Readiness monitors affected: Comprehensive Component Monitor, Misfire Monitor, Catalyst Monitor, Evaporative System Monitor

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Clearing the code without fixing the mechanical or electrical issue causes the code to return immediately.
• Disconnecting the battery resets all readiness monitors, causing an automatic failure at an emissions testing station.
• Some vehicles require a specific relearn procedure with a factory-level scan tool after replacing the IMT actuator.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An active P2076 code is an automatic test failure. After repair, the vehicle must complete a full drive cycle to set all OBD readiness monitors before re-testing.
• New York: The NYS DMV emissions inspection includes an OBD-II scan. The presence of a Check Engine Light and code P2076 results in an immediate failure.
• Texas: In counties requiring emissions testing, a P2076 code causes the vehicle to fail the OBD portion of the state inspection.

Most Commonly Affected Vehicles

• Chevrolet Cruze, Sonic (2011-2018) — Extremely common on the 1.8L Ecotec engine due to a weak plastic linkage arm (OEM part 55570283) that breaks or pops off.
• Ford F-150, Mustang, Explorer (2004-2018) — Common on V8 and V6 engines. The IMRC actuator motor fails, or the plastic actuator rod on the back of the manifold snaps (especially 2015-2017 F-150 5.0L).
• Volkswagen Jetta, Golf, Tiguan, Passat (2009-2019) — Caused by heavy carbon buildup on intake valves and runner flaps in direct-injection (TSI/FSI) engines, causing flaps to stick.
• Hyundai Elantra, Sonata, Tucson (2011-2020) — Caused by failure of the Variable Intake System (VIS) actuator motor (OEM Part 28321-2EAA0), which contains the integrated position sensor.
• Dodge/Chrysler Charger, Journey, Avenger, 300 (2007-2014) — A faulty manifold tuning valve or actuator is a known issue on 2.7L and 3.5L V6 engines, requiring actuator assembly replacement.
• BMW 3-Series, 5-Series, X3, X5 (2006-2017) — Points to a problem with the DISA (Differentiated Air Intake) valve. The actuator motor fails or the plastic flap breaks apart, risking engine ingestion.
• Chevrolet Equinox, Malibu, Impala (2010-2017) — Linked to a stuck or carbon-fouled IMT valve in the 2.4L and 3.6L engines.
• Nissan Versa, Sentra, Altima (2007-2019) — Reported due to a malfunctioning intake manifold tuning valve or its integrated sensor.

Manufacturer-Specific Notes

• Chevrolet (GM): The overwhelming cause of P2076 on 1.8L engines is a cheap plastic linkage arm (p/n 55570283) breaking. Dealers quote $500+ for a new manifold, but the arm costs under $40 online. Dorman makes an OE-Fix solution to permanently solve this.
• Volkswagen/Audi: On TSI/FSI engines, this code is a secondary symptom of heavy carbon buildup or manifold failure. VW issued extended warranties (VWP-20-03, VWP-15-03) covering this part for up to 10 years/120,000 miles. Check VIN eligibility at a dealer before paying for repairs.
• Ford: On 5.0L V8s (especially 2015-2017 F-150s), the plastic rod connecting the IMRC actuator to the flaps snaps. The actuator is buried on the back of the intake manifold, making replacement highly labor-intensive.

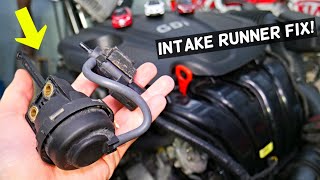

• Hyundai/Kia: The issue is rarely the linkage or flaps. The typical failure is the electronic Variable Intake System (VIS) actuator motor assembly (p/n 28321-2EAA0) burning out, requiring replacement of the complete unit.

Real Owner Stories

2014 Chevy Sonic LT at 98K miles

Check Engine Light with P2076 was on. Owner noticed severe hesitation between 2,000-3,500 RPM during light acceleration.

What they tried:

1. Scanned the system and confirmed the actuator motor responded to commands, ruling out an electrical issue.
2. Visually inspected the intake manifold and found the plastic runner arm fractured at its pivot point.

Outcome: Replaced the broken plastic arm with an aftermarket part. The P2076 code cleared after a 15-mile drive, and hesitation vanished. Total cost: $42 for the part and 0.5 hours of DIY labor.

Lesson: On a GM 1.8L engine, suspect the cheap plastic linkage arm first. A simple, inexpensive arm replacement solves the problem without a full manifold replacement.

2017 Ford F-150 5.0L at 84K miles

Check Engine Light came on with code P2007 (IMRC Stuck Closed). Owner had no power at highway speeds.

What they tried:

1. Took it to the dealer under an extended warranty. The dealer diagnosed a failed IMRC system.
2. Discovered the replacement intake manifold was on national backorder, indicating a common failure.

Outcome: The dealer replaced the entire intake manifold assembly under warranty after a month-long wait. Out-of-warranty owners report quotes over $2,000 for this repair.

Lesson: On Ford 5.0L V8s, the IMRC system is a known weak point. Be prepared for a costly and time-consuming repair if not under warranty.

2009 VW GTI (TSI) at 60K miles

Experienced rough idle and minor misfires. Eventually, a Check Engine Light appeared for the intake runner flap performance.

What they tried:

1. Threw parts at the misfire (plugs/coils) with no success.
2. A diagnostic at an independent shop pointed towards stuck intake runner flaps due to carbon buildup.

Outcome: Paid an independent shop $450 for walnut shell blasting to clean the carbon. The dealership quoted $900. The cleaning resolved the rough idle, misfires, and the code.

Lesson: For direct-injection engines like VW's TSI, P2076 is a symptom of severe carbon buildup. A professional carbon cleaning is the true fix.

2013 Hyundai Santa Fe (120K miles) with P200A code

Check Engine Light with code P200A (Intake Manifold Runner Performance) appeared.

What they tried:

1. Got the code scanned for free at an auto parts store.
2. Called local repair shops and received quotes of $170 for diagnostics alone.

Outcome: Other Hyundai owners confirmed the typical failure is the electronic actuator motor itself, requiring replacement of the entire unit.

Lesson: On modern Hyundais, the P2076/P200A fault is typically the electronic actuator/sensor assembly. Proper diagnosis is key to avoid replacing parts blindly.

How to Prevent This Code From Triggering

• Use Top Tier gasoline (Every fill-up) — Higher concentration of detergents keeps fuel injectors clean, promoting better atomization and slightly reducing the rate of carbon formation from PCV gases.
• Perform an 'Italian Tune-up' (Once a month) — Sustained high-RPM driving increases engine temperatures and airflow velocity, burning off light carbon deposits before they harden and ensuring the IMT valve cycles fully.
• Regular oil changes with high-quality synthetic oil (Per manufacturer's schedule) — Synthetic oils resist breakdown and vaporization at high temperatures, reducing oil deposits from the PCV system that bake onto intake valves.
• Install an oil catch can (GDI engines) (One-time installation) — Intercepts oil-laden vapor from the PCV system before it re-enters the intake tract, drastically reducing carbon buildup on intake valves.

Frequently Asked Questions

Can I fix P2076 myself?

It depends on the cause and your vehicle. Replacing a broken linkage arm on a Chevy Cruze is a fast, $40 DIY repair requiring no tools. Conversely, replacing a buried actuator on a Ford or performing a carbon cleaning on a VW requires professional tools and experience.

My mechanic wants to replace the entire intake manifold. Is that necessary?

Not always, as this is a common upsell. For a Chevy 1.8L, the problem is almost certainly a $40 linkage arm, not a $500 manifold. Always ask if a targeted repair like replacing the actuator or cleaning the valves is possible before agreeing to a full replacement.

What is the worst-case scenario if I ignore the P2076 code?

Ignoring the code causes poor performance, reduced gas mileage, and emissions test failures. The most severe risk is brittle plastic flaps or linkage pieces breaking off and falling into the engine's combustion chamber. This causes catastrophic internal damage requiring a complete engine replacement.

Will a fuel additive or 'Italian tune-up' fix the carbon buildup?

No. On direct-injection engines, fuel is injected directly into the cylinder and never washes over the intake valves to clean them. While spirited driving helps general engine health, it cannot remove hardened carbon deposits physically jamming the intake flaps.

My mechanic replaced the part, but the code came back. What now?

The initial diagnosis was likely incorrect, missing a mechanical issue like carbon buildup. Alternatively, there is an underlying wiring fault, or the vehicle requires a PCM relearn procedure using a professional scan tool to recognize the new part.

What does the intake manifold tuning valve do?

It acts as a traffic controller for air entering the engine. At low RPMs, it closes flaps to create a narrow air path, boosting low-end torque for quicker take-offs. At high RPMs, it opens the flaps to maximize airflow for better high-end horsepower.

Can a dirty throttle body cause a P2076 code?

No, a dirty throttle body rarely causes this specific code. While it causes similar symptoms like rough idle, it triggers different codes (e.g., P2111, P2112). P2076 specifically targets the intake manifold runner flaps located further downstream.

Key Takeaways

• Inspect the plastic intake manifold linkage arm first on 2011-2018 Chevrolet 1.8L engines, as a broken $40 arm is the leading cause of this code.
• Stop driving within 100 miles of a P2076 code to prevent brittle plastic intake flaps from breaking off and destroying the engine.
• Check for extended warranty coverage (like VWP-20-03) before paying for repairs on Volkswagen or Audi vehicles, as intake manifold failures are a known, covered defect.
• Avoid paying $800+ for a full intake manifold replacement by asking your mechanic to test the individual actuator motor and position sensor first.
