P2015 on 2005-2015 Volvo D5 2.4L Diesel: Swirl Flap Actuator Fault Guide

What's Unique About the 2005-2015 Volvo Multiple Models

On the Volvo D5 engine (specifically Euro 4 variants, D5244T4/T5 etc.), the P2015 code is notoriously linked to a specific design weakness. The system uses an electric motor to control the swirl flaps via a short plastic linkage arm (Volvo part #31216460). This arm becomes brittle from constant exposure to engine heat and vibration, frequently breaking or popping off its ball joints, which is the overwhelming cause of this code. Additionally, like many EGR-equipped diesels, these engines are prone to heavy carbon buildup in the intake manifold, which can jam the flaps, putting extra strain on the fragile plastic arm and causing it to fail.

Generation note: This issue is common across multiple Volvo models and generations that use the D5244T-series engine from approximately 2005 onwards, including the P1 platform (C30, S40, V50, C70) and P2/P3 platforms (S60, V70, XC70, S80, XC60, XC90). The fundamental design of the swirl flap actuator system, particularly the plastic link arm, is the weak point across these models. The issue primarily affects Euro 4 versions of the D5 engine; earlier Euro 3 engines do not have swirl flaps, and later Euro 5 engines also omitted them before they reappeared in a different design on Euro 6 engines.

Symptoms You May Notice

• Check Engine Light or "Engine System Service Required" message
• Reduced engine power and poor acceleration
• Vehicle entering 'limp mode', severely restricting speed
• Rough or unstable idle
• Decreased fuel economy
• Slight oil leak from the swirl flap shaft area if the internal seals are worn

Most Likely Causes

1. Broken or Disconnected Swirl Flap Actuator Link Arm 🔴 High Probability The OEM link arm is made of a plastic that becomes brittle with heat cycles and age, leading to fractures or the ball sockets wearing out and popping off. This is the single most common cause for P2015.
   How to confirm: Visually inspect the link arm located on the front/top of the engine. It's a small (approx. 3-inch) black plastic arm connecting a silver actuator motor to the swirl flap rail. Check if it is snapped, cracked, or hanging loose.
   Typical fix: Replace the plastic link arm (PN 31216460). 🎬 Watch this 5-minute video to see a quick link arm fix. Many owners upgrade to a more robust metal aftermarket version to prevent repeat failures.
   Est. part cost: $15-$40
2. Seized or Sticking Swirl Flaps due to Carbon Buildup 🔴 High Probability The EGR (Exhaust Gas Recirculation) system, common in diesel engines of this era, introduces soot into the intake, which mixes with oil vapor from the crankcase ventilation to form a thick tar-like sludge that physically jams the swirl flap mechanism.
   How to confirm: With the actuator link arm disconnected, try to move the swirl flap rail by hand. It should move smoothly with minimal resistance. If it is stiff, gritty, or completely stuck, the flaps are binding due to carbon.
   Typical fix: The intake manifold must be removed for a thorough cleaning of the carbon deposits. In severe cases, the entire intake manifold/swirl flap assembly needs replacement. Some owners opt for a 'swirl flap delete kit' to permanently remove the flaps, which may have emissions implications.
   Est. part cost: $50-$120 for gaskets or a delete kit
3. Worn Swirl Flap Assembly Ball Joint 🟡 Medium Probability The small ball stud on the swirl flap rail that the link arm connects to can wear down over time, becoming oval-shaped. This prevents even a new link arm from staying securely attached, causing it to pop off repeatedly.
   How to confirm: After removing the link arm, inspect the ball stud on the swirl flap rail. If it is visibly worn and not perfectly spherical, it will not hold the new arm securely. A new arm will feel loose or pop off with minimal effort.
   Typical fix: This is difficult to fix without replacing the entire swirl flap assembly (PN 30777650), which is integrated into the intake manifold/valve cover. Some owners have successfully drilled a small hole through the new arm and worn ball stud to secure it with a pin or clip as a temporary measure.
   Est. part cost: $350+ for a new swirl flap assembly
4. Faulty Swirl Flap Actuator Motor ⚪ Low Probability The motor itself is generally reliable but can burn out from the strain of trying to move seized or stiff swirl flaps over a prolonged period.
   How to confirm: If the link arm is intact and the flaps move freely by hand, the motor is the next suspect. With the ignition on, the motor should attempt to cycle or move when the engine is started. A diagnostic scan tool (like Volvo's VIDA) can also be used to command the motor to actuate and check its reported position.
   Typical fix: Replace the swirl flap actuator motor (PN 30756099).
   Est. part cost: $100-$200

Diagnosis Steps

1. Scan the vehicle for fault codes to confirm P2015 is present.
2. Remove the plastic engine cover (it typically pulls off).
3. Locate the swirl flap actuator motor and link arm on the top front of the engine, near the oil filler cap.

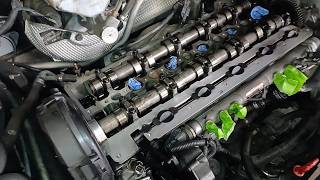

🎬 Watch a video on diagnosing Volvo D5 swirl flap issues.
4. Visually inspect the small plastic link arm (Volvo PN 31216460). Is it broken, cracked, or disconnected from the ball joints on the motor and the flap rail?
5. If the arm is broken or disconnected, this is the most likely cause. Replace the arm and check flap movement.
6. Carefully disconnect the link arm from the swirl flap rail's ball joint.
7. Attempt to move the swirl flap rail by hand. It should pivot back and forth smoothly through its full range of motion.
8. If the rail is stiff, gritty, or stuck, the intake manifold is clogged with carbon and requires cleaning or replacement.
9. If the rail moves freely and the arm is intact, inspect the ball stud for wear. If it appears oval, the entire swirl flap assembly may be needed for a permanent fix.
10. If all mechanical parts seem fine, the problem may be with the actuator motor itself or its wiring. Further testing with a multimeter or advanced scan tool would be needed.

Parts You'll Likely Need

• Swirl Flap Actuator Link Arm (OEM #31216460) — This is the most common failure point. The original plastic part becomes brittle and breaks.
  Trusted brands: Volvo (OEM), Aftermarket (various, often metal from brands like TFixol or unbranded on eBay)
  OEM price range: $25-$40
  Aftermarket price range: $15-$30
• Swirl Flap Assembly / Intake Manifold Top (OEM #30777650) — Required if the swirl flaps are seized, the internal seals are leaking oil, or the actuator ball joint is worn out. This part contains the flaps themselves.
  Trusted brands: Volvo (OEM), Professional Parts Sweden
  OEM price range: $350-$500
  Aftermarket price range: $200-$300
• Swirl Flap Delete Kit — An alternative to cleaning or replacing a failed swirl flap assembly. It removes the flaps entirely to prevent future issues, but may have emissions consequences.
  Trusted brands: X8R, i8
  OEM price range: N/A
  Aftermarket price range: $70-$120
• Intake Manifold Gasket (OEM #30713459) — Required if the intake manifold must be removed for cleaning or replacement of the swirl flap assembly.
  Trusted brands: Volvo (OEM), Elring, Victor Reinz
  OEM price range: $40-$60
  Aftermarket price range: $20-$40
• Swirl Flap Actuator Motor (OEM #30756099) — This part fails less often, but can burn out if it's constantly fighting against seized swirl flaps.
  Trusted brands: Volvo (OEM), Bosch
  OEM price range: $150-$250
  Aftermarket price range: $100-$180

Technical Service Bulletins (TSBs) & Recalls

• No specific, widely documented Volvo Technical Service Bulletin (TSB) for the P2015 code or swirl flap failure was found during research. The issue is typically handled as a standard diagnosis and repair.

Platform-Specific Known Issues

• The plastic swirl flap link arm (PN 31216460) is a known and extremely common point of failure across the entire D5 engine range from this period.
• Heavy carbon buildup in the intake manifold is a frequent underlying cause that leads to the failure of the link arm and actuator motor. This is a labor-intensive cleaning job.
• The ball-stud on the swirl flap assembly itself can wear out, causing even new link arms to pop off. A permanent fix for this requires replacing the entire swirl flap assembly.

Mechanic-Grade Diagnostic Values

• Swirl Flap Actuator Motor Connector Voltage — expected: Approximately 4.8V - 5.0V reference voltage.. Failure: 0V or significantly lower voltage indicates a wiring or ECM issue.
• Swirl Flap Actuator Position (Live Data) — expected: Percentage should change smoothly from near 0% to near 100% when commanded by a scan tool.. Failure: A value of '654%' at rest has been reported in forum posts, indicating a definite fault within the actuator's position sensor. No movement or erratic jumps also indicate a failure.

Hidden / Shadow Codes Worth Checking

• ECM-P201500: This is the Volvo-specific Diagnostic Trouble Code (DTC) for 'Intake Manifold Runner Position Sensor/Switch Circuit Range/Performance'. It corresponds directly to the generic P2015 code. (see via Volvo's official diagnostic software, VIDA (Vehicle Information & Diagnostics for Aftersales).)

Scan Tool Commands That Help

• Volvo VIDA: Swirl Actuator Motor (SAM) Activation / Calibration — Use this bidirectional test to command the actuator motor to move through its range. This helps determine if the motor is functional, separate from the mechanical linkage. It can also be used to perform an adaptation/calibration after replacing the motor or swirl flap assembly. The system also self-calibrates after every 5th engine shutdown.
• Volvo VIDA: Graphing Swirl Movement vs. RPM — This allows a technician to monitor the live position of the swirl flaps in relation to engine speed to see if they are operating as expected under real-world conditions, which can help diagnose intermittent faults.

Wiring & Ground Locations

• Swirl Flap Actuator Connector — On the actuator motor itself, located on the top/front of the engine below the high-pressure fuel lines and near the oil filler cap.. This 5-pin connector provides power, ground, and the position sensor signal to the ECM. Corrosion or damage here can directly cause a P2015 code. Checking for the 5V reference voltage at this connector is a critical electrical diagnostic step.
• Engine Bay Ground Studs — Main engine bay grounds are typically located on the inner fenders/strut towers on both the driver and passenger sides.. A poor engine or chassis ground can cause a variety of electrical issues, including incorrect sensor readings. While not a primary cause for P2015, checking that these grounds are clean and tight is good practice when diagnosing any electrical fault.

Real Owner Repair Stories

• Go-Parts.com V70 Guide, citing common forum experiences (2005-2008 Volvo V70 D5) — P2015 code, new link arm kept popping off.
  ❌ Tried (didn't work) Replacing the broken plastic link arm (PN 31216460).
  ✅ What actually fixed it The final fix was replacing the entire swirl flap assembly (Volvo P/N 30777650). The ball stud on the original assembly's rod was so worn down and oval-shaped that it could no longer securely hold a new link arm.
• Volvo Owners Club Forum user (2007 V70 D5) — Engine service warning, limp mode, actuator arm had fallen off.
  ❌ Tried (didn't work) Replaced swirl flaps and the actuator motor.
  ✅ What actually fixed it The user created a DIY fix by drilling a small hole through the new link arm's socket and the worn ball stud, then securing it with a small pin or wire. This physically prevents the arm from popping off the worn ball stud.
• Volvo Forums user Dabb5ter (2008 V70 D5 (Euro 4) with 247,000 miles) — No throttle response, struggles to rev, blocked DPF. P2015 was present.
  ❌ Tried (didn't work) Initial diagnosis focused only on the broken link arm.
  ✅ What actually fixed it The root cause was more severe: not only had the link arm failed, but the internal rod connecting the flaps together had also snapped. This required removing the valve cover/intake manifold to replace the entire swirl flap assembly. The failure was also linked to a blocked DPF and faulty injectors, highlighting a cascade of related issues.

OEM Part Supersession History

• 8692676 → 31216460 — Design update for the swirl flap link arm.
  Heads up: The earlier arm (8692676) was for early D5 engines. Most vehicles in the 2005-2015 range will use the later 31216460 part. Always verify by VIN or engine number.

Model Year Variations Within This Range

• Pre-2005 (approx.): Euro 3 D5 engines (e.g., 163bhp variants) do not have swirl flaps, so code P2015 is not applicable to them.
• 2005-2010 (approx.): These are primarily Euro 4 D5 engines (e.g., 185bhp D5244T4/T5) and are the most susceptible to the P2015 fault due to the plastic link arm and carbon buildup issues.
• Post-2010 (approx.): Some later Euro 5 D5 engines did not use this swirl flap system, eliminating this specific problem. However, swirl flaps were reintroduced in a different design on later Euro 6 VEA engines, which can have their own unique issues.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Auxiliary Belt and/or Tensioner Failure 🔴 High — Common, especially on unmaintained cars. Early P3 models (2007-2009) were recalled for an updated tensioner design. Failure can occur between 70,000-120,000 miles if not preventatively replaced. (Ref: Recall on early P3 models (2007-2009).)
• ABS/BCM Module Failure 🟠 Medium — Very common on the P2 platform. Internal solder joints on the circuit board crack over time, causing ABS and DSTC warning lights. Typically occurs after 8-12 years.
• Front Suspension Bushing Wear 🟠 Medium — Extremely common wear item on both P2 and P3 platforms. Lower control arm bushings and upper spring seats are frequent failure points, causing clunking noises and poor handling. Can require attention as early as 60,000 miles.
• Leaking Fuel Injector Seals ('Black Death') 🟠 Medium — The copper seals at the base of the injectors can fail, causing a 'chuffing' sound and a buildup of carbon soot around the injector. If not addressed, it can make the injector extremely difficult to remove.
• Faulty Fuel Injectors 🟠 Medium — Injectors can fail, especially on higher mileage engines (100,000+ miles), causing poor starting, rough idle, and smoke. A leak-off test is used for diagnosis.
• Leaking Windscreen (P3 Platform) 🟡 Low — A known factory defect on P3 platform cars (2007+) where improper bonding of the windscreen leads to water leaks into the cabin, often discovered after heavy rain.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used swirl flap actuator motor (PN 30756099) can be a cost-effective choice, as the motor itself is fairly reliable and failures are often secondary to mechanical binding. A complete used intake manifold/swirl flap assembly can also be considered if it comes from a low-mileage donor and the flaps are confirmed to move freely.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a used actuator motor, check for a clean connector with no corrosion.
• For a used intake manifold, manually operate the swirl flap lever. It must move smoothly from stop-to-stop with no grittiness or binding.
• Inspect the ball stud on the used assembly for wear; it should be perfectly round, not oval.
• Look inside the intake ports for signs of excessive carbon buildup. Light soot is normal, but thick, tar-like sludge is a red flag.

OEM-only on this vehicle (don't cheap out):

• While aftermarket intake manifold gaskets are available, using a genuine Volvo gasket (PN 30713459) is often recommended for a guaranteed perfect seal after a labor-intensive job.

Aftermarket brands forum-validated for this vehicle:

• X8R and i8 are well-known brands for swirl flap delete kits.
• Numerous unbranded metal replacement link arms sold on eBay and Amazon are considered a durable upgrade over the OEM plastic part.

Brands owners have reported issues with on this vehicle:

• Avoid using silicone sealant instead of the proper intake manifold gasket, as this has been seen by mechanics and leads to improper sealing and future problems.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.
