OBD-II Code P1681: A Manufacturer-Specific Communication Error

What Does P1681 Mean?

P1681 is a manufacturer-specific code signaling a critical communication breakdown between two or more of your car's computers. Its meaning varies dramatically by make. Most commonly, it indicates the main engine computer (PCM) lost its data link to the instrument cluster. This causes the gauges to die, behave erratically, or go dark. For other manufacturers, this code points to an internal computer fault, an anti-theft system failure, or an incomplete software update.

Technical definition: Because P1681 is a manufacturer-specific (P1) code, its official definition changes depending on your vehicle's make. The most common definitions are: * **Chrysler, Dodge, Jeep:** No Instrument Panel Cluster (I/P) Bus Message Received. * **General Motors (Chevrolet, GMC, Buick):** Driver 5 Line 1 / Control Module Not Programmed / Internal Control Module Throttle Position Performance. * **Ford:** Passive Anti-Theft System (PATS) Transceiver Signal Not Received (often appears as B1681). * **Volkswagen / Audi:** Control Module Programming Not Finished. * **BMW:** Internal Control Module Fault (cross-references with BMW-specific code 2B55). * **Subaru:** Fuel Pump Driver Circuit Malfunction. * **Honda:** A/T FI Signal A Low Input. * **Saab:** Internal ECU fault; no pulse to throttle body. * **Isuzu:** DIS Multimedia CAN Bus Off Error.

Can I Drive With P1681?

Yes, But With Caution. You can drive, but it is dangerous. On Chrysler/Dodge models, the inoperative speedometer is a serious safety hazard. On GM vehicles, the code triggers a 'Reduced Engine Power' mode at any time, leaving you dangerously slow in traffic. For Ford models, the fault suddenly prevents the car from starting, leaving you stranded.

Common Causes

• Failing or Weak Battery (Very Common) — A low-voltage battery is the number one cause of random communication codes. During startup, voltage drops significantly, causing modules to glitch and fail to communicate. Always test the battery before replacing parts.
• Cracked Solder Joints or Internal Cluster Failure (Very Common) — This is an extremely common failure on Chrysler, Dodge, and Jeep vehicles. Thermal cycles cause the solder joints on the back of the instrument cluster's circuit board to crack, interrupting the connection to the main computer.
• Corroded Chassis Ground Connections (Common) — On Ford F-150s, the main ground points for the body and modules in the driver and passenger kick panels rust heavily. This causes a loss of connection for the anti-theft system, triggering a B1681 code and a no-start condition.
• Faulty Aftermarket Alarm or Remote Starter (Common) — Improperly installed aftermarket security systems frequently cause communication codes. Wires poorly spliced into the ignition switch, anti-theft system (PATS), or CAN bus network disrupt normal communication.
• Damaged Wiring or Corroded Connectors (Common) — The communication wires (CAN or PCI bus) connecting the modules chafe, cut, or corrode. Connectors at the back of the instrument cluster or PCM become loose or filled with corrosion, breaking the data link.
• Faulty Powertrain Control Module (PCM) (Less Common) — An internal PCM failure prevents it from communicating with other modules. This is a known hardware failure on certain GM and BMW vehicles.
• Shorted Fan Clutch Wiring (GM Specific) (Rare) — On GM trucks like the Chevrolet Trailblazer, the electronically controlled fan clutch shorts out. This short drops the 5-volt reference circuit shared with the throttle position sensor, causing the PCM to log P1681 and enter Reduced Power Mode.
• Incomplete ECU/PCM Programming (Rare) — On Volkswagen and Audi models, this code indicates a software flash or tuning process failed. Low battery voltage during the procedure or an incompatible tuning tool causes this, resulting in a no-start condition.

Symptoms

• Check Engine Light On — The PCM activates the Malfunction Indicator Lamp (MIL) immediately upon detecting the communication failure.
• Gauges Not Working or Erratic — The speedometer, tachometer, fuel gauge, and temperature gauge drop to zero, freeze, or sweep randomly. This is the hallmark symptom for Chrysler/Dodge vehicles.
• Instrument Cluster Backlighting is Out — The entire dashboard goes dark, making it impossible to see the gauges at night.
• No-Start Condition or Flashing Theft Light — On Ford vehicles, P1681 (B1681) ties to the PATS anti-theft system, causing a no-crank/no-start and a rapidly flashing theft light. On VW models, incomplete programming also prevents starting.
• Reduced Engine Power ('Limp Mode') — On GM models, a P1681 related to the throttle system forces the engine into a low-power safety mode, severely limiting acceleration.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replace Battery — Parts: $150-$300, Labor: $0-$50, ~0.5 hr book time (DIY)
• Re-solder Instrument Cluster Connector — Parts: $5 (solder), Labor: $150-$250 (mail-in service), ~1.5 hr book time (Intermediate)
• Repair PATS System / Clean Grounds (Ford) — Parts: $0-$100, Labor: $150-$300, ~2 hr book time (Professional)
• Replace Powertrain Control Module (PCM) — Parts: $200-$500, Labor: $150-$250, ~1.5 hr book time (Professional)
• Repair or Replace Instrument Cluster — Parts: $250-$900, Labor: $110-$200, ~1.5 hr book time (Professional)

DIY vs Professional

• Replace Battery — Beginner:
• Re-solder Instrument Cluster Connector — Beginner:
• Repair or Replace Instrument Cluster — Beginner:
• Repair PATS System (Ford) — Beginner:
• Replace Powertrain Control Module (PCM) — Beginner:

Used vs. New Parts: Buying Guide

When a used part is worth it: For an older, high-mileage vehicle where budget is the primary concern, a used Instrument Cluster or PCM from a reputable auto recycler is a viable option for DIYers who can handle programming.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the donor vehicle was not scrapped for the same electronic issue.
• Match part numbers exactly, including hardware or software version codes.
• Obtain a short-term warranty (30-90 days) to protect against receiving a dead-on-arrival part.
• Ask for photos to check for corrosion or physical damage before purchasing.

Decision logic:

• If The part requires VIN programming or odometer correction (most PCMs and clusters) → Favor a new or remanufactured part that offers programming services. A used part requires extra cost and tools to program.
• If The vehicle is over 10 years old and the cost of a new part is over 25% of the car's value → A used part is a reasonable gamble, provided you can verify it works or have a return policy.
• If The failure is a known wear item (e.g., Chrysler cluster solder joints) → A remanufactured part is superior to a used one, as the used part likely has the same flaw.

Warranty tradeoff: Used parts from salvage yards typically offer a 30-90 day warranty. Remanufactured parts often come with a 1-year or lifetime warranty. New OEM parts carry a manufacturer's warranty, typically 1-2 years.

Worst-case if a used part fails: $500-$1200 if a used module fails after installation, requiring repeat labor costs and another replacement part.

What Happens If You Wait — Timeline

1. 0-4 weeks: Intermittent symptoms appear. On a Chrysler, gauges flicker once a week. On a Ford, a no-start occurs but resolves by turning the key again. On a GM, 'Limp Mode' appears but clears by restarting the car. (MPG impact: 0%% · Added cost: $0)
2. 1-3 months: The fault becomes frequent. The Chrysler cluster dies for minutes at a time. The Ford requires multiple key cycles to start. The GM enters limp mode daily. The risk of being stranded increases. (MPG impact: 0-5% (due to limp mode or erratic sensor data)% · Added cost: $50-$150 (cost of a tow if stranded))
3. 3-6 months: The intermittent fault becomes a hard fault. The Chrysler cluster is dead permanently. The Ford will not start at all. The GM is stuck in limp mode. Continued driving stresses other electronic components. (MPG impact: 5-25% (limp mode severely limits efficiency)% · Added cost: $200-$500)
4. 6+ months: Catastrophic failure occurs. A persistent 5V reference short on a GM vehicle permanently damages the PCM. An unstable ground causes voltage spikes that damage multiple modules on the communication network. (MPG impact: N/A (Vehicle is likely undrivable)% · Added cost: $700-$2000+)

Cost of Not Fixing It

• Immediate: For Chrysler/Dodge, driving without a working speedometer is a safety hazard. For GM, the vehicle enters 'Limp Mode' at any time, creating a dangerous situation in traffic. For Ford, the primary risk is being stranded. (Added cost: $150+ (traffic ticket), or cost of being towed.)
• 1-6 Months: Continued operation with an underlying electrical issue (like a bad ground or short) causes progressive damage to wiring harnesses or other modules on the same communication network. (Added cost: $200-$800)
• 6+ Months: An intermittent fault becomes a permanent hard failure. On GM vehicles, a persistent 5V reference short causes irreversible PCM failure, requiring a costly replacement. (Added cost: $700-$1500)

Diagnosis Steps

1. Check the Battery and Charging System
   Use a multimeter to check battery voltage. A healthy battery reads 12.6 volts with the engine off and 13.7 to 14.7 volts running. A weak battery is the primary cause of module communication errors. This is the mandatory first step.
   Tools: Multimeter (Beginner)

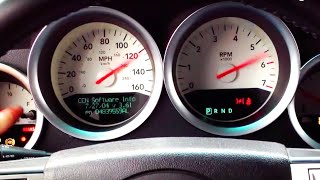

2. Perform an Instrument Cluster Self-Test
   On Chrysler/Dodge vehicles, hold down the trip reset button while turning the key to the 'ON' position. The gauges sweep through their full range. If they move during the test but not while driving, the gauges work and the issue is communication.
   Tools: None (Beginner)
3. Visually Inspect Wiring and Grounds
   Inspect the main connector on the back of the instrument cluster and the PCM connectors for corrosion or pushed-out pins. On Fords, inspect the ground wires in the driver and passenger side kick panels for heavy rust.
   Tools: Flashlight, Trim removal tools (Beginner)
4. Inspect the Instrument Cluster Circuit Board
   For Chrysler/Dodge owners, remove the instrument cluster and disassemble it to access the main circuit board. Closely inspect the solder points where the main connector attaches to the board for fine, circular cracks around the pins.
   Tools: Screwdrivers (Torx), Magnifying glass (Intermediate)
5. Check for Power and Ground at the Cluster
   Using a wiring diagram, identify the power and ground pins on the instrument cluster connector. Use a multimeter to confirm battery voltage on the power pins and good continuity to ground on the ground pins.
   Tools: Multimeter, Vehicle-specific wiring diagram (Intermediate)
6. [Pro Tip] Test the Ford PATS Transceiver Circuit
   For a Ford B1681 no-start, test the 4-pin transceiver ring around the ignition. Pin 1 requires >10 volts with the key on. Pin 2 requires continuity to ground (<5 ohms). Pins 3 (TX) and 4 (RX) require continuity to the PCM (<5 ohms).
   Tools: Multimeter, Wiring diagram (Advanced)
7. [Pro Tip] Test the GM 5-Volt Reference Circuit
   For GM vehicles in Reduced Power Mode, back-probe the 5V reference wire at the TPS sensor. If voltage is below 5.0 volts, unplug sensors sharing the circuit (e.g., fan clutch, A/C pressure sensor) one by one. When voltage jumps back to 5.0V, the unplugged sensor is shorted.
   Tools: Multimeter, Wiring diagram (Advanced)
8. Test the Communication Bus Wires (Resistance)
   Disconnect the battery. At the OBD-II port, measure resistance between Pin 6 (CAN-H) and Pin 14 (CAN-L). A healthy bus reads 60 Ohms. A reading of 120 Ohms indicates an open circuit. Near 0 Ohms indicates the wires are shorted together.
   Tools: Multimeter, Wiring diagram (Advanced)
9. Test the Communication Bus Wires (Voltage)
   Reconnect the battery and turn the key 'ON'. Measure voltage between Pin 6 (CAN-H) and ground (approx 2.5-3.0V), and Pin 14 (CAN-L) and ground (approx 2.0-2.5V). For older Chrysler PCI buses, use an oscilloscope on Pin 2 to verify 0-7.5V data pulses.
   Tools: Multimeter, Oscilloscope (for PCI bus) (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• Engine Coolant Temp: 175-205°F (80-96°C) (Engine at normal operating temperature.)
• RPM: 0 (Ford) or 1200-2500 (Chrysler/GM) (Code sets at key-on (Ford PATS) or during steady-state driving (Chrysler/GM).)
• Engine Load: 20-50% (Light to moderate load during cruise conditions when a module is expected to actively communicate.)
• Vehicle Speed: 0 mph (Ford) or 30-60 mph (Chrysler/GM) (Fault occurs at startup/standstill (Ford) or while driving at city or highway speeds (Chrysler/GM).)

Related Codes

• U-codes (e.g., U0155) — U0155 means 'Lost Communication With Instrument Panel Cluster Control Module.' Seeing U0155 with P1681 on a Chrysler confirms a cluster/wiring fault. On a GM, P1681 points to the PCM while U0155 points to the cluster, indicating a complex network issue.
• P1684 — On Chrysler vehicles, this code means 'Battery Has Been Disconnected Within Last 50 Starts.' It appears alongside P1681 if the battery was recently replaced or died, which is a primary cause of communication glitches.
• P2135 — On GM vehicles, P2135 indicates a disagreement between the throttle body's sensors. P1681 on these cars indicates the PCM's internal throttle control circuitry failed. If you see P1681 with P2135, the PCM is the primary suspect.
• P1260 (Ford) — On Ford vehicles, P1260 means 'Theft Detected - Vehicle Immobilized.' This code is set by the PCM when the instrument cluster reports a PATS anti-theft problem (like B1681). P1260 is a result of the PATS failure, not the cause.

Climate & Environmental Factors

• Extreme Temperature Fluctuations: This is the primary driver of instrument cluster solder joint failure. Repeated heating and cooling cycles cause the circuit board and solder to expand and contract at different rates, fatiguing the solder until it cracks.
• High Humidity / Road Salt ('Rust Belt'): In regions that use road salt, chassis ground points are highly susceptible to corrosion. This is a leading cause of the Ford B1681 code, as the ground for the PATS system in the kick panel rusts away.

How to Talk to a Mechanic About This Code

Say this: "I have a P1681 code and I'd like to schedule a diagnostic. For my [Chrysler/Dodge], the gauges are intermittent, so please check for communication loss at the cluster. For my [Ford], it's a no-start with a flashing theft light, so please inspect the kick panel grounds before replacing parts. For my [GM], it's in reduced power mode, so please test the 5-volt reference circuit before condemning the PCM."

This signals you've done research on the specific failure for your vehicle's make. It directs the technician toward the most likely, and often cheapest, fixes first, preventing them from immediately quoting an expensive module replacement.

Avoid saying:

• 'My check engine light is on, can you just fix it?'
• 'I think I need a new computer.'
• 'Just do whatever you think is best.'

Questions to ask before authorizing the repair:

• What were the results of the [cluster communication test / ground inspection / 5-volt reference test]?
• Can you show me the [cracked solder joints / corroded ground wire / shorted component]?
• If the module needs to be replaced, is programming included in the quote?
• What is the warranty on this specific repair and the parts?

Where to Take It: Dealer vs Independent vs Chain

• Dealer:
  Best for: Vehicles under warranty., Complex module replacement that requires proprietary software for programming (e.g., VW, BMW)., Confirmed PCM failure requiring a new, VIN-programmed unit.
  Downsides: Highest labor rates, often 1.5-2x an independent shop., Defaults to replacing a whole assembly (e.g., new cluster for $1200) when a repair is possible (e.g., re-solder for $200). (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit for most P1681 scenarios. An independent shop with strong electrical diagnostic skills pinpoints the common causes (bad grounds, wiring, solder joints) more cost-effectively than a dealer.
  Best for: Out-of-warranty vehicles where cost is a factor., Diagnosing common, well-documented P1681 faults (Chrysler cluster, Ford grounds)., Shops that specialize in automotive electrical diagnosis.
  Downsides: Quality and expertise vary; look for ASE certifications and good reviews., May lack the latest tools for programming modules on very new or high-end European cars. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID for diagnosis and repair. P1681 is a complex diagnostic code requiring more than a simple code read. A chain shop is highly likely to misdiagnose the issue or recommend unnecessary, expensive part replacements.
  Best for: Free or low-cost initial code scan., Battery testing and replacement.
  Downsides: Technicians lack the specialized diagnostic training for complex communication faults., Business model encourages replacing parts based on the code alone, which guarantees misdiagnosis with P1681. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 40-50% of the car's private-party value, pause and reconsider the repair. For older, high-mileage cars, the threshold should be lower.

• Car worth $3000, fix is $1500: Walk away. The repair cost is 50% of the car's value, and a costly PCM or cluster replacement on an older car is rarely a good investment.
• Car worth $10000, fix is $1200: Fix it. A $1,200 PCM replacement is well below the 50% threshold and is a reasonable cost to keep a more valuable vehicle on the road.
• Car worth $4500, fix is $250: Fix it. If the issue is a common one like a corroded ground or a mail-in cluster repair, the cost is low and absolutely worth it.

What Scan Tool You Need for This Code

Minimum: A scanner that reads manufacturer-specific codes (not just generic P0 codes) and displays live data. A basic $20 code reader is not sufficient for this code.

P1681 has different meanings for Ford, GM, and Chrysler. A generic reader won't tell you the specific definition for your car. You need to see manufacturer-level codes and access data from the Transmission or Body Control Modules.

Budget: BlueDriver Bluetooth Pro (~$100) — Connects to your smartphone and reads manufacturer-specific codes for P1681. It provides freeze-frame data and graphs live data, useful for spotting communication dropouts.

Mid-range: Autel MaxiCOM MK808S / Foxwell NT510 Elite (~$150-400) — These offer bi-directional control. This is a critical feature for P1681, allowing you to command a cluster self-test on a Chrysler, or activate components on the 5V reference circuit for a GM, greatly speeding up diagnosis.

Professional: Autel MaxiCOM MK906BT / Launch X431 Series (~$500-1200) — Provides full, professional-level diagnostics. If the fix requires replacing and programming a new PCM or instrument cluster, these tools have the coding and programming capabilities to do so.

Rent vs buy: For a one-time diagnosis, auto parts stores read codes for free. However, their basic scanners may not provide the necessary detail for P1681. If you plan to diagnose and repair the issue yourself, buying a budget-level scanner that reads manufacturer codes is a worthwhile investment.

How to Clear the Code After You Fix It

1. Fix the underlying mechanical or electrical fault.
2. Use an OBD-II scan tool to clear the P1681 and any related fault codes.
3. Perform a complete OBD-II drive cycle to allow readiness monitors to run.

Drive cycle (~30 minutes): A general drive cycle involves: 1) A cold start after the vehicle sits for 8+ hours. 2) Idle for 2-3 minutes with electrical loads on. 3) Drive for 15-20 minutes with a mix of stop-and-go traffic. 4) Perform 5-10 minutes of steady driving at highway speeds (55-60 mph). 5) Allow the vehicle to cool down.

Readiness monitors affected: Comprehensive Component Monitor, Misfire Monitor

Before emissions retest: drive at least 100 miles to fully set monitors.

Watch out for:

• Clearing the code without fixing the root cause results in the code returning immediately.
• Disconnecting the battery clears the code but resets all readiness monitors, causing an automatic emissions test failure.
• Failing to complete the full drive cycle before a smog check results in a 'Not Ready' failure.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An illuminated Check Engine Light is an automatic failure of the Smog Check. After repairs, the vehicle must be driven through a complete drive cycle to set the readiness monitors.
• New York: A vehicle fails the NYVIP3 OBD-II inspection if the Check Engine Light is on. 2001 and newer vehicles fail if more than one monitor is 'Not Ready'.
• Texas: In counties requiring an emissions test, an active Check Engine Light is an automatic failure. Clearing the code just before the test leads to failure due to unset readiness monitors.

Most Commonly Affected Vehicles

• Chrysler Town & Country (1998-2007) — Extremely common for solder joint failure on the instrument cluster circuit board, causing intermittent gauges and P1681. 2001-2003 models are notorious for this.
• Dodge Grand Caravan (1998-2007) — Shares the same faulty instrument cluster design as the Chrysler Town & Country, leading to widespread P1681 issues from cracked solder joints.
• Dodge Neon (2000-2005) — Frequently experiences P1681 due to loss of communication with the instrument cluster, often from the same solder joint issue as the minivans.
• Ford F-150 / Explorer (2004-2008) — Sets a B1681 code, 'PATS Transceiver Signal Not Received,' causing a no-start. Common causes are corroded ground wires in the kick panels or poor wiring from aftermarket remote starters.
• Chevrolet Trailblazer / GMC Envoy (2002-2009) — Sets P1681 with a 'Driver 5 Line 1' definition, pointing to an internal PCM fault and causing 'Reduced Engine Power' mode. A shorted electronic fan clutch is a known cause.
• Volkswagen Jetta, Golf, GTI (2002-2010) — Sets P1681 for 'Control Module Programming Not Finished.' This happens after a failed ECU tuning attempt or from low battery voltage during programming. Re-flashing the ECU is the typical fix.
• BMW 3-Series, M3 (E90, E92) (2006-2013) — Triggers code 2B55, which cross-references to P1681, indicating an 'Internal Control Module Fault.' The recommended first step is a DME software update; if that fails, the DME requires replacement.
• Saab 9-3 (2003-2011) — The Trionic 8 (T8) ECU is mounted directly to the hot engine, causing it to overheat and fail internally, logging a P1681. Relocating the ECU is a common preventative measure.

Manufacturer-Specific Notes

• Chrysler/Dodge/Jeep: The cause is almost always physical: bad solder joints on the instrument cluster's main connector. The digital odometer display often still works even when the analog gauges are dead.
• General Motors: P1681 usually indicates an internal failure of the PCM, often related to the 5-volt reference circuit or the throttle control driver. This frequently puts the vehicle into 'Reduced Engine Power' mode.
• Ford: The code is almost always a B1681 and relates to the PATS anti-theft system. Before replacing parts, check for corroded ground wires in the kick panels and look for poor wiring splices from aftermarket remote starters.
• Volkswagen/Audi: This code means an ECU programming or flashing process was not completed successfully. The fix is to re-flash the ECU with a valid file using a reliable tool.
• BMW: P1681 is a generic cross-reference for the BMW-specific fault code 2B55, which means 'Internal Control Module Fault'. The recommended fix is to first attempt a software update of the DME, and if that fails, replace the DME.
• Saab: On 2.0T models with the T8 ECU, the engine computer is mounted on the hot engine, causing it to overheat and fail internally. Relocating the ECU away from the engine is a common preventative measure.

Real Owner Stories

2006 Ford F-150 with ~150K miles

Truck intermittently cranked but would not start, with the red anti-theft light flashing rapidly. The scanner showed code B1681.

What they tried:

1. Replaced the Fuel Pump Driver Module (FPDM) as a precaution, but it didn't fix the no-start.
2. Replaced the PATS transceiver ring around the ignition cylinder, which also failed to solve the problem.
3. Inspected wiring and found severe rust on the main ground points in the passenger and driver side kick panels.

Outcome: The ground bolts were so corroded the metal broke away. The owner relocated the ground wires to a clean spot on the chassis. The truck started immediately and the B1681 code resolved. The total cost was $0 in parts.

Lesson: On Ford trucks with a B1681 no-start, always inspect the ground connections in the kick panels for corrosion before replacing expensive parts like the PATS transceiver or PCM.

2005 Dodge Grand Caravan with 180K miles

While driving, all gauges suddenly dropped to zero and the instrument cluster went dark. The Check Engine Light illuminated with code P1681.

What they tried:

1. Tested the battery and alternator, but both passed.
2. Performed the instrument cluster self-test (holding the trip button while turning the key). The gauges swept correctly, proving the gauges themselves were functional.
3. Removed the instrument cluster and inspected the main circuit board.

Outcome: Found hairline cracks in the solder around the pins of the main connector. The owner re-soldered the pins with a basic soldering iron. The gauges worked perfectly and the P1681 code did not return. The fix cost less than $10.

Lesson: For intermittent gauge failure on 1998-2007 Chrysler/Dodge minivans, the cause is cracked solder joints on the cluster. This is a common DIY repair or mail-in service.

2007 Chevy Trailblazer with 115K miles

The vehicle suddenly went into 'Reduced Engine Power' mode while driving. The Check Engine Light was on with code P1681.

What they tried:

1. A mechanic suspected a faulty throttle body, as this is a common cause of limp mode.
2. Further diagnosis determined the issue was an internal PCM fault related to the throttle control circuit.
3. A technician tested the 5-volt reference circuit for shorts before replacing the expensive PCM.

Outcome: The 5-volt reference circuit was shorted to ground. By unplugging sensors one-by-one, they discovered the electronically controlled fan clutch had an internal short. Replacing the fan clutch restored the 5V reference, cleared the P1681, and fixed the 'Reduced Power' mode.

Lesson: On GM trucks, P1681 points to a PCM fault, but external components damage the PCM. Always test the 5-volt reference circuit for shorts by unplugging shared sensors (like the fan clutch) before condemning the PCM.

How to Prevent This Code From Triggering

• Perform regular battery maintenance (Every 6 months) — Clean battery terminals of corrosion and ensure connections are tight. A weak connection causes voltage drops that trigger random communication faults like P1681.
• Inspect and clean main chassis grounds (Every 1-2 years, especially in the Rust Belt) — Key ground points rust, increasing resistance and causing intermittent electrical failures. Cleaning them to bare metal and applying dielectric grease prevents this.
• Use a battery maintainer during long storage (Any time vehicle sits for more than 2-3 weeks) — Prevents the battery from discharging to a low voltage state, which is a primary cause of module communication glitches upon startup.
• Relocate the ECU on susceptible vehicles (Saab 9-3) (Once, as a preventative upgrade) — On Saab 9-3s, the computer is mounted to the hot engine, causing heat-related failures. A relocation kit moves it to a cooler location, preventing codes like P1681.
• Avoid installing cheap, poorly-wired aftermarket electronics (During vehicle ownership) — Improperly spliced remote starters and alarms are a major cause of PATS and communication bus errors. Ensure aftermarket electronics are installed professionally with soldered connections.

Frequently Asked Questions

Can I just reset the code and keep driving?

You can try resetting it by disconnecting the battery for 30 minutes. Sometimes this resolves a temporary glitch caused by low voltage. However, if the code and symptoms return, you have a hard fault that requires proper diagnosis and repair.

Is it expensive to fix P1681?

It depends entirely on the cause. A weak battery or corroded ground wire costs under $250 to fix, while a mail-in instrument cluster repair service runs $150-$250. However, a full module replacement at a shop can exceed $1,000.

What are the most common misdiagnosis mistakes for P1681?

A common mistake is replacing expensive components before checking the basics, like replacing a GM throttle body when the PCM is the real issue. For Ford, the PATS transceiver is often blamed when the true cause is a simple corroded ground wire in the kick panel. Always rule out battery, wiring, and ground issues before condemning an expensive module.

My car has an aftermarket remote starter and now shows P1681. Are they related?

Yes, aftermarket alarms and remote starters are a known cause of this code, especially on Ford vehicles with the PATS system. Improperly tapped ignition or communication wires disrupt signals between modules, leading to communication errors and no-start conditions. Inspecting the wiring around the steering column for poor-quality splices is a critical diagnostic step.

Why did my gauges stop working but the odometer and warning lights still work?

The digital displays (odometer) and simple warning lights use different, simpler circuits than the analog gauges. The P1681 communication failure specifically affects the data stream from the PCM that tells the speedometer and tachometer what to read. This is why the analog gauges die while the digital odometer remains illuminated.

Can I replace the instrument cluster myself?

Yes, removing and replacing an instrument cluster is a manageable DIY job requiring basic hand tools. However, the new cluster usually requires professional programming by a dealer or specialized shop to display the correct mileage and sync with the anti-theft system. Failure to program it causes a no-start condition or incorrect mileage display.

What is the difference between repairing my cluster and buying a new one?

Repairing your original cluster (e.g., resoldering the joints) is cheaper and avoids the need for mileage programming since your original data is retained. A new or remanufactured cluster costs significantly more but includes all new components and a longer warranty. Mail-in repair services offer the best balance of cost and reliability.

My mechanic says the PCI Bus is down. What does that mean?

The PCI Bus is the single-wire communication network used in many 1998-2007 Chrysler, Dodge, and Jeep vehicles. If the bus is 'down,' a short or open circuit prevents modules like the instrument cluster and PCM from communicating. A diagnostic scope will show a flat line instead of the expected 7.5-volt data signal.

Key Takeaways

• P1681 is a manufacturer-specific code, meaning it signals a dead instrument cluster on a 2005 Dodge, a failed PCM on a 2007 Chevy, or an anti-theft lockout on a 2006 Ford.
• Test your battery voltage first, as a drop below 12.4 volts during startup is the number one cause of false P1681 communication glitches across all makes.
• For 1998-2007 Chrysler and Dodge minivans, fix P1681 by removing the instrument cluster and resoldering the cracked joints on the main circuit board connector.
• On GM trucks like the Chevy Trailblazer, P1681 triggers 'Reduced Engine Power' mode and often requires a $700+ PCM replacement, but always test the 5-volt reference circuit for a shorted fan clutch first.
• If a Ford F-150 cranks but won't start with a flashing theft light and code B1681, clean the rusted chassis ground bolts in the driver and passenger kick panels before buying any parts.
